Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10
Meter
15 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

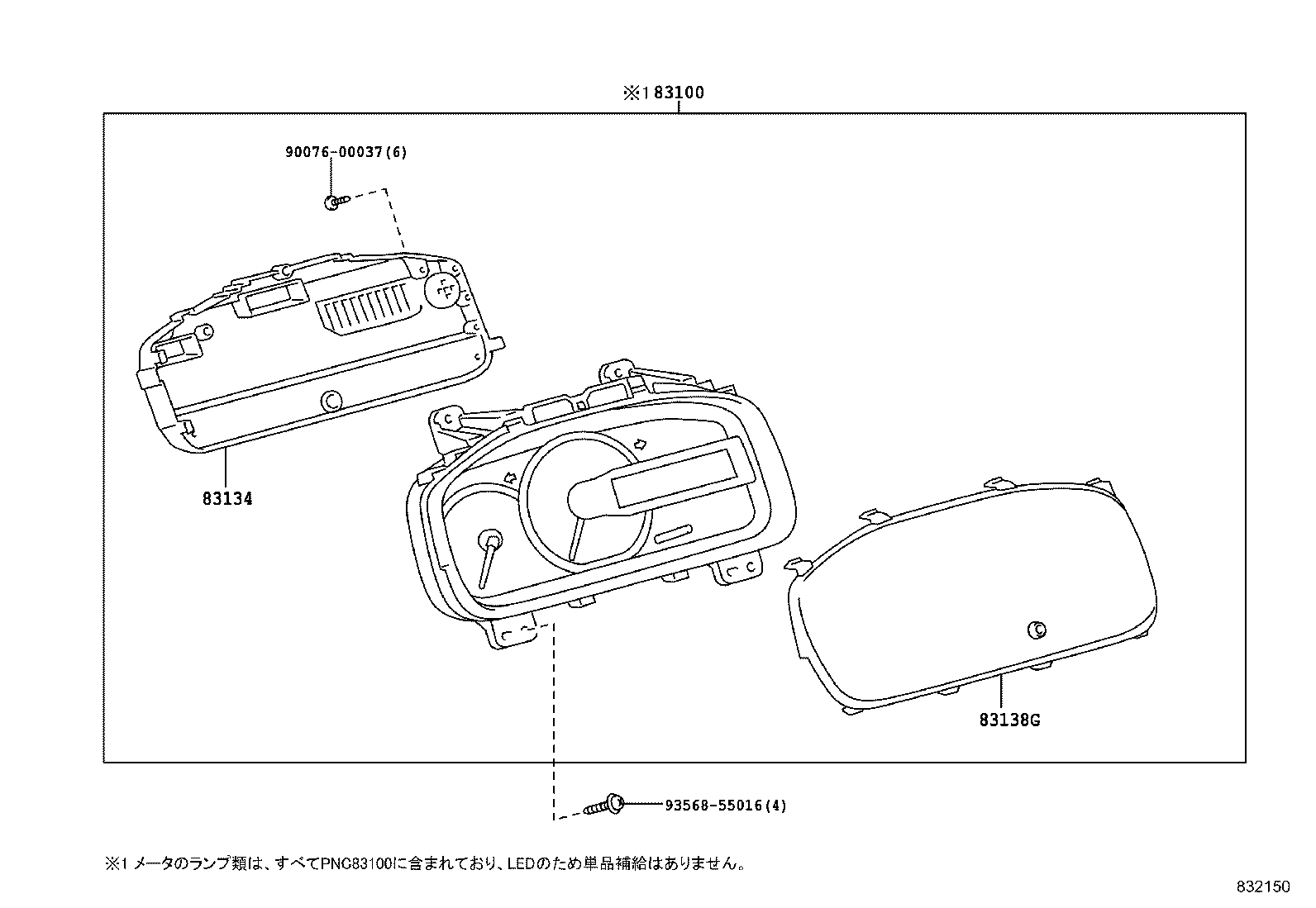

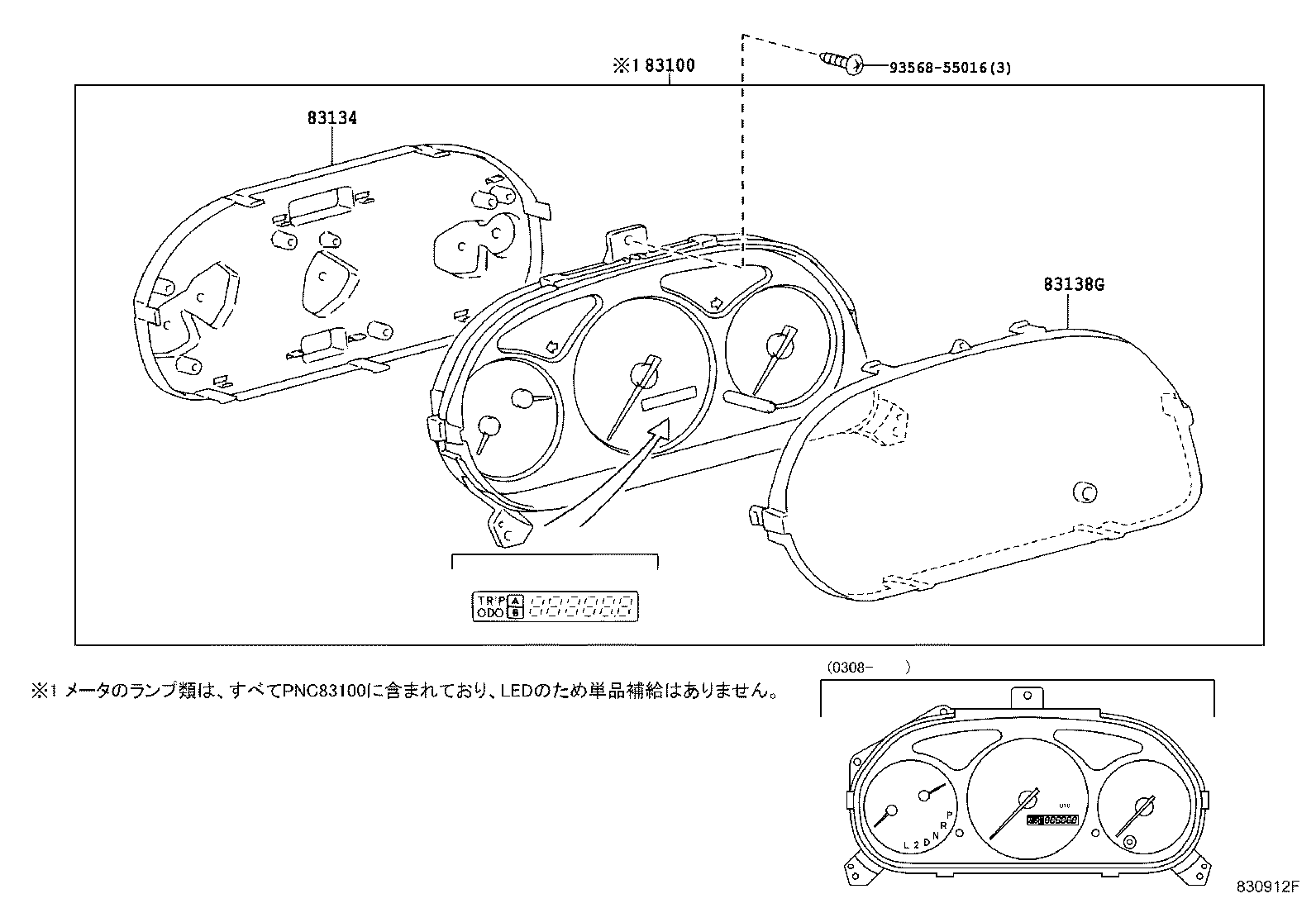

| 83100 | Meter Assy, Combination |

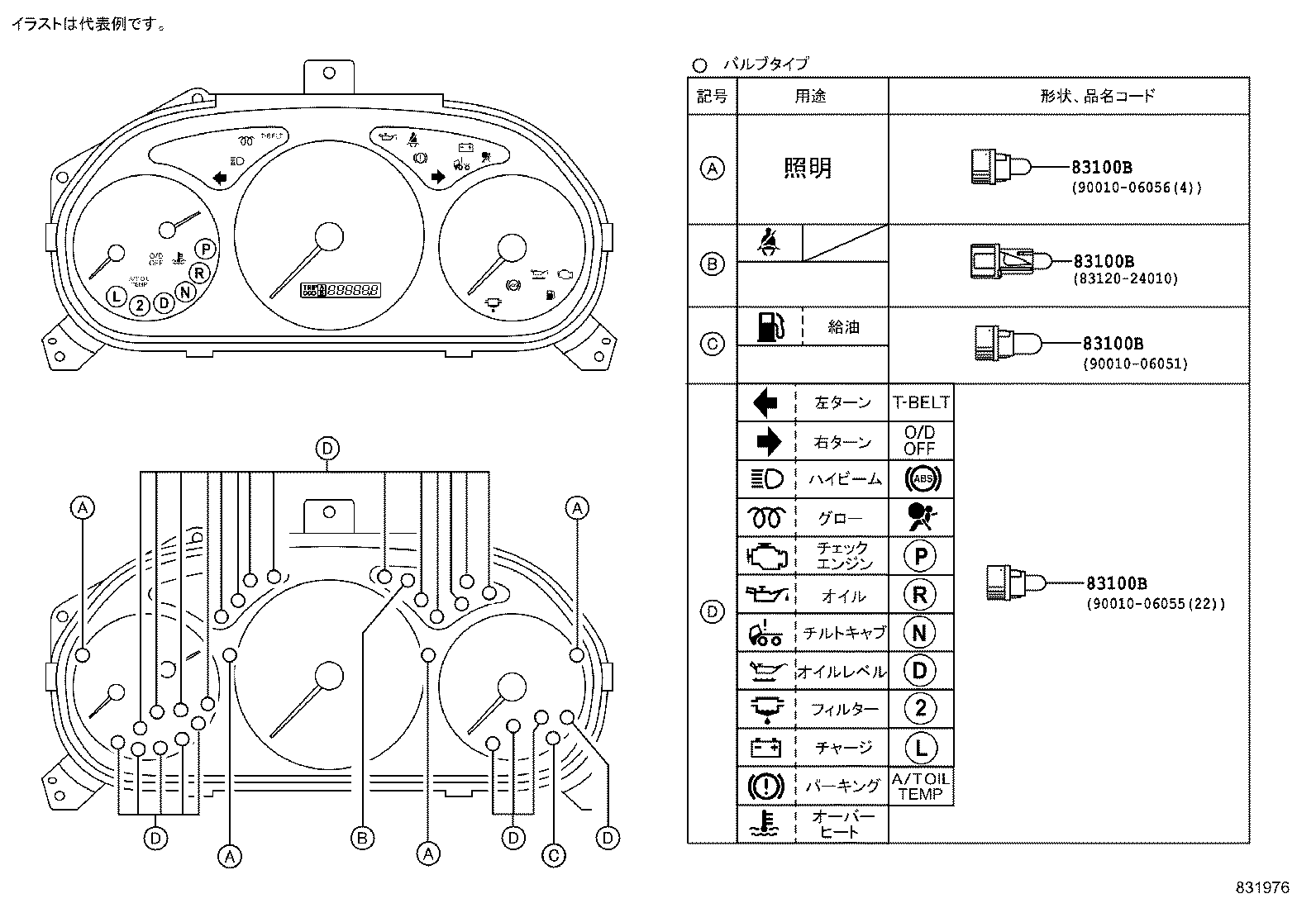

| 83100B | Bulb, Combination Meter, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83149 | Plate, Meter Circuit |
| 83159B | Relay Assy, Meter |

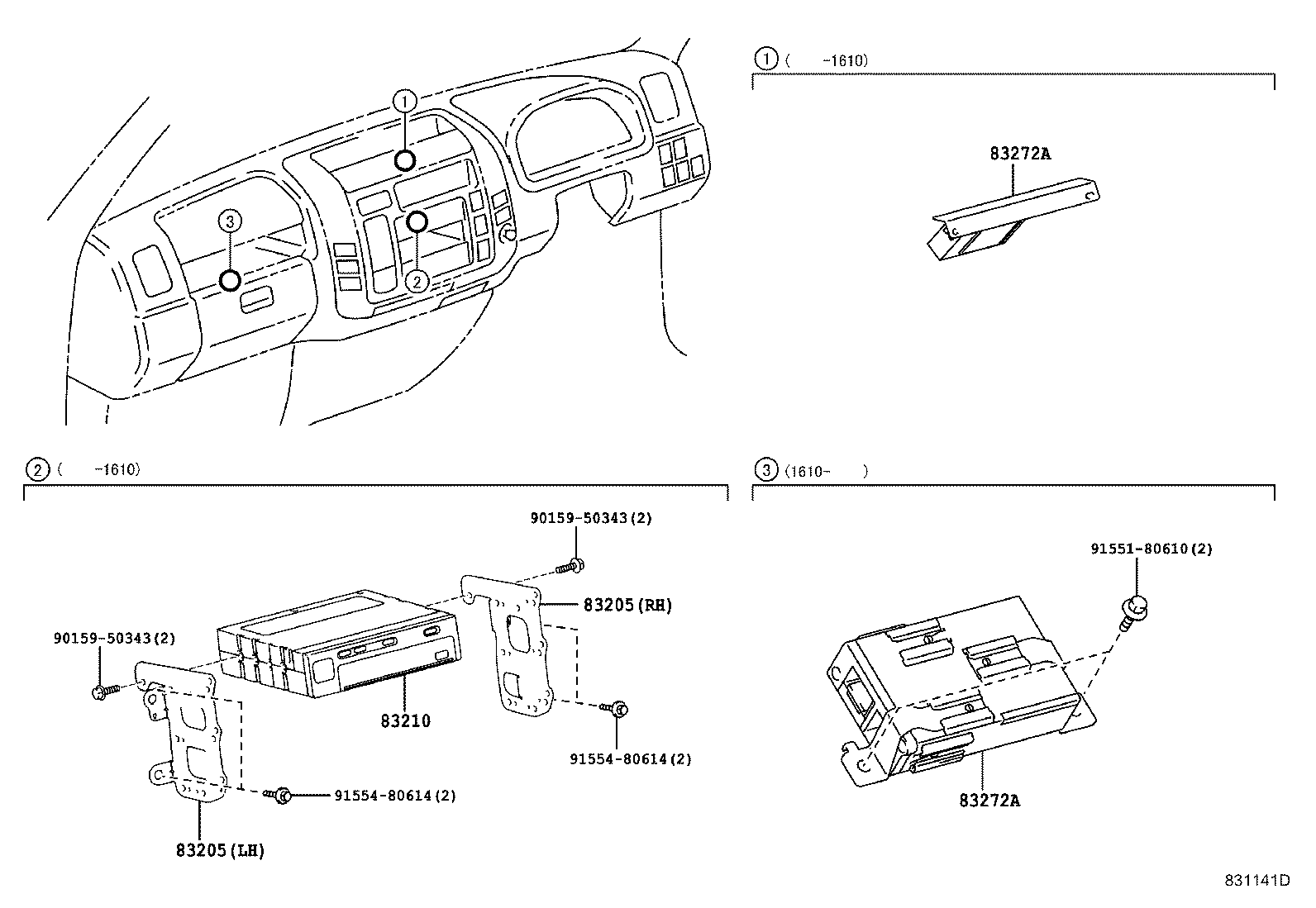

| 83205 | Bracket, Sub-assy, Tachograph |
| 83210 | Tachograph Assy |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83272A | Converter, Pulse |
| 83293 | Computer, Total Counter Module |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
