Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

157 part groups · 20 illustrations

Illustrations

844209F 2001-07 → 2004-08

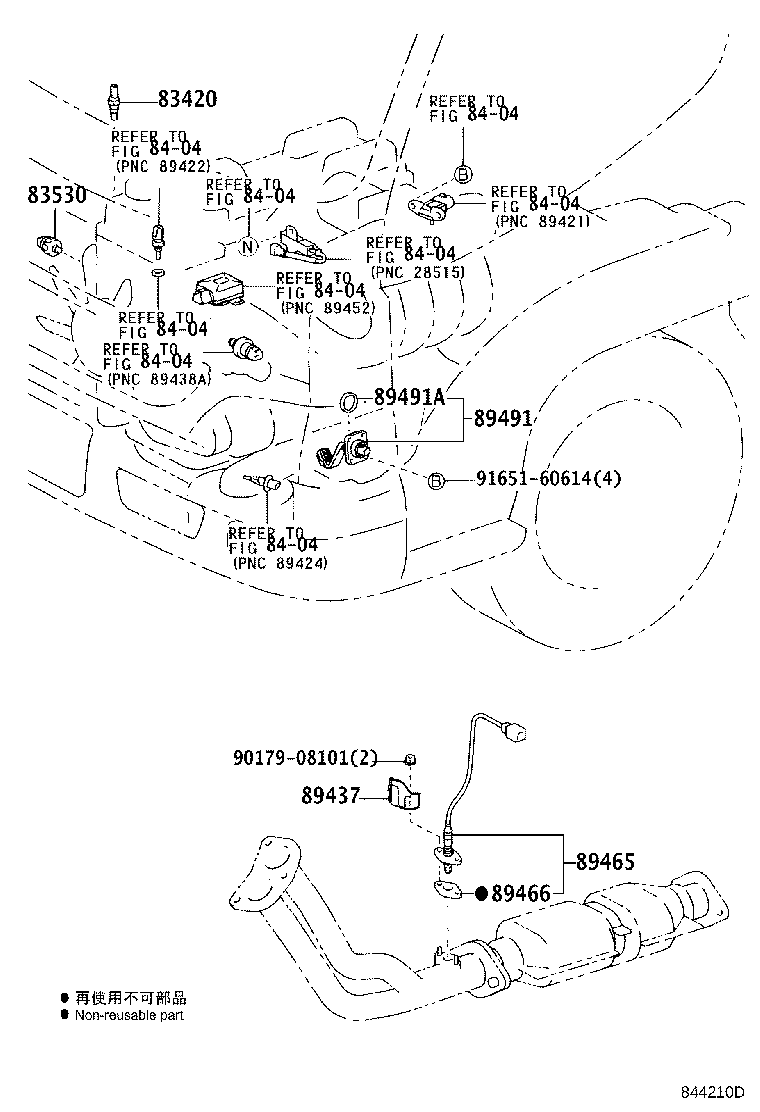

844210D 2001-07 → 2007-08

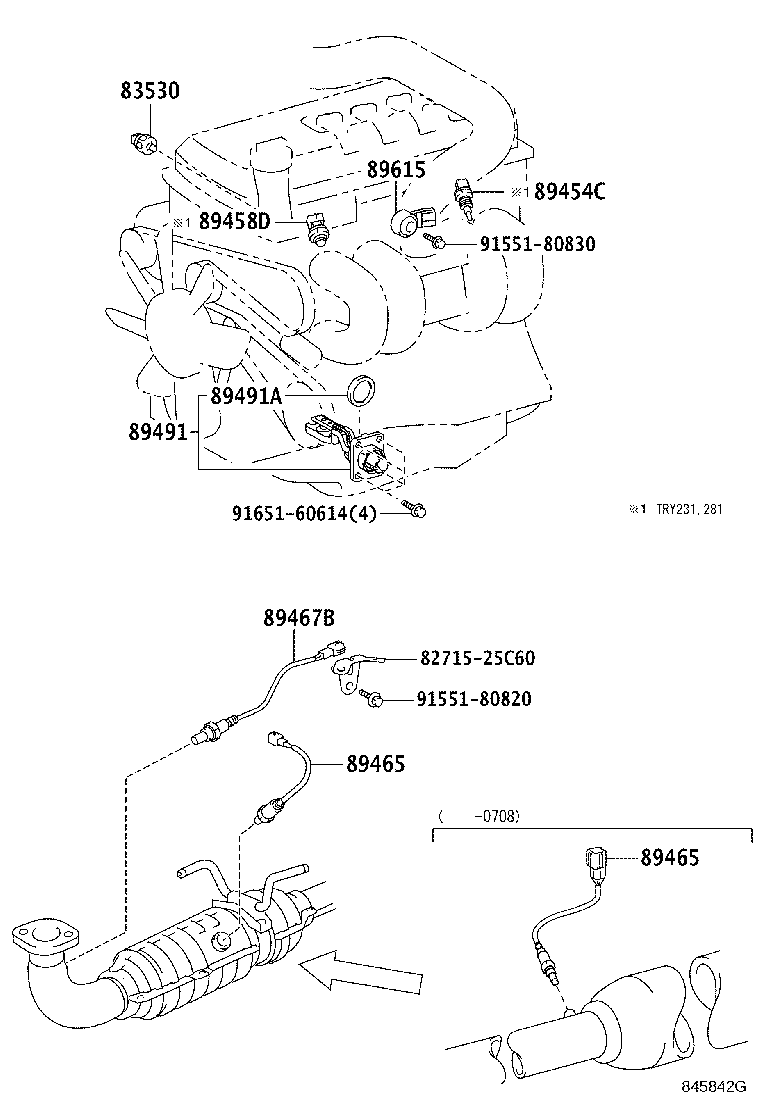

845842G 2003-08 → —

846537 2004-08 → 2007-08

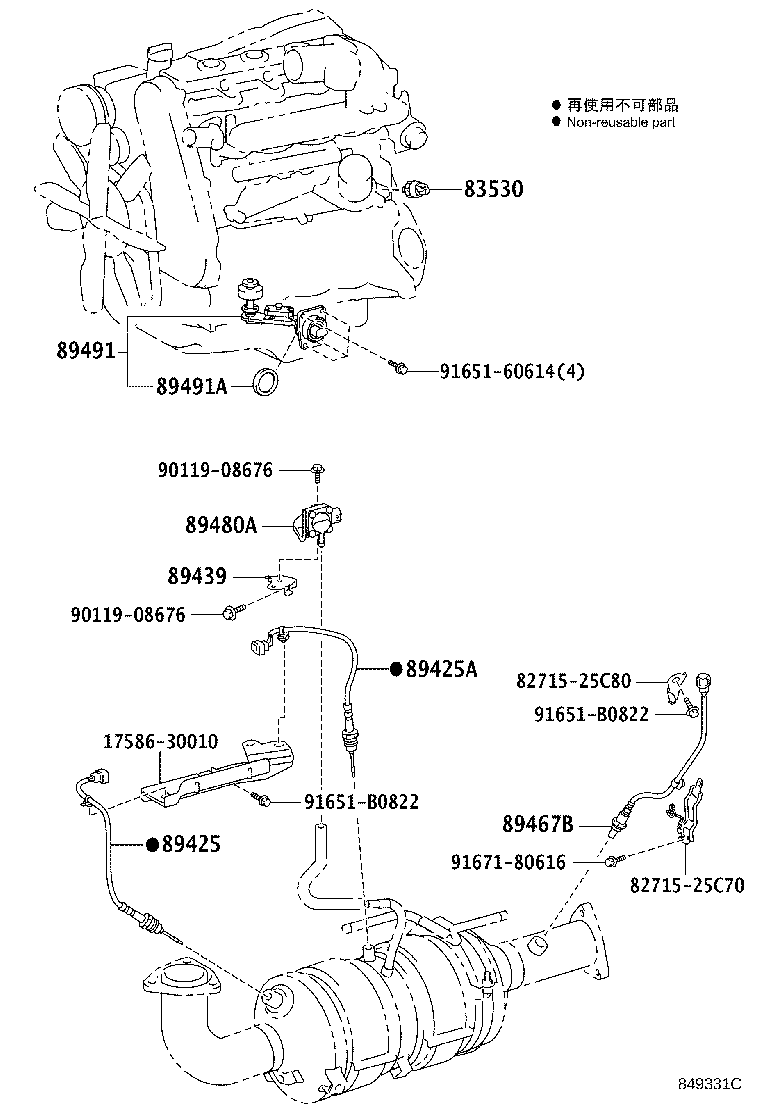

849331C 2007-09 → 2010-08

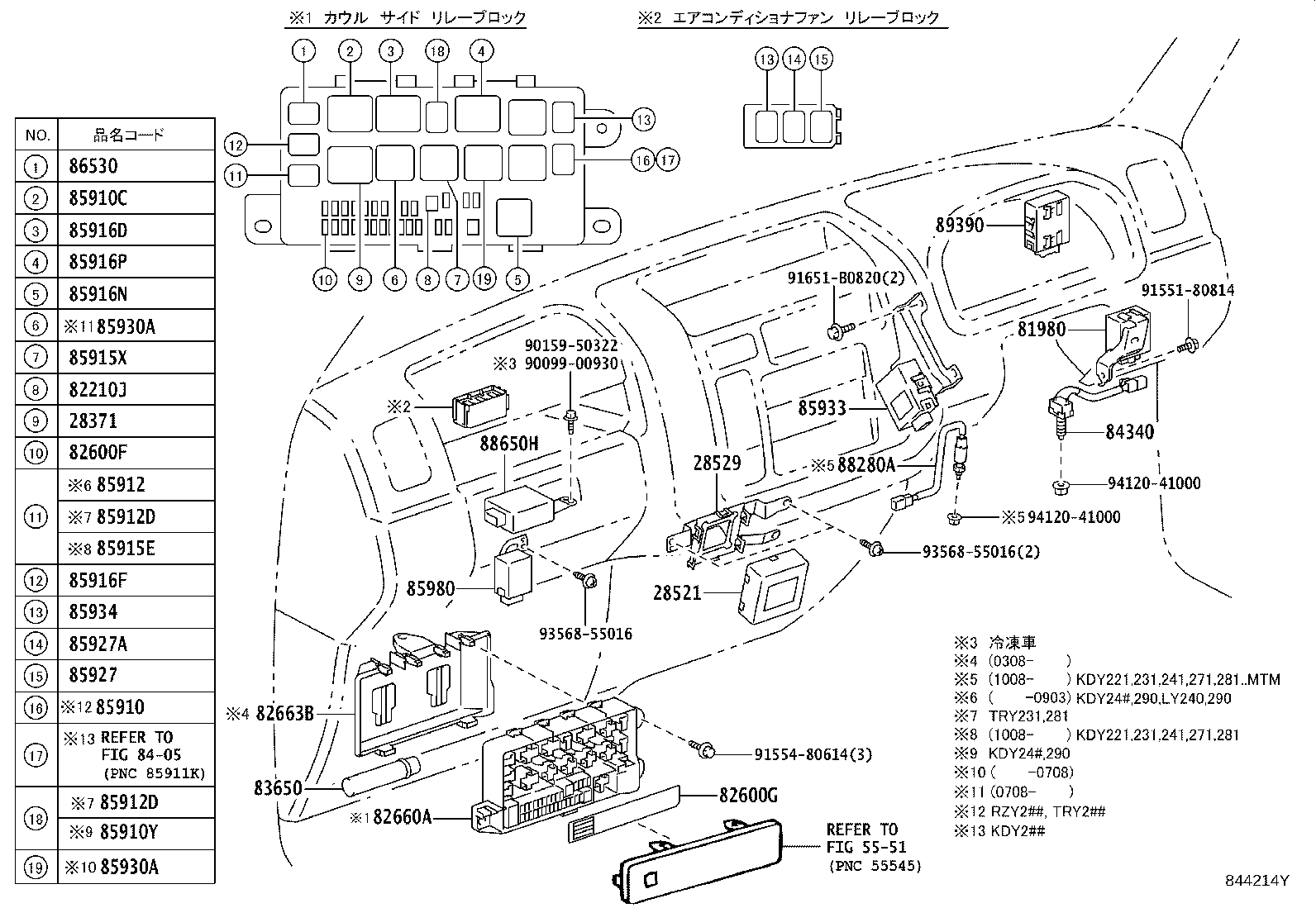

844214Y 2001-07 → 2016-10

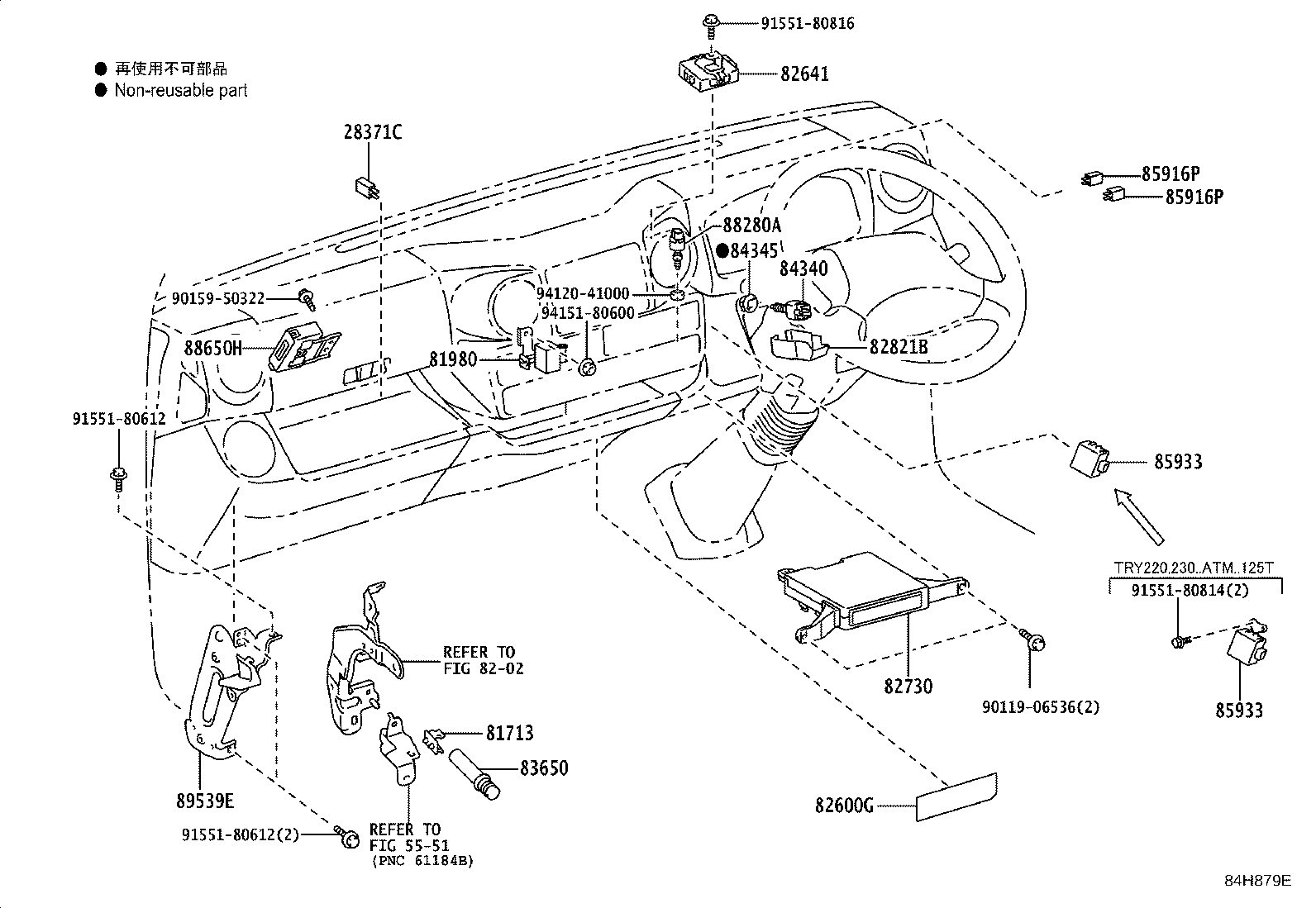

84H879E 2016-10 → —

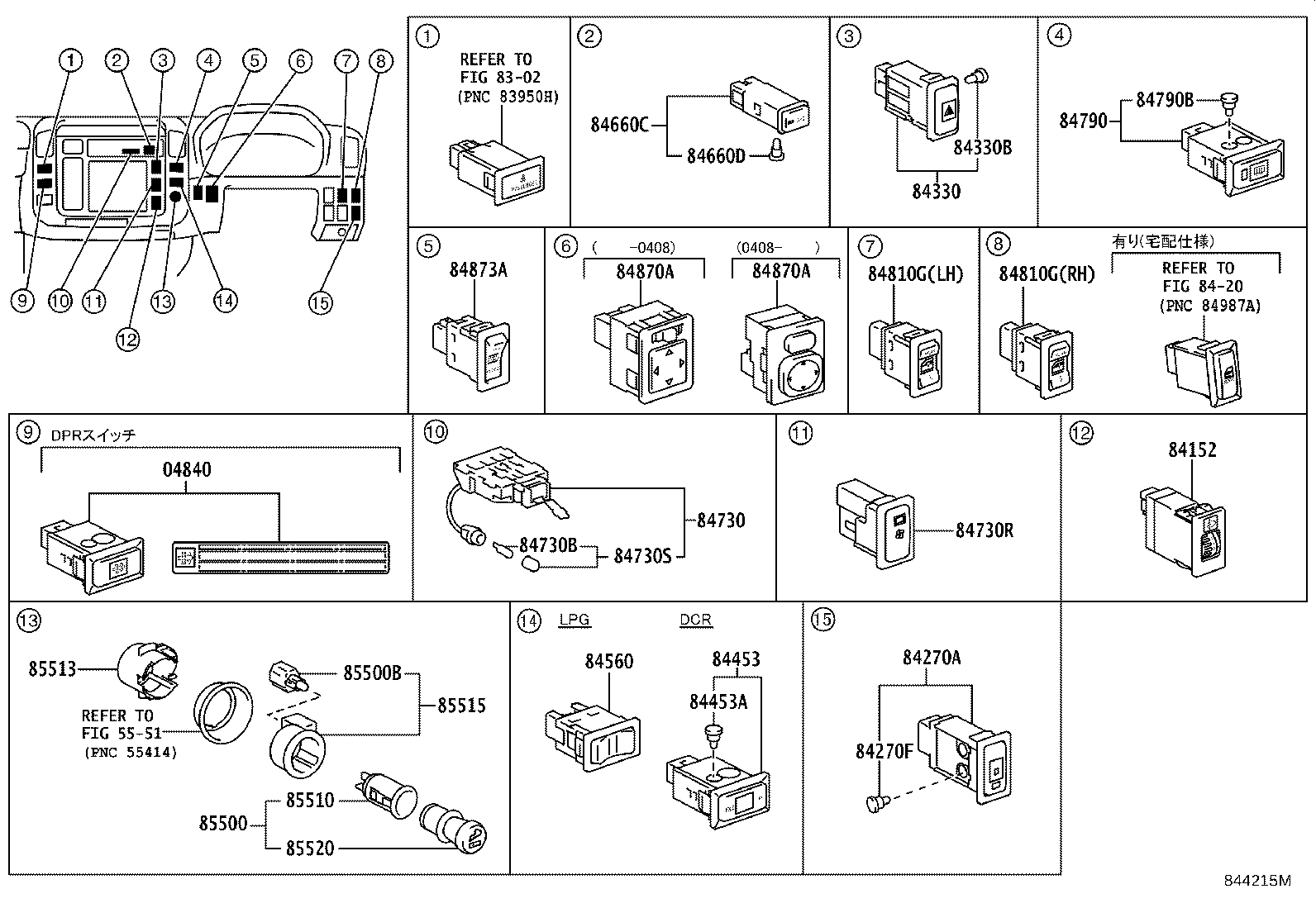

844215M 2001-07 → 2016-10

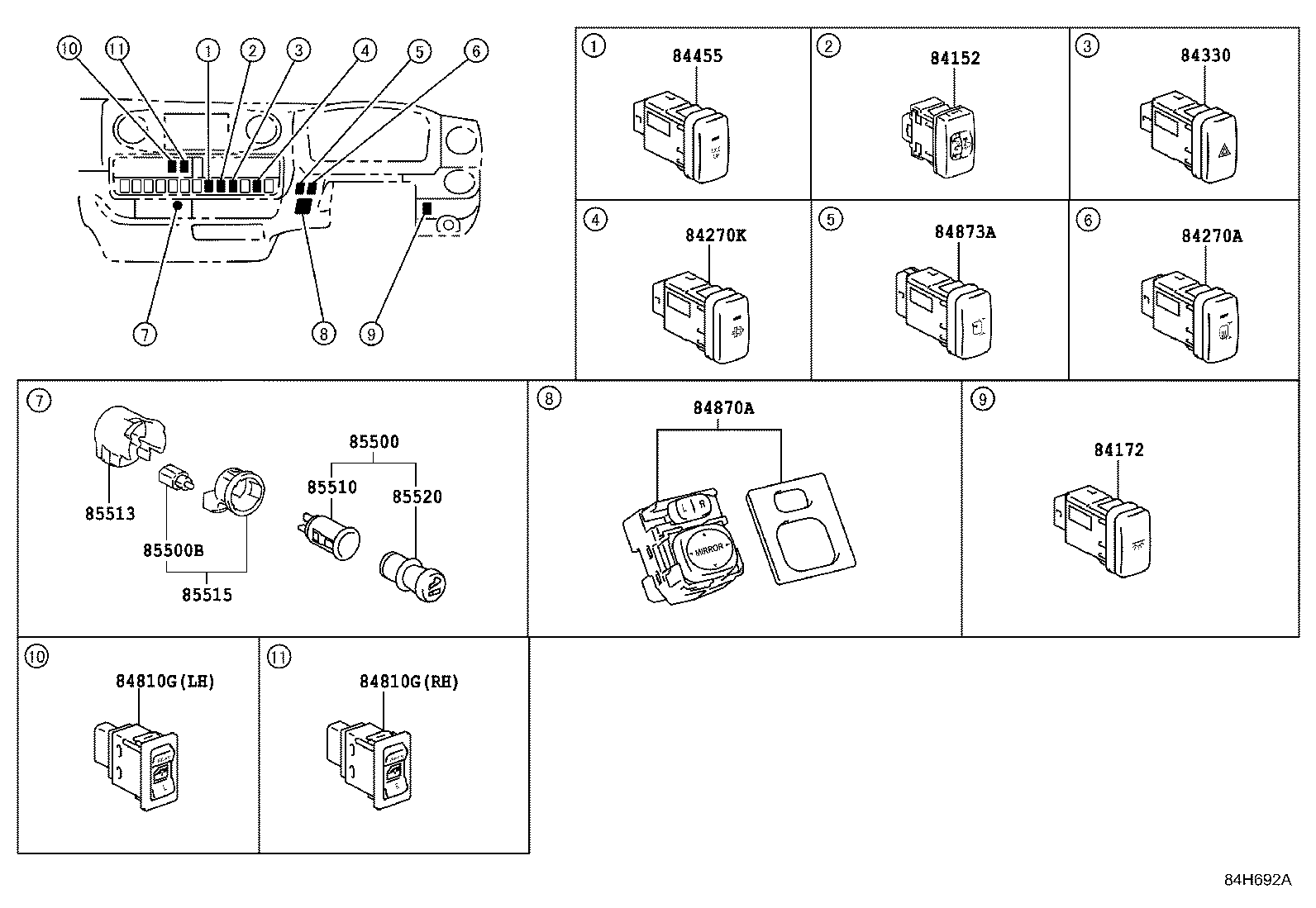

84H692A 2016-10 → —

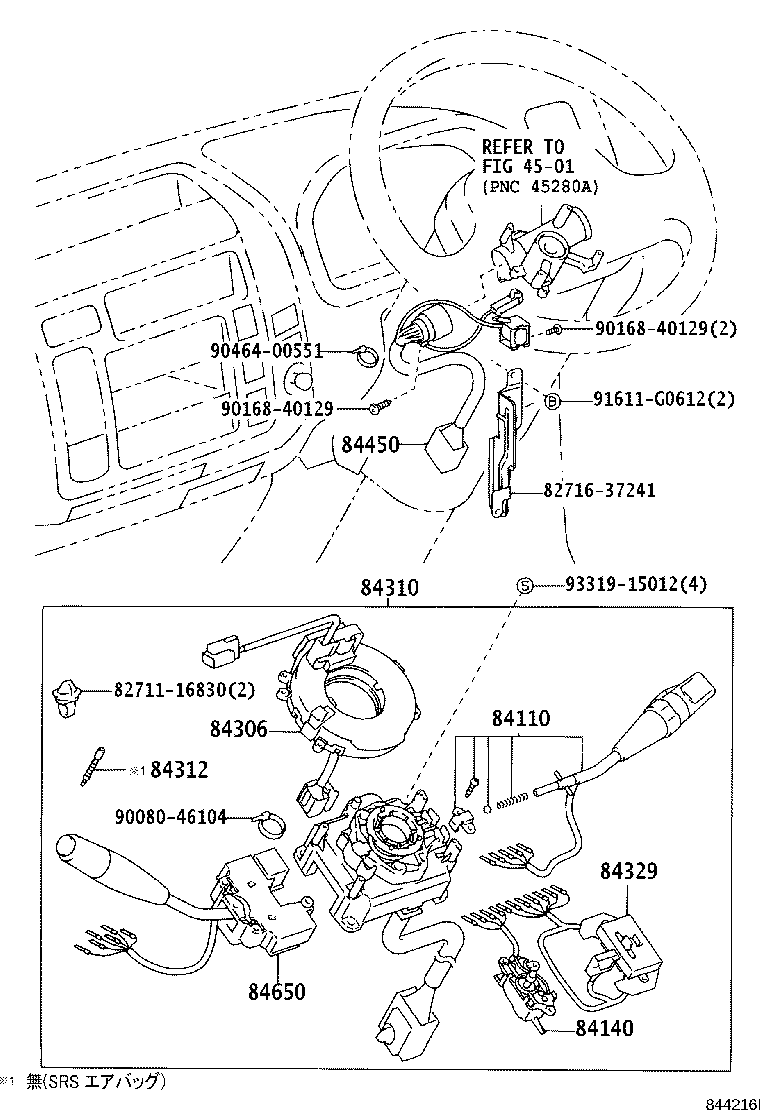

844216I 2001-07 → 2016-10

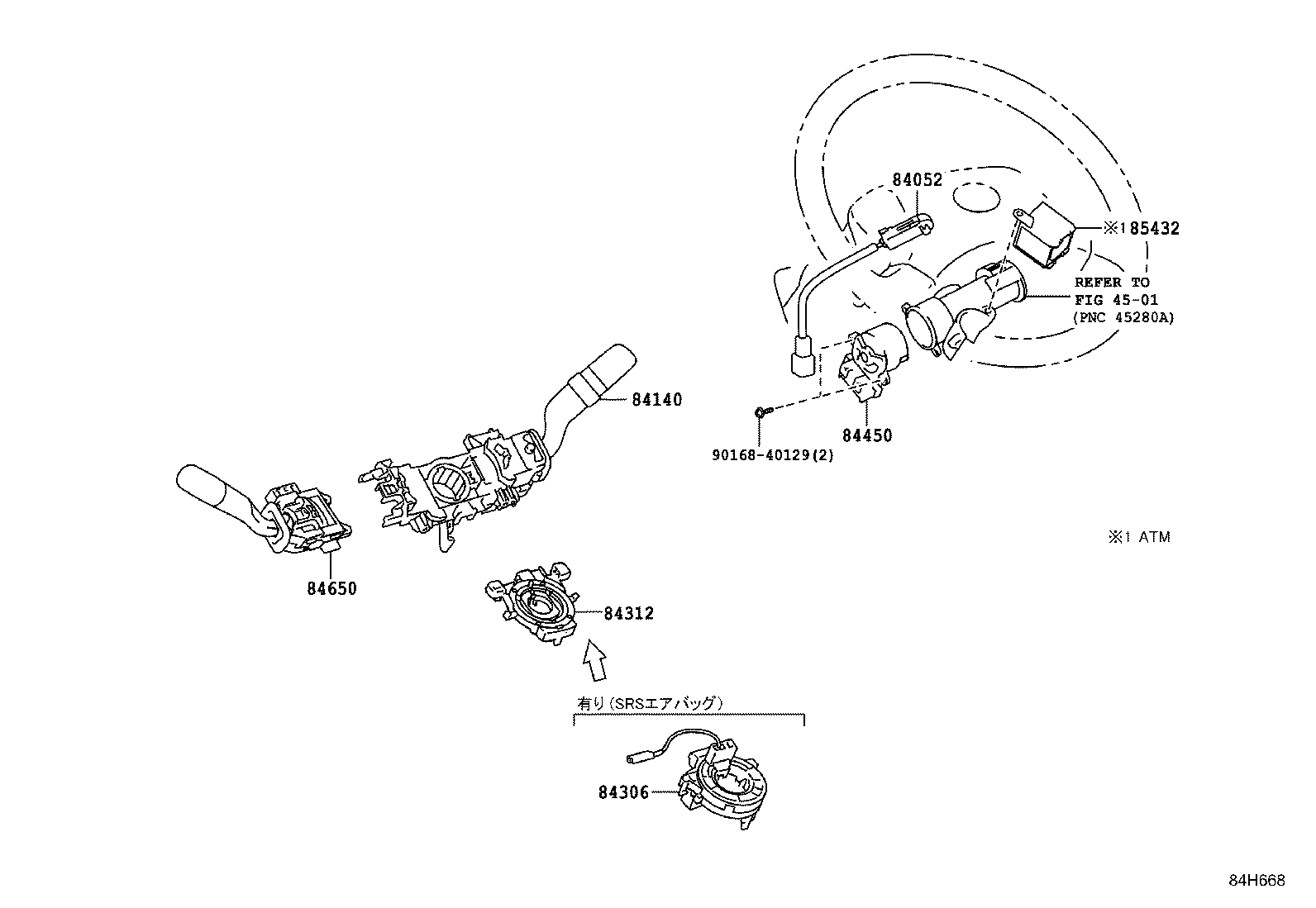

84H668 2016-10 → —

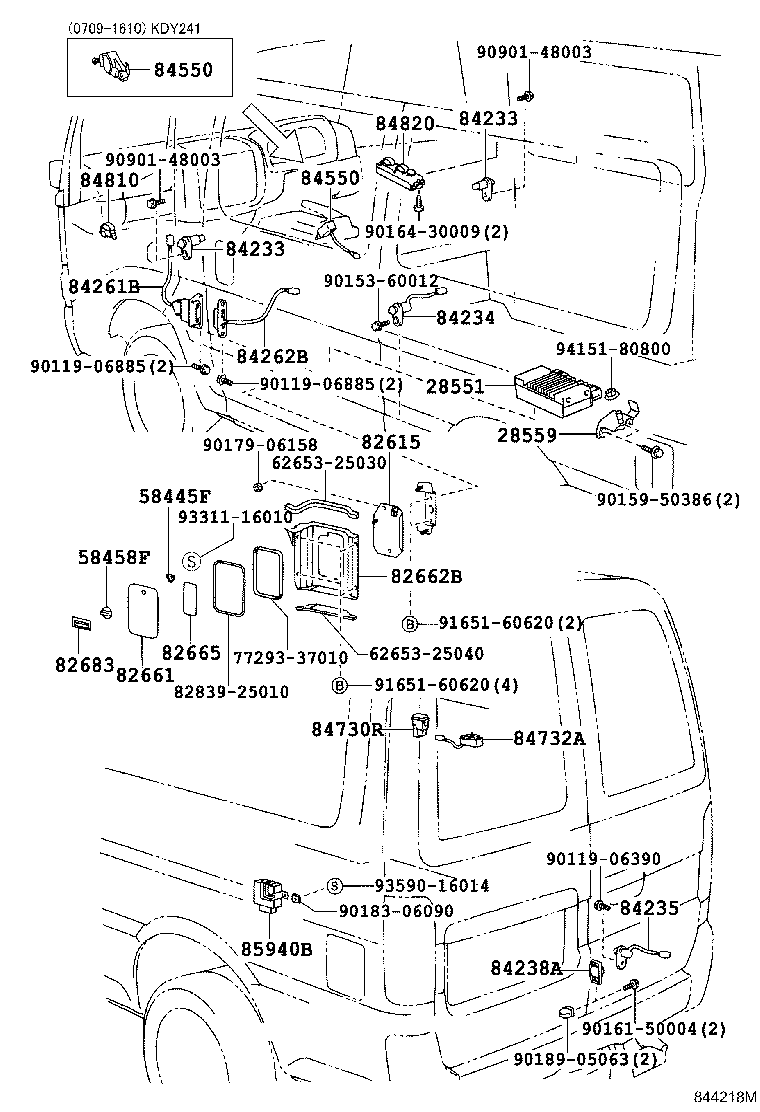

844218M 2001-07 → —

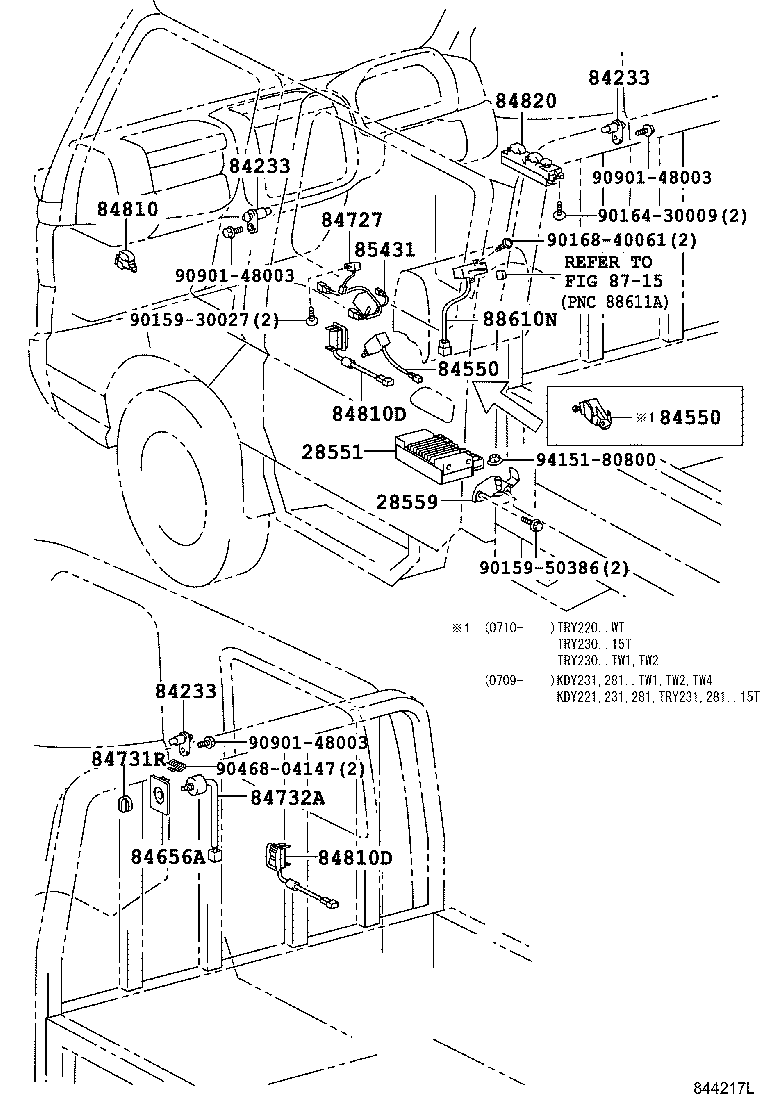

844217L 2001-07 → 2016-10

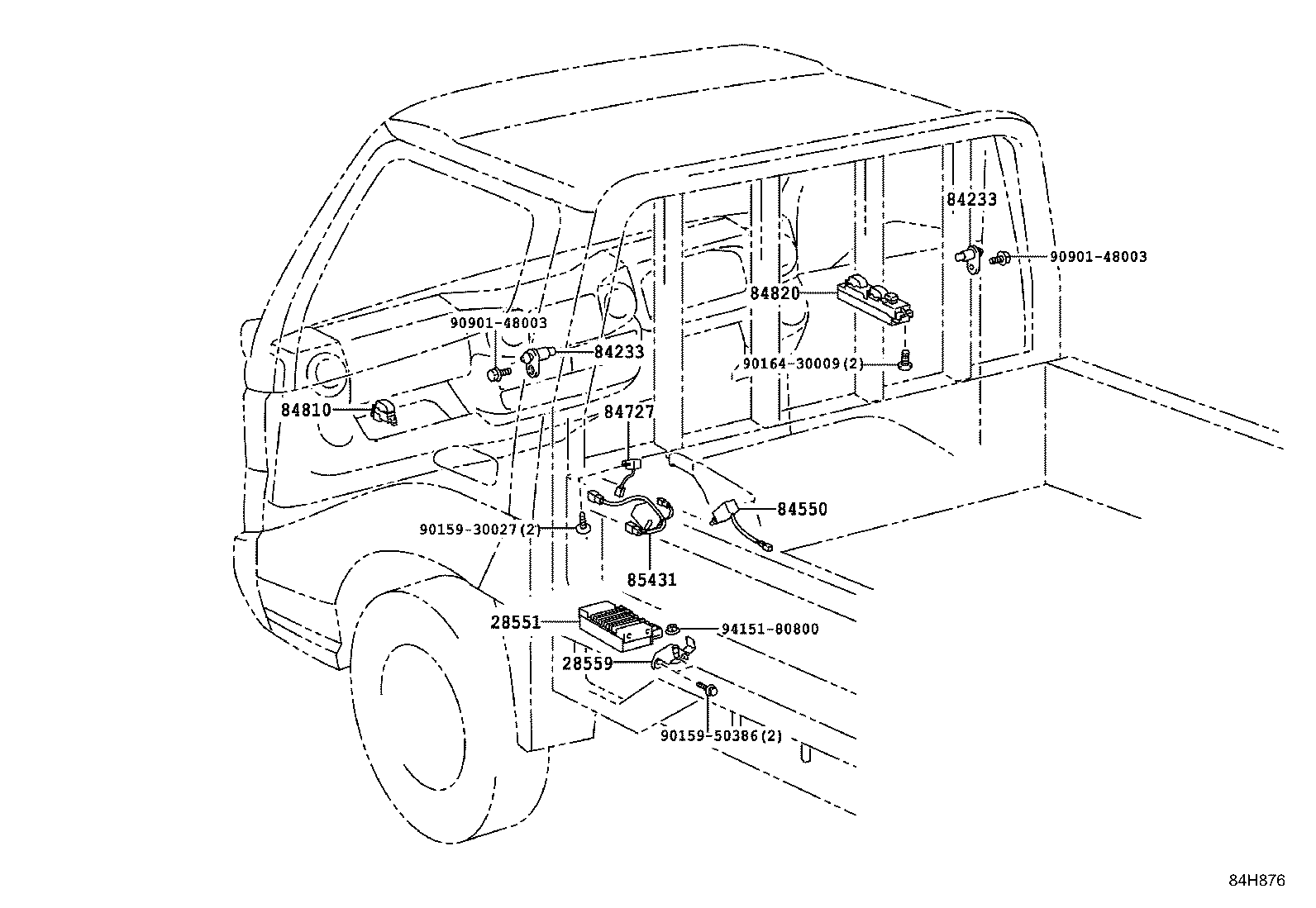

84H876 2016-10 → —

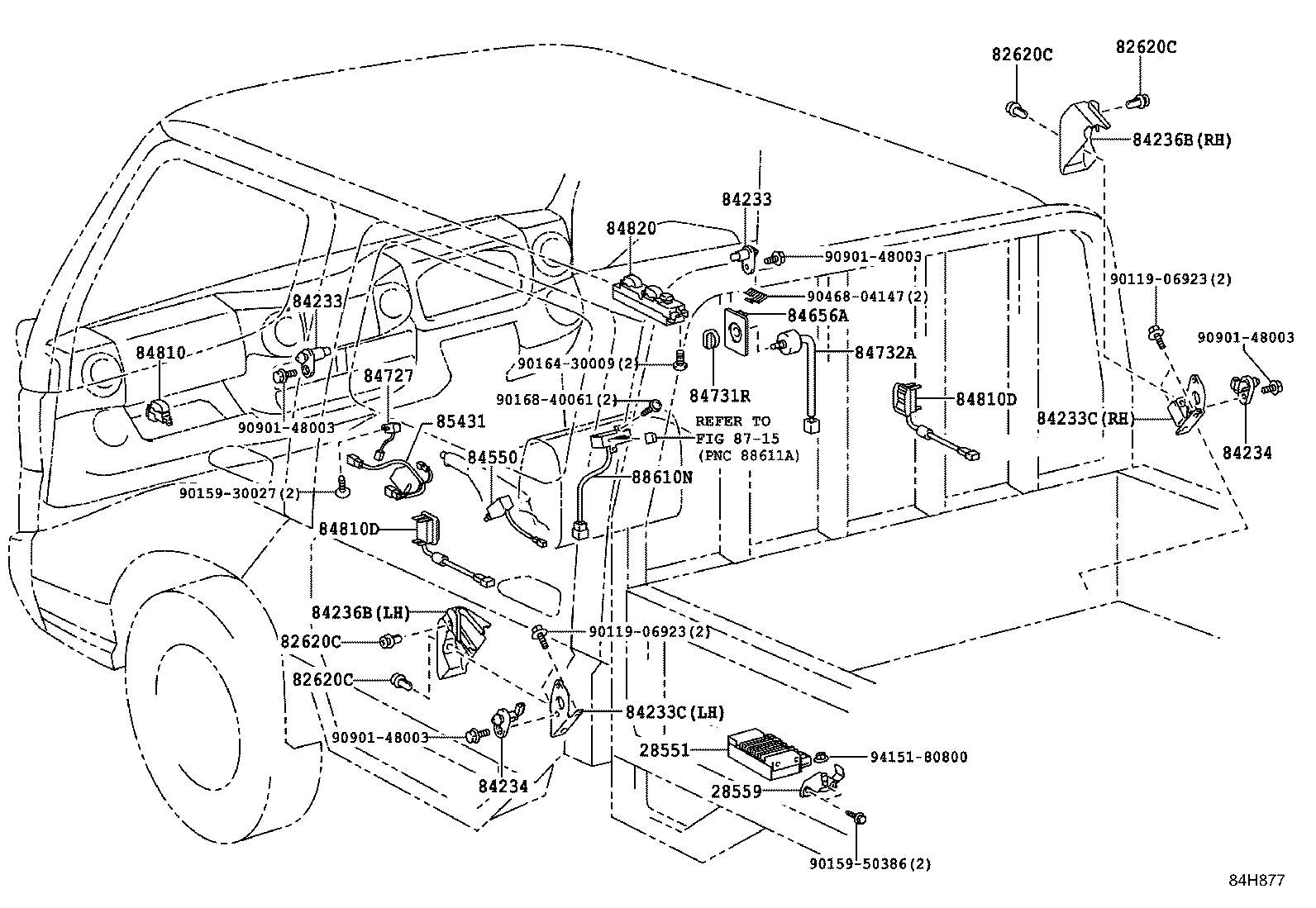

84H877 2016-10 → —

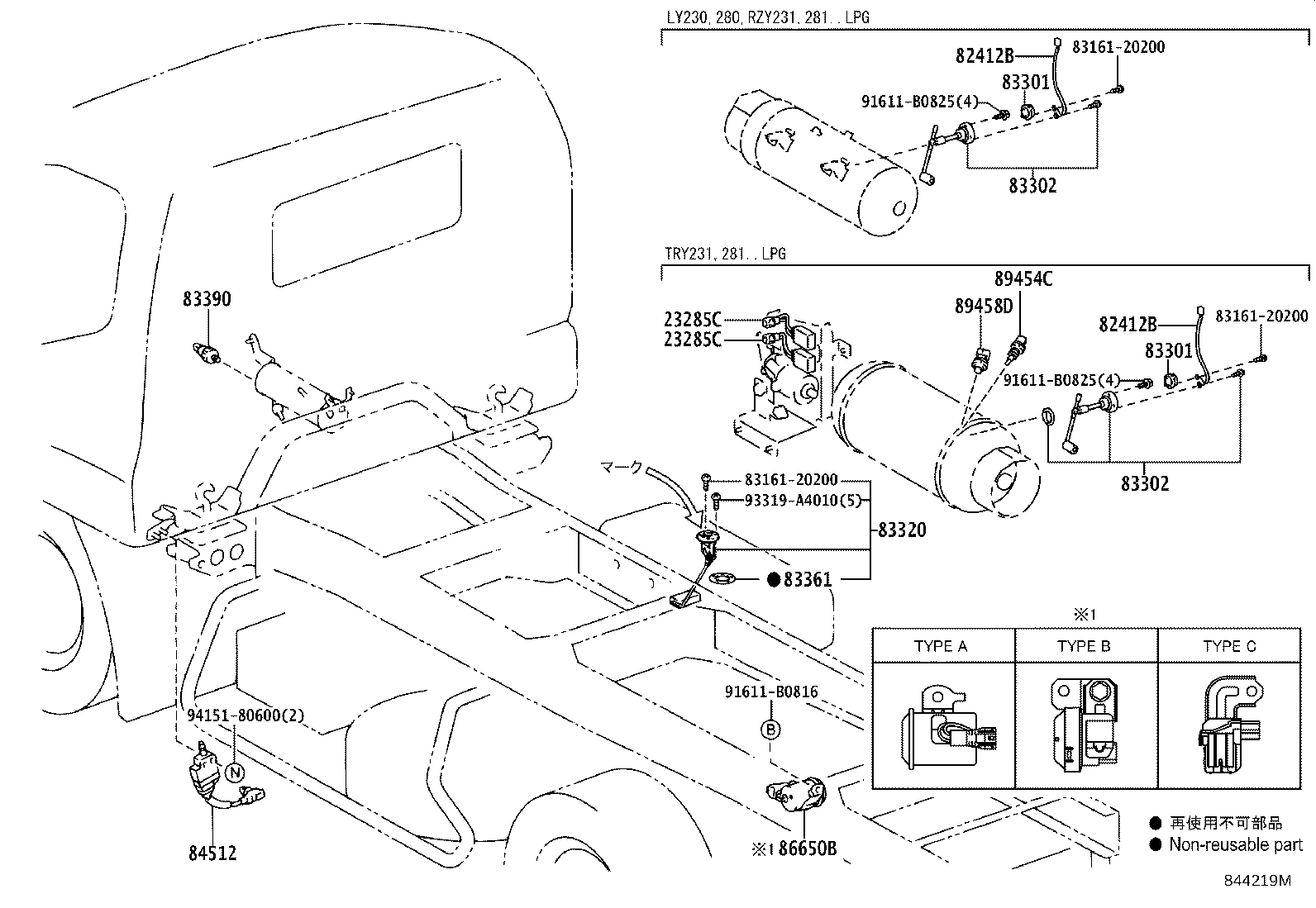

844219M 2001-07 → —

Part groups

PNC	Description
04840	Switch Kit, Generally Use, Pull Type
23285C	Resistor, Fuel Pump
28300	Relay Assy, Starter
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2
28371D	Relay, Ignition, NO.3
28521	Timer, Preheating
28521A	Relay, Lpg Preheater Cut
28529	Bracket, Preheating Timer, NO.1
28551	Controller, Glow Plug
28559	Bracket, Glow Plug Controller, NO.1
28610	Relay Assy, Intake Heater OR Glow Plug
58445F	Lock, Battery Service Hole Cover
58458F	Knob, Battery Service Hole Cover
81713	Holder, Fusee
81980	Flasher Assy, Turn Signal
82210J	Fusible Link
82412B	Wire, Fuel Gage
82600F	Fuse, Fuse Block
82600G	Plate, Caution(FOR FUSE)
82615	Bracket, Fuse
82620C	Clip
82641	Relay, Integration NO.1
82660	Block Assy, Relay, Engine Room
82660A	Block Assy, Relay, Cowl Side
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662D	Cover, Relay Block, Upper, NO.4
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82665	Label, Relay Block
82673B	Bracket, Junction Block, NO.2
82683	Plate, Fuse Block Caution
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82760	Bracket Assy, Relay Block
82821B	Cover, Connector
83180A	Pickup, Revolution
83181G	Sensor, Speedometer
83181H	Ring, O (FOR SPEEDOMETER SENSOR)
83301	Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302	Body Sub-assy, Fuel Sender Gage
83320	Gage Assy, Fuel Sender
83361	Gasket, Fuel Sender Gage
83390	Switch Assy, Vacuum Warning
83420	Gage Assy, Water Temperature Sender
83520	Gage Assy,Oil Pressure Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
83783A	Key, Speedmeter Sensor
84052	Switch Assy, Un-lock Warning
84110	Switch Assy, Light Control, NO.1
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84172	Switch, Room Lamp
84210	Switch Assy, Back-up Lamp
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233C	Bracket, Courtesy Switch (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235	Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84236B	Cover, Courtesy Lamp Switch
84238A	Striker, Courtesy Lamp Switch
84261B	Junction, Slide Door Control,Male
84262B	Junction, Slide Door Control, Female
84270A	Switch Assy, Mirror Heater
84270F	Bulb, Mirror Heater Switch Assy
84270K	Switch Assy, Dpr
84306	Cable Sub-assy, Spiral
84310	Switch Assy, Turn Signal
84312	Plate, Horn Contact
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84330B	Bulb, Hazard Warning Signal Switch
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84453	Switch, Idle UP
84453A	Bulb, Idle UP Switch
84455	Switch, Warm UP
84512	Switch, Tilt Cab Control
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84560	Switch Assy, Fuel Valve Control
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch
84660C	Switch, Cooler
84660D	Bulb(FOR COOLER SWITCH)
84727	Switch, Shift Lock Control
84730	Switch Assy, Heater Blower
84730B	Bulb, Heater Blower Switch
84730R	Switch Assy, Heater Blower
84730S	Bulb, Heater Blower Switch
84731R	Knob, Rear Heater Blower Switch
84732A	Switch, Rear Heater Blower
84790	Switch Assy, Rear Window Defogger
84790B	Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84810G	Switch Assy, Power Window Regulator, Rear NO.2
84820	Master Switch Assy, Power Window Regulator
84870A	Switch Assy, Outer Mirror
84873A	Switch, Retractable Outer Mirror
85431	Solenoid, Shift Lock
85432	Solenoid, Key Interlock
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85510	Socket & Retainer Assy, Cigarlighter
85513	Cover, Cigarette Lighter
85515	Stay, Cigarette Lighter Bezel
85520	Knob And Element Assy, Cigarette Lighter
85910	Relay Assy, Circuit Opening
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85910T	Relay, Lpg
85910Y	Relay, Rear Heater
85912	Relay, Defogger
85912D	Relay
85915	Relay, Main
85915E	Relay
85915X	Relay, Power Control
85916D	Relay, Fog Lamp
85916F	Relay, Cornering Lamp
85916N	Relay, Taillamp
85916P	Relay, Headlamp
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85930A	Relay Assy, Power Window, NO.1
85931B	Relay, Fuel Heater
85933	Computer, Shift Lock Control
85934	Relay, Magnet-clutch
85940B	Relay Assy, Rear Wiper
85980	Relay Assy, Door Control
86530	Relay Assy, Horn
86650B	Buzzer Assy, Reverse Warning
87346K	Relay, Ptc Heater
88280A	Switch Assy, Clutch
88610N	Switch Assy, Cooler Control
88650H	Amplifier Assy, Air Conditioner
89390	Relay, Brake Warning
89422A	Sensor, Water Temperature
89425	Sensor, Exhaust Gas Temperature
89425A	Sensor, Exhaust Gas Temperature, NO.2
89425B	Sensor, Exhaust Gas Temperature, NO.3
89437	Cover, Sensor
89439	Bracket, Sensor
89454C	Sensor, Fuel Gas Temperature
89458D	Sensor, Fuel Pressure
89465	Sensor, Oxygen
89466	Gasket, Oxygen Sensor
89467B	Sensor, Air Fuel Ratio
89480A	Sensor Assy, Differential Pressure
89491	Sensor, Engine Oil Level
89491A	Gasket, Engine Oil Level Sensor
89539E	Bracket, Computer
89615	Sensor, Knock Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
