Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 6 illustrations

Illustrations

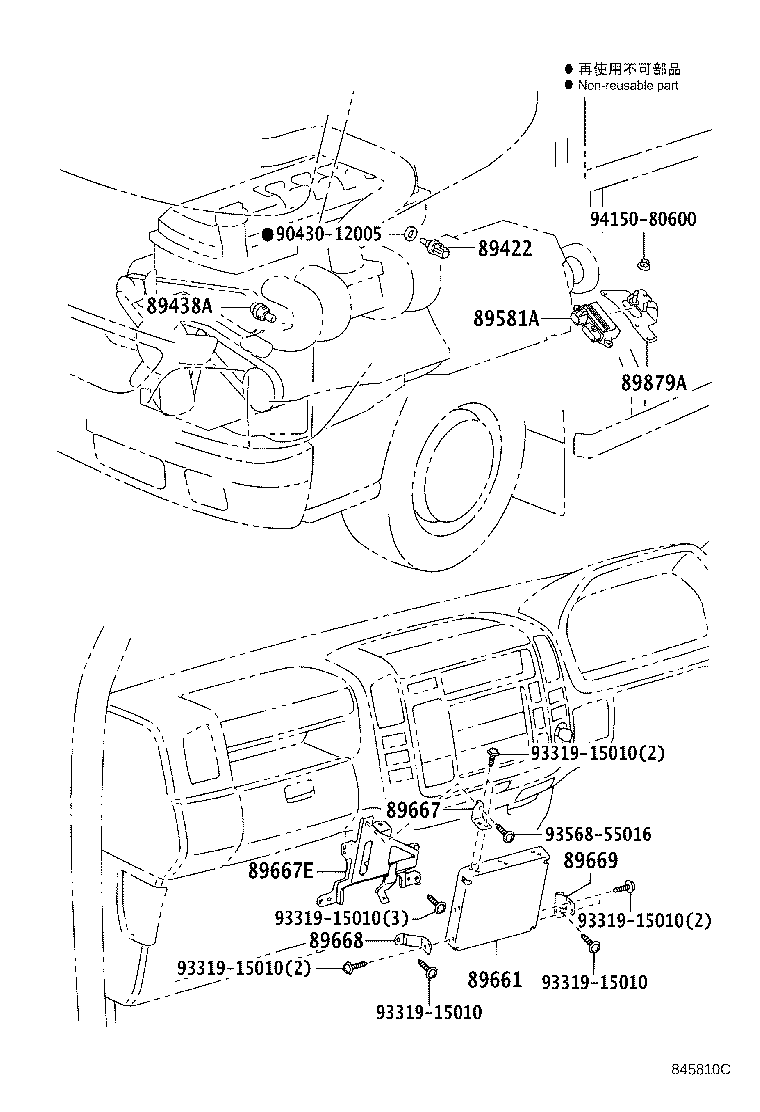

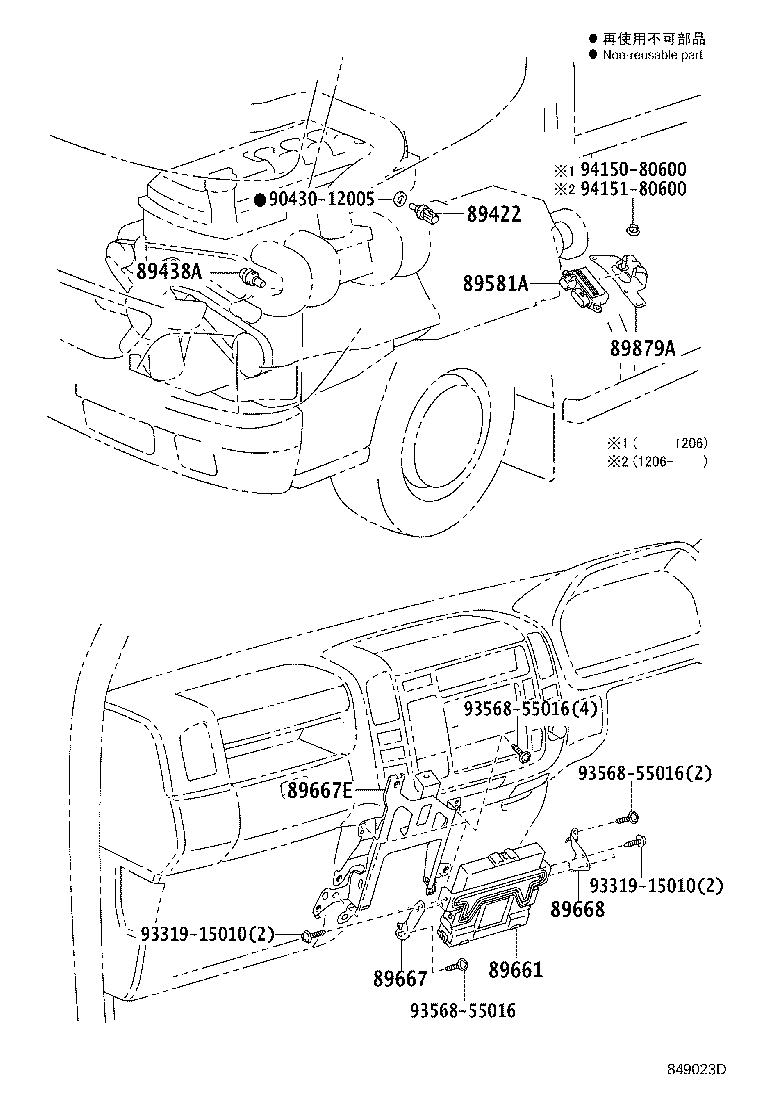

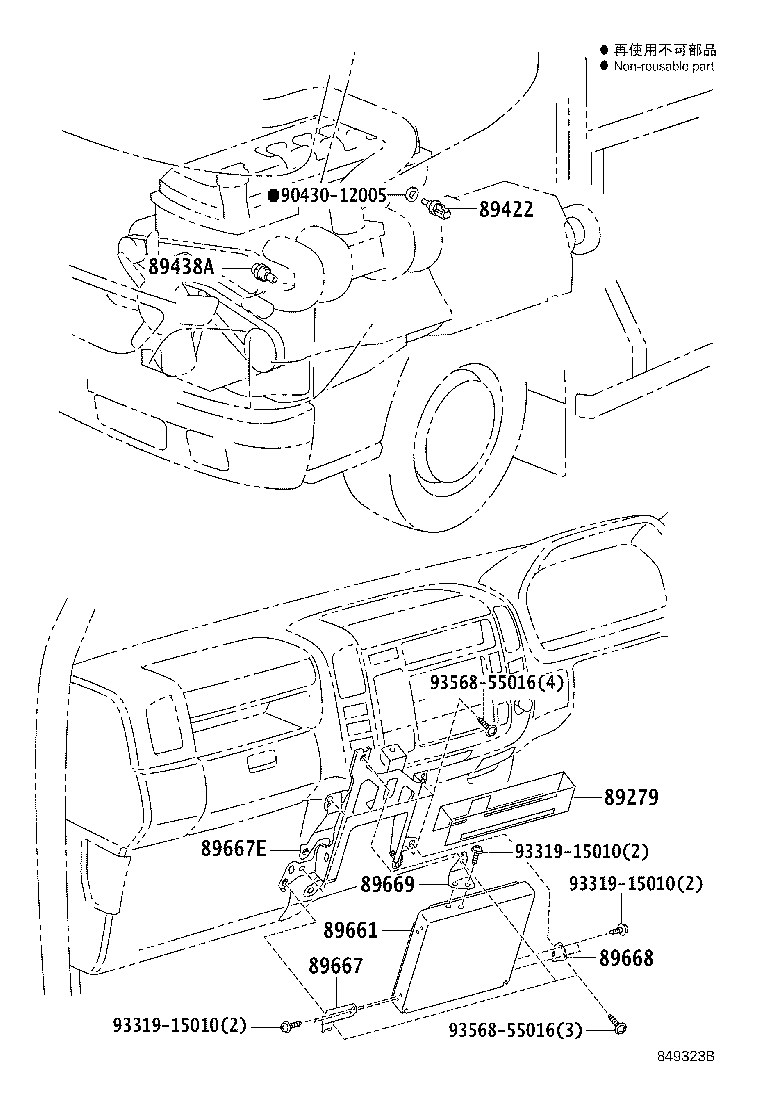

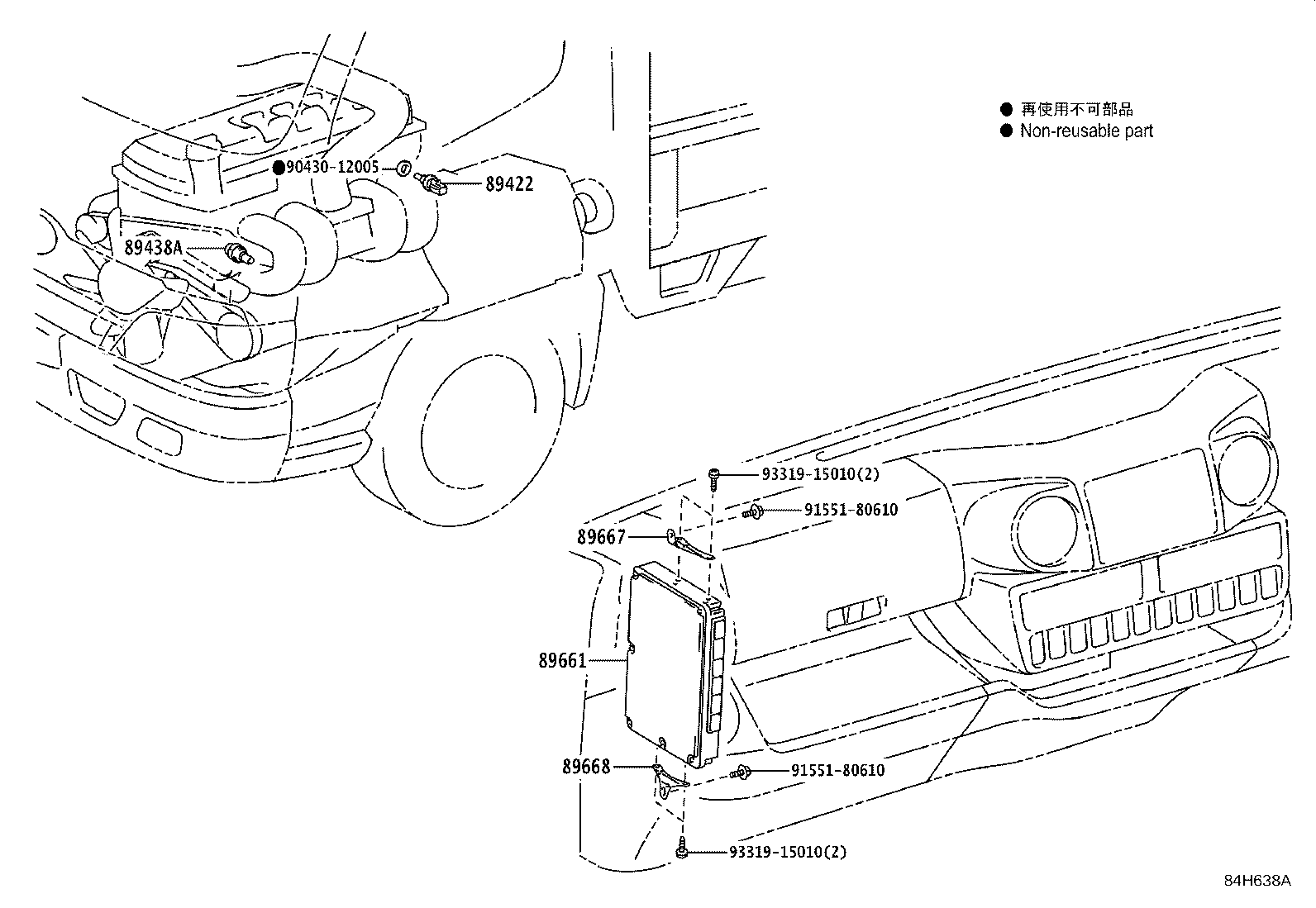

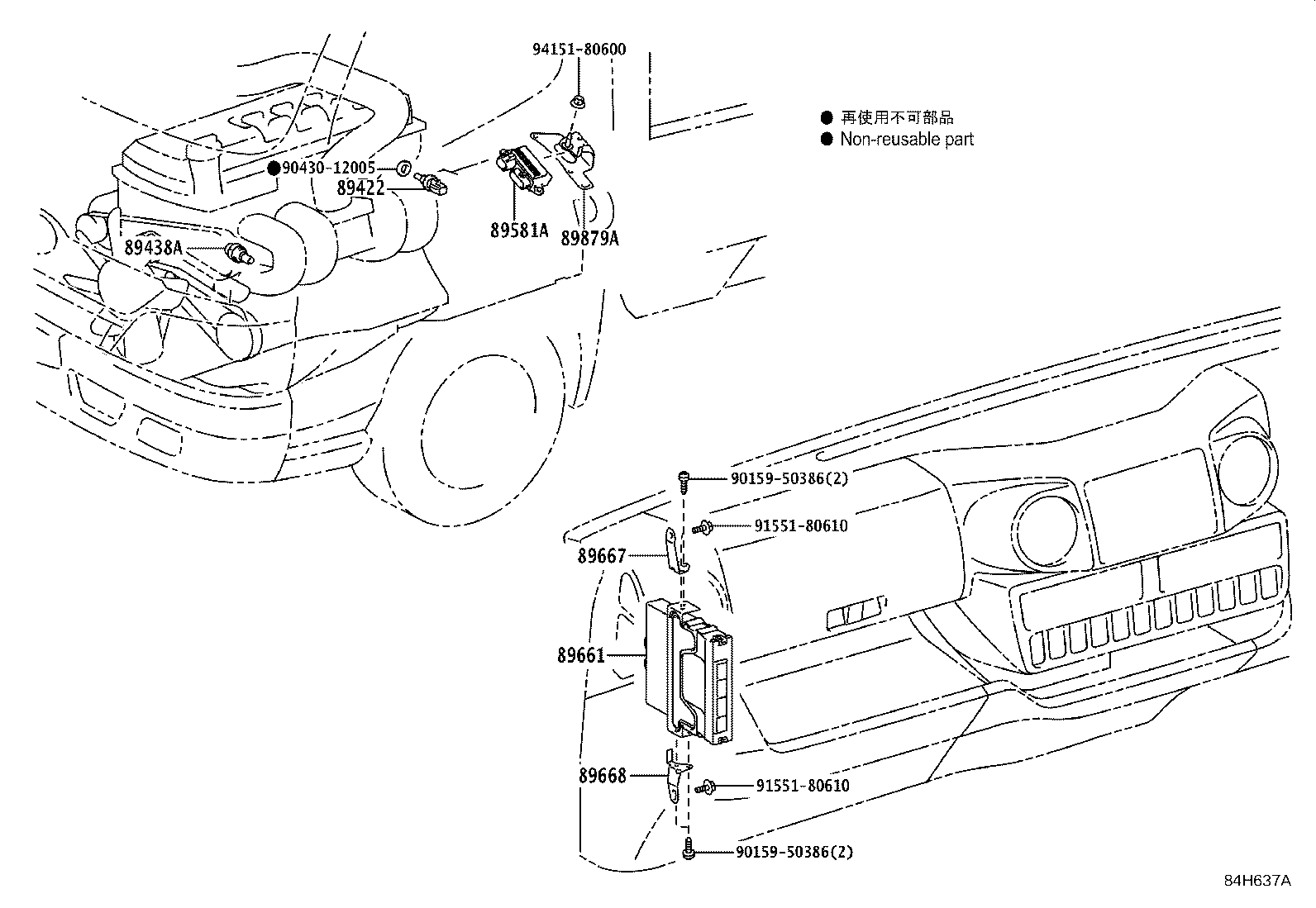

Figure 844161I 844161I 2001-07 → 2007-08 Figure 845810C 845810C 2003-08 → 2007-10 Figure 849023D 849023D 2007-10 → 2016-10 Figure 849323B 849323B 2007-12 → 2016-10 Figure 84H637A 84H637A 2016-10 → — Figure 84H638A 84H638A 2016-10 → —

Part groups

PNCDescription
28515 Resistor, Solenoid
89279 Cover, Engine Control Computer
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89438A Switch, Power Steering Oil Pressure
89452 Sensor, Throttle Position (FOR E.F.I.)
89581A Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
