Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

12 part groups · 9 illustrations

Illustrations

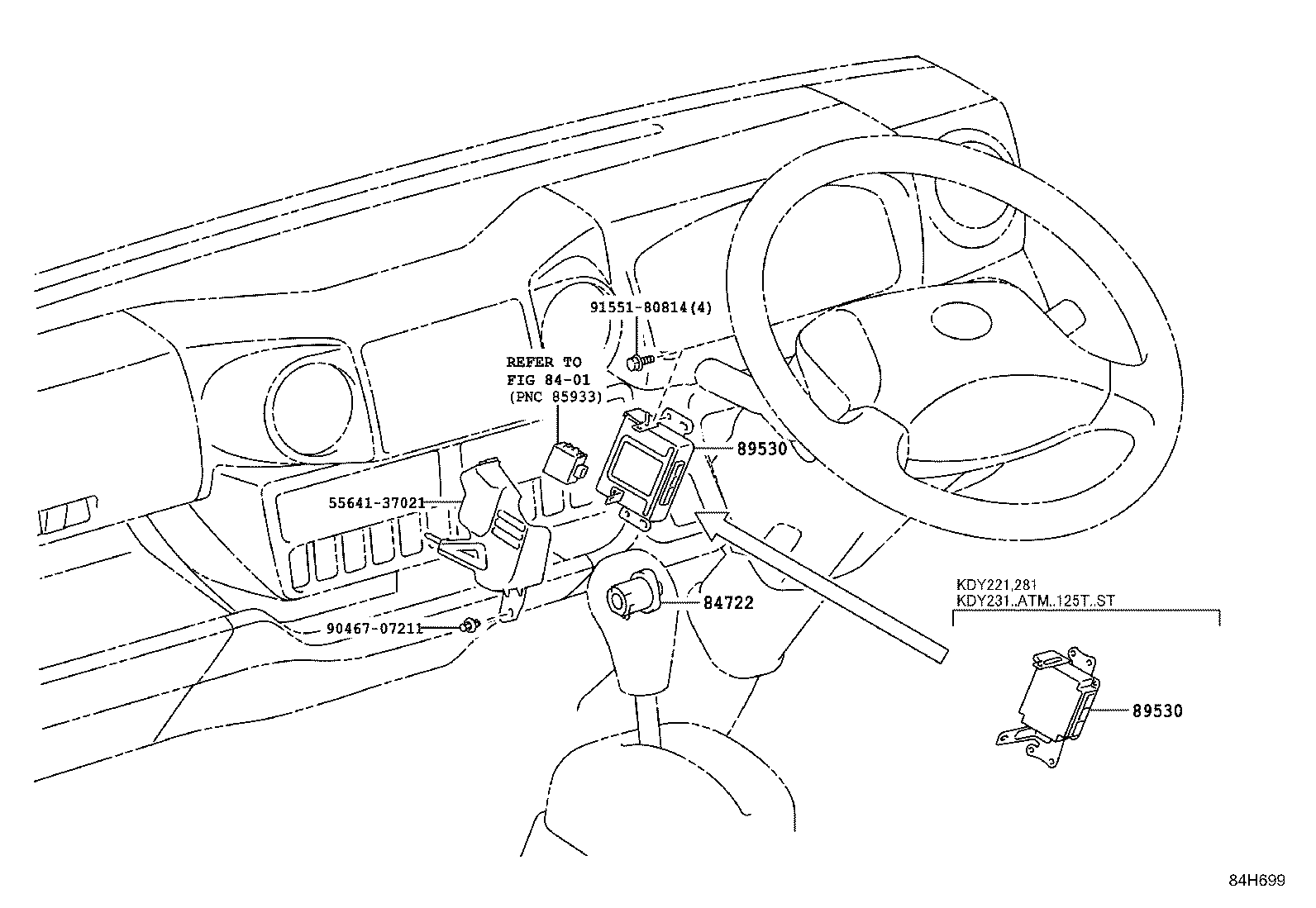

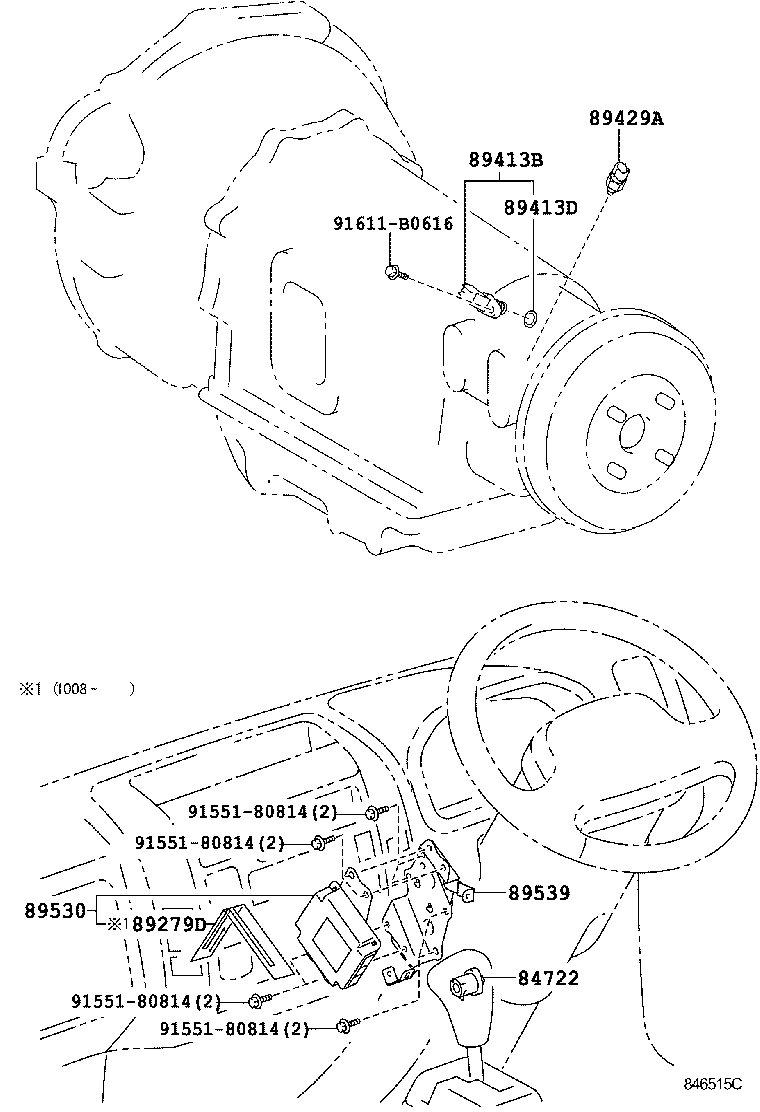

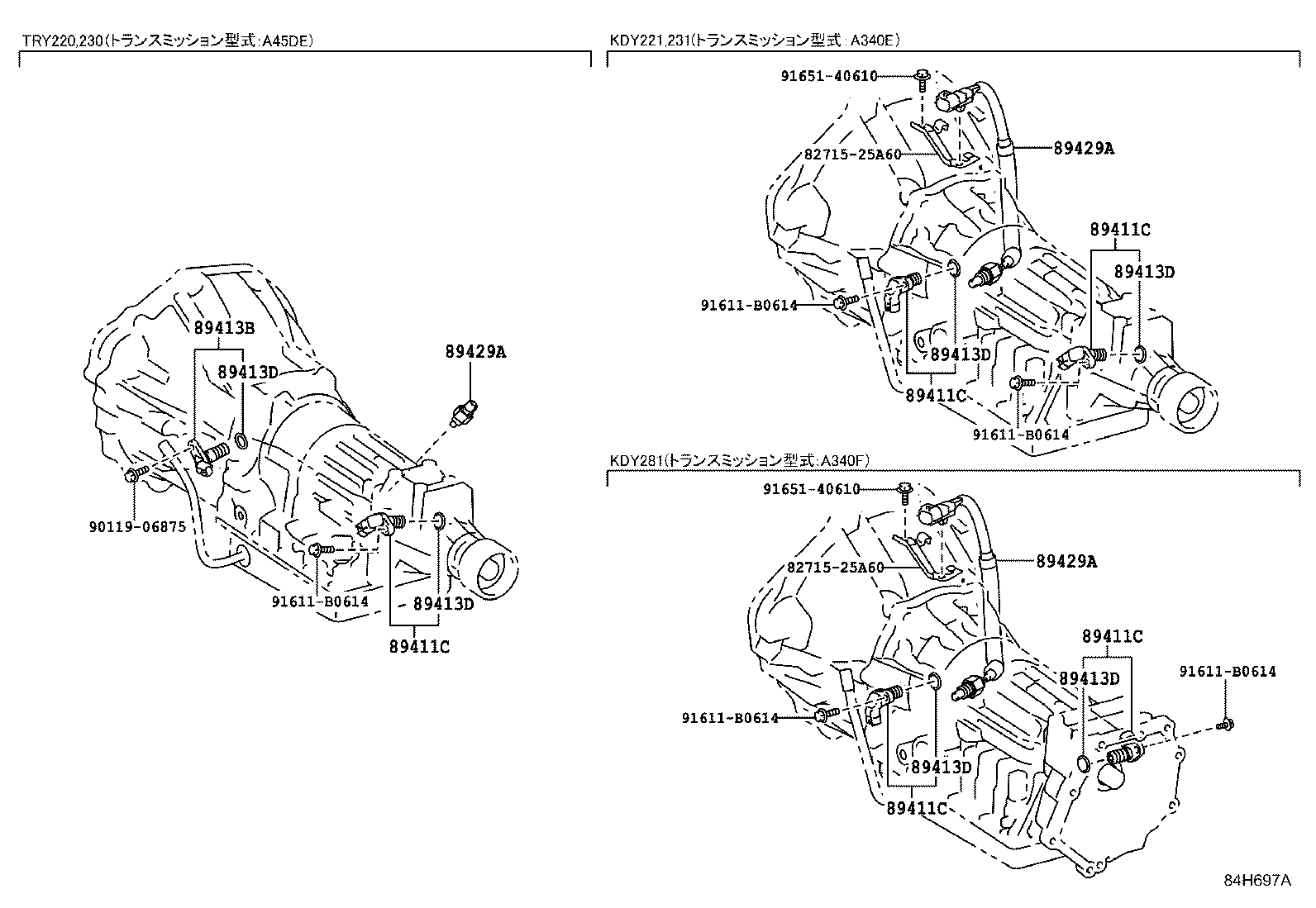

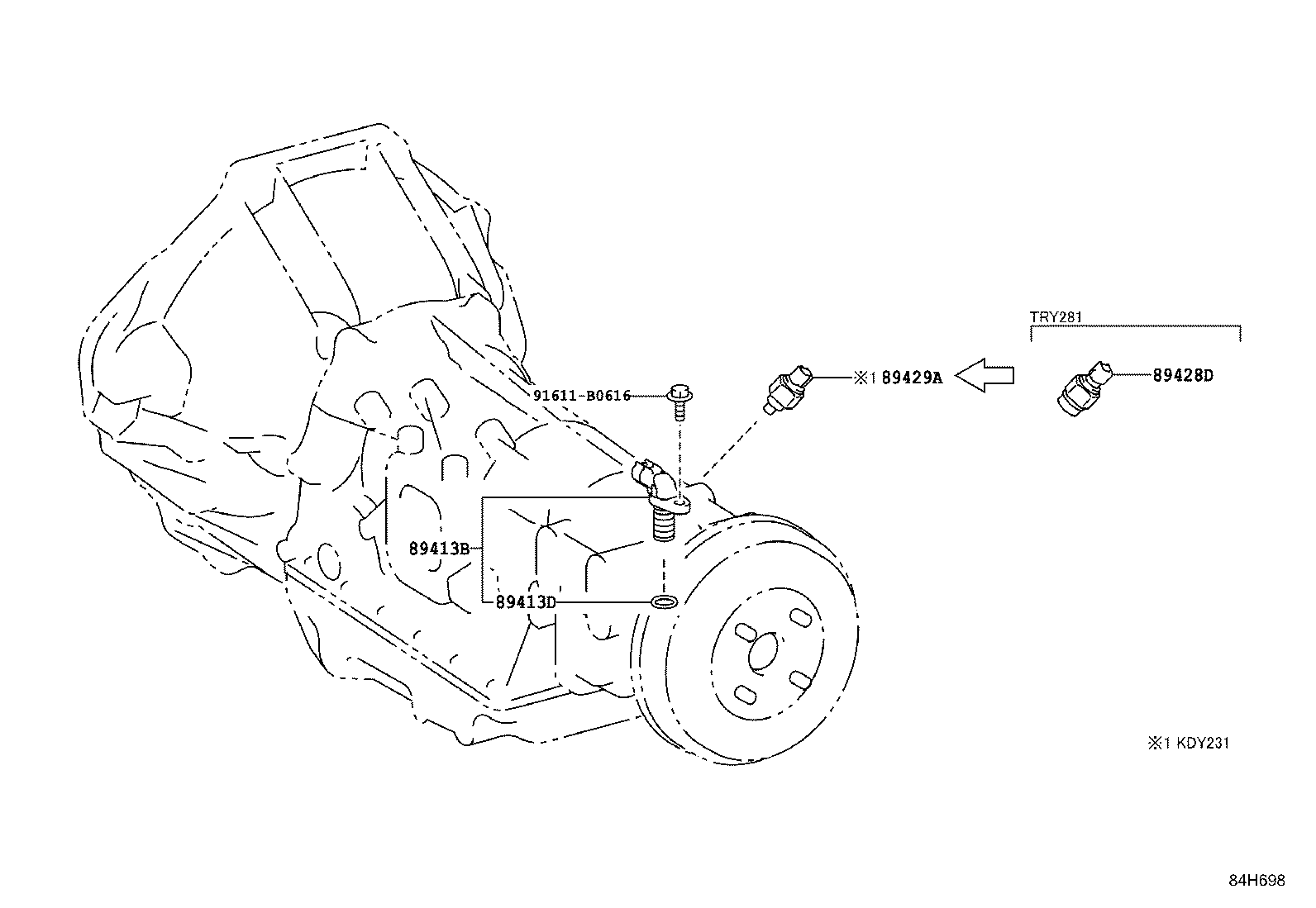

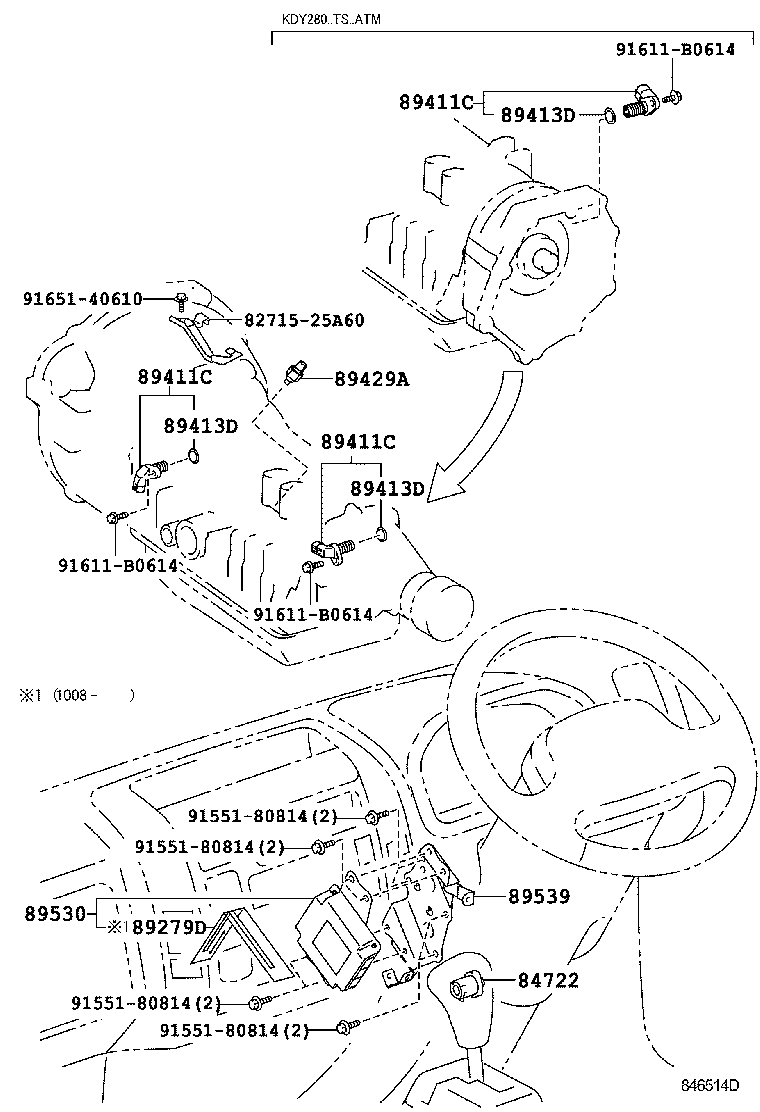

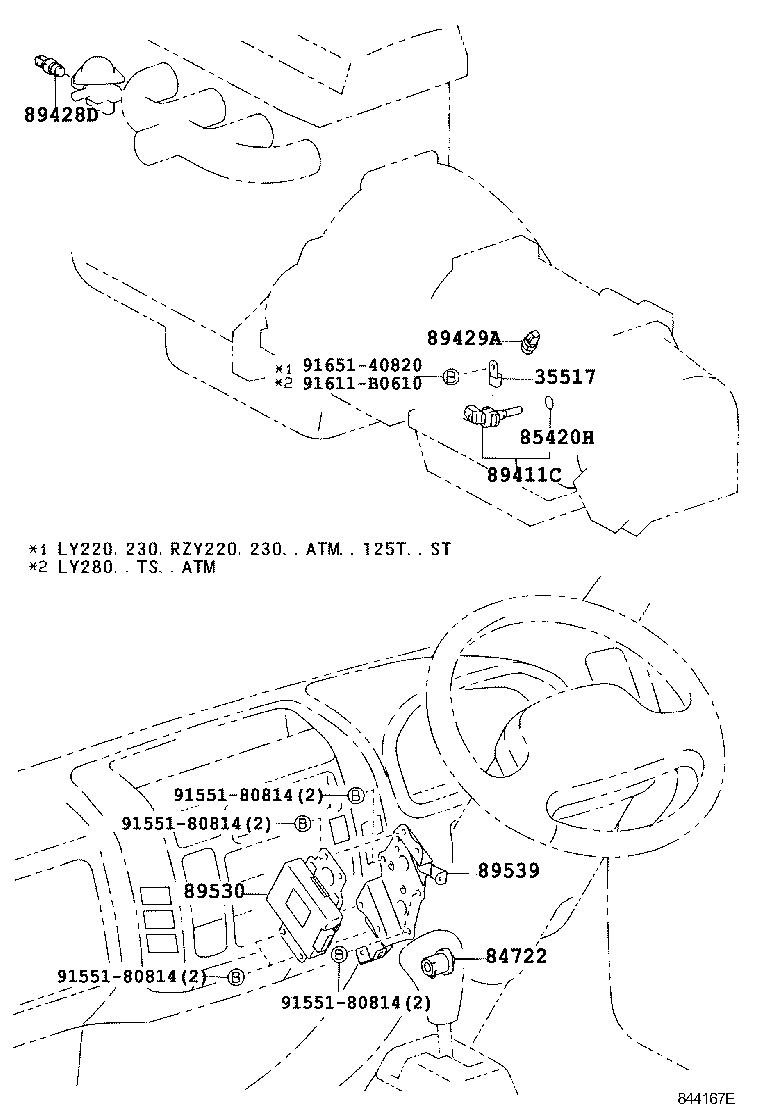

Figure 844166H 844166H 2001-07 → 2016-10 Figure 844167E 844167E 2001-07 → 2004-08 Figure 846514D 846514D 2003-08 → 2016-10 Figure 846514D 846514D 2004-08 → 2016-10 Figure 846515C 846515C 2004-08 → 2016-10 Figure 84H698 84H698 2016-10 → — Figure 84H697A 84H697A 2003-08 → — Figure 84H697A 84H697A 2016-10 → — Figure 84H699 84H699 2016-10 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
84722 Switch, Transmission Control
85420H Ring, O(FOR SPEED SENSOR)
89279D Cover
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89428D Switch, Temperature, NO.2
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
89530 Computer Assy, Transmission Control
89539 Bracket, Transmission Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
