Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10
Abs & Vsc
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

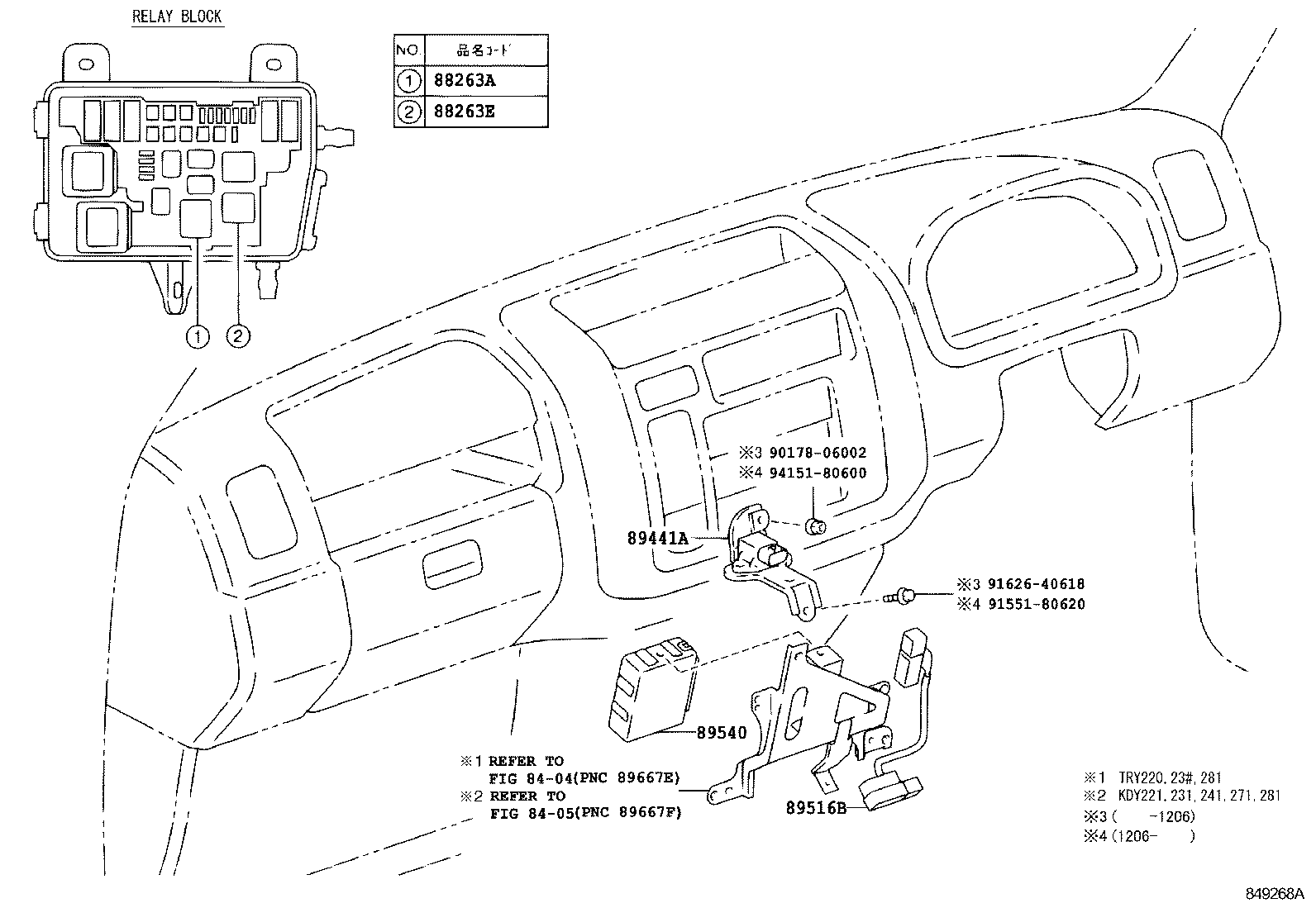

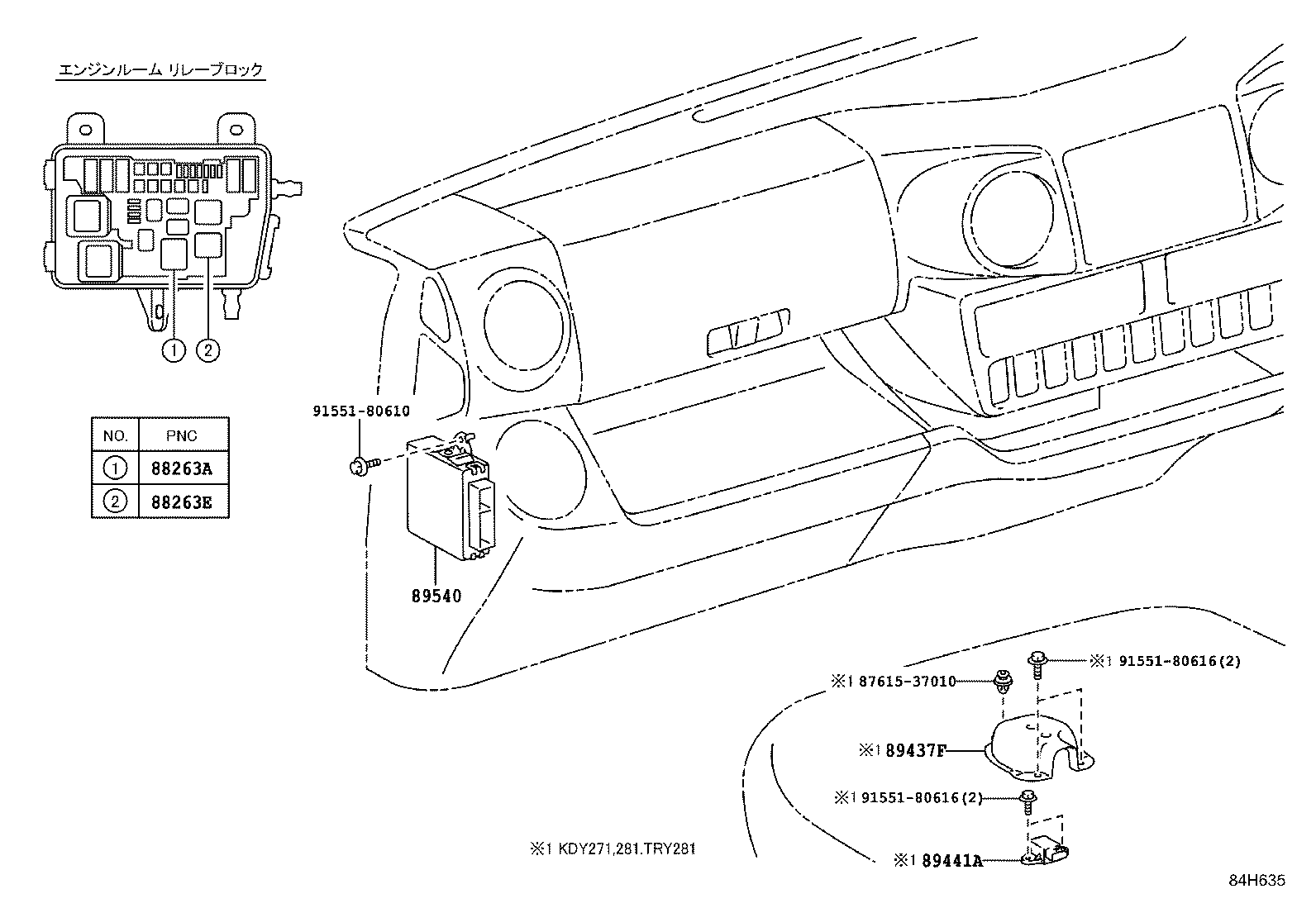

| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 88278A | Cushion, Skid Control Computer |
| 89437F | Cover, Sensor |
| 89441A | Sensor, Deceleration |

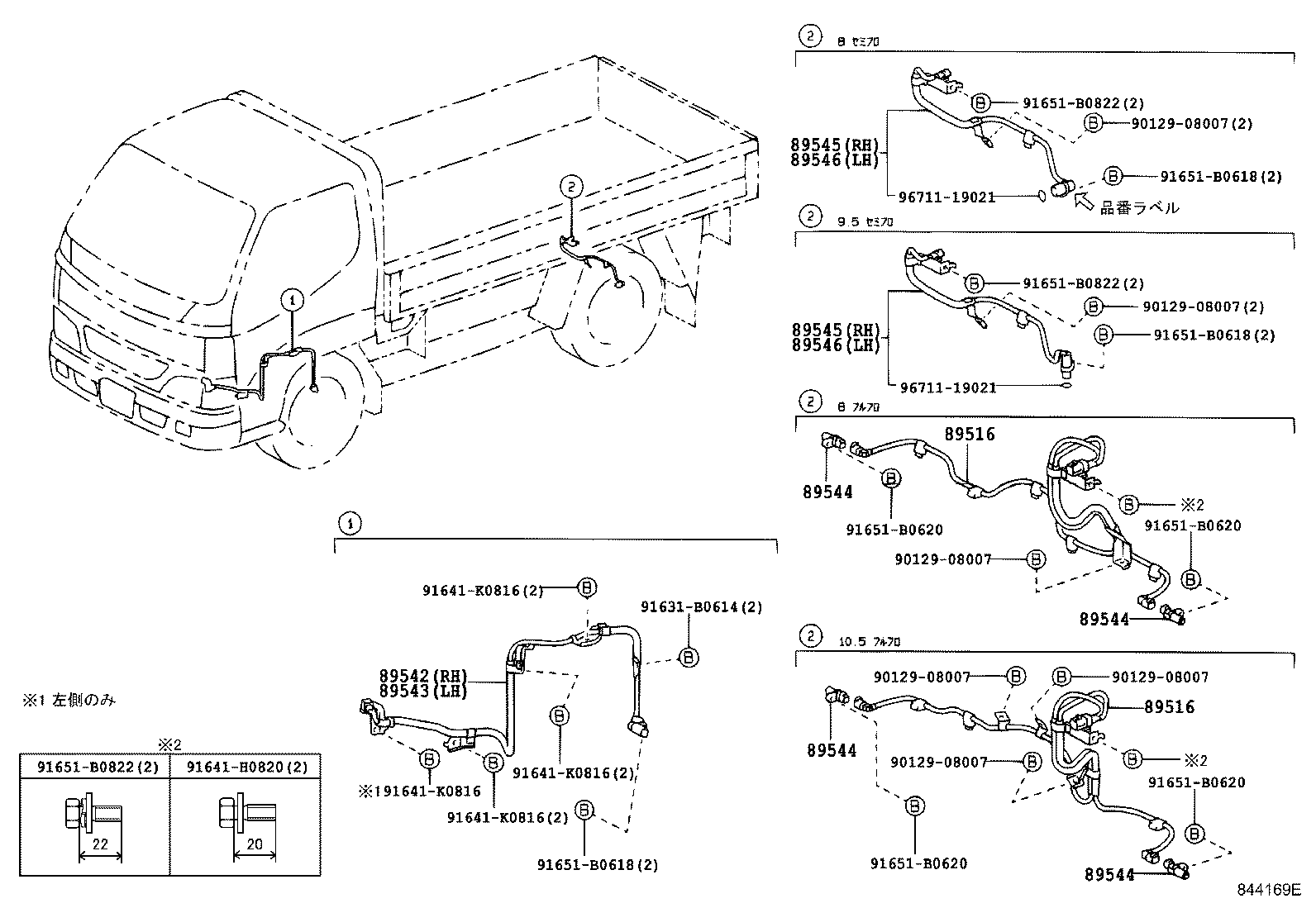

| 89516 | Wire, Skid Control Sensor |
| 89516B | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
