Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

4 part groups · 2 illustrations

Illustrations

Figure 844195B

844195B 2001-07 → 2016-10

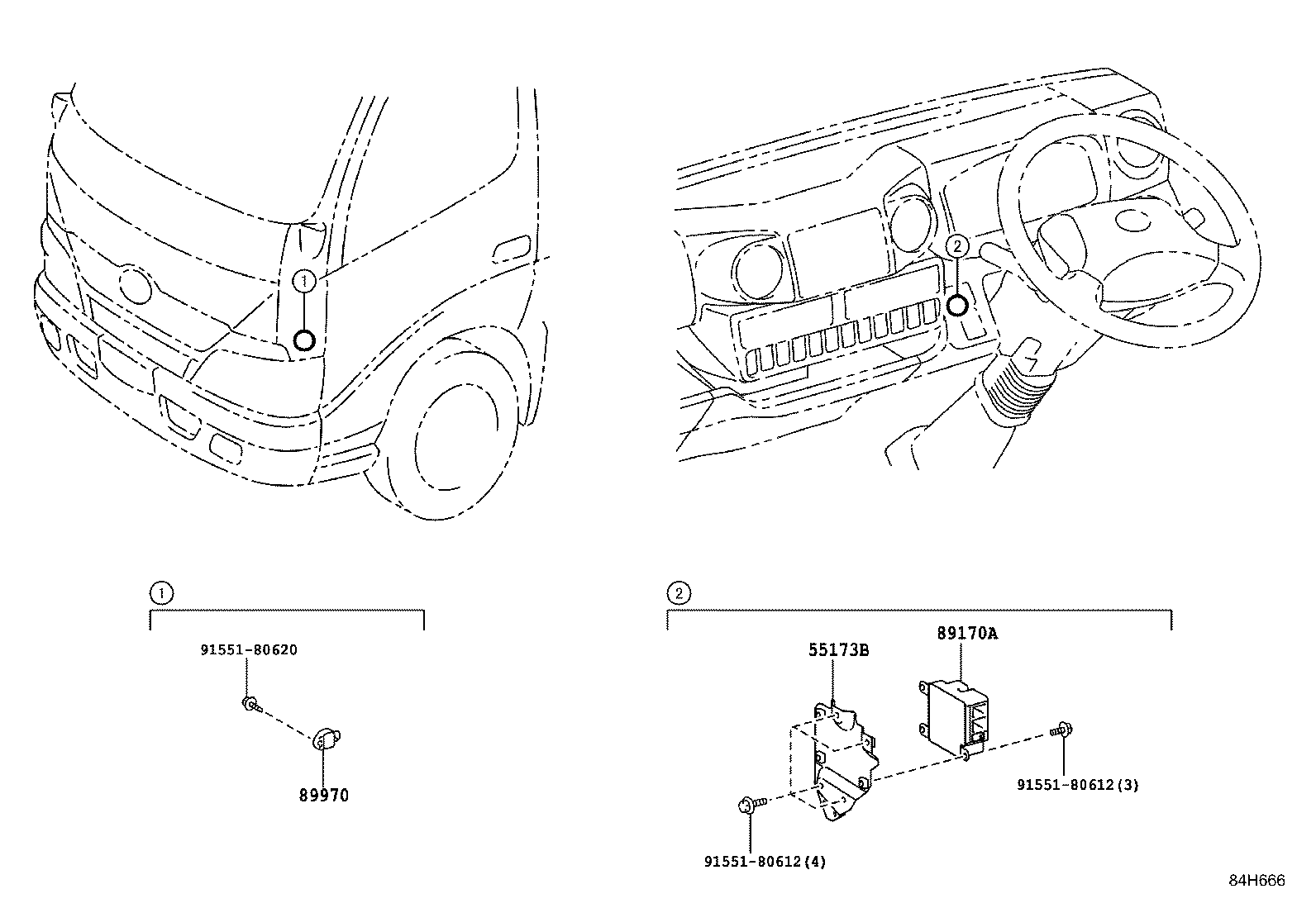

Figure 84H666

84H666 2016-10 → —

Part groups

PNC	Description
55173B	Bracket
89170A	Computer Assy, Airbag
89179A	Cover, Airbag Sensor
89970	Sensor Assy, Airbag, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
