Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 5 illustrations

Illustrations

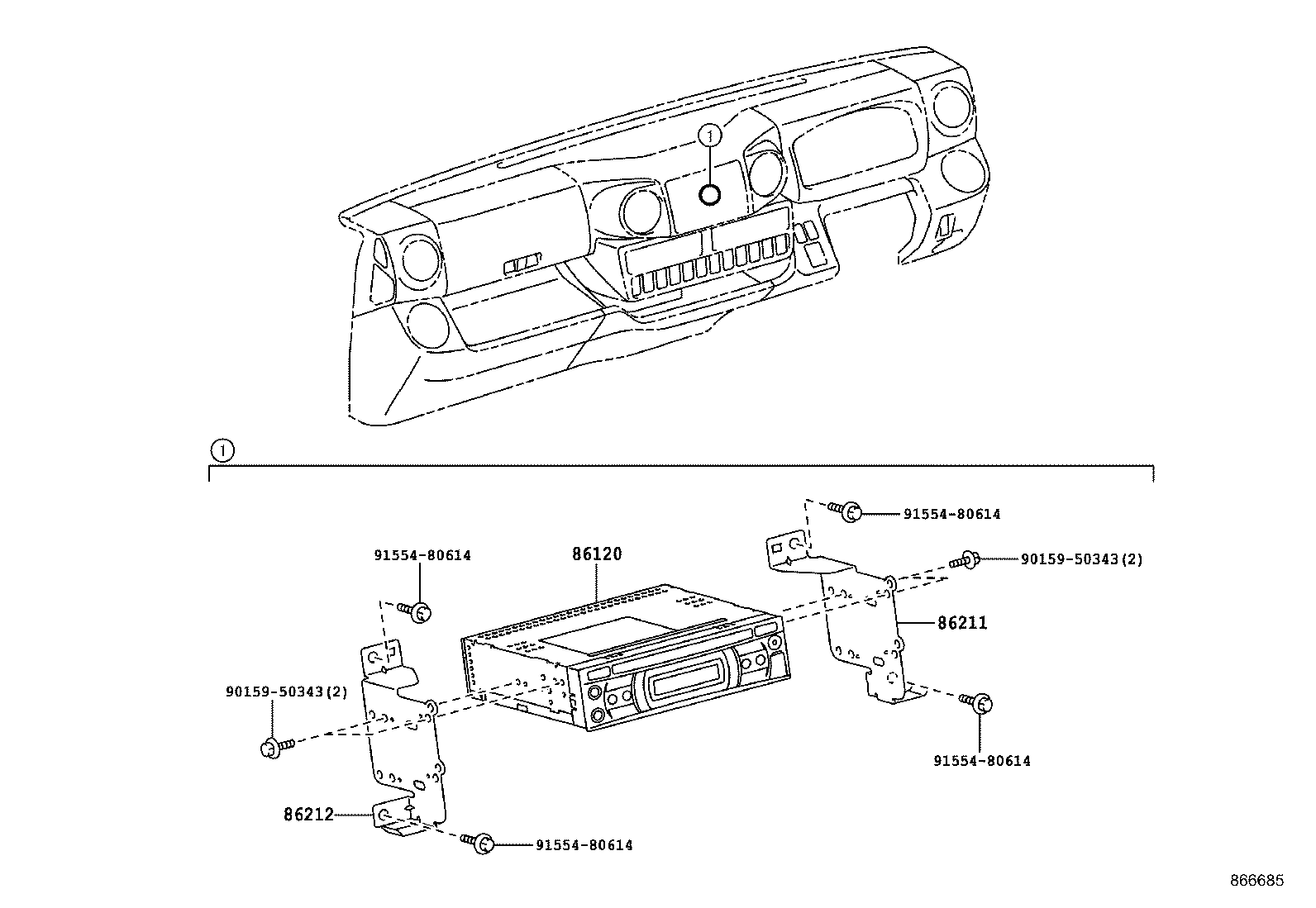

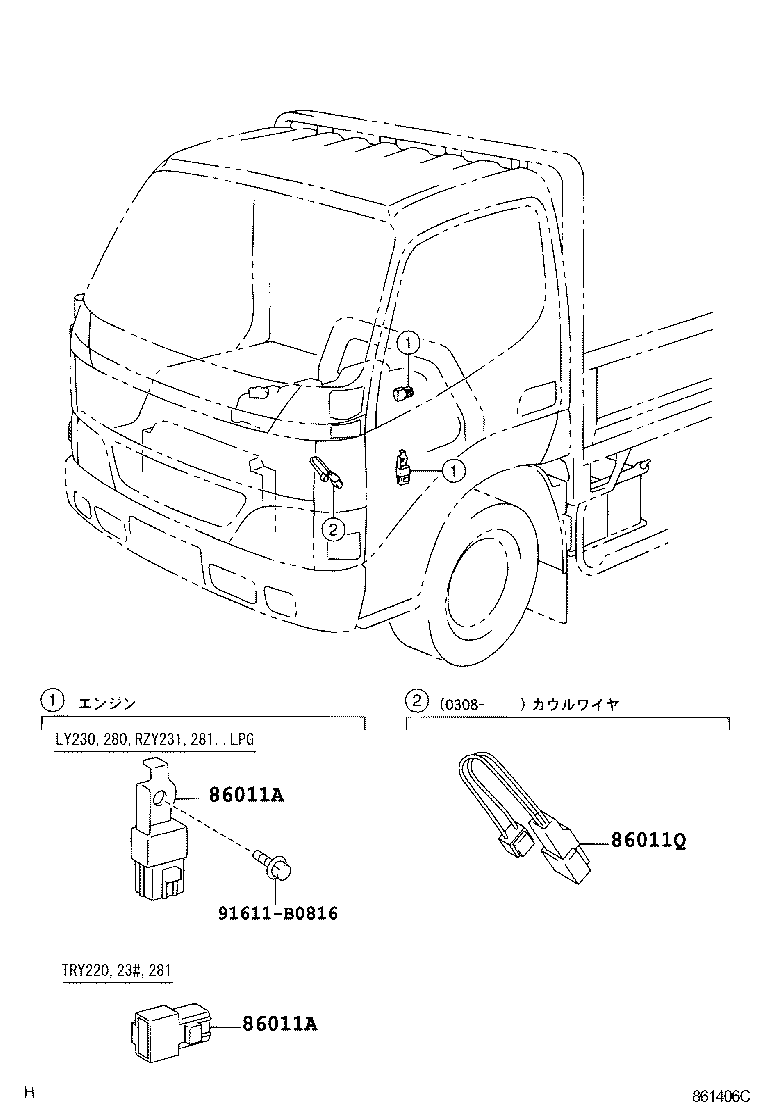

Figure 861405E 861405E 2001-07 → 2016-10 Figure 866685 866685 2016-10 → — Figure 863112B 863112B 2001-07 → 2015-02 Figure 866070 866070 2015-02 → — Figure 861406C 861406C 2001-07 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86270A Disc Player Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
