Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10
Heating & Air Conditioning - Control & Air Duct
43 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 55519 | Plate, Heater Control Name |

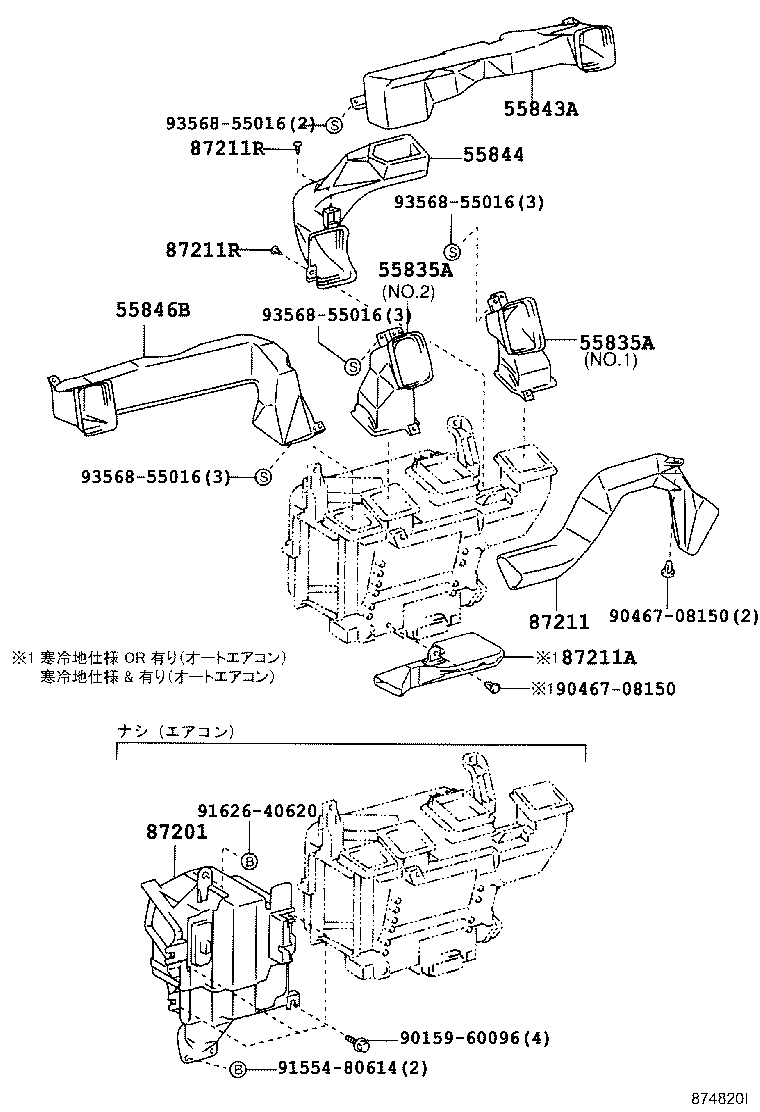

| 55835A | Duct, Heater TO Register, Center |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846B | Duct, Heater TO Register, NO.4 |
| 55870B | Duct Assy, Heater TO Register |
| 55900 | Control Assy, Air Conditioner |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55905C | Knob, Heater Control, NO.3 |
| 55905K | Knob, Heater Control, NO.4 |
| 55905L | Knob, Heater Control, NO.5 |
| 55906 | Cable Sub-assy, Heater Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55937 | Knob, Heater Control Lever |
| 55937R | Knob, Heater Control Lever |

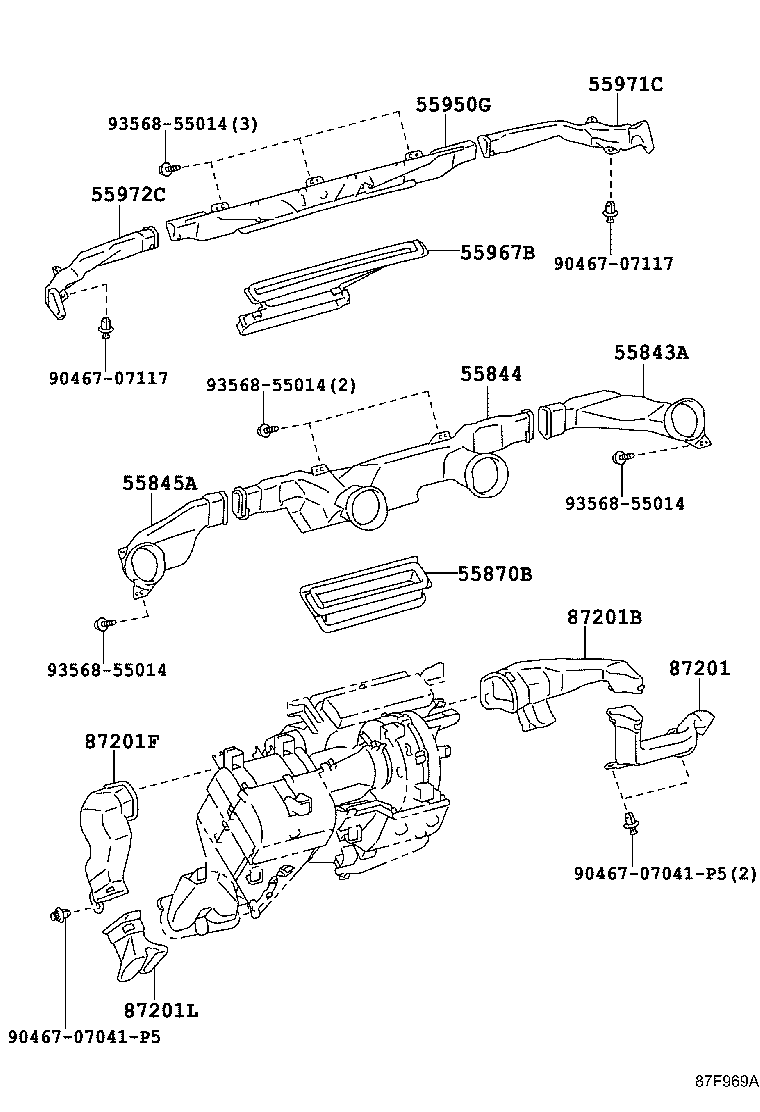

| 55950G | Nozzle Assy, Defroster |
| 55967B | Nozzle, Defroster, Lower |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 81850G | Lamp Assy, Indicator |
| 84661A | Knob, Cooler Control Switch |
| 84732H | Switch, Heater Blower |
| 84732K | Bulb, Heater Blower Switch |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87201L | Duct Sub-assy, Air, NO.4 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211R | Clip, Air Duct |
| 88566A | Duct, Cooler Air, NO.1 |
| 88566B | Duct, Cooler Air, NO.2 |
| 88566C | Duct, Cooler Air, NO.3 |
| 88611A | Knob, Cooler Control Switch |
| 88619A | Panel, Control |

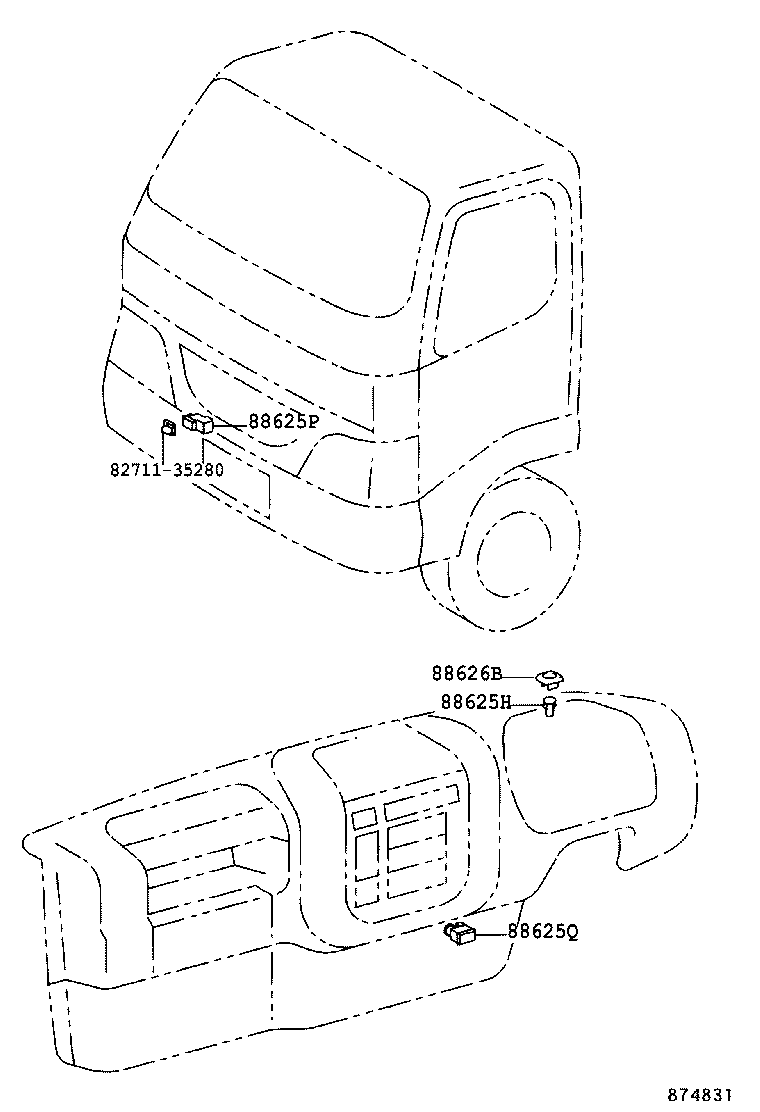

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88626B | Holder, Thermistor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
