Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

24 part groups · 17 illustrations

Illustrations

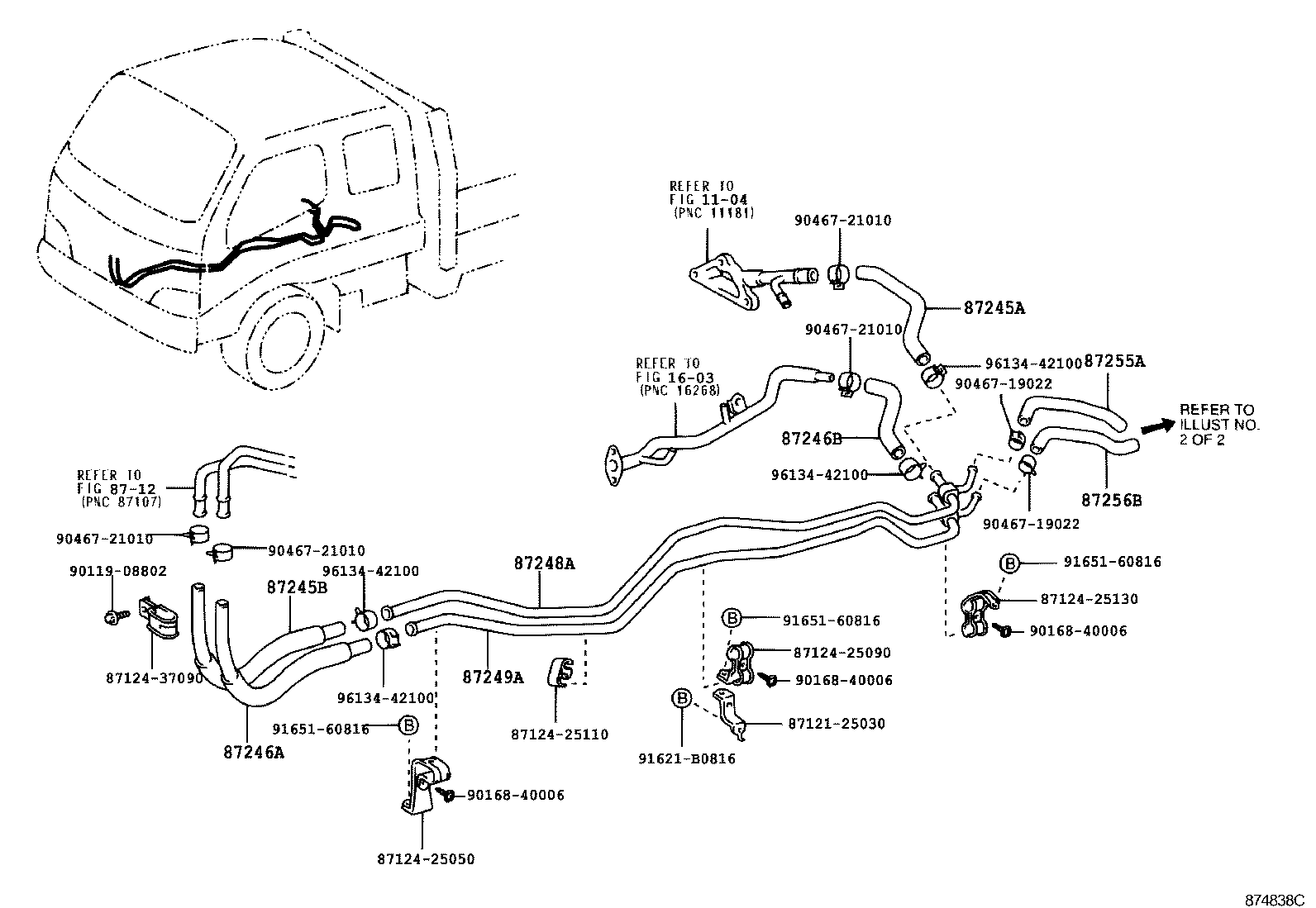

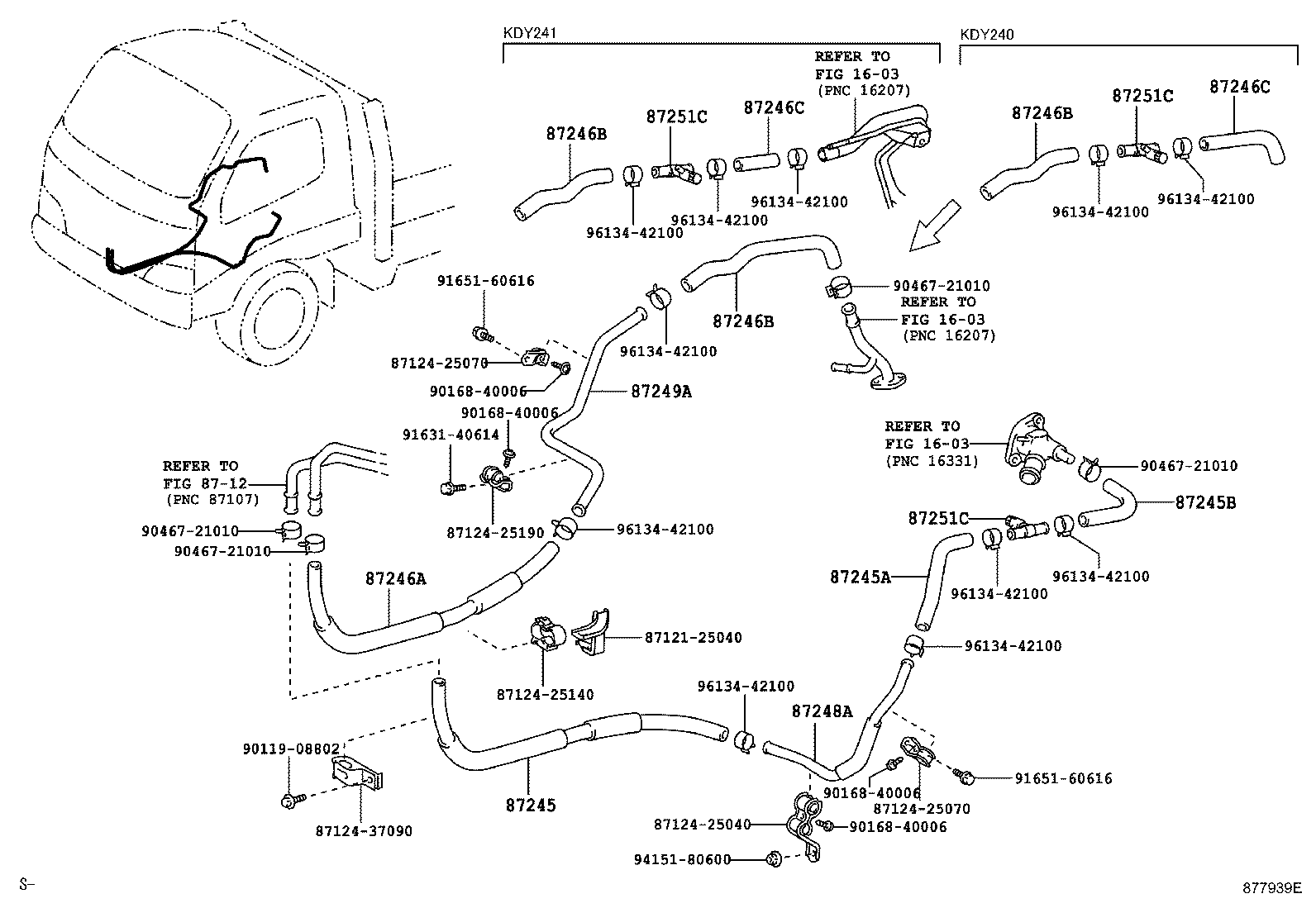

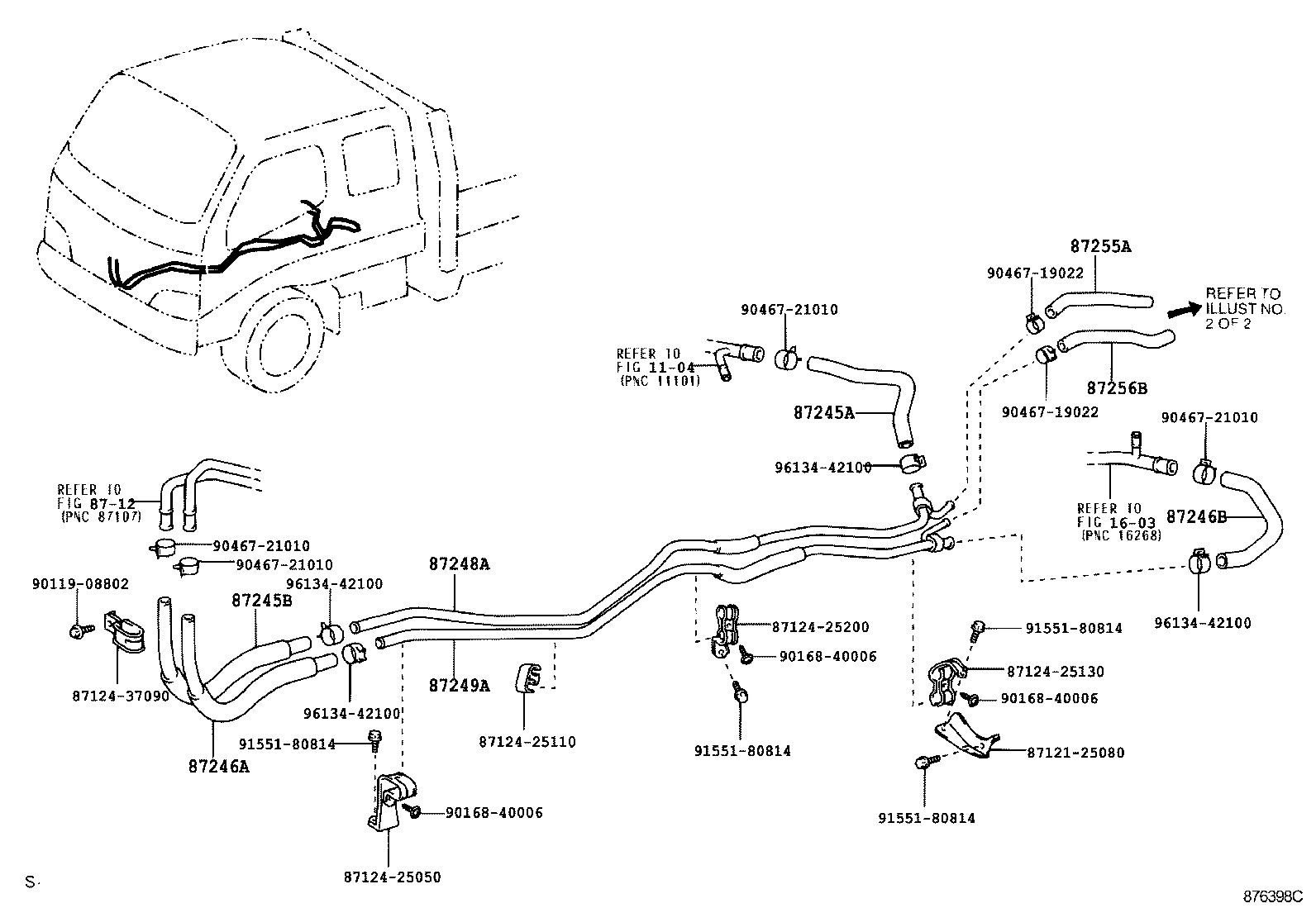

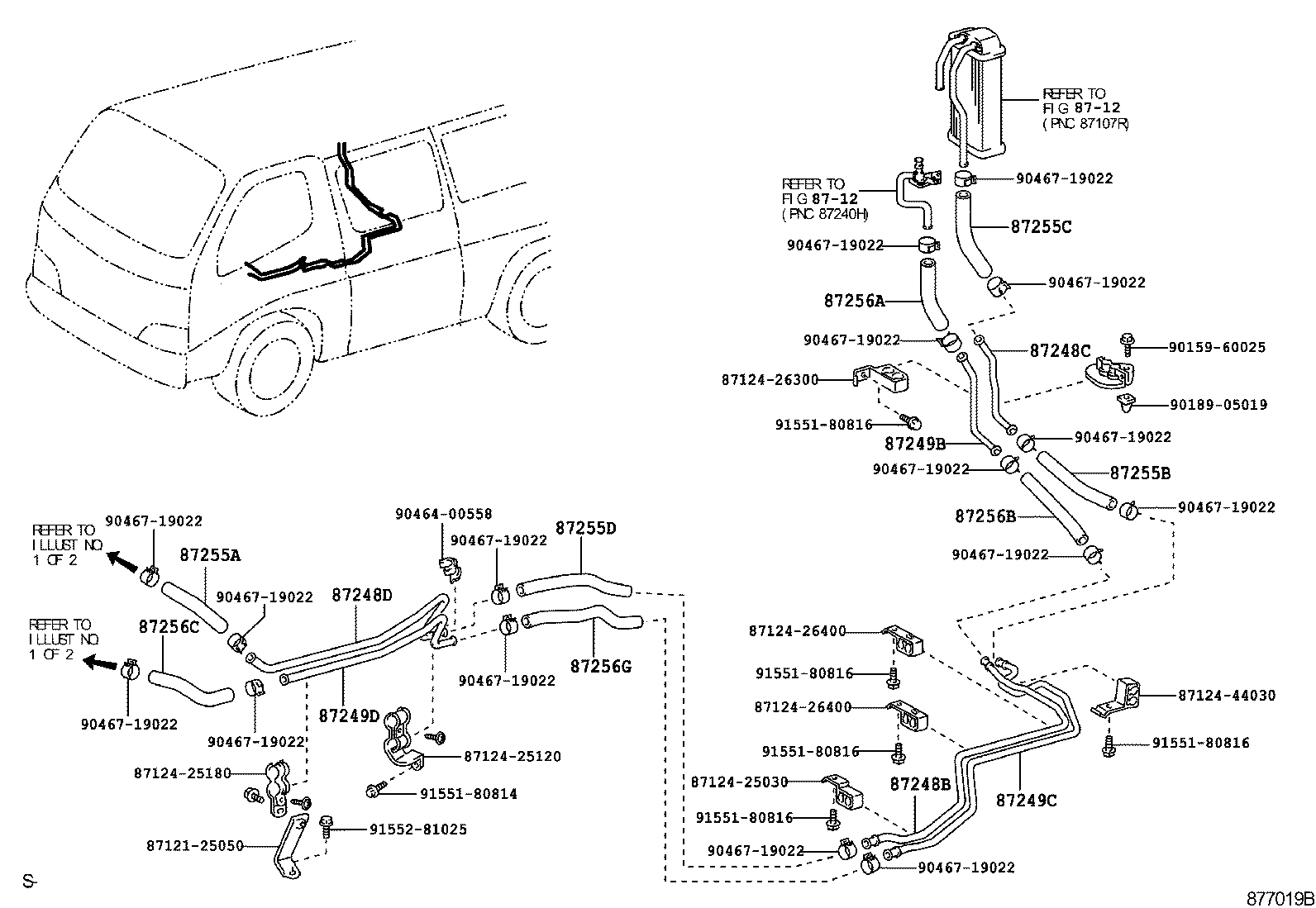

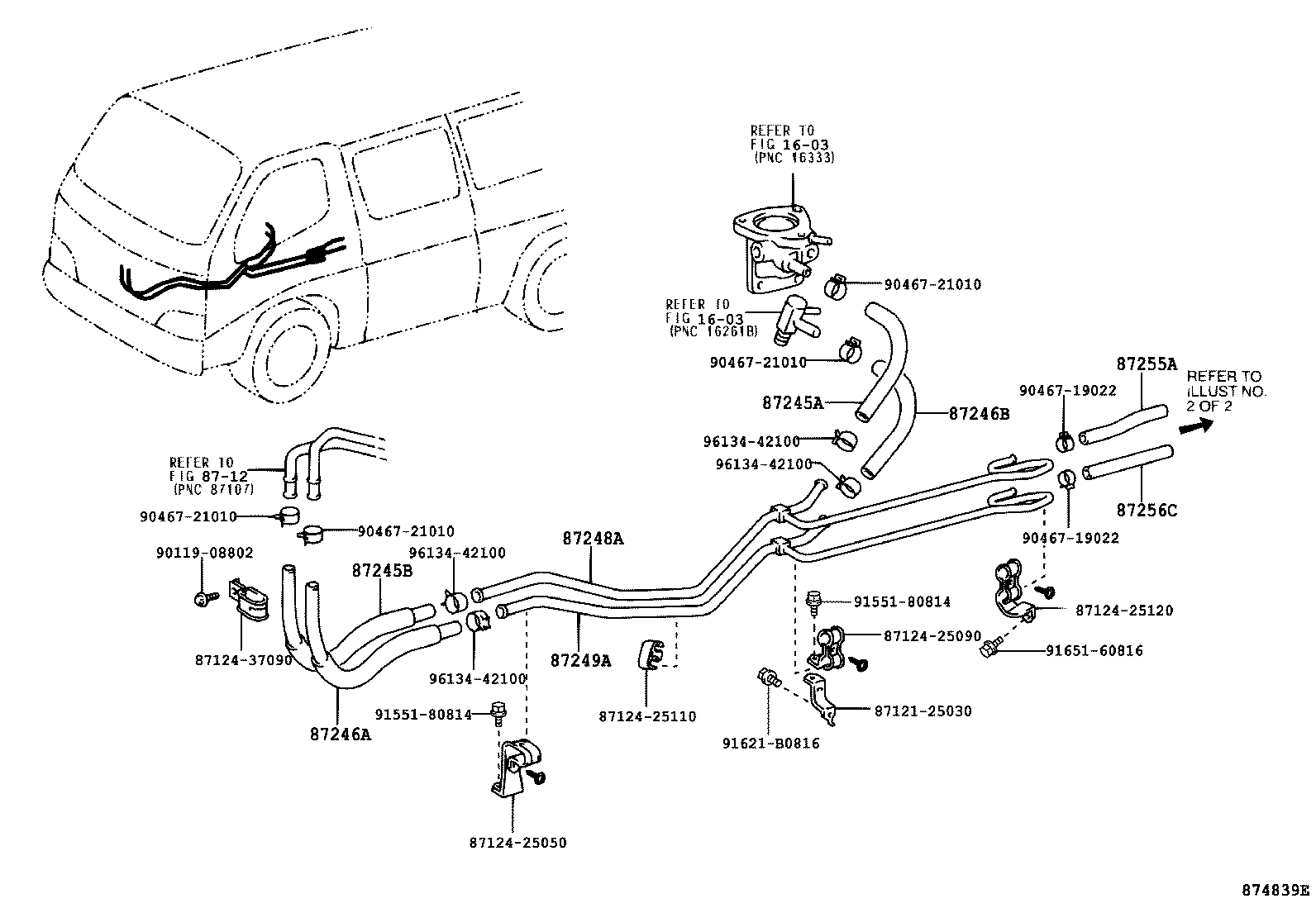

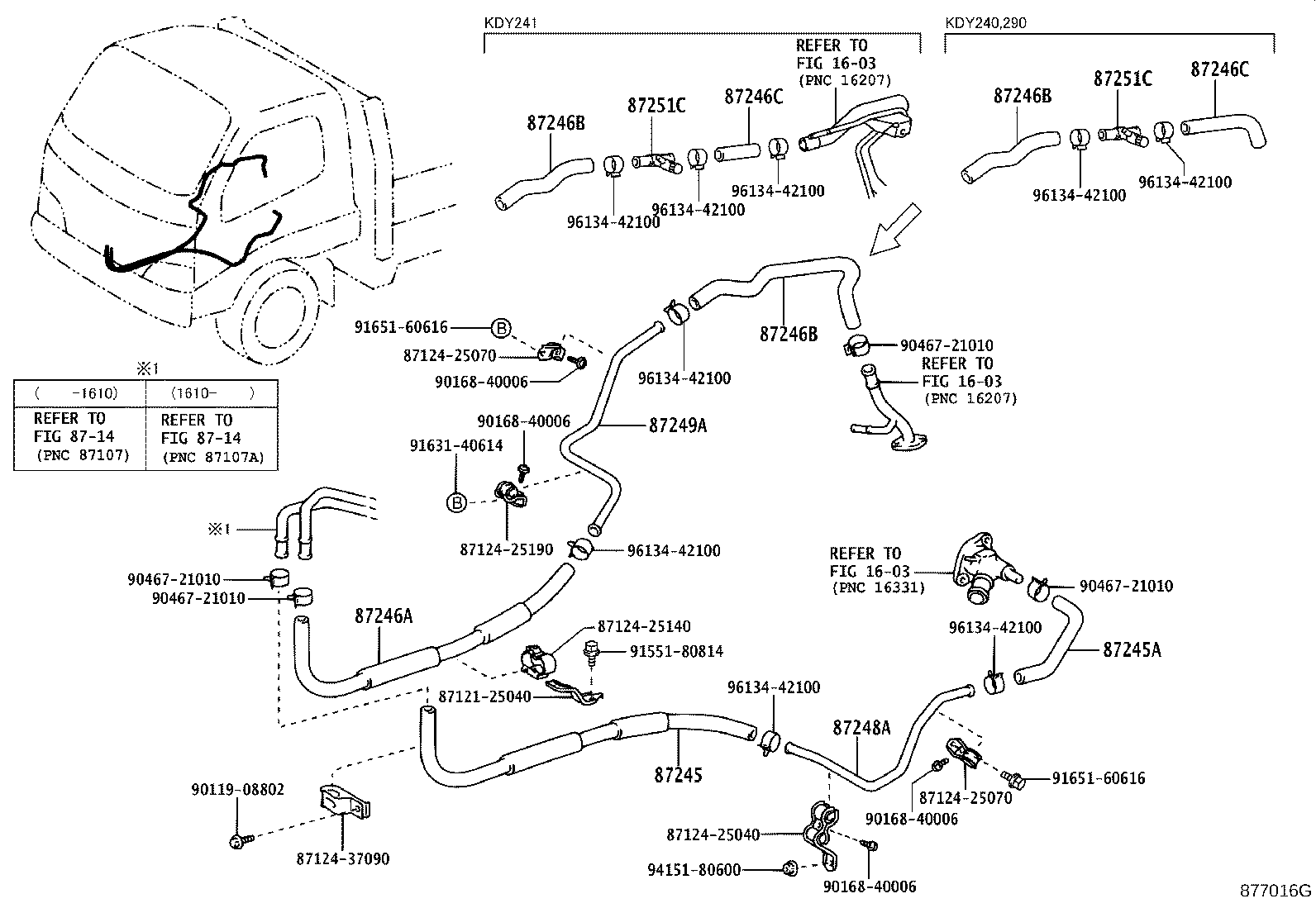

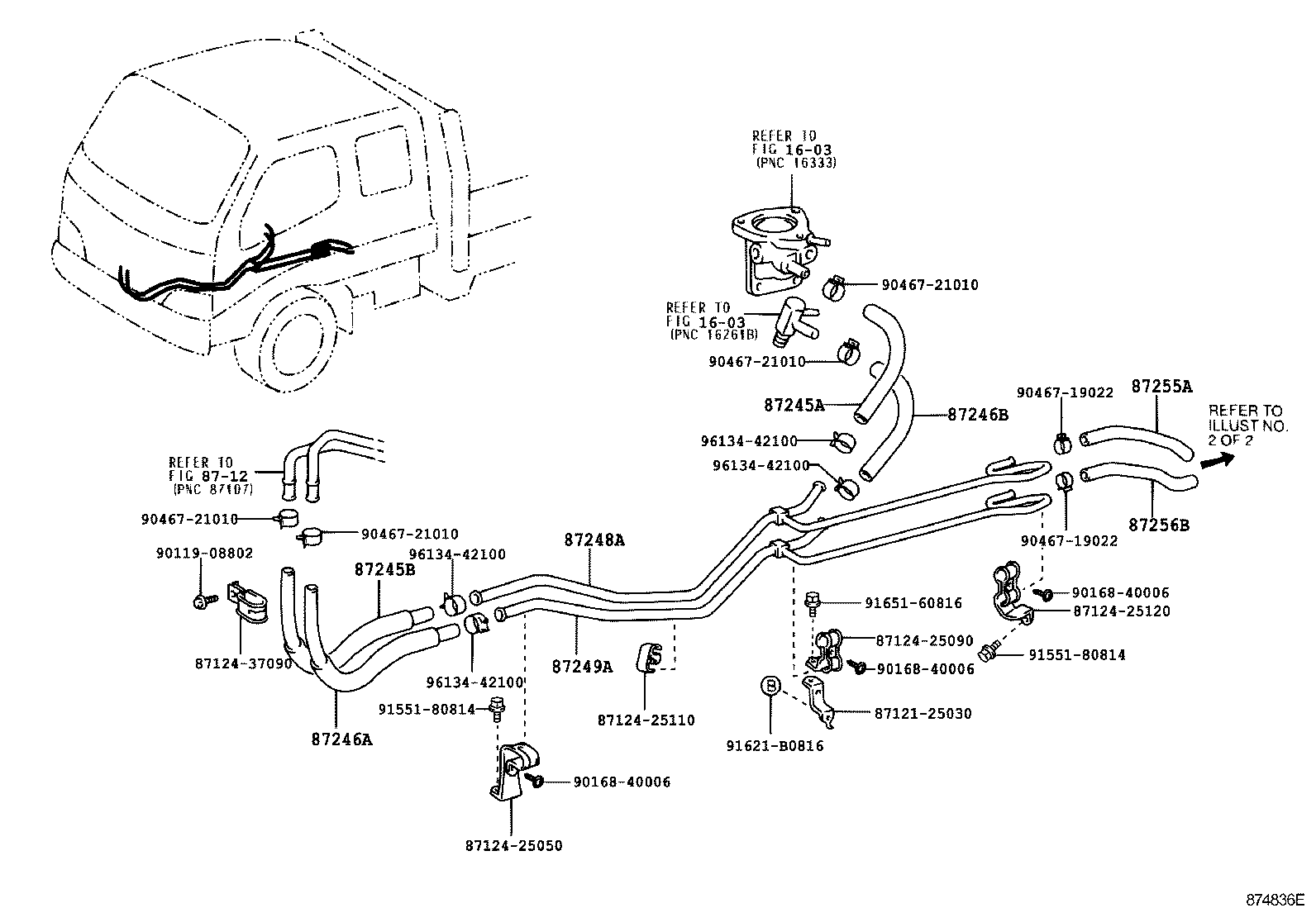

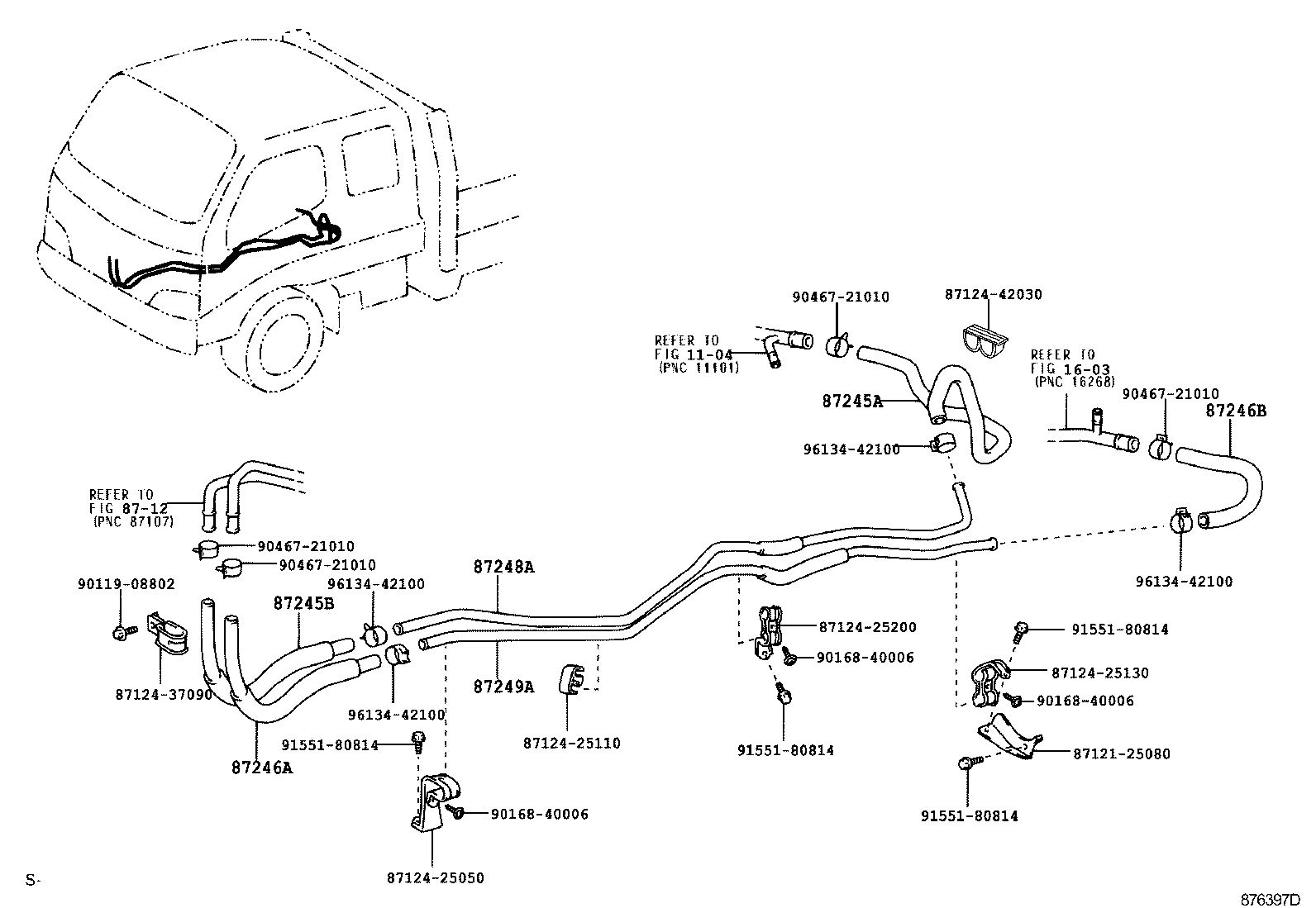

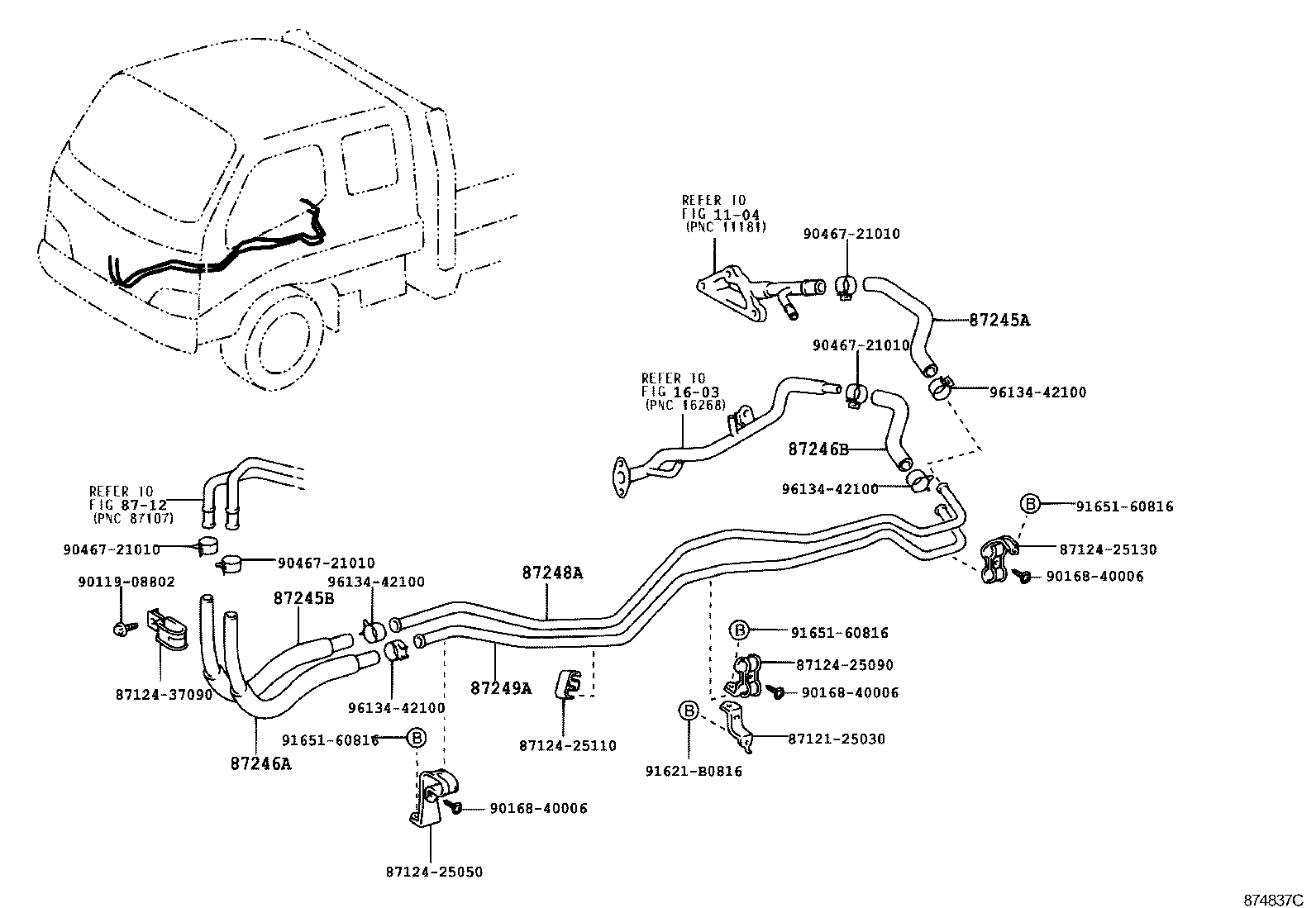

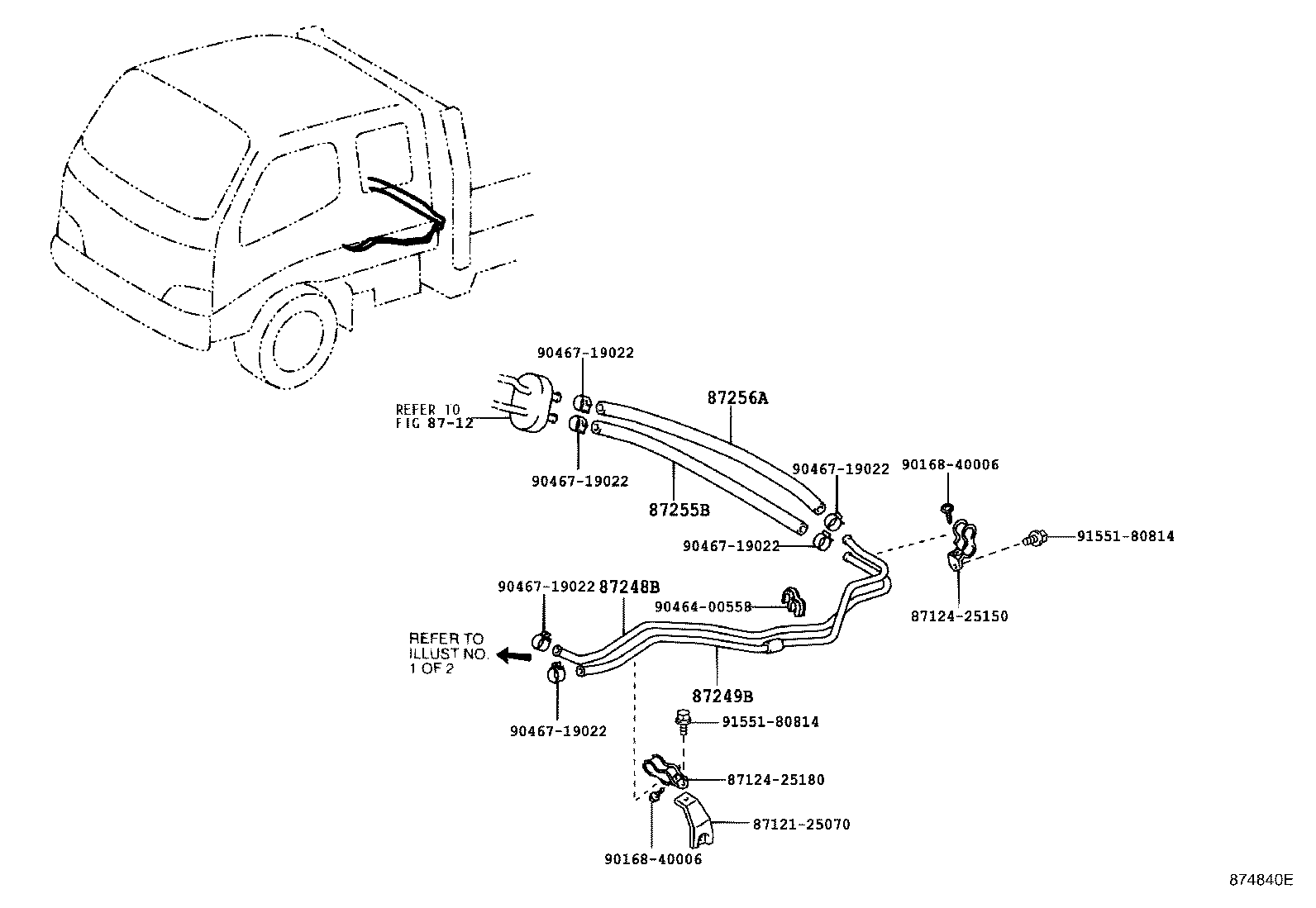

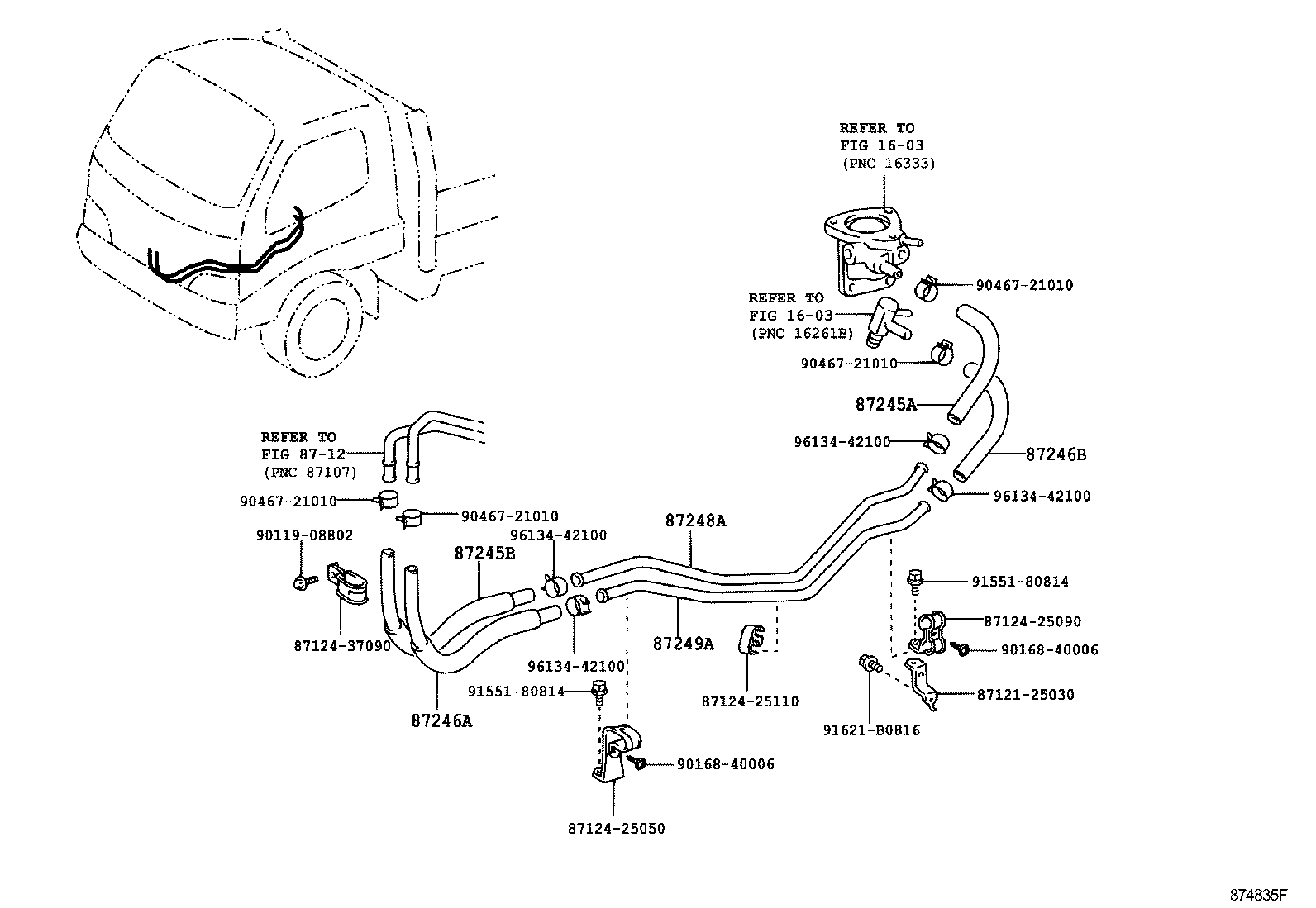

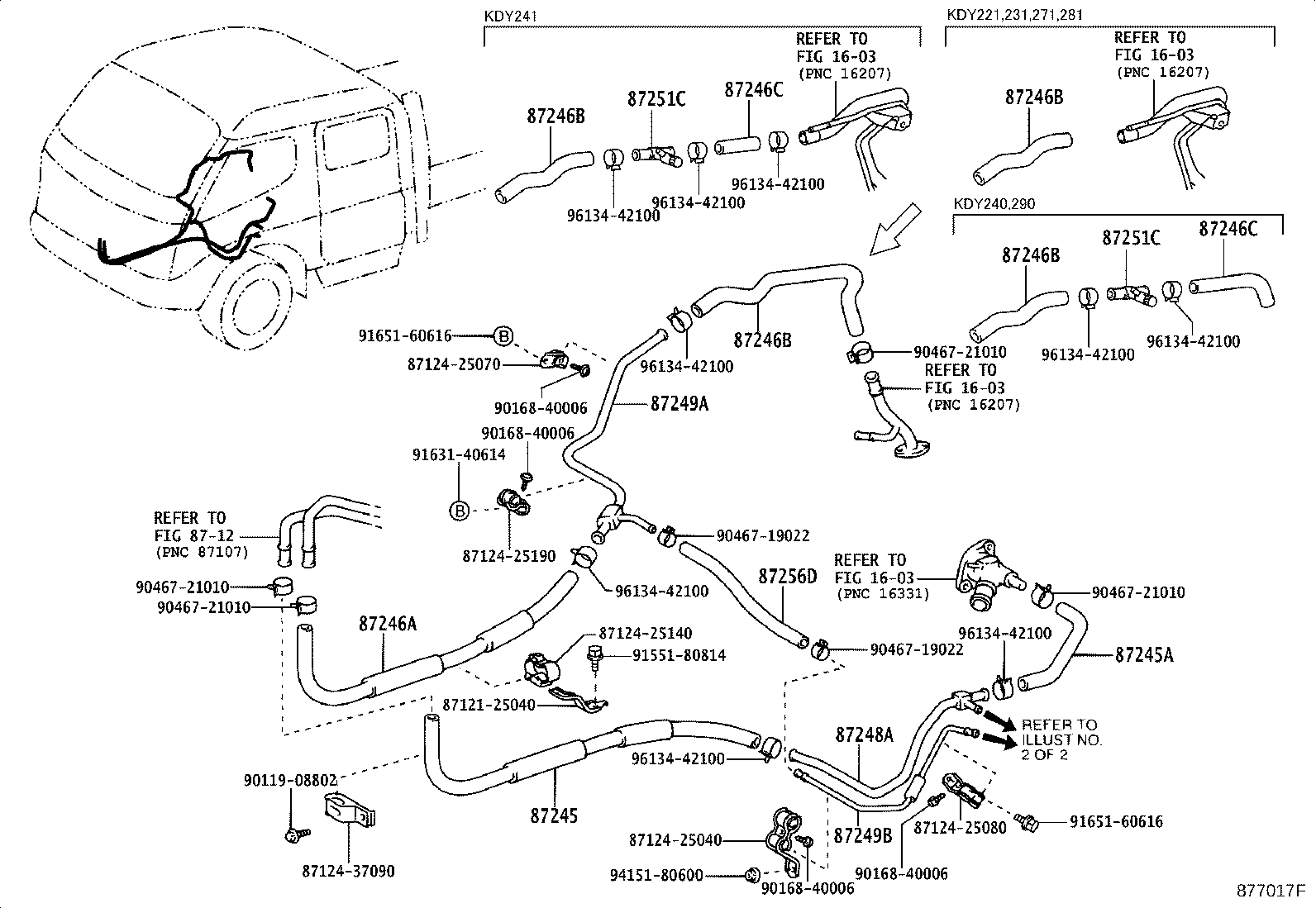

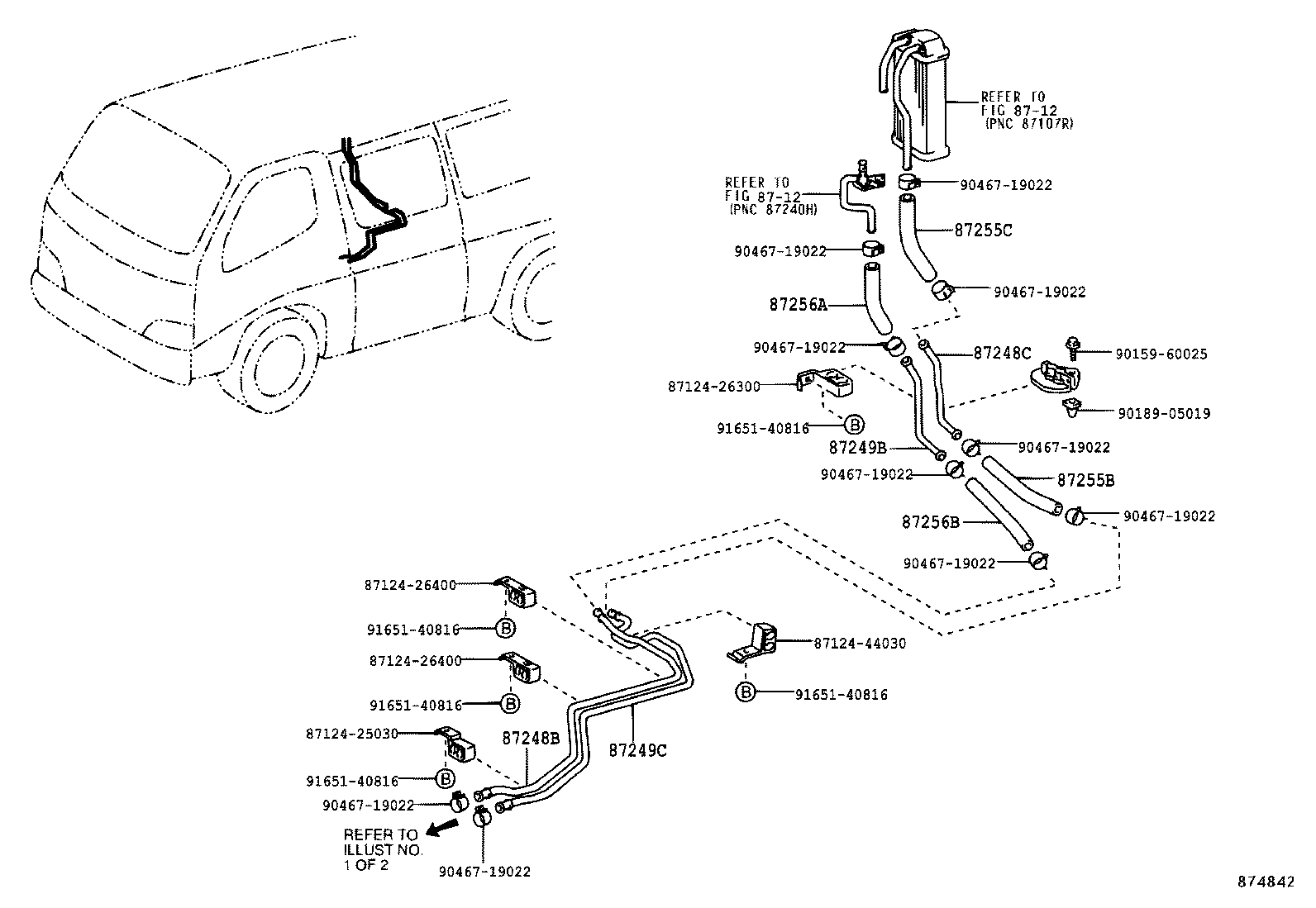

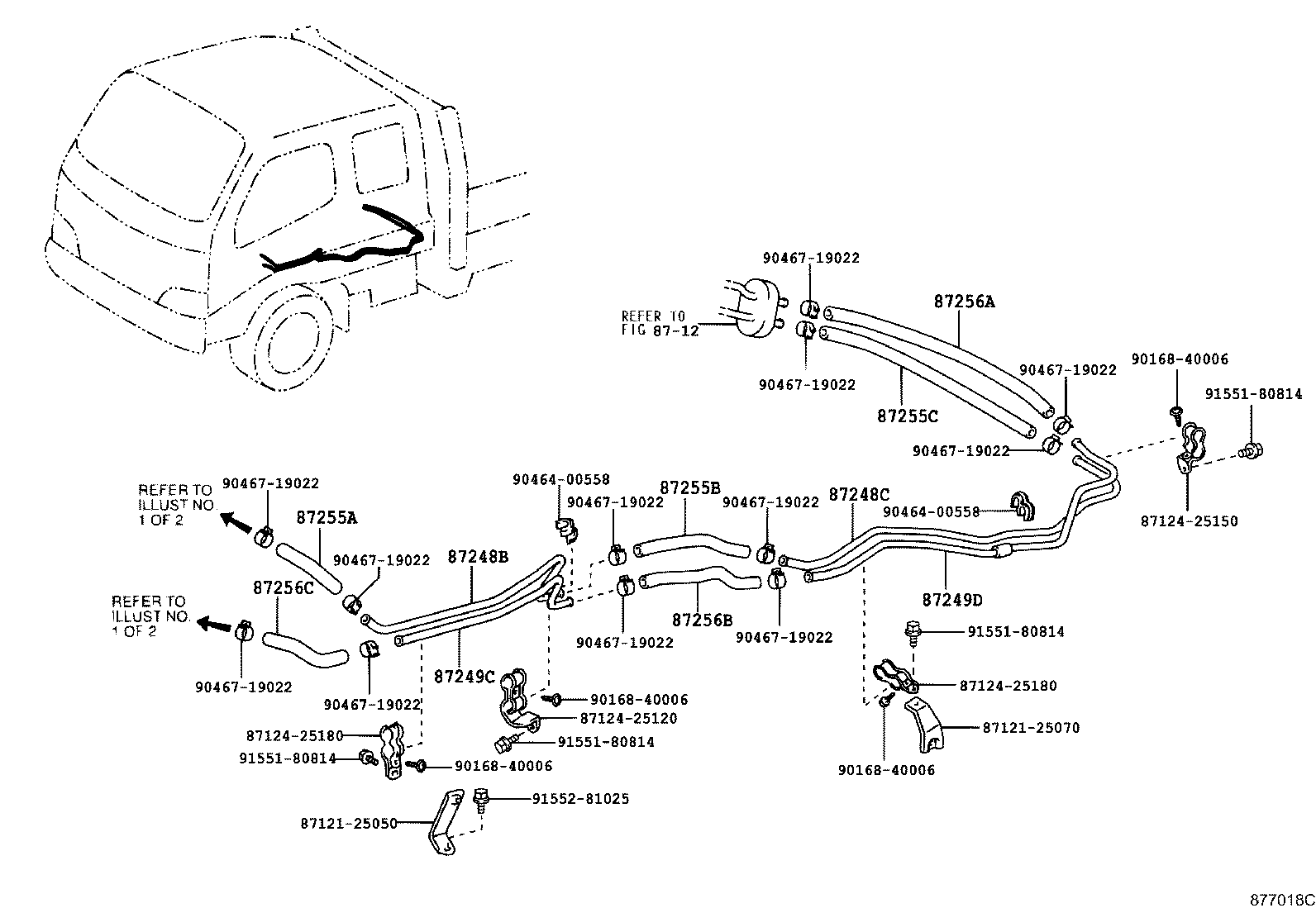

Figure 874834E 874834E 2001-07 → — Figure 874835F 874835F 2001-07 → — Figure 874839E 874839E 2001-07 → — Figure 874836E 874836E 2001-07 → — Figure 874837C 874837C 2001-07 → 2003-08 Figure 874838C 874838C 2001-07 → 2003-08 Figure 876397D 876397D 2003-08 → — Figure 876398C 876398C 2003-08 → — Figure 877016G 877016G 2004-08 → — Figure 877017F 877017F 2004-08 → — Figure 877017F 877017F 2004-08 → — Figure 877939E 877939E 2004-08 → — Figure 877939E 877939E 2004-08 → — Figure 874840E 874840E 2001-07 → — Figure 874842 874842 2001-07 → — Figure 877018C 877018C 2004-08 → — Figure 877019B 877019B 2004-08 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87251C Joint, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256G Hose, Rear Heater Water Outlet, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
