Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

30 part groups · 13 illustrations

Illustrations

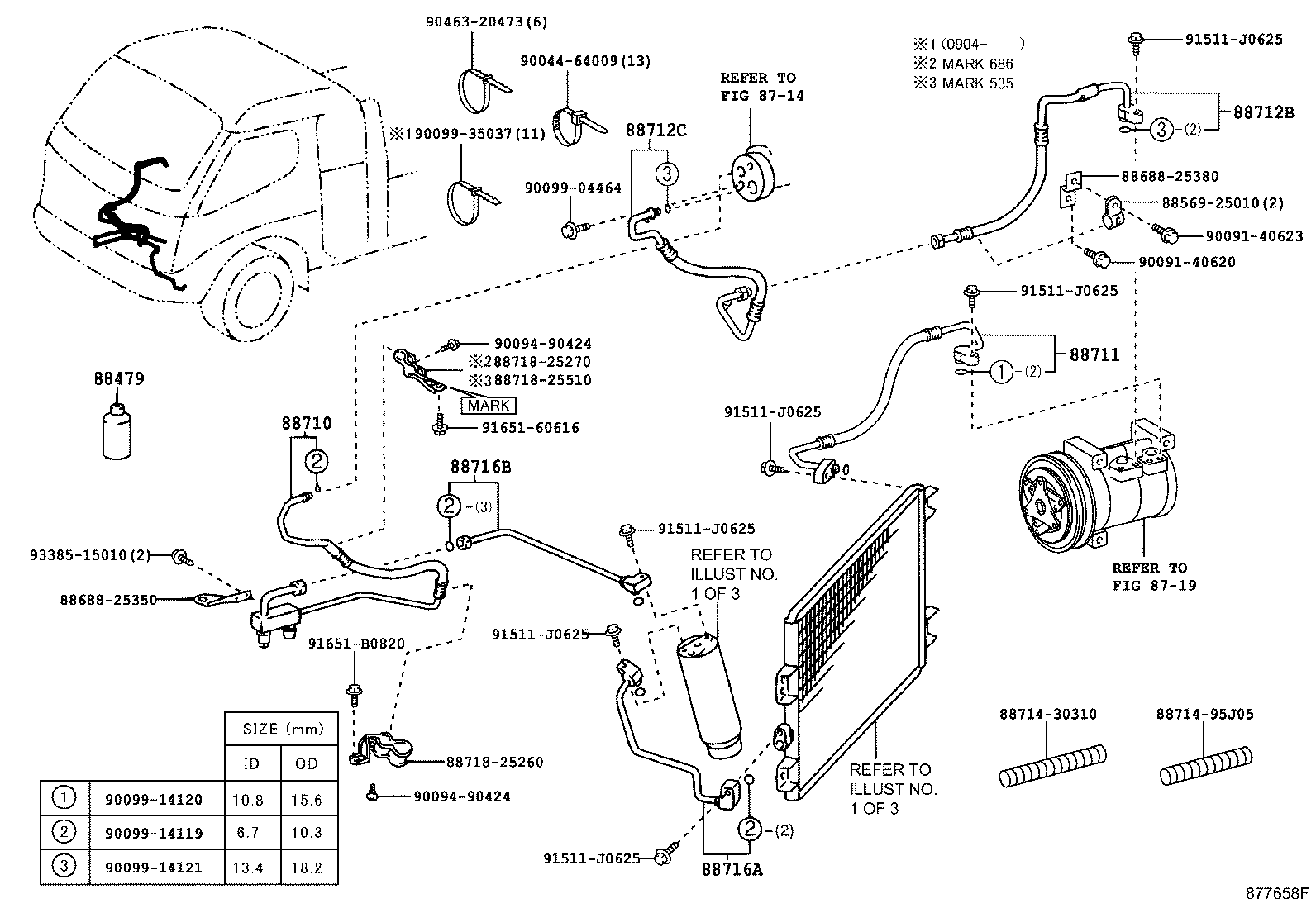

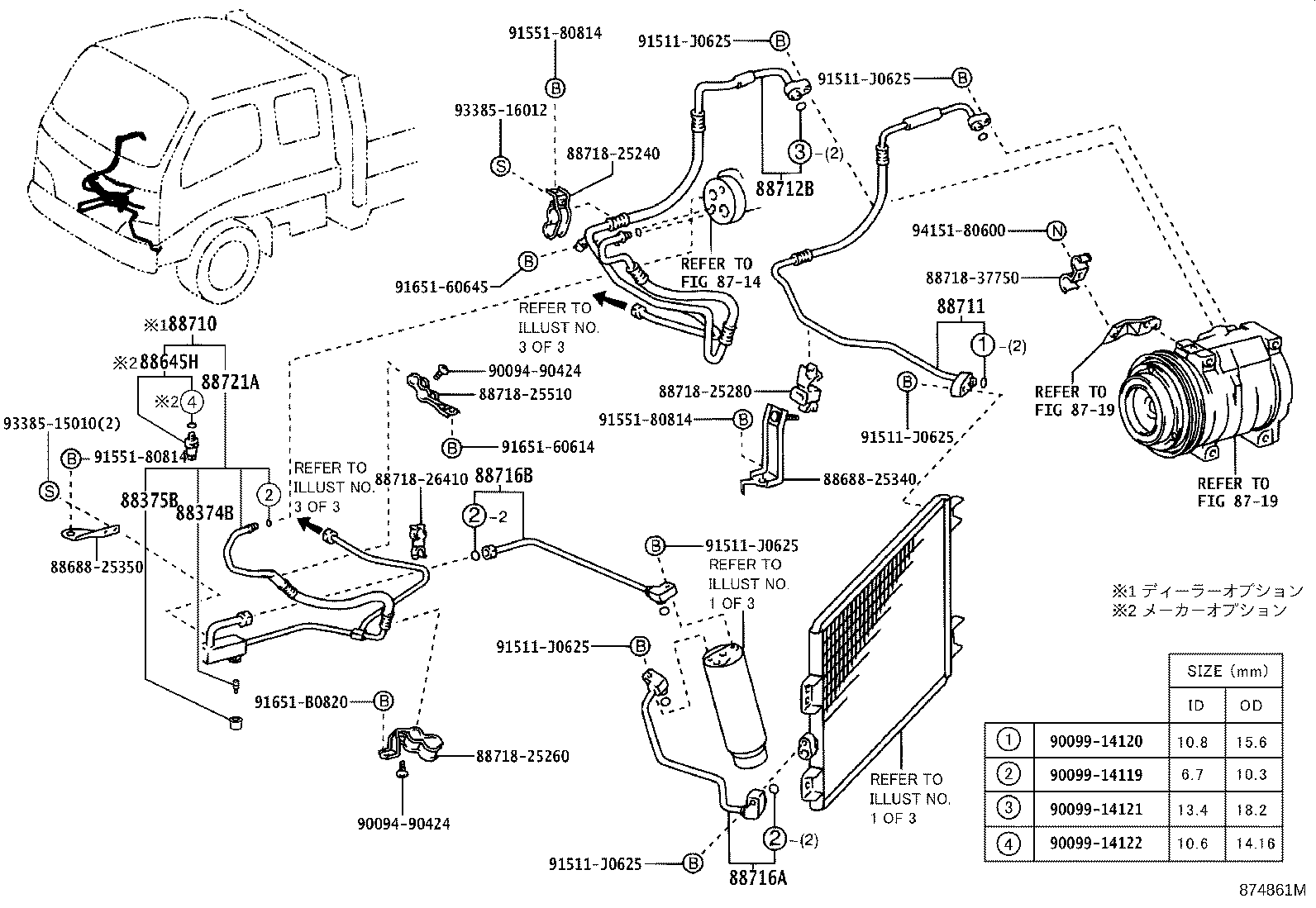

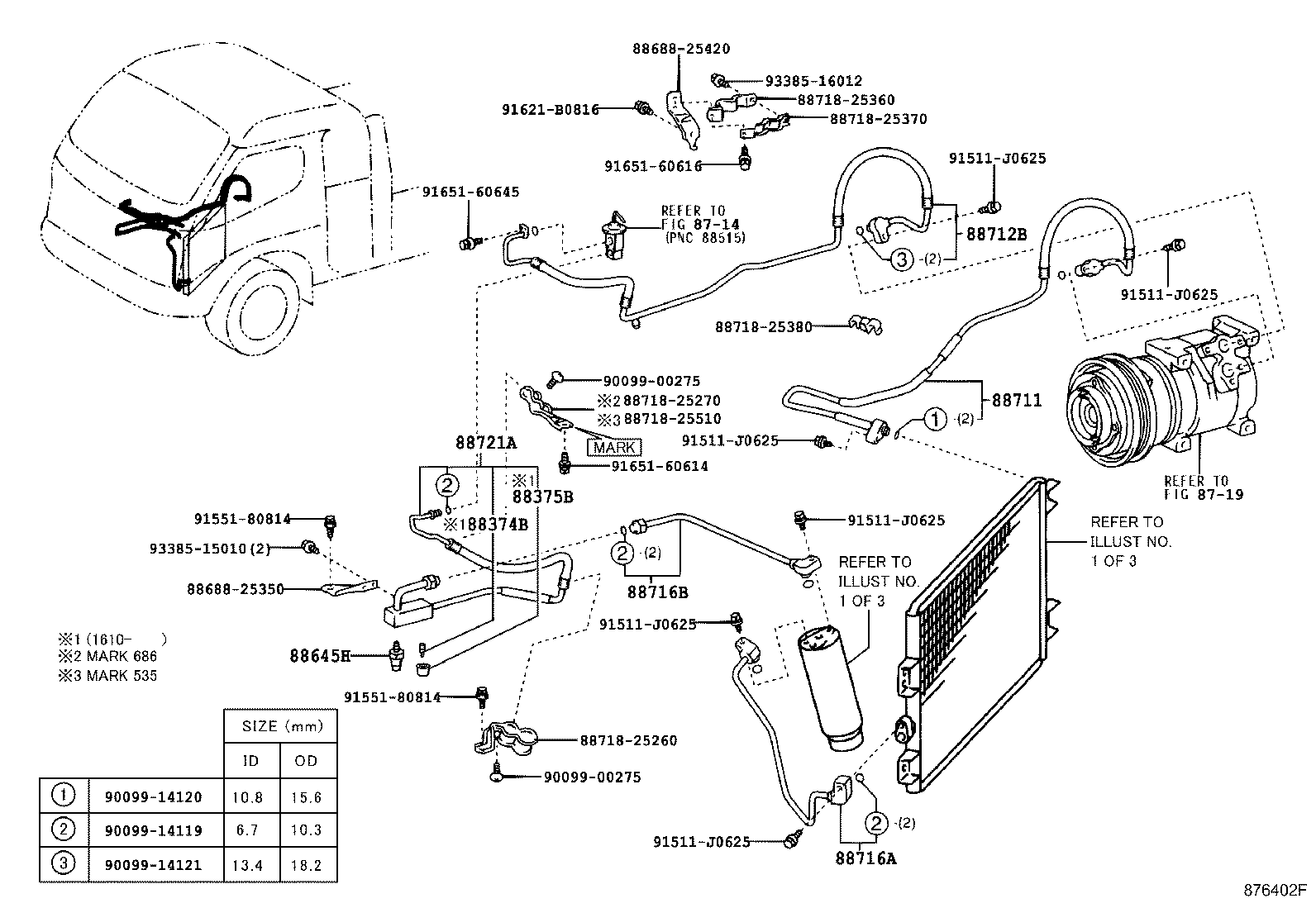

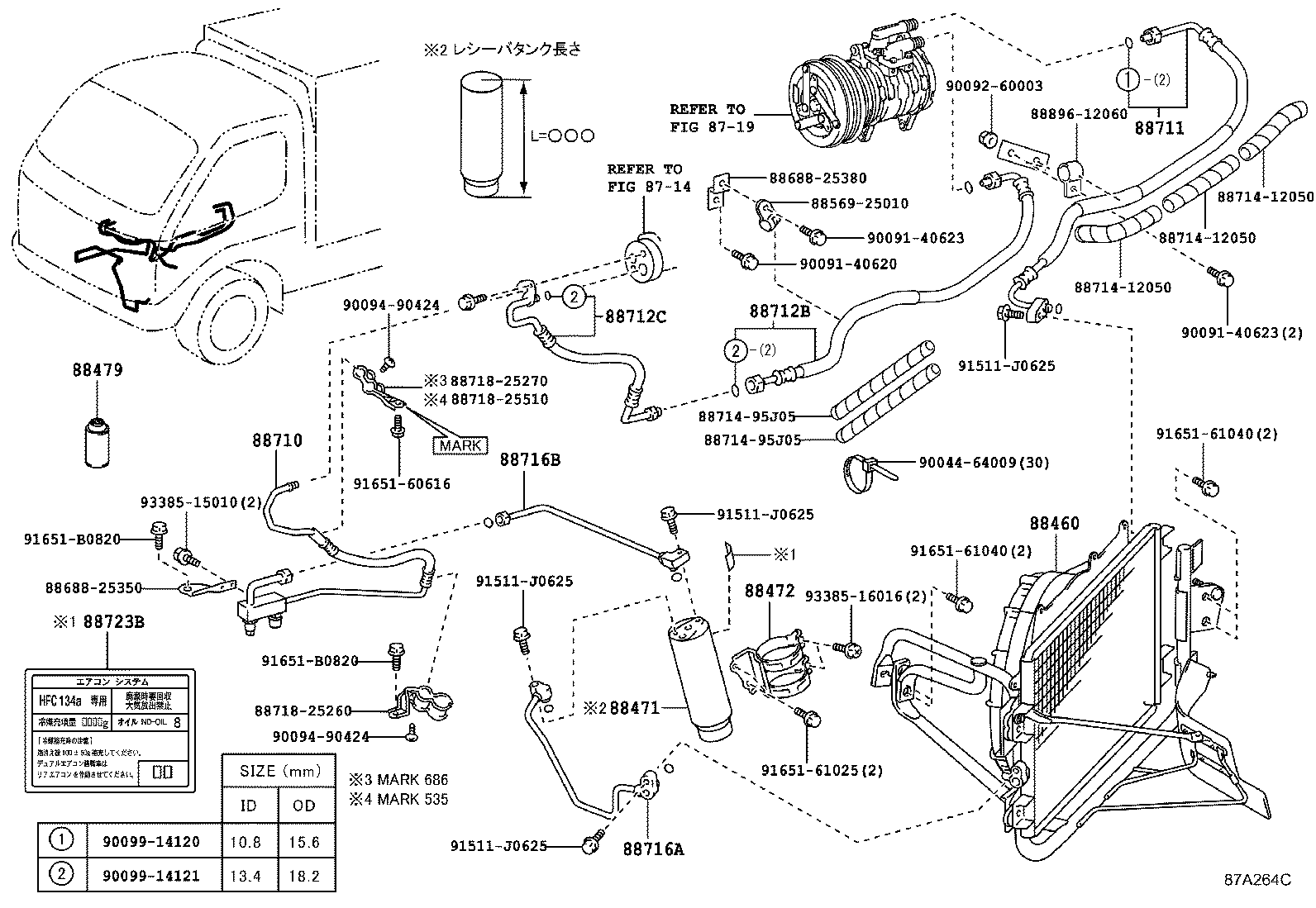

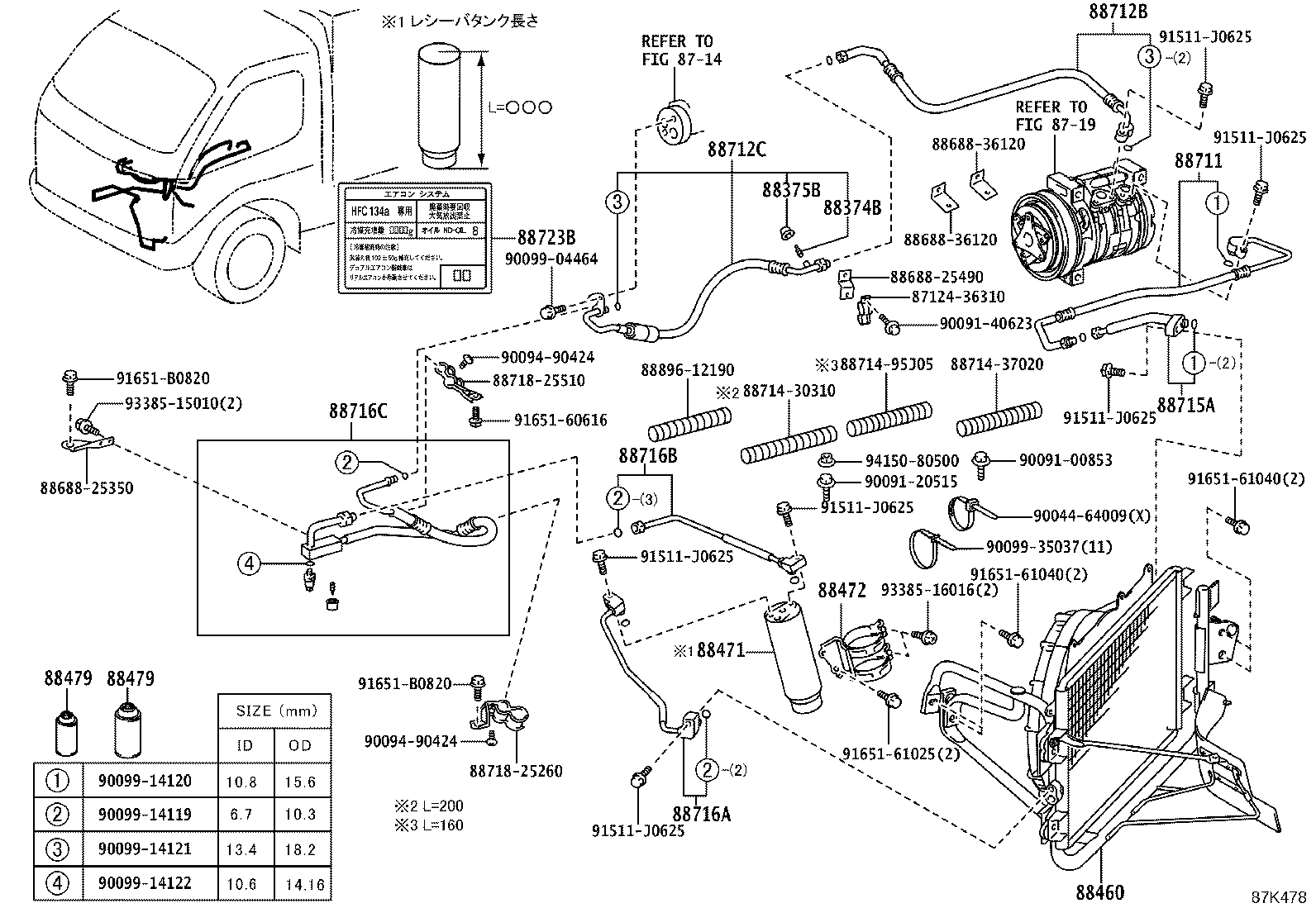

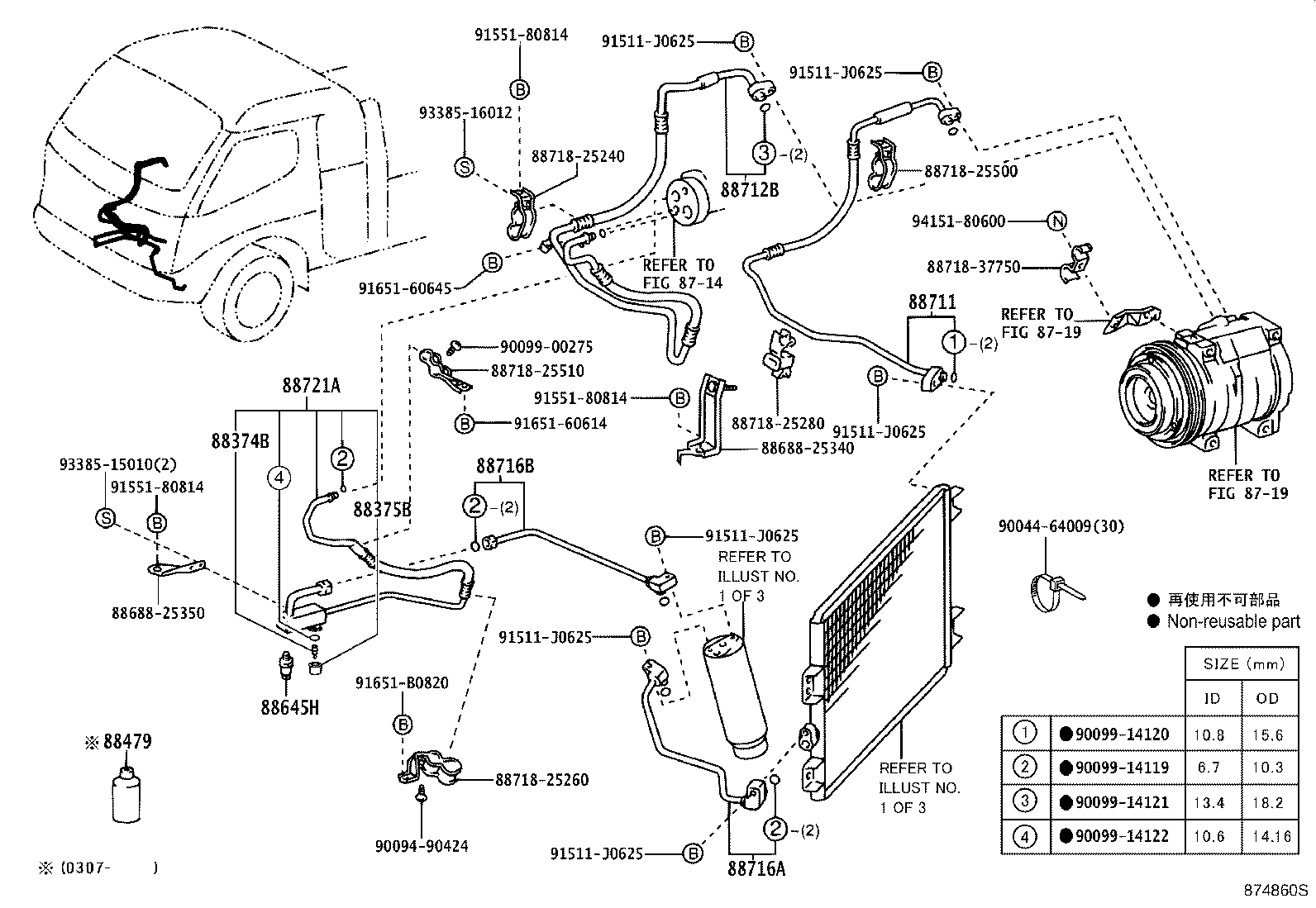

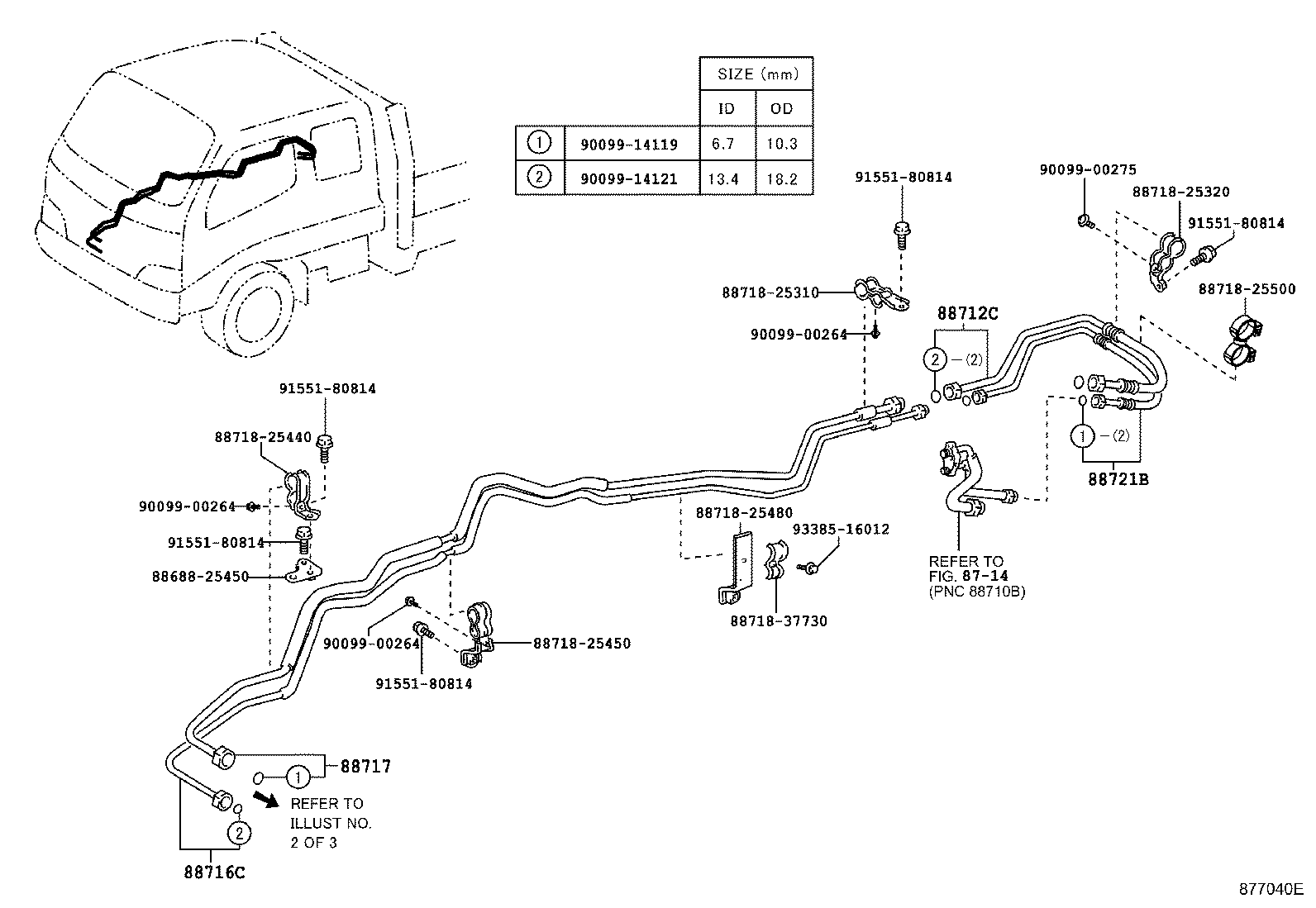

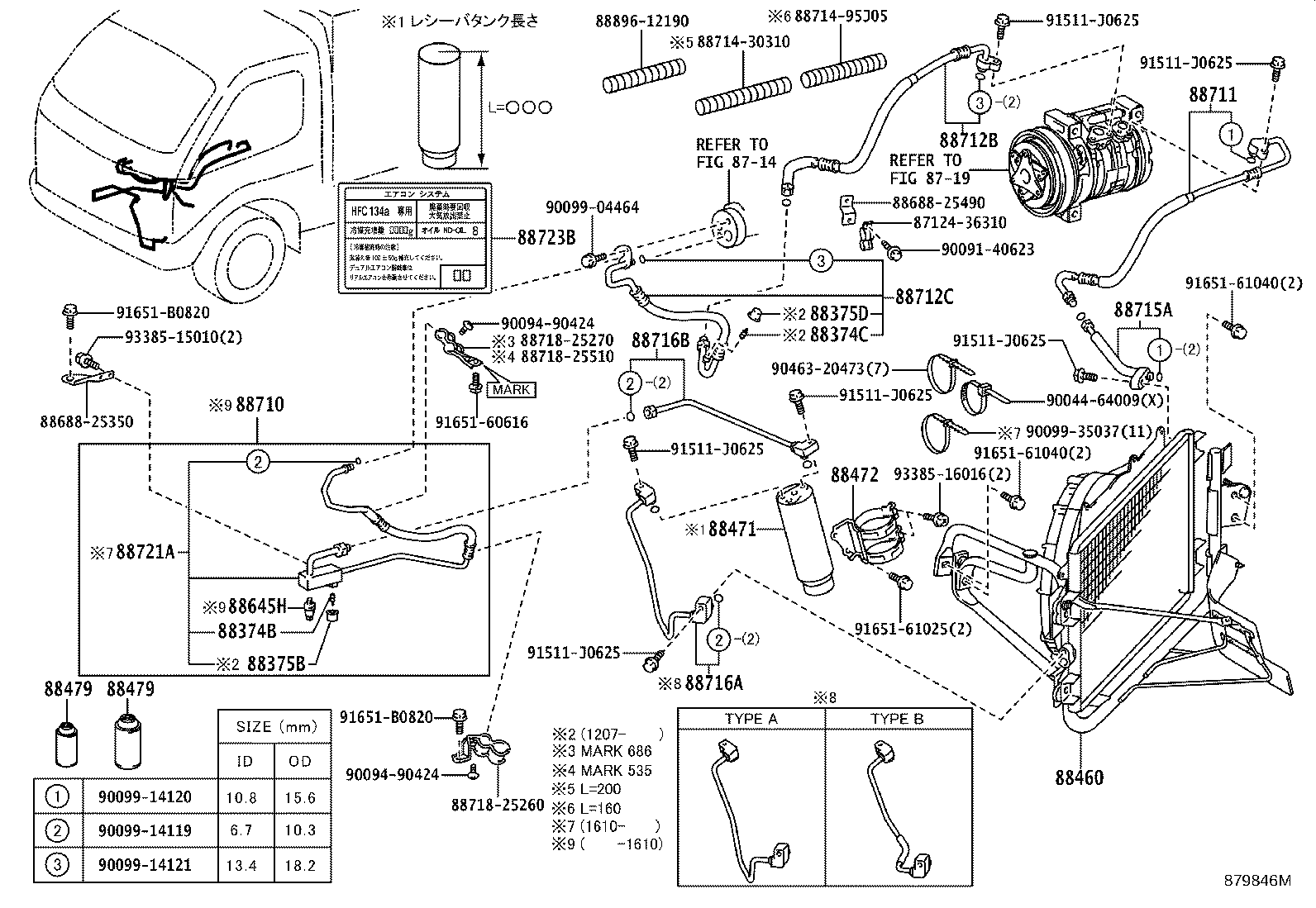

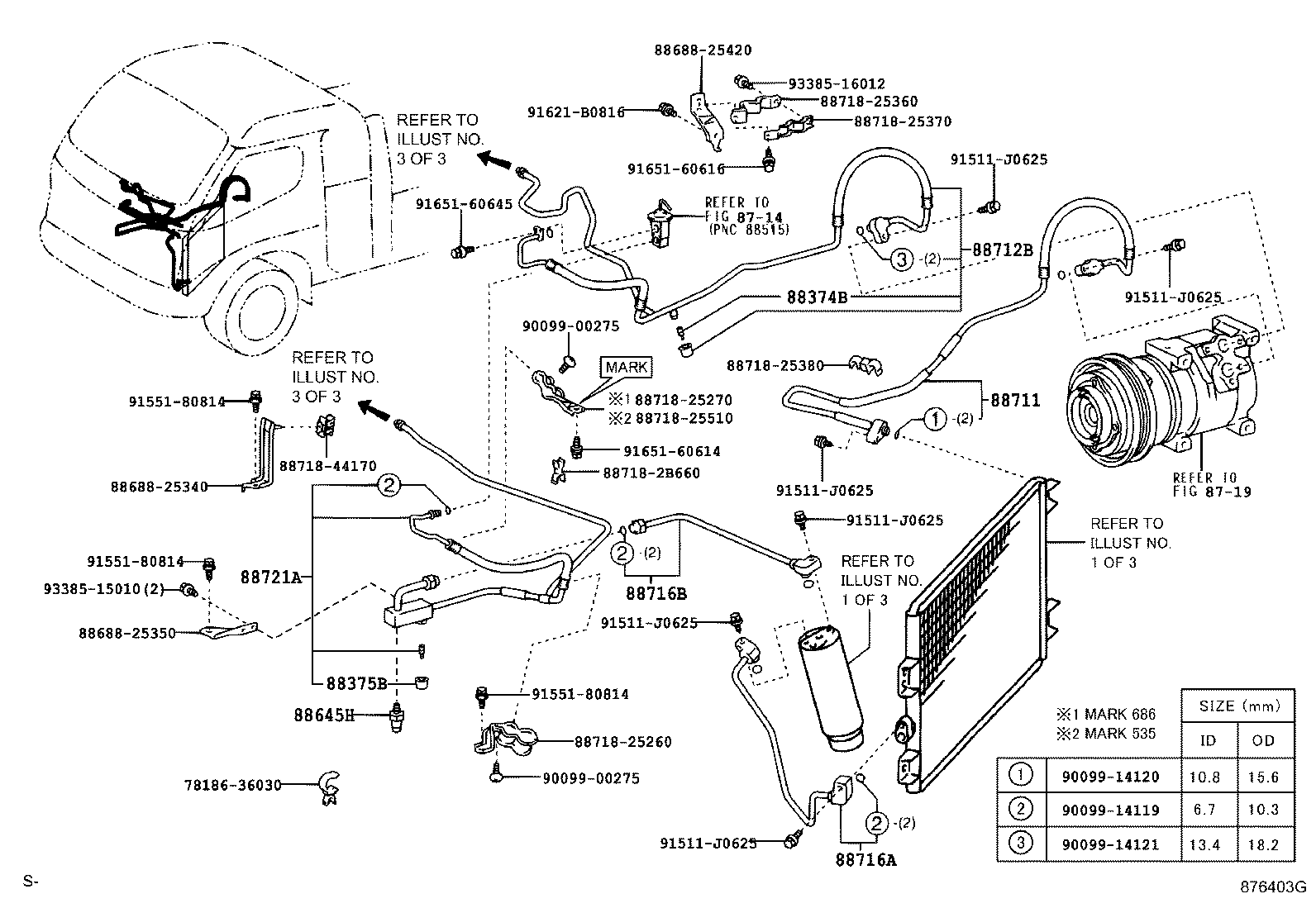

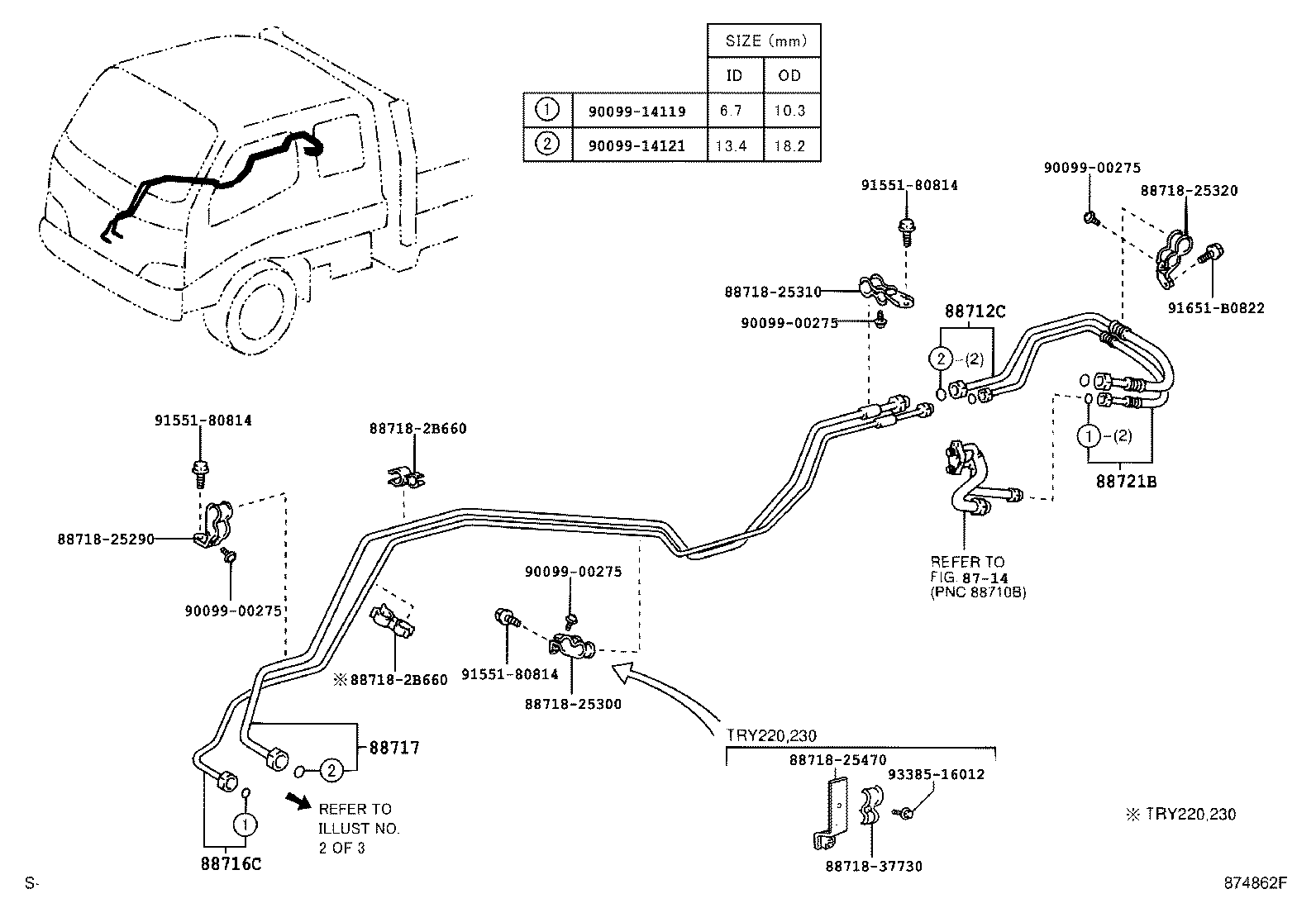

Figure 874859N 874859N 2001-07 → — Figure 874860S 874860S 2001-07 → — Figure 874860S 874860S 2001-07 → — Figure 874861M 874861M 2001-07 → — Figure 87A264C 87A264C 2001-07 → 2004-08 Figure 877658F 877658F 2004-08 → — Figure 879846M 879846M 2007-09 → — Figure 879846M 879846M 2007-09 → — Figure 87K478 87K478 2020-03 → — Figure 876402F 876402F 2003-08 → — Figure 876403G 876403G 2003-08 → — Figure 874862F 874862F 2001-07 → — Figure 877040E 877040E 2004-08 → —

Part groups

PNCDescription
87138S Resistor, Blower
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88462A Holder, Condenser
88463 Bracket, Cooler Condenser, NO.1
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712B Hose, Cooler Refrigerant Suction
88712C Hose, Suction
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88721A Hose, Liquid, A
88721B Hose, Liquid, B
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
