Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

22 part groups · 8 illustrations

Illustrations

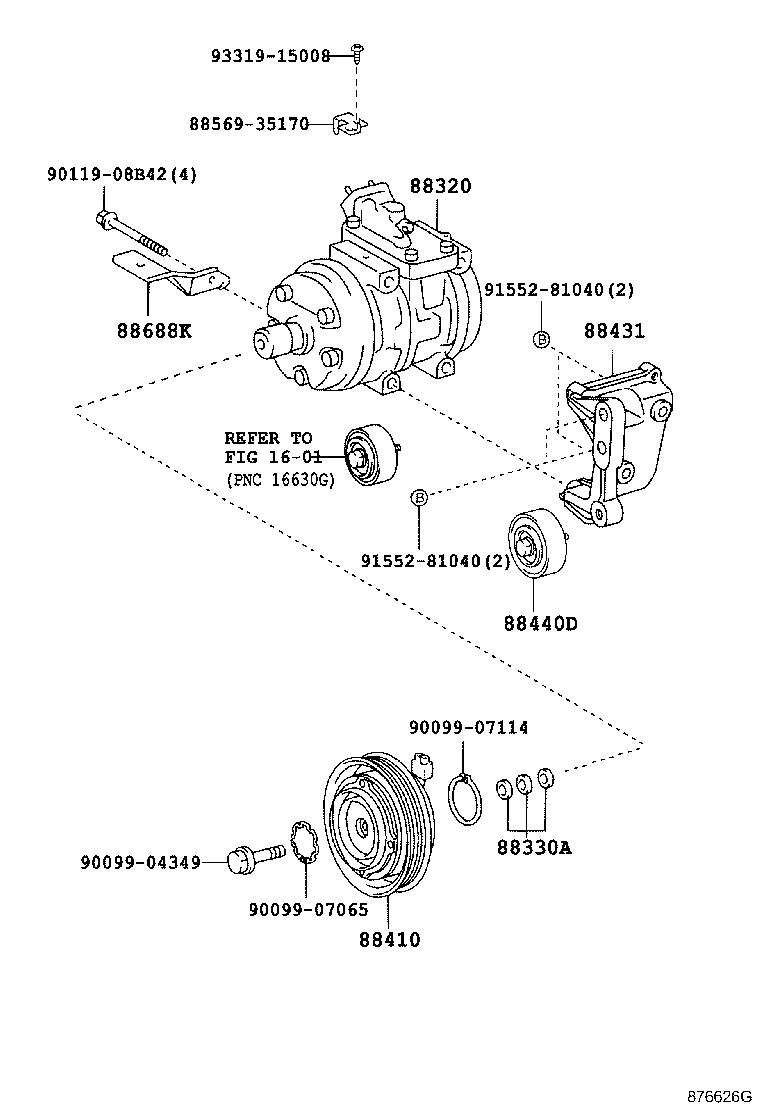

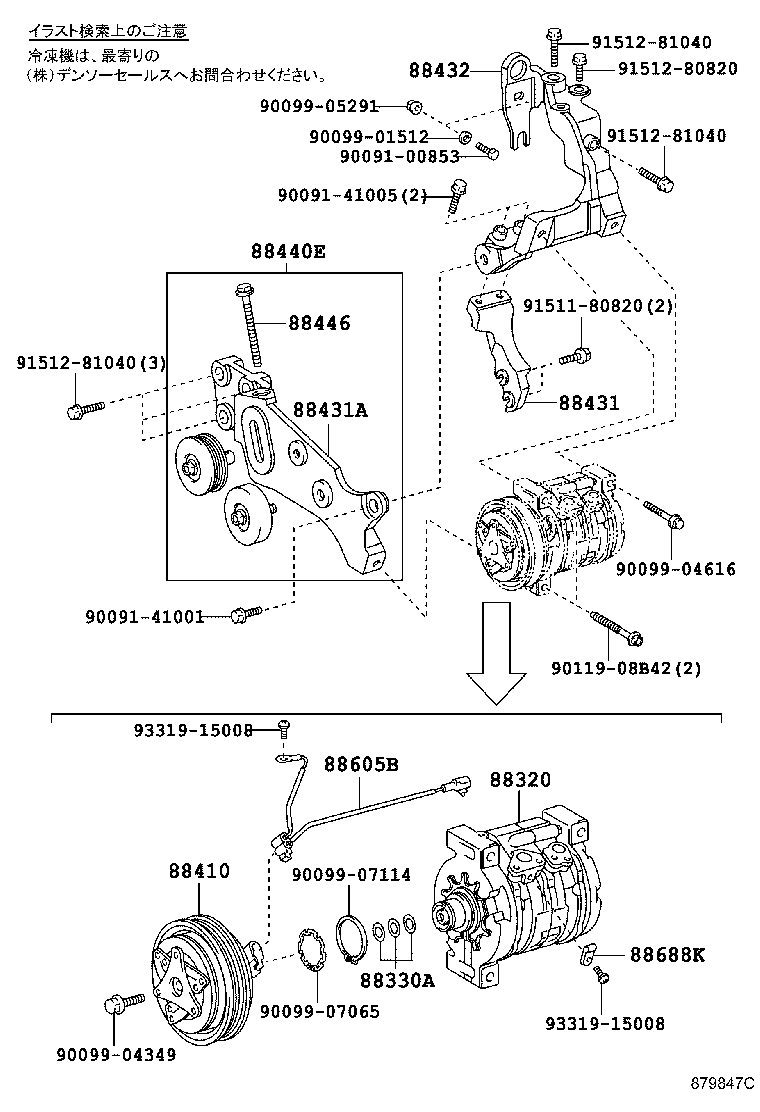

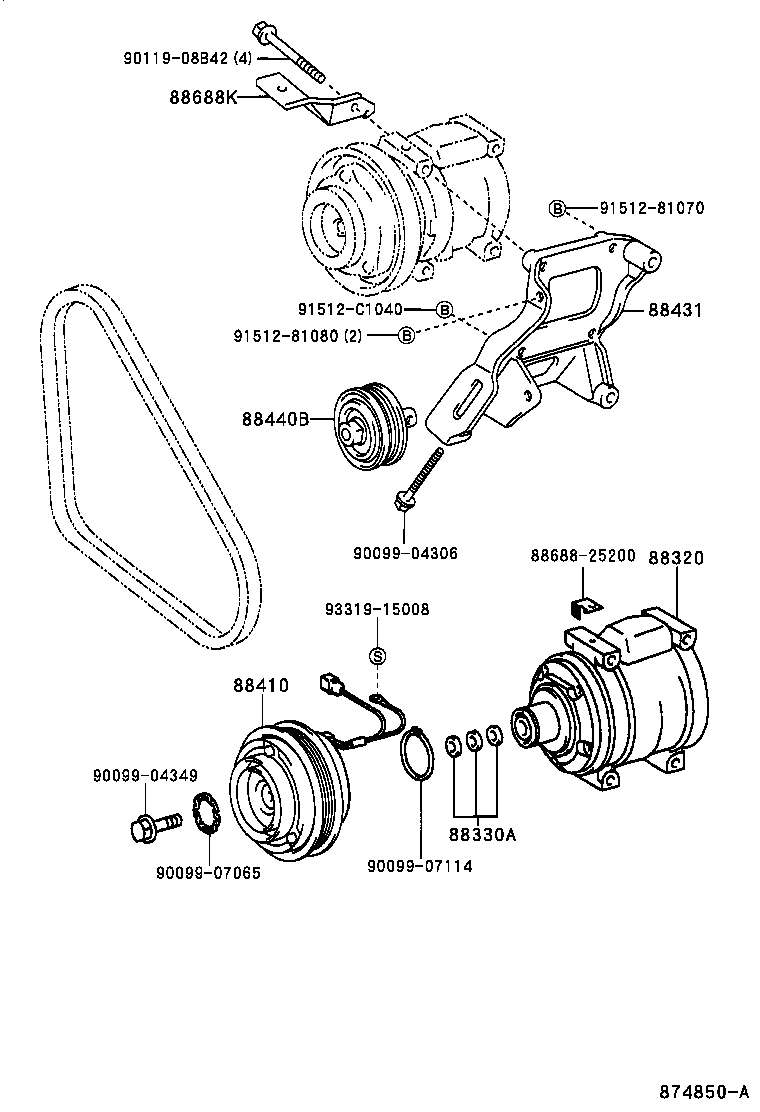

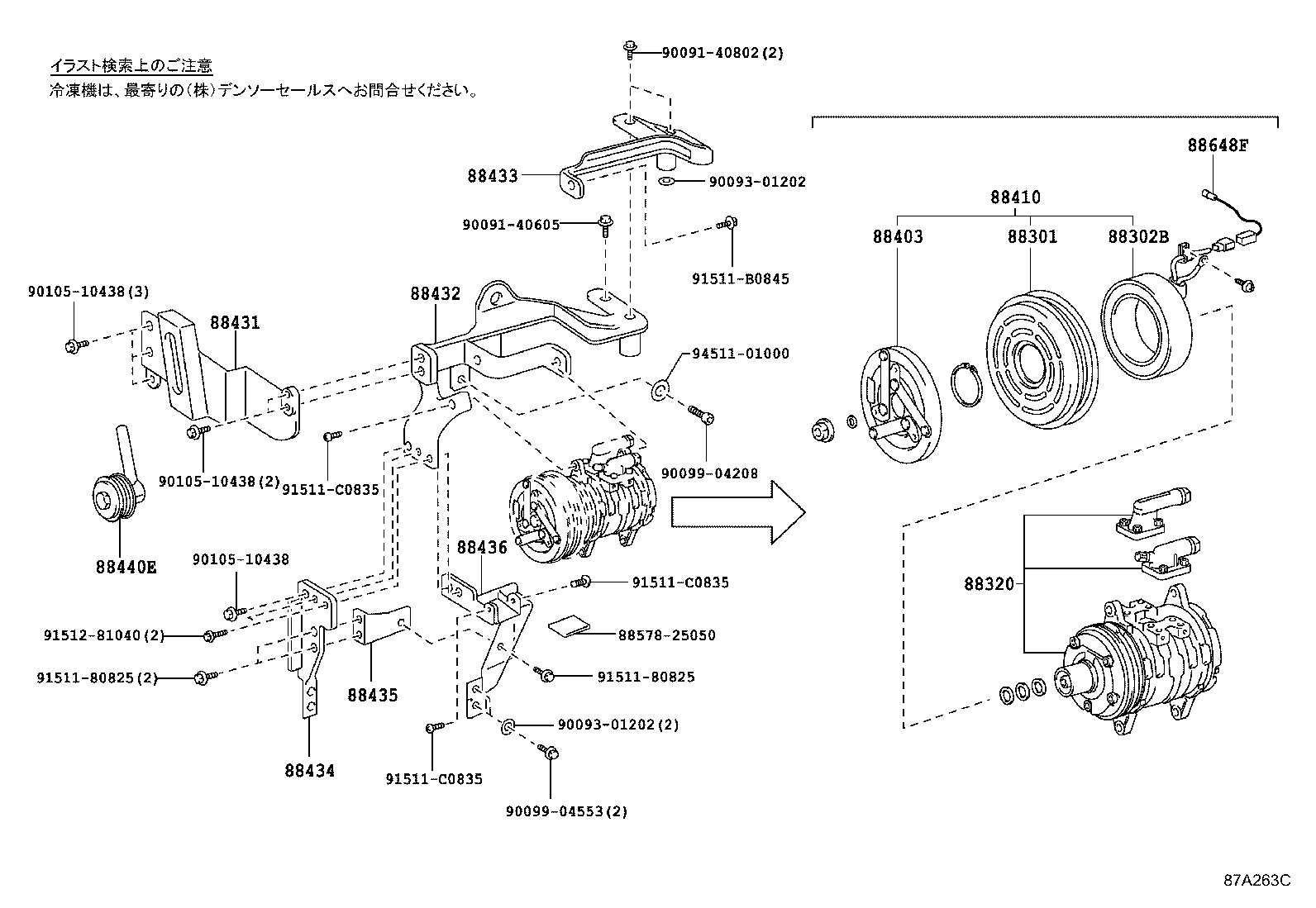

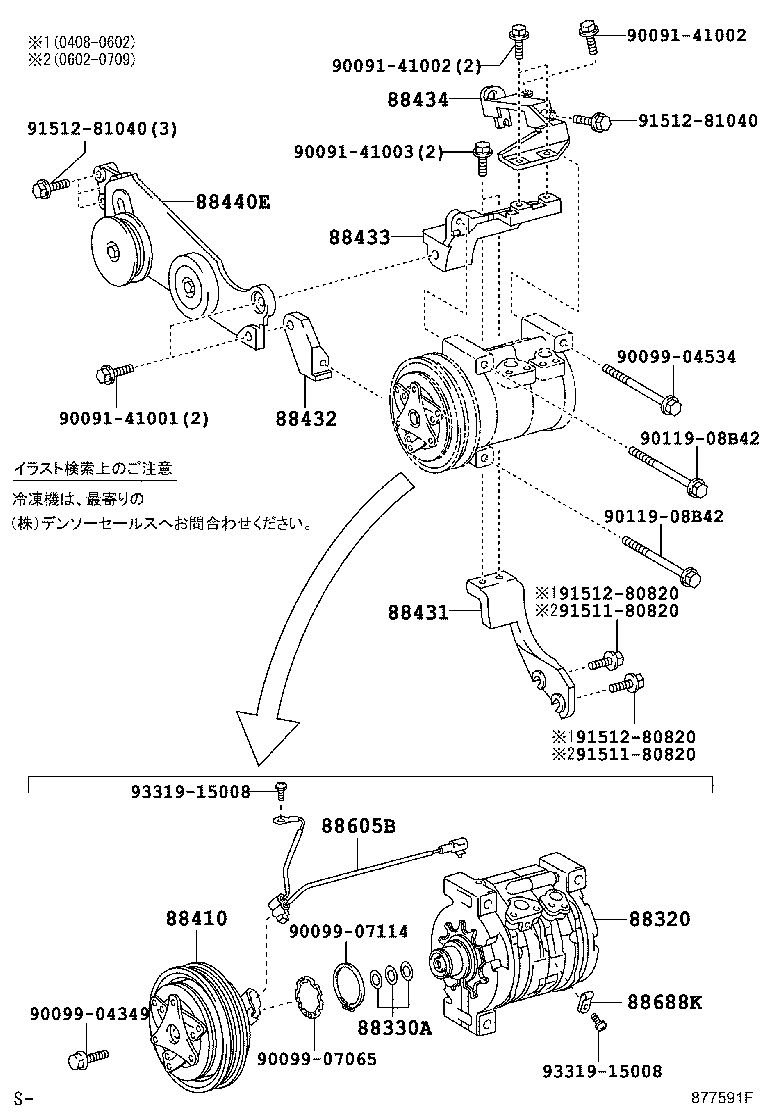

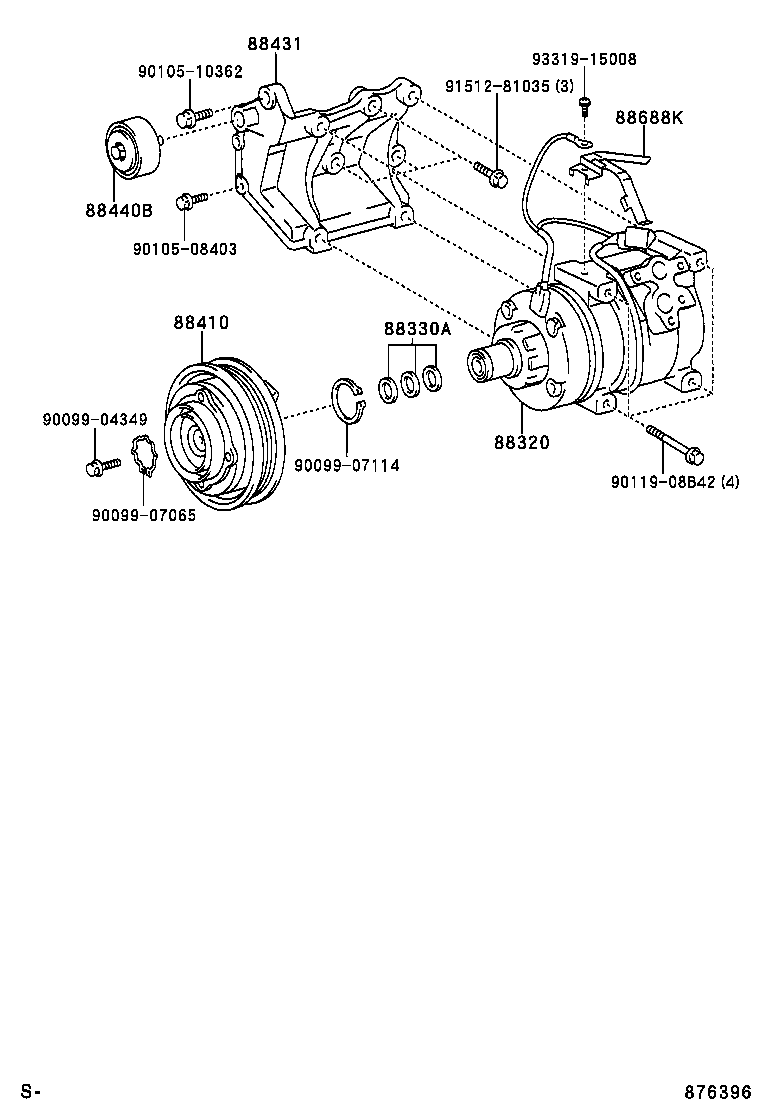

Figure 874851 874851 2001-07 → — Figure 874850A 874850A 2001-07 → 2003-08 Figure 874850A 874850A 2003-08 → — Figure 87A263C 87A263C 2001-07 → 2004-08 Figure 876396 876396 2003-08 → — Figure 876626G 876626G 2004-08 → — Figure 877591F 877591F 2004-08 → 2007-09 Figure 879847C 879847C 2007-09 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88434 Bracket, Compressor Mounting, NO.4
88435 Bracket, Compressor Mounting, NO.5
88436 Bracket, Compressor Mounting, NO.6
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88440E Pulley & Bracket Assy
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469A Collar, Adjusting
88605B Harness Sub-assy, Air Conditioner Wiring
88648F Wire, Magnet Clutch
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
