Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08

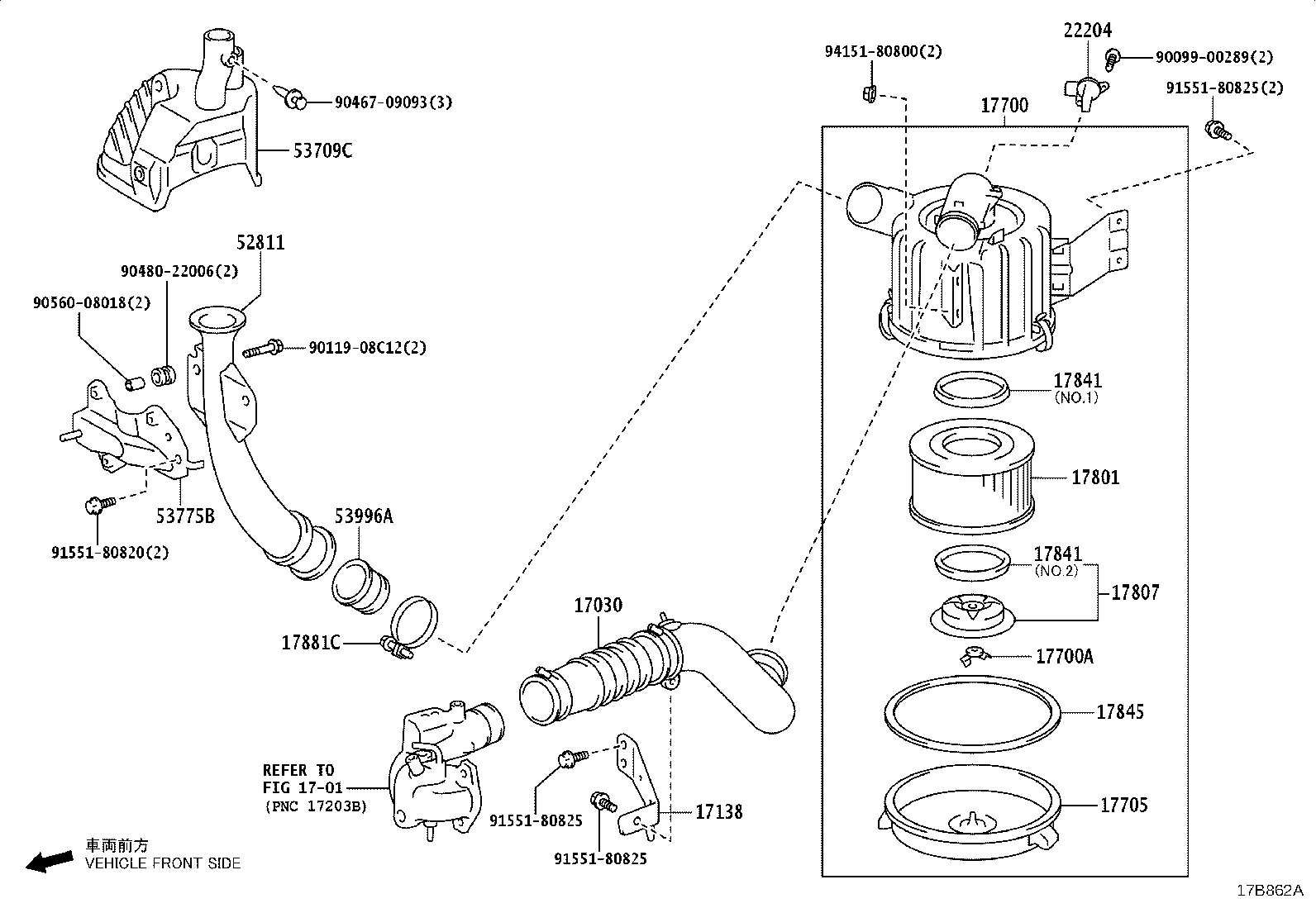

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17030 — Hose Assy, Air | ||||
| 17030-11020 |
Hose Assy, Air
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | ¥9,800 | |
| 17138 — Stay, Intake Pipe OR Hose | ||||
| 17138-11010 |
Stay, Intake Pipe OR Hose
2021-08 → 2022-03
ended
|
1GDFTV GDY231,281 | — | |
| 17138-11020 |
Stay, Intake Pipe OR Hose
2022-03 → 2025-09
ended
|
1GDFTV GDY231,281 | ¥1,510 | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-11A20 |
Cleaner Assy, Air
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | ¥17,000 | |
| 17700-75430 |
Cleaner Assy, Air
2021-08 → —
|
1TRFE TRY230 | ¥20,800 | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2021-08 → —
|
1TRFE TRY230 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-30110 |
Cap Sub-assy, Air Cleaner
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | — | |
| 17705-54490 |
Cap Sub-assy, Air Cleaner
2021-08 → —
|
1TRFE TRY230 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-11140 |
Element Sub-assy, Air Cleaner Filter
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | ¥5,000 | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
2021-08 → —
|
1TRFE TRY230 | ¥3,990 | |
| 17807 — Plate Sub-assy, Air Cleaner Filter Set | ||||
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2021-08 → —
|
1TRFE TRY230 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-30030 note |
Gasket, Filter Element
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | — | |
| 17841-30030 note |
Gasket, Filter Element
2021-08 → —
|
1TRFE TRY230 | — | |
| 17841-68010 note |
Gasket, Filter Element
2021-08 → —
|
1TRFE TRY230 | ¥0 | |
| 17841-68010 note |
Gasket, Filter Element
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | ¥0 | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-54030 |
Gasket, Air Cleaner Cap
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | — | |
| 17845-54030 |
Gasket, Air Cleaner Cap
2021-08 → —
|
1TRFE TRY230 | — | |
| 17881C — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2021-08 → —
|
1TRFE TRY230 | ¥410 | |
| 96111-10880 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | ¥520 | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-75030 |
Meter Sub-assy, Intake Air Flow
2021-08 → —
|
1TRFE TRY230 | ¥12,400 | |
| 22204-E0020 |
Meter Sub-assy, Intake Air Flow
2021-08 → 2025-09
ended
|
1GDFTV GDY231,281 | ¥4,350 | |
| 52811 — Duct, Cool Air Intake, NO.1 | ||||
| 52811-25010 |
Duct, Cool Air Intake, NO.1
2021-08 → —
|
TRY230 125T | ¥2,960 | |
| 52811-25020 |
Duct, Cool Air Intake, NO.1
2021-08 → —
|
TRY230 10T | ¥2,960 | |
| 52811-25030 |
Duct, Cool Air Intake, NO.1
2021-08 → 2025-09
ended
|
GDY231,281 SCB | ¥2,020 | |
| 52811-25040 |
Duct, Cool Air Intake, NO.1
2021-08 → 2025-09
ended
|
GDY231,281 DCB | ¥1,920 | |
| 53709C — Cover Sub-assy, Air Cleaner Inlet | ||||
| 53767-25040 |
Cover Sub-assy, Air Cleaner Inlet
2021-08 → 2025-09
ended
|
GDY231,281 SCB | ¥2,540 | |
| 53767-25040 |
Cover Sub-assy, Air Cleaner Inlet
2021-08 → —
|
TRY230 125T | ¥2,540 | |
| 53775B — Bracket, Cool Air Intake Duct Mounting | ||||
| 53775-25010 |
Bracket, Cool Air Intake Duct Mounting
2021-08 → 2025-09
ended
|
GDY231,281 SCB | ¥950 | |
| 53775-25010 |
Bracket, Cool Air Intake Duct Mounting
2021-08 → —
|
TRY230 125T | ¥950 | |
| 53996A — Packing, Air Cleaner Inlet Pipe | ||||
| 53996-25020 |
Packing, Air Cleaner Inlet Pipe
2021-08 → —
|
TRY230 | ¥380 | |
| 53996-25030 |
Packing, Air Cleaner Inlet Pipe
2021-08 → 2025-09
ended
|
GDY231,281 | ¥460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
