Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

8 part groups · 2 illustrations

Illustrations

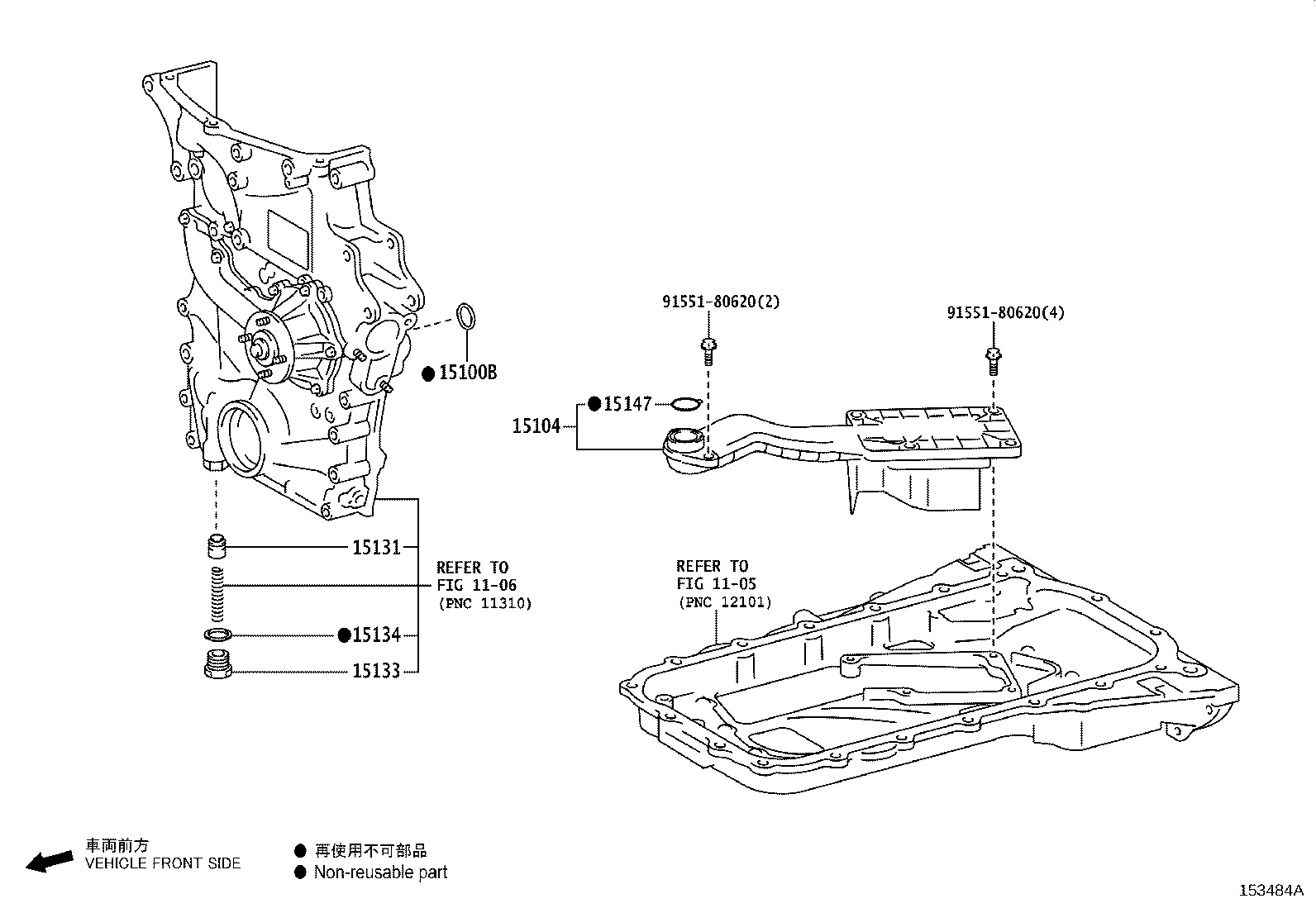

Figure 153491A 153491A 2021-08 → — Figure 153484A 153484A 2021-08 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100B Ring, O(FOR OIL PUMP)
15104 Strainer Sub-assy, Oil
15131 Valve, Oil Pump Relief
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
