Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08

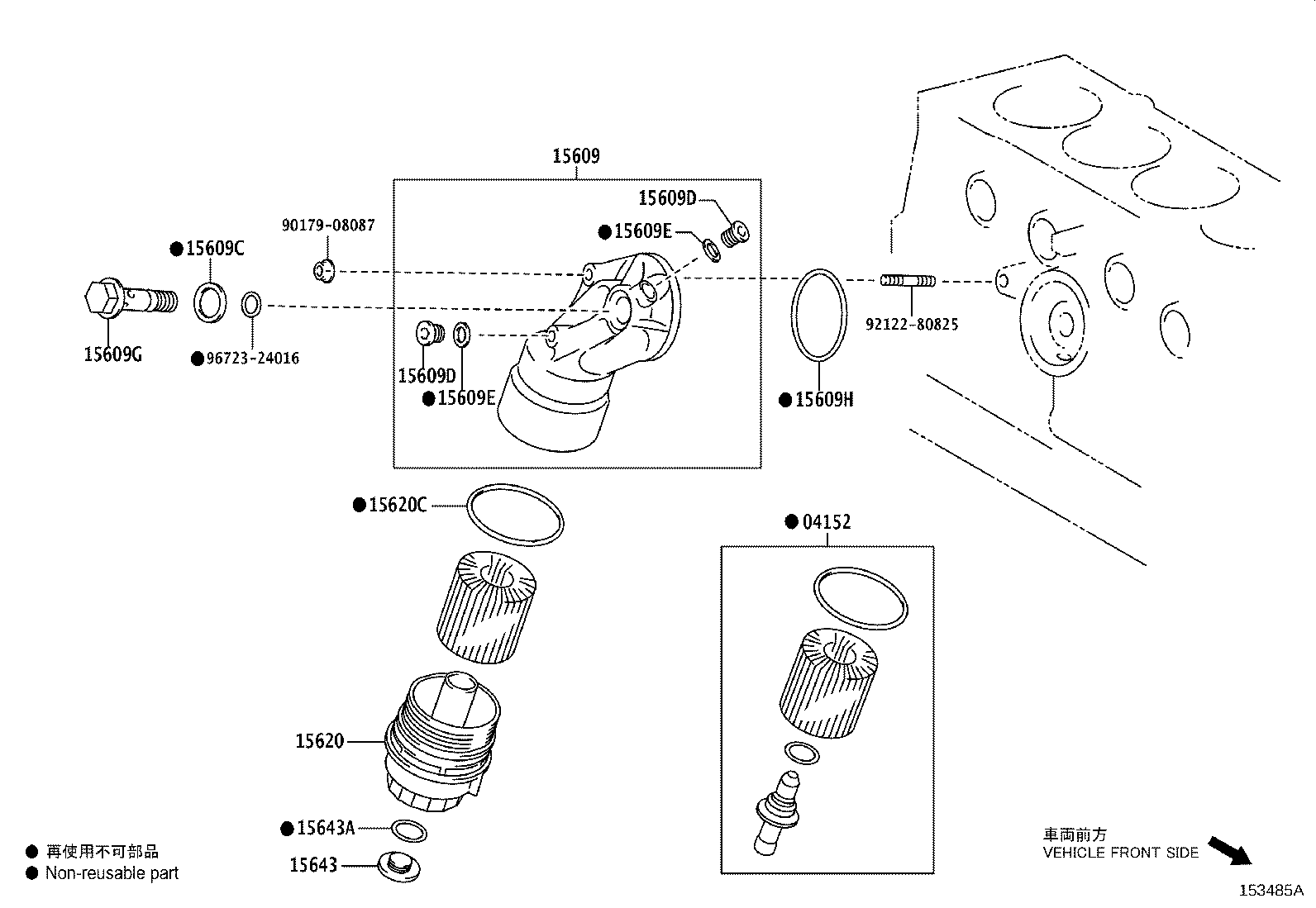

Oil Filter
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609C | Gasket(FOR OIL FILTER BRACKET UNION) |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609G | Bolt, Union(FOR OIL FILTER BRACKET) |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15620 | Cap Assy, Oil Filter |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15643A | Ring, O(FOR OIL FILTER DRAIN PLUG) |
| 15671 | Bracket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
