Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

21 part groups · 2 illustrations

Illustrations

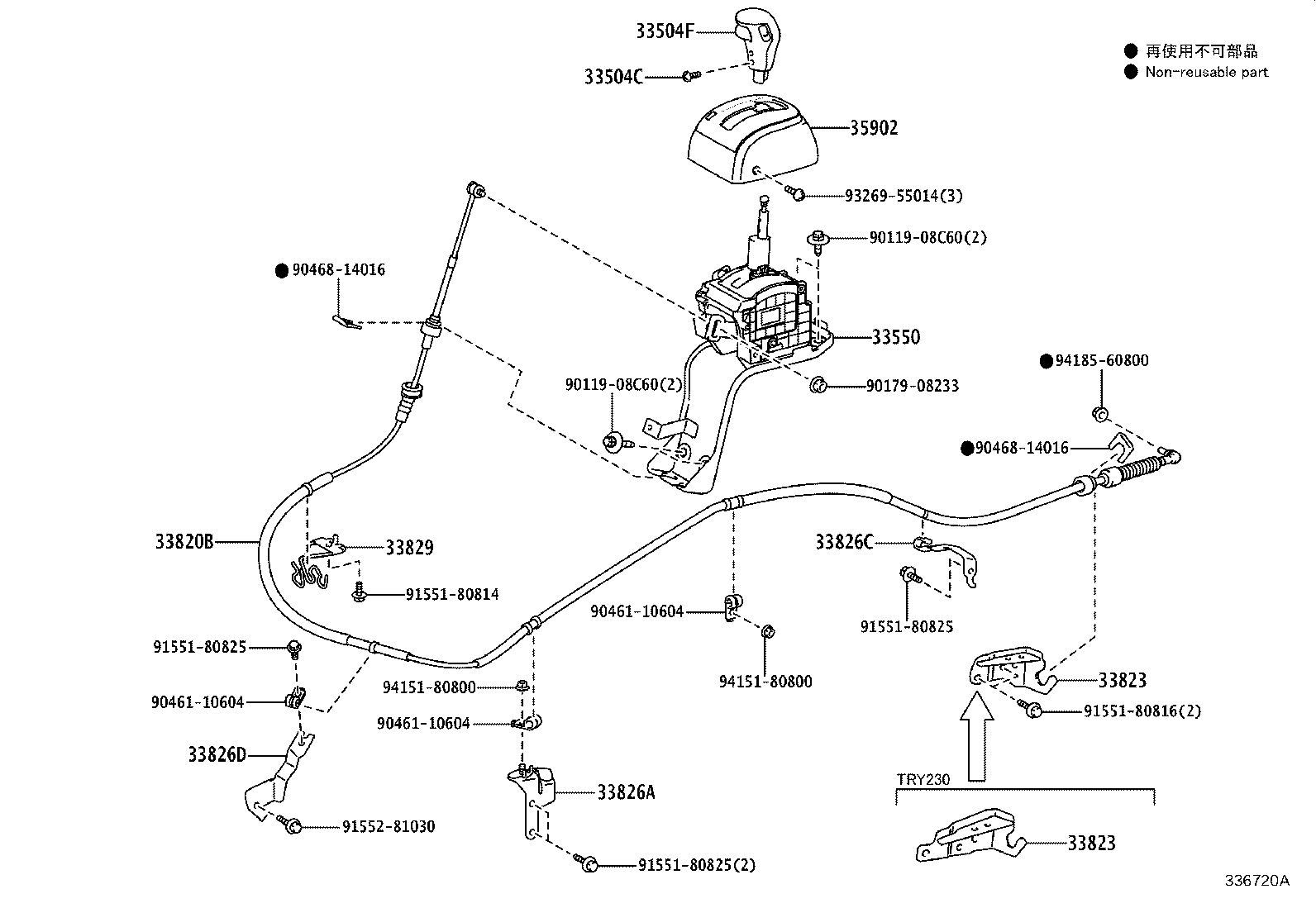

Figure 336719B 336719B 2021-08 → — Figure 336720A 336720A 2021-08 → —

Part groups

PNCDescription
33054 Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
33504C Screw (FOR SHIFT LEVER KNOB SETTING)
33504F Knob Sub-assy, Shift Lever
33520A Shaft Assy, Floor Shift Control
33550 Floor Shift Assy, Transmission
33555 Boot, Shift Lever
33607F Support Sub-assy, Control Rod (FOR FLOOR SHIFT)
33709F Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33821 Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33826B Bracket, Transmission Control Cable, NO.3
33826C Bracket, Transmission Control Cable, NO.4
33826D Bracket, Transmission Control Cable, NO.5
33829 Support, Transmission Control Cable
33829B Clamp, Transmission Control Cable
33840F Rod Assy, Gear Shifting, NO.3
35902 Cover Sub-assy, Position Indicator Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
