Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

16 part groups · 3 illustrations

Illustrations

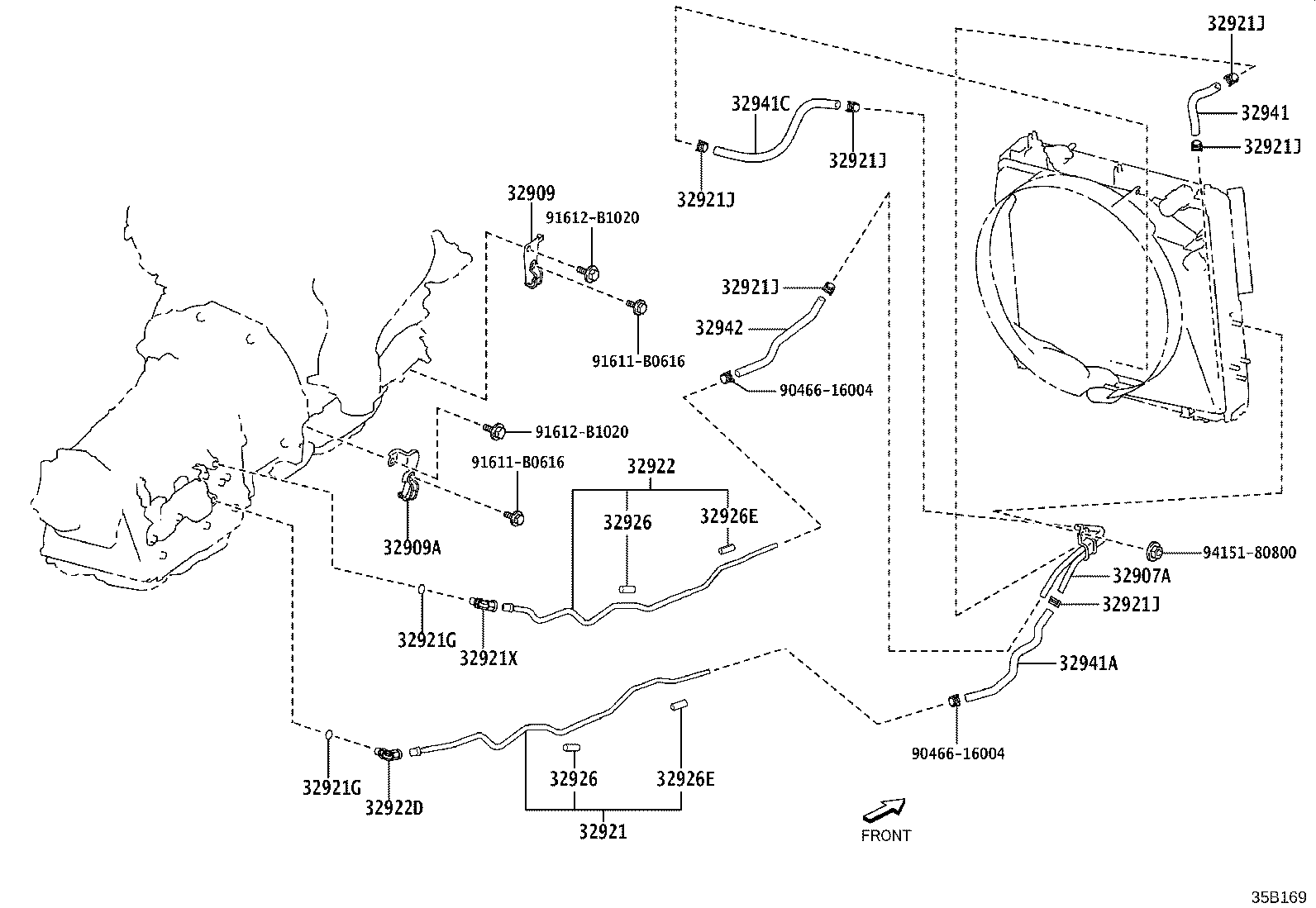

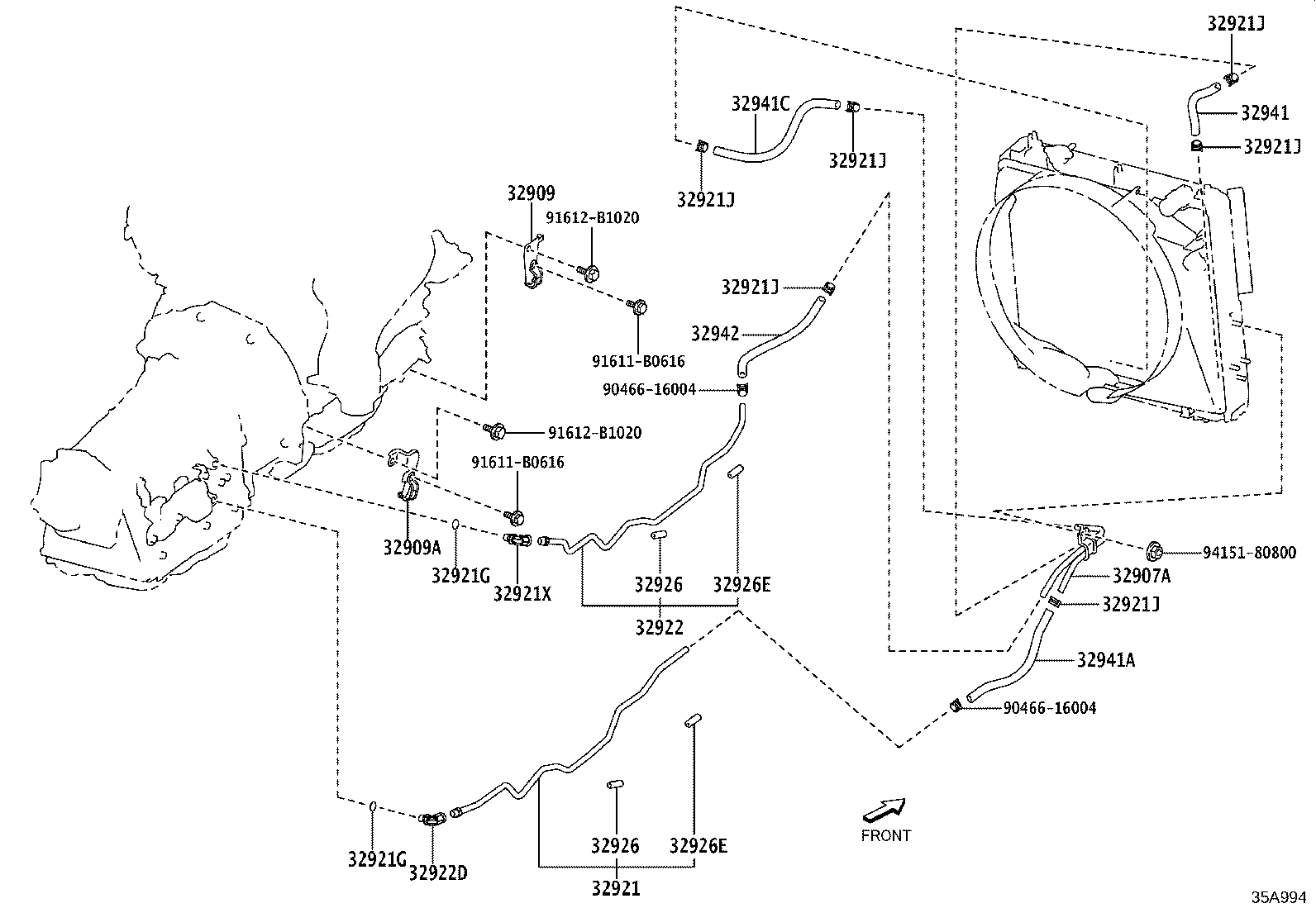

Figure 35A993 35A993 2021-08 → — Figure 35A994 35A994 2021-08 → 2022-12 Figure 35B169 35B169 2022-12 → —

Part groups

PNCDescription
32907A Tube, Oil Cooler
32909 Clamp Sub-assy, Transmission Oil Cooler Tube, NO.1
32909A Clamp Sub-assy, Transmission Oil Cooler Tube, NO.2
32909B Clamp Sub-assy, Transmission Oil Cooler Tube, NO.3
32921 Tube, Oil Cooler Inlet, NO.1
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921X Union OR Elbow, Oil Cooler Inlet
32922 Tube, Oil Cooler Outlet, NO.1
32922D Union OR Elbow, Oil Cooler Outlet
32926 Cushion, Oil Cooler Tube(ATM)
32926E Cushion, Oil Cooler Tube, NO.2(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941C Hose(OIL COOLER)
32942 Hose, Oil Cooler Outlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
