Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

16 part groups · 3 illustrations

Illustrations

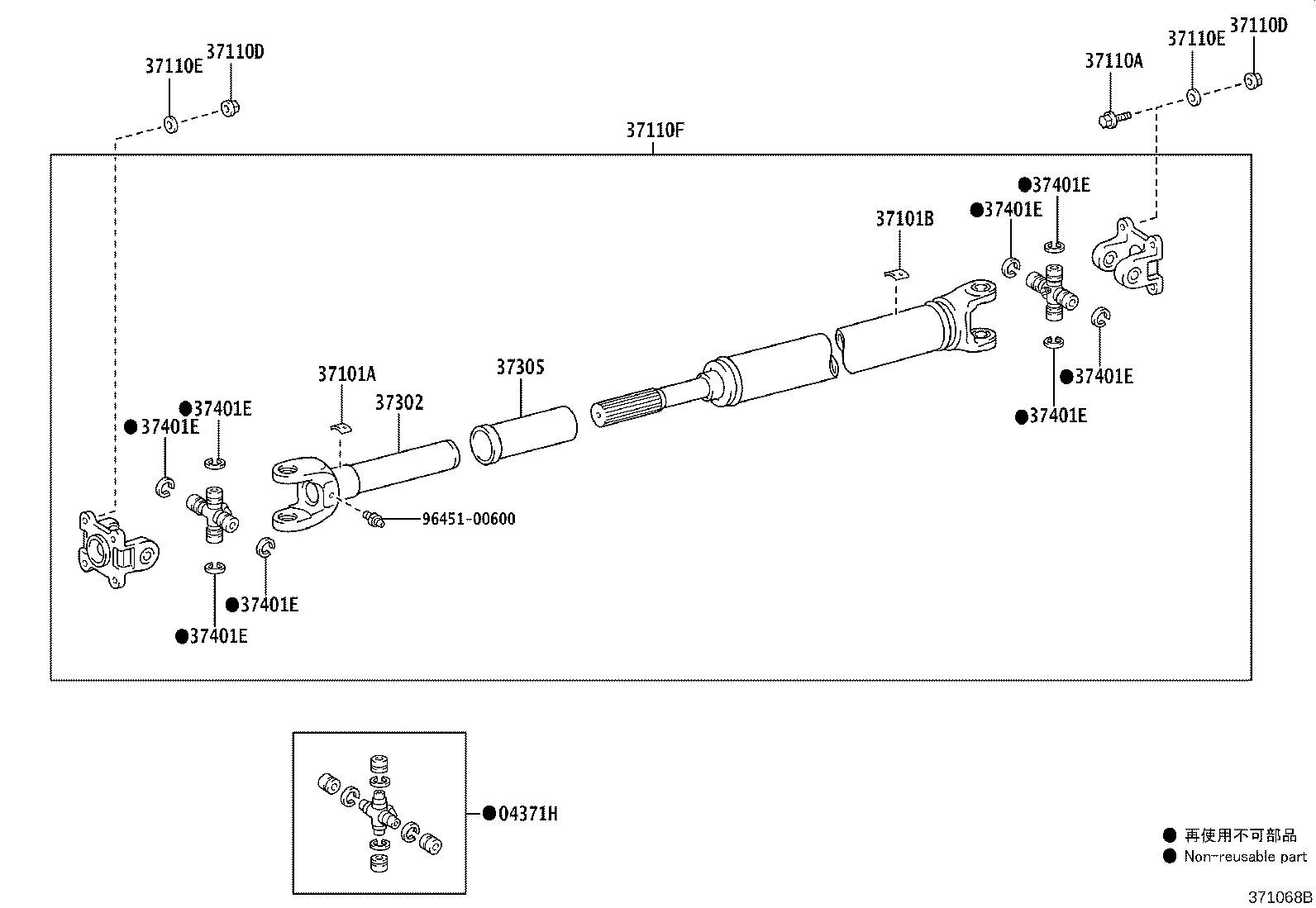

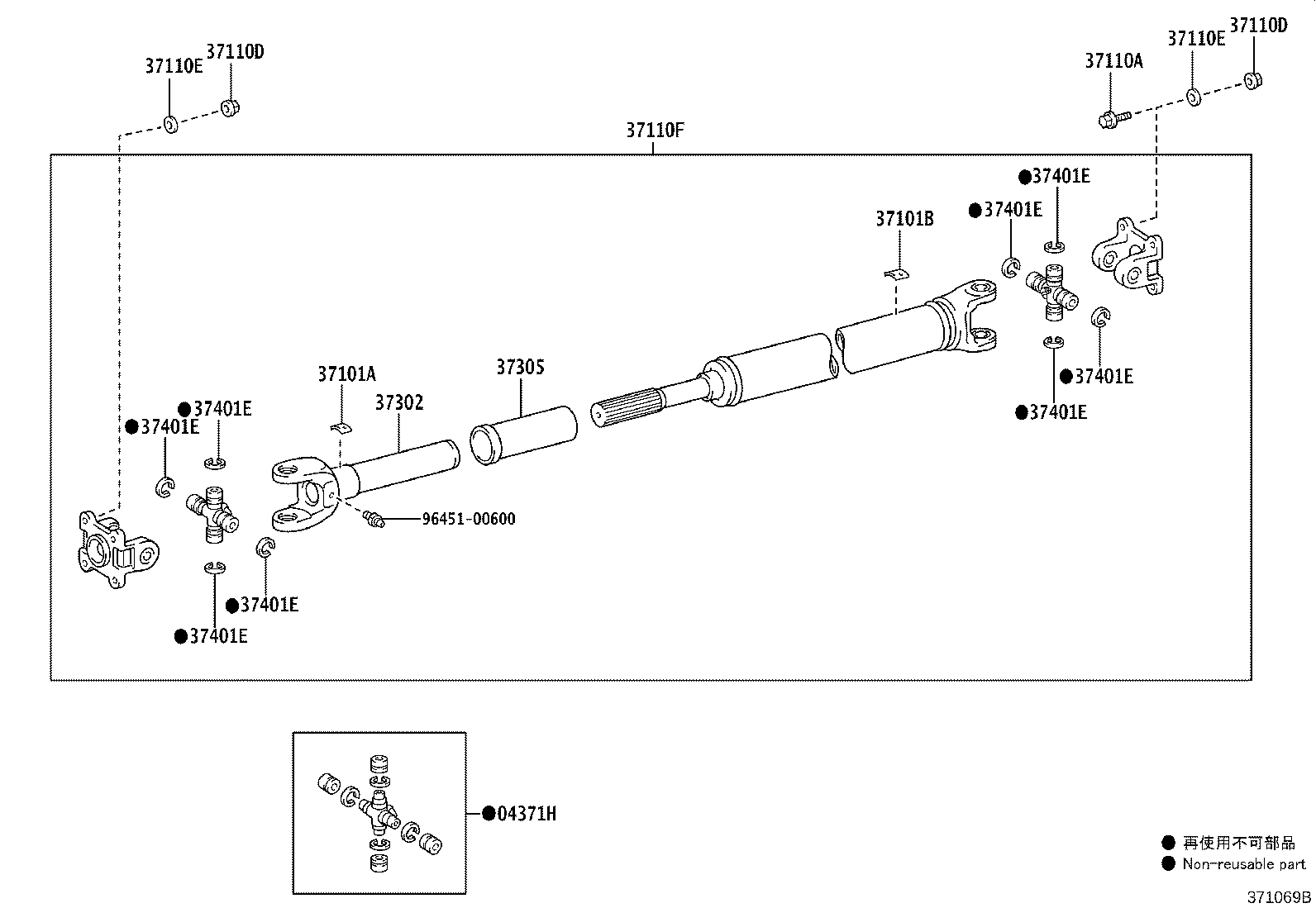

Figure 371066B 371066B 2021-08 → — Figure 371068B 371068B 2021-08 → — Figure 371069B 371069B 2021-08 → —

Part groups

PNCDescription
04371G Spider Kit, Front Propeller Shaft Universal Joint
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37101B Piece, Balance, NO.2 (FOR PROPELLER SHAFT)
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37110F Shaft Assy, Propeller, Rear
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37140B Nut (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
37302 Yoke Sub-assy, Universal Joint Sleeve
37305 Cover Sub-assy, Sliding Shaft Dust
37401D Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
