Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08

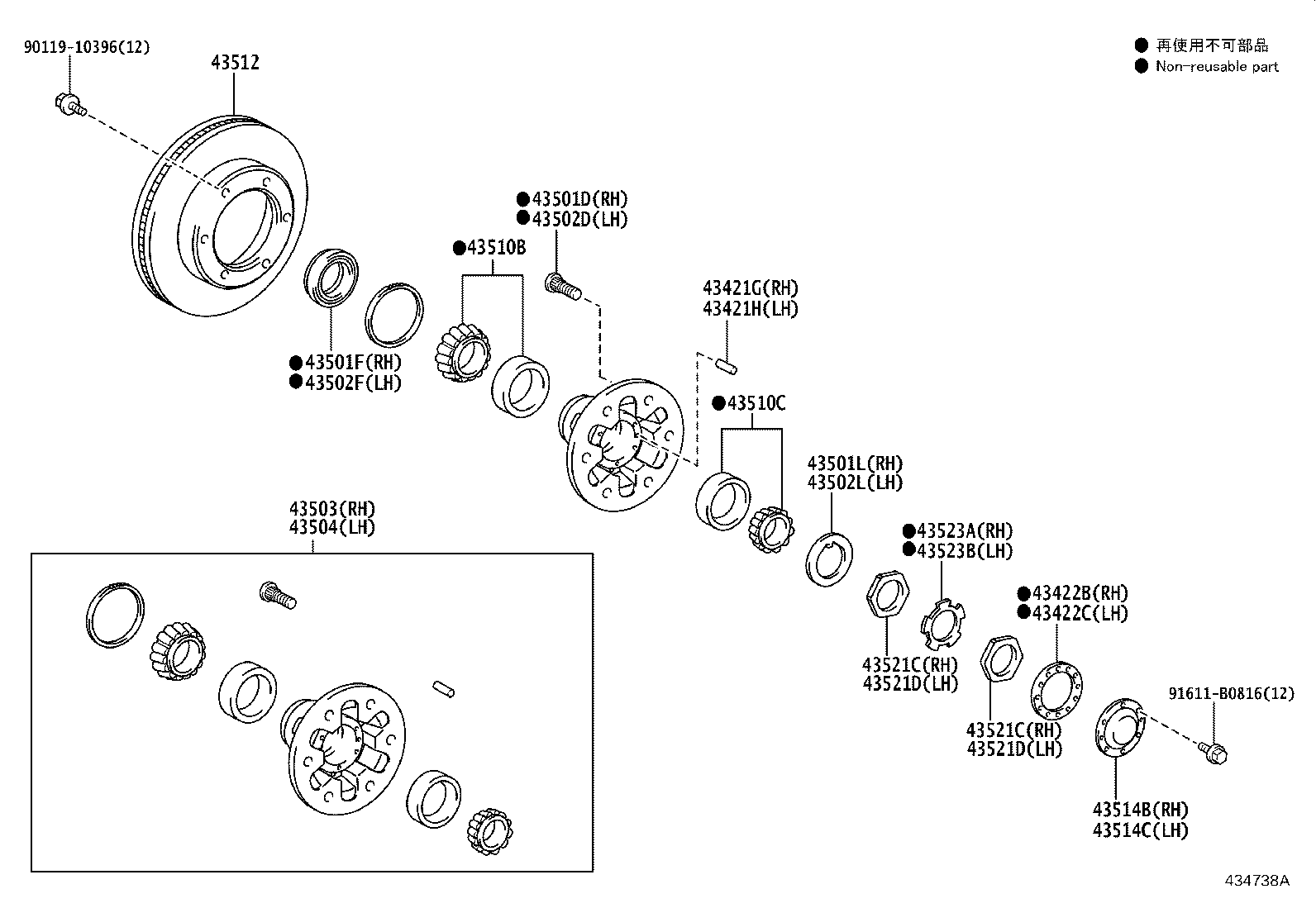

Front Axle Hub
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42323B | Washer, Cone (FOR FRONT AXLE SHAFT RH) |
| 42323C | Washer, Cone (FOR FRONT AXLE SHAFT LH) |
| 43410T | Spacer (FOR FRONT DRIVE SHAFT RH) |
| 43420F | Spacer (FOR FRONT DRIVE SHAFT LH) |
| 43421E | Flange, Front Axle Outer Shaft, RH |
| 43421F | Flange, Front Axle Outer Shaft, LH |
| 43421G | Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE RH) |
| 43421H | Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE LH) |
| 43421J | Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE RH) |
| 43421K | Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE LH) |
| 43422B | Gasket, Front Axle Outer Shaft Flange, RH |
| 43422C | Gasket, Front Axle Outer Shaft Flange, LH |
| 43423 | Cap, Front Axle Outer Shaft Flange |
| 43501D | Bolt, Hub (FOR FRONT AXLE RH) |
| 43501F | Seal, Oil (FOR FRONT AXLE HUB RH) |
| 43501L | Washer, Claw (FOR FRONT AXLE HUB RH) |
| 43502D | Bolt, Hub (FOR FRONT AXLE LH) |
| 43502F | Seal, Oil (FOR FRONT AXLE HUB LH) |
| 43502L | Washer, Claw (FOR FRONT AXLE HUB LH) |
| 43503 | Hub Sub-assy, Front Axle W/Abs Rotor, RH |
| 43504 | Hub Sub-assy, Front Axle W/Abs Rotor, LH |
| 43510B | Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) |
| 43510C | Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) |
| 43512 | Disc, Front |
| 43514B | Cap, Front Axle Hub Grease, RH |
| 43514C | Cap, Front Axle Hub Grease, LH |
| 43521C | Nut, Front Wheel Adjusting, RH |
| 43521D | Nut, Front Wheel Adjusting, LH |
| 43523A | Washer, Front Wheel Adjusting Lock, RH |
| 43523B | Washer, Front Wheel Adjusting Lock, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
