Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

10 part groups · 2 illustrations

Illustrations

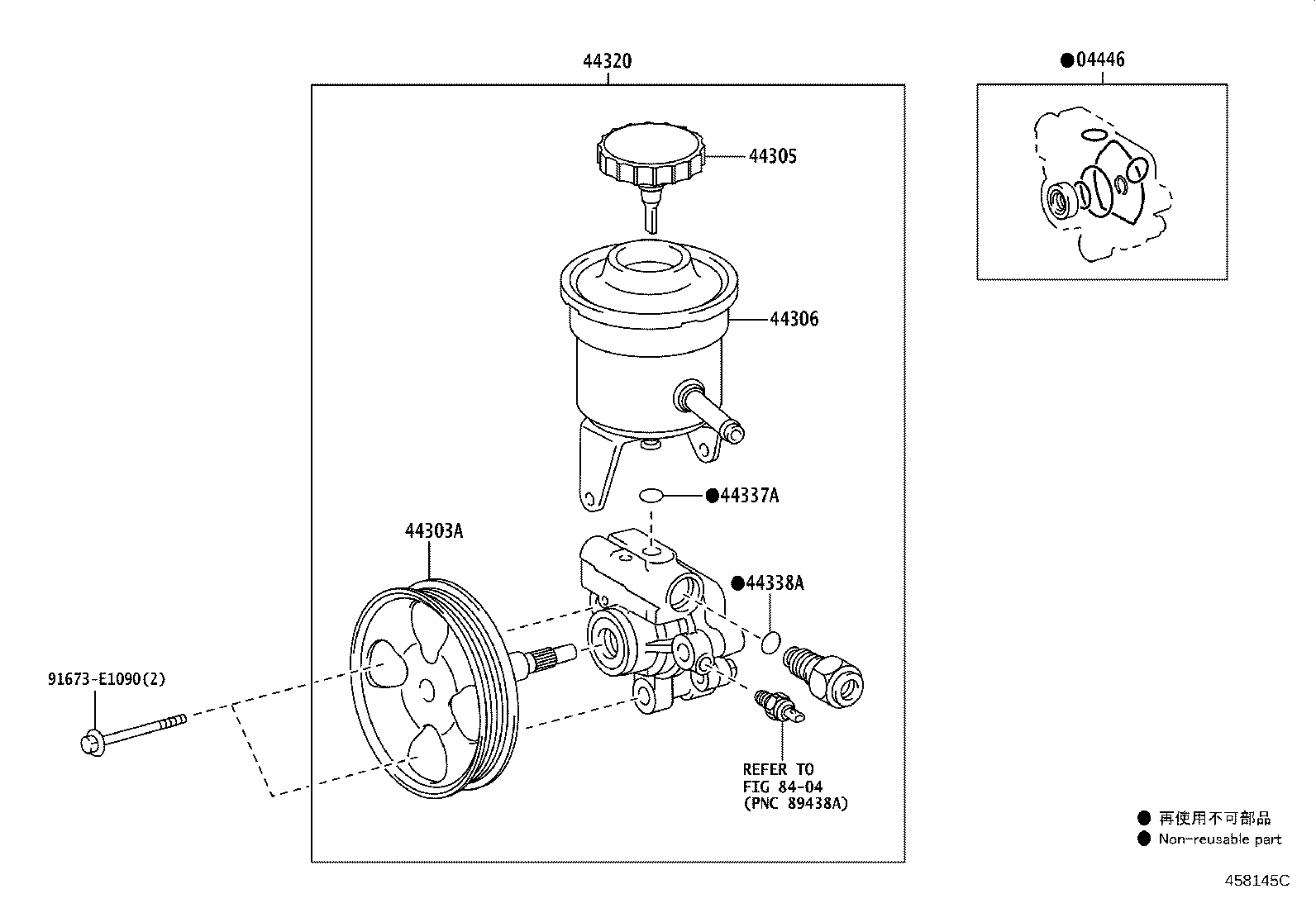

Figure 458144C 458144C 2021-08 → — Figure 458145C 458145C 2021-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44308 Union Sub-assy, Pressure Port
44310 Pump Assy, Vane
44320 Pump Assy, Vane
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
