Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

28 part groups · 2 illustrations

Illustrations

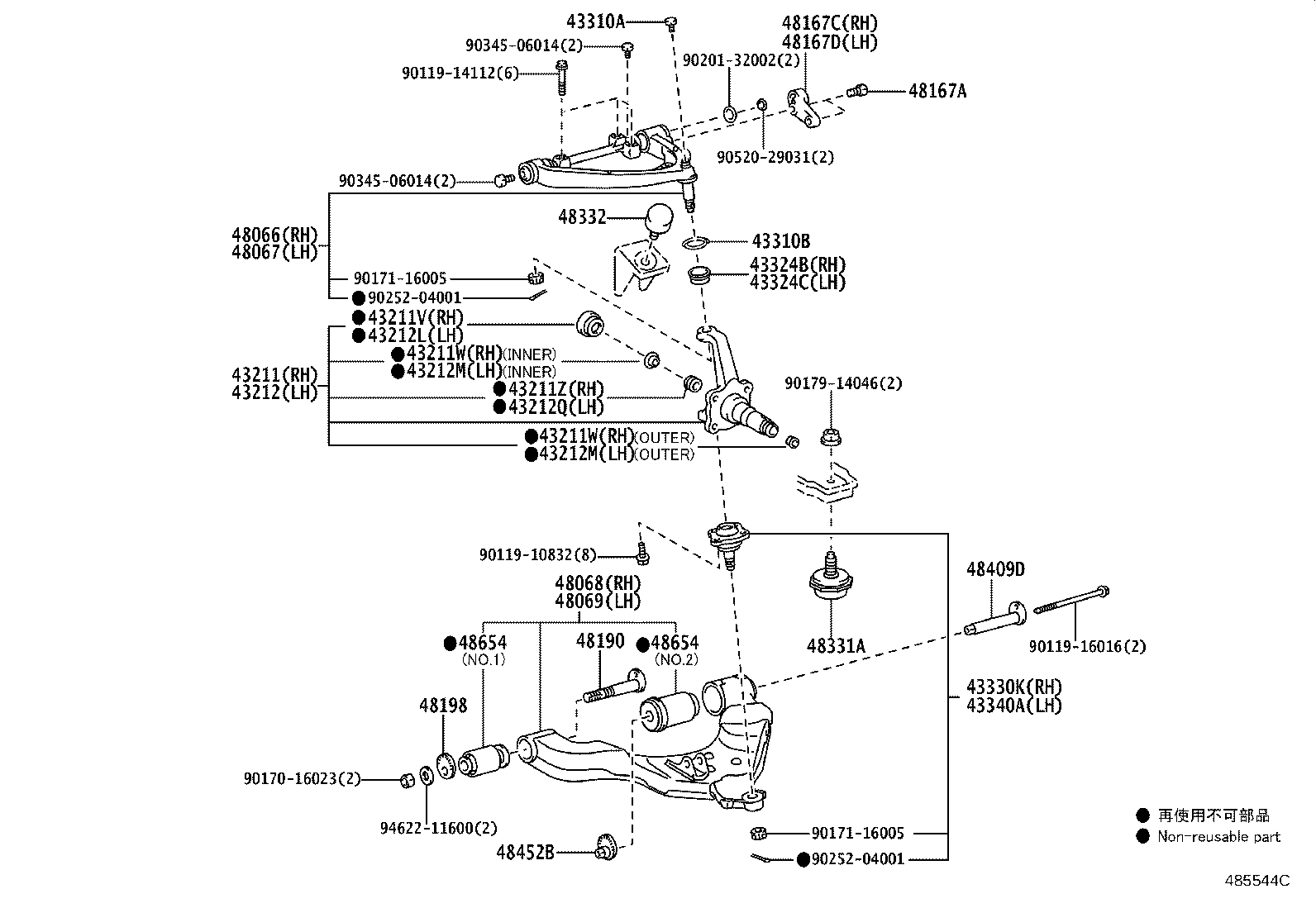

Figure 485543B 485543B 2021-08 → — Figure 485544C 485544C 2021-08 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211V Seal, Oil (FOR STEERING KNUCKLE RH)
43211W Bush (FOR STEERING KNUCKLE RH)
43211Z Bearing, Needle Roller(FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212L Seal, Oil (FOR STEERING KNUCKLE LH)
43212M Bush (FOR STEERING KNUCKLE LH)
43212Q Bearing, Needle Roller(FOR STEERING KNUCKLE LH)
43310A Plug (FOR BALL JOINT)
43310B Ring, Set (FOR DUST COVER)
43324B Cover, Front Upper Ball Joint Dust, RH
43324C Cover, Front Upper Ball Joint Dust, LH
43330K Joint Assy, Lower Ball, Front RH
43340A Joint Assy, Lower Ball, Front LH
48066 Arm Sub-assy, Front Suspension, Upper RH
48067 Arm Sub-assy, Front Suspension, Upper LH
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48167A Bolt(FOR TORQUE ARM SETTING)
48167C Arm, Front Suspension Torque, RH
48167D Arm, Front Suspension Torque, LH
48190 Cam Assy, Camber Adjust
48198 Cam, Camber Adjust, NO.2
48331A Bumper, Front Spring, NO.1
48332 Bumper, Front Spring, NO.2
48409D Cam Sub-assy, Front Suspension Toe Adjust
48452B Plate, Front Suspension Toe Adjust, NO.2
48654 Bush, Lower Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
