Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 2 illustrations

Illustrations

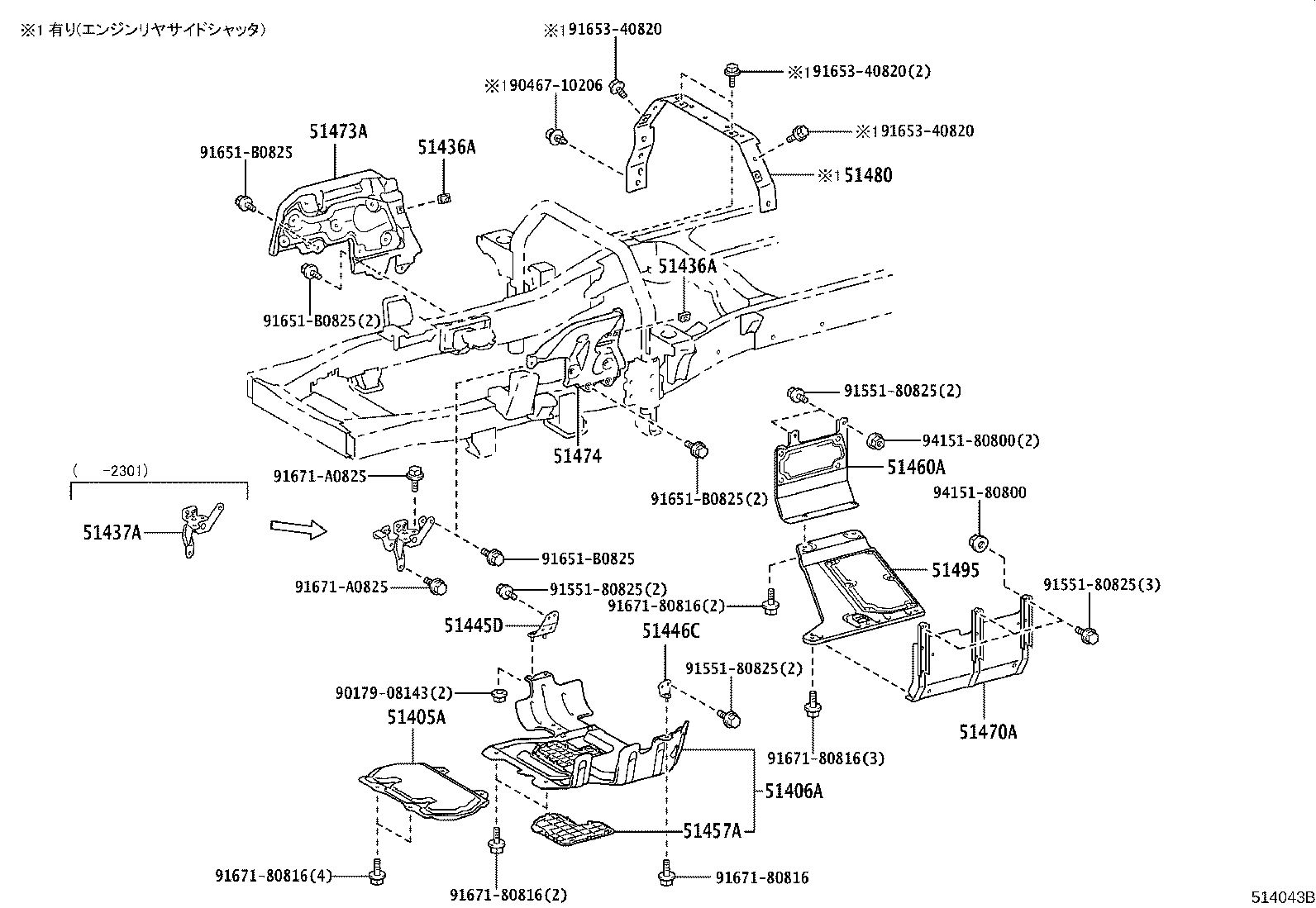

Figure 514042A 514042A 2021-08 → — Figure 514043B 514043B 2021-08 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51436A Bracket, Engine Side Cover
51436B Bracket, Engine Side Cover, NO.1 RH
51437A Bracket, Engine Side Cover, NO.1 LH
51445D Bracket, Engine Under Cover, RH
51446C Bracket, Engine Under Cover, LH
51457A Bracket, Engine Under Cover, NO.3
51460A Cover Assy, Transmission Under, RH
51470A Cover Assy, Transmission Under, LH
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
51480 Shutter Assy, Engine Rear Side, RH
51495 Cover, Transmission Under
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
