Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

22 part groups · 3 illustrations

Illustrations

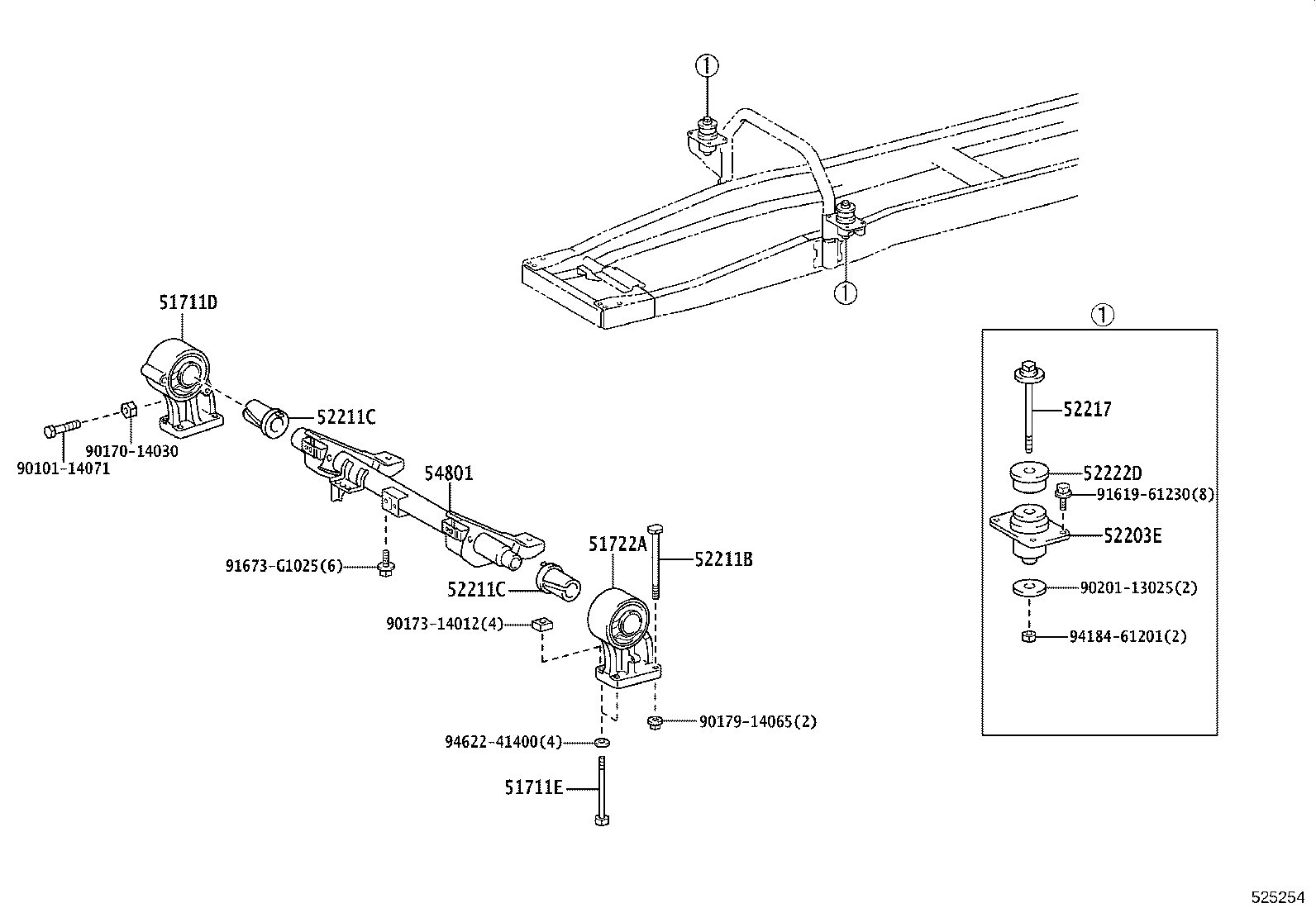

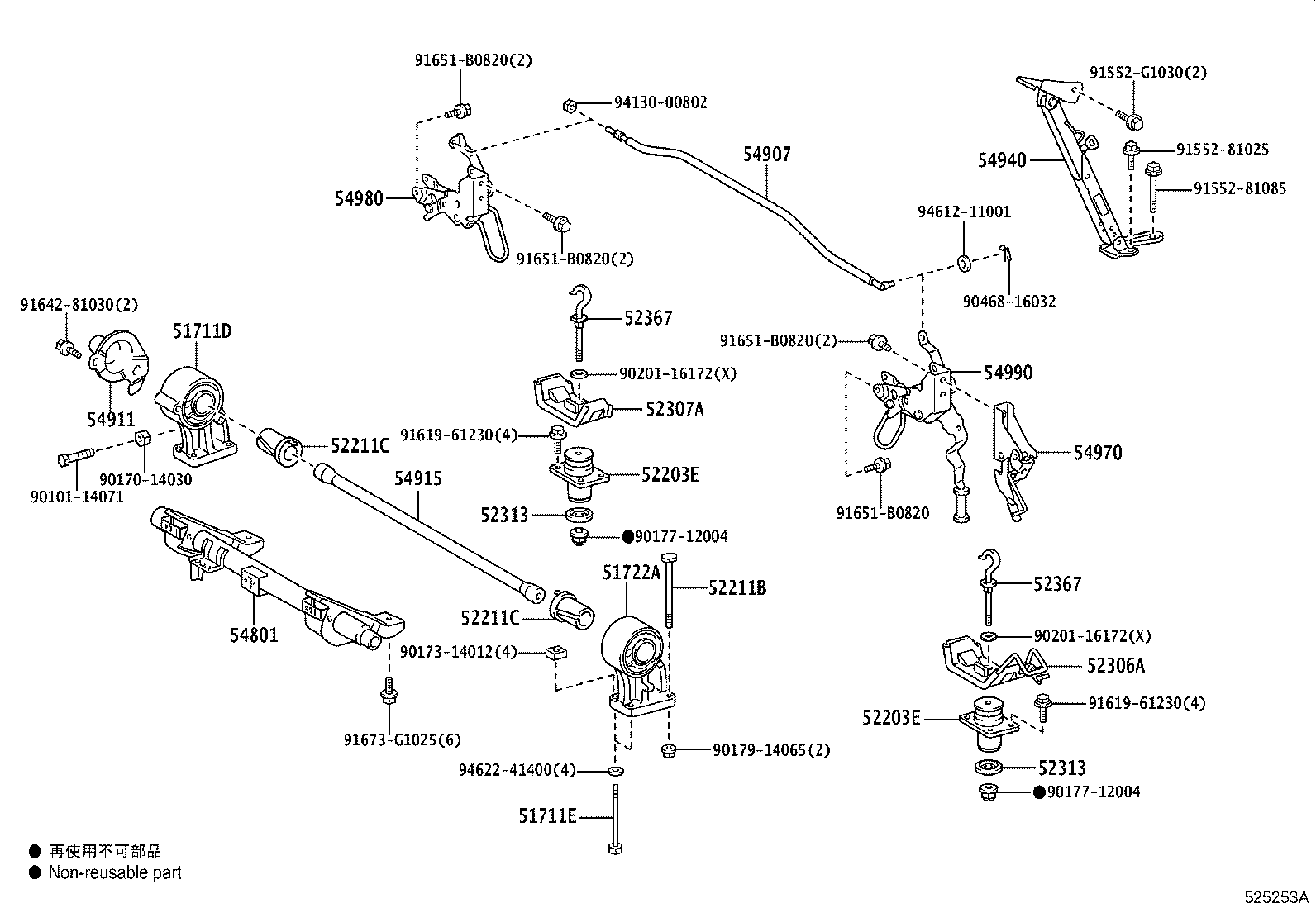

Figure 525252 525252 2021-08 → — Figure 525253A 525253A 2021-08 → — Figure 525254 525254 2021-08 → —

Part groups

PNCDescription
51711D Bracket, Cab Front Mounting
51711E Bolt, Hexagon(FOR CAB MOUNTING BARACKET)
51722A Bracket Sub-assy, Cab Front Mounting, LH
52203C Cushion Sub-assy, Cab Mounting, NO.2 Upper
52203E Cushion Sub-assy, Cab Mounting, NO.2
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52211C Spacer(FOR BODY MOUNTING NO.1 CUSHION)
52217 Bolt, Body Mounting
52222D Spacer, Cab Rear Mounting, Upper
52306A Bracket Sub-assy, Cab Mounting Hook, NO.1
52307A Bracket Sub-assy, Cab Mounting Hook, NO.2
52313 Stopper, Cab Rear Mounting Rebound
52367 Hook, Cab Rear Mounting
54801 Tube Sub-assy, Tilt Cab, NO.1
54907 Pipe Sub-assy, Tilt Cab Lock Connecting
54911 Arm, Tilt Cab Spring Support, NO.1
54915 Spring, Tilt Cab, NO.1
54940 Stay Assy, Tilt Cab
54970 Latch Assy, Tilt Cab Stopper
54980 Lock Assy, Tilt Cab Mounting, RH
54990 Lock Assy, Tilt Cab Mounting, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
