Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08

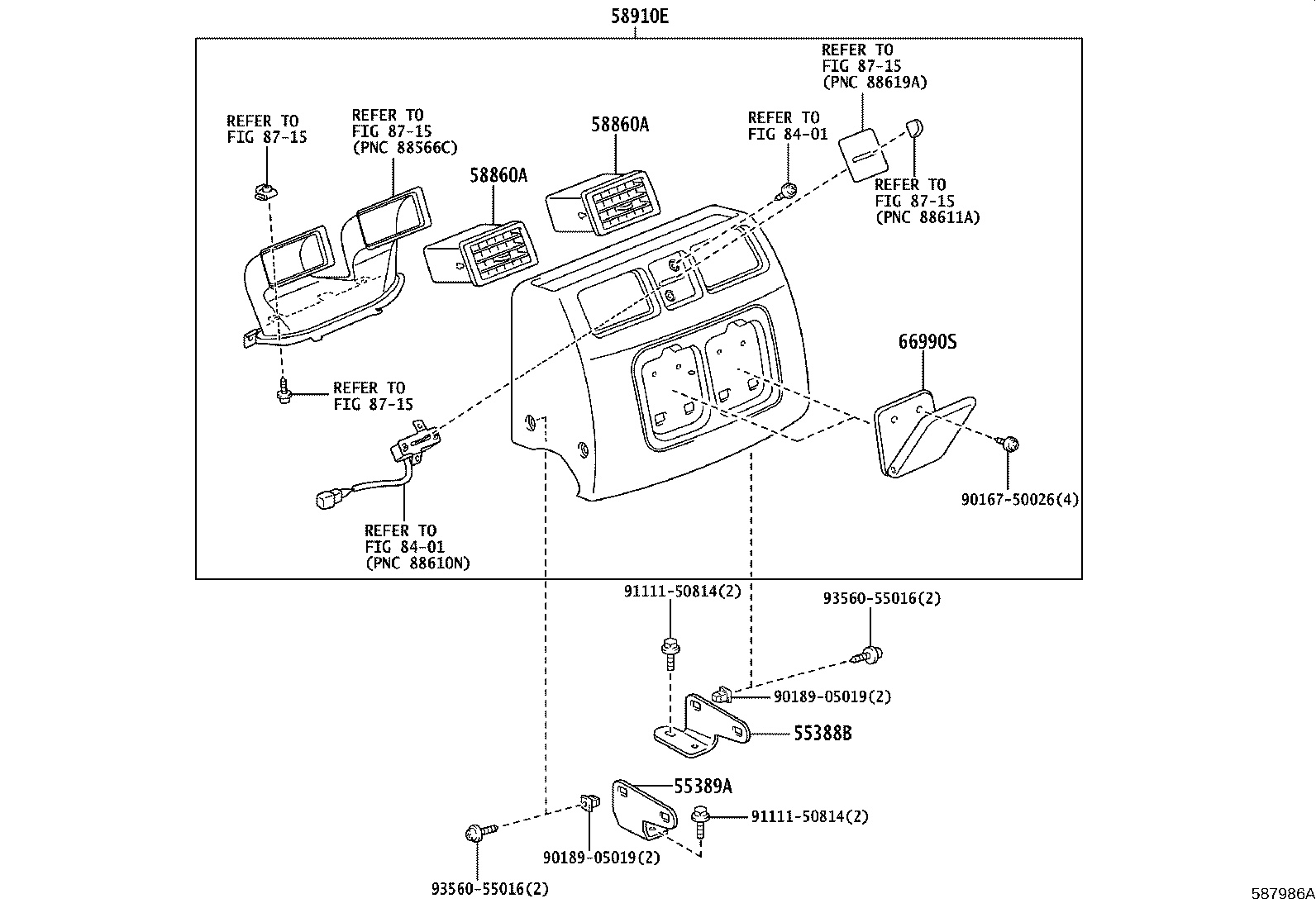

Console Box & Bracket
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55388B | Bracket, Console Mounting, RH |
| 55389A | Bracket, Console Mounting, LH |
| 58255H | Cover, Shift Lever Boot |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58833A | Cover, Console, Upper |
| 58834A | Cover, Console, Lower |
| 58860A | Register Assy, Console Box |
| 58910E | Box Assy, Console, Rear |
| 58941A | Cover, Parking Brake Hole |
| 66990S | Console Box Cup Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
