Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08
Roof Panel & Back Panel
39 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 63103A | Reinforcement Sub-assy, Roof Panel |

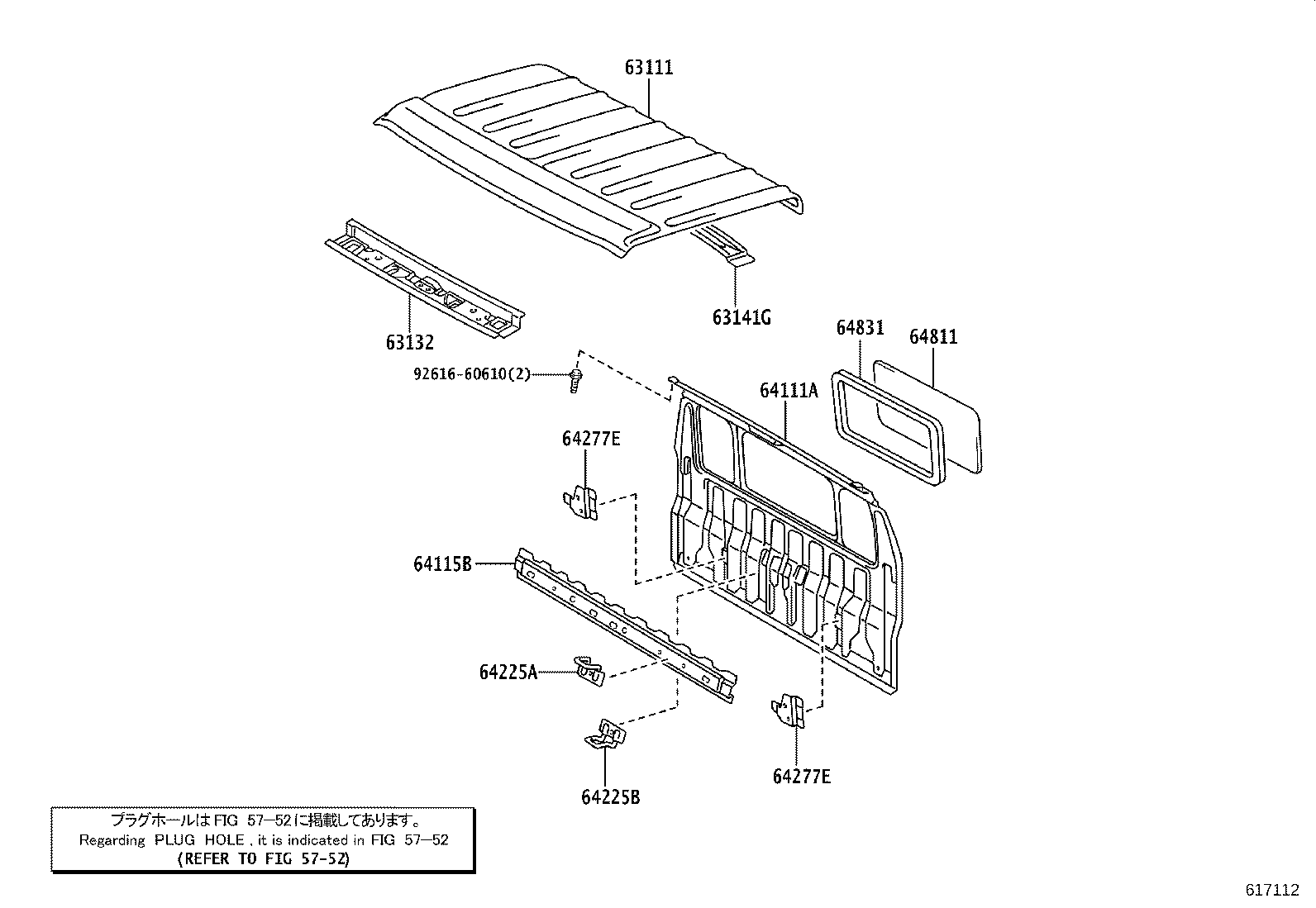

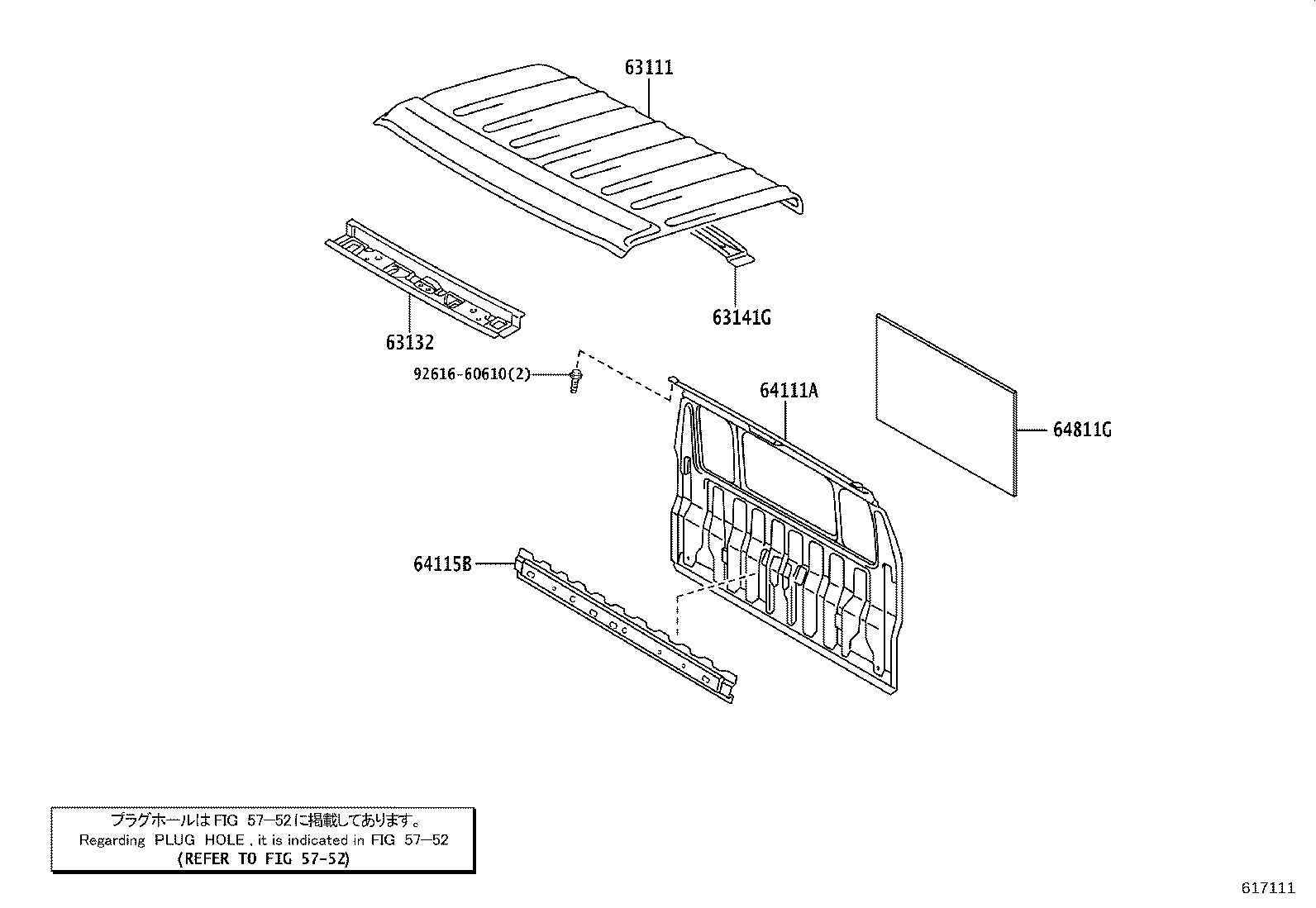

| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |

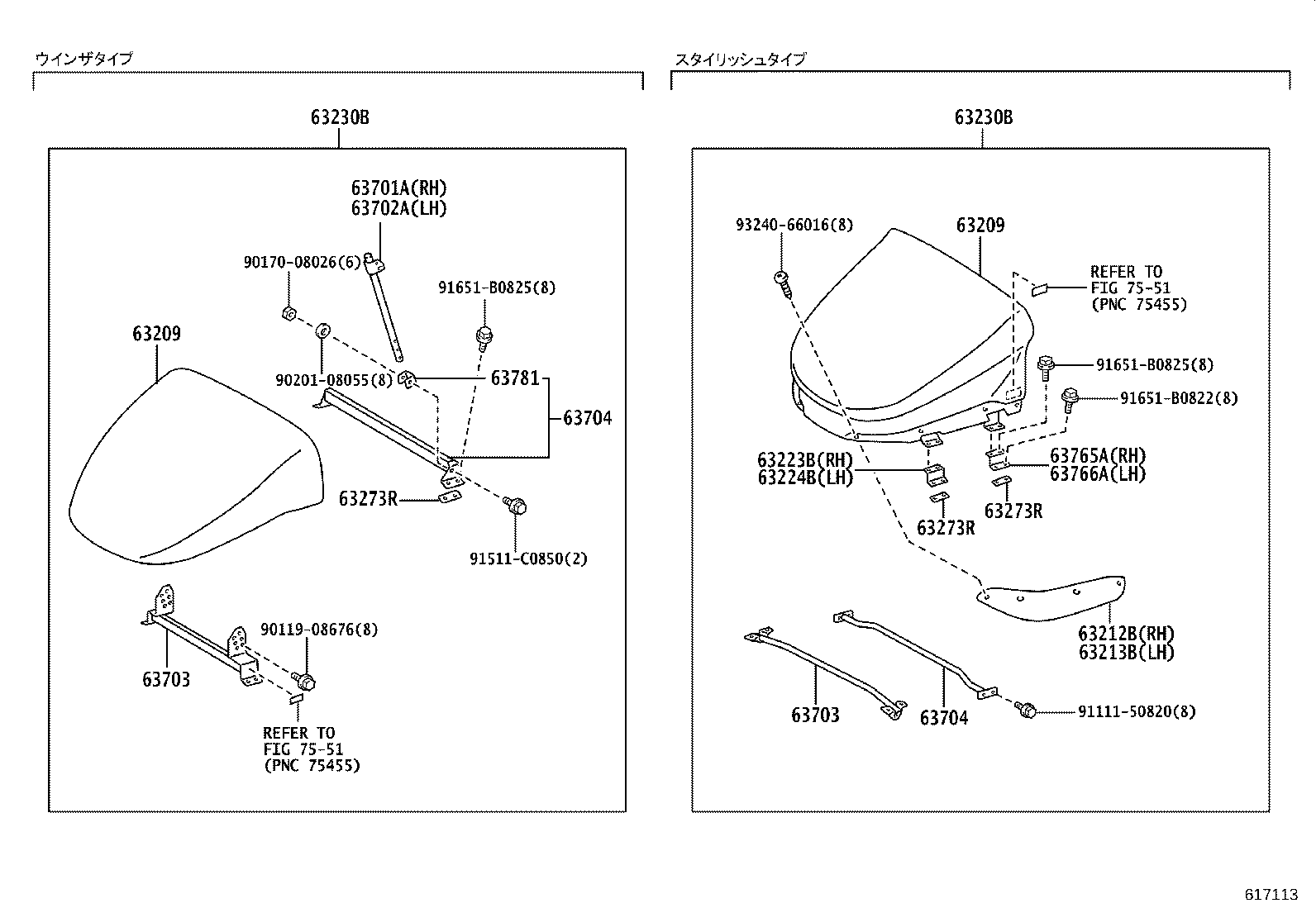

| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63212B | Panel, Roof Wind Deflector |
| 63213B | Panel, Sliding Roof, Inner |
| 63223B | Bracket, Roof Wind Deflector, RH |
| 63224B | Bracket, Roof Wind Deflector, LH |
| 63230B | Panel Assy, Roof Wind Deflector |
| 63273R | Packing, Roof Window Defrector |
| 63332D | Pad, Sun Roof Headlining |

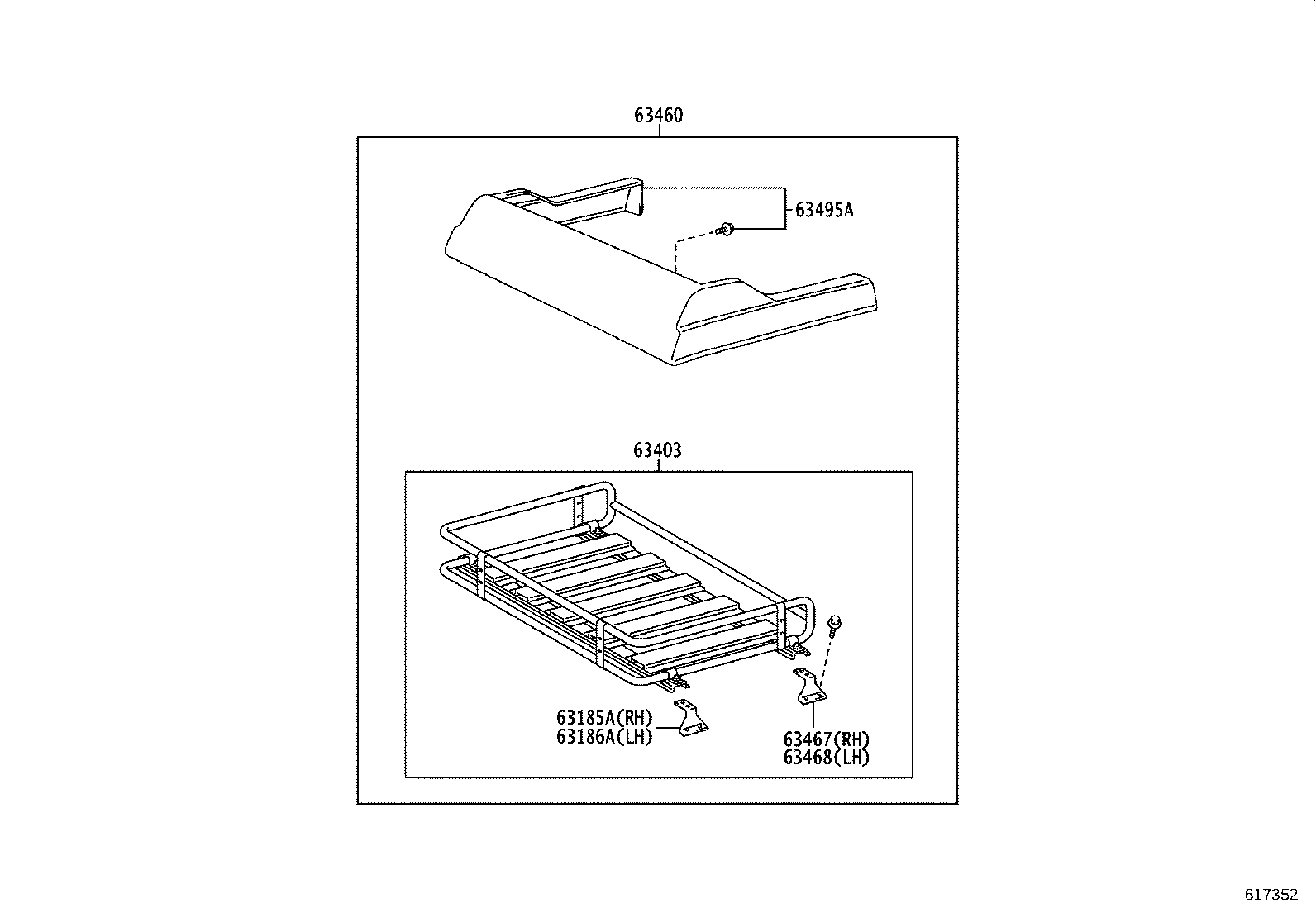

| 63403 | Deck Sub-assy, Roof Rack |
| 63460 | Rack Assy, Roof |
| 63467 | Bracket, Roof Rack, Rear RH |
| 63468 | Bracket, Roof Rack, Rear LH |
| 63495A | Cover, Roof Rack Leg, Center |
| 63701A | Bracket Sub-assy, Roof Air Deflector, Front |
| 63702A | Bracket Sub-assy, Roof Air Deflector, Front |
| 63703 | Bar Sub-assy, Roof Air Deflector, NO.1 |
| 63704 | Bar Sub-assy, Roof Air Deflector, NO.2 |
| 63765A | Bracket, Roof Air Deflector, RH |
| 63766A | Bracket, Roof Air Deflector, LH |
| 63781 | Stay, Roof Air Deflector |
| 64111A | Panel, Back |
| 64115B | Reinforcement, Back Panel |
| 64117A | Reinforcement, Cab Back, Lower |
| 64122A | Baffle, Dust Rear Body |
| 64145E | Bracket, Rear Seatback Set |
| 64225A | Hanger, Rear Seat Cushion Support |
| 64225B | Hanger, Rear Seat Cushion Support |
| 64277E | Bracket, Back Panel Trim, Lower |
| 64811 | Glass, Back Window |
| 64811G | Cover, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
| 64832 | Key, Back Window Weatherstrip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
