Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

24 part groups · 3 illustrations

Illustrations

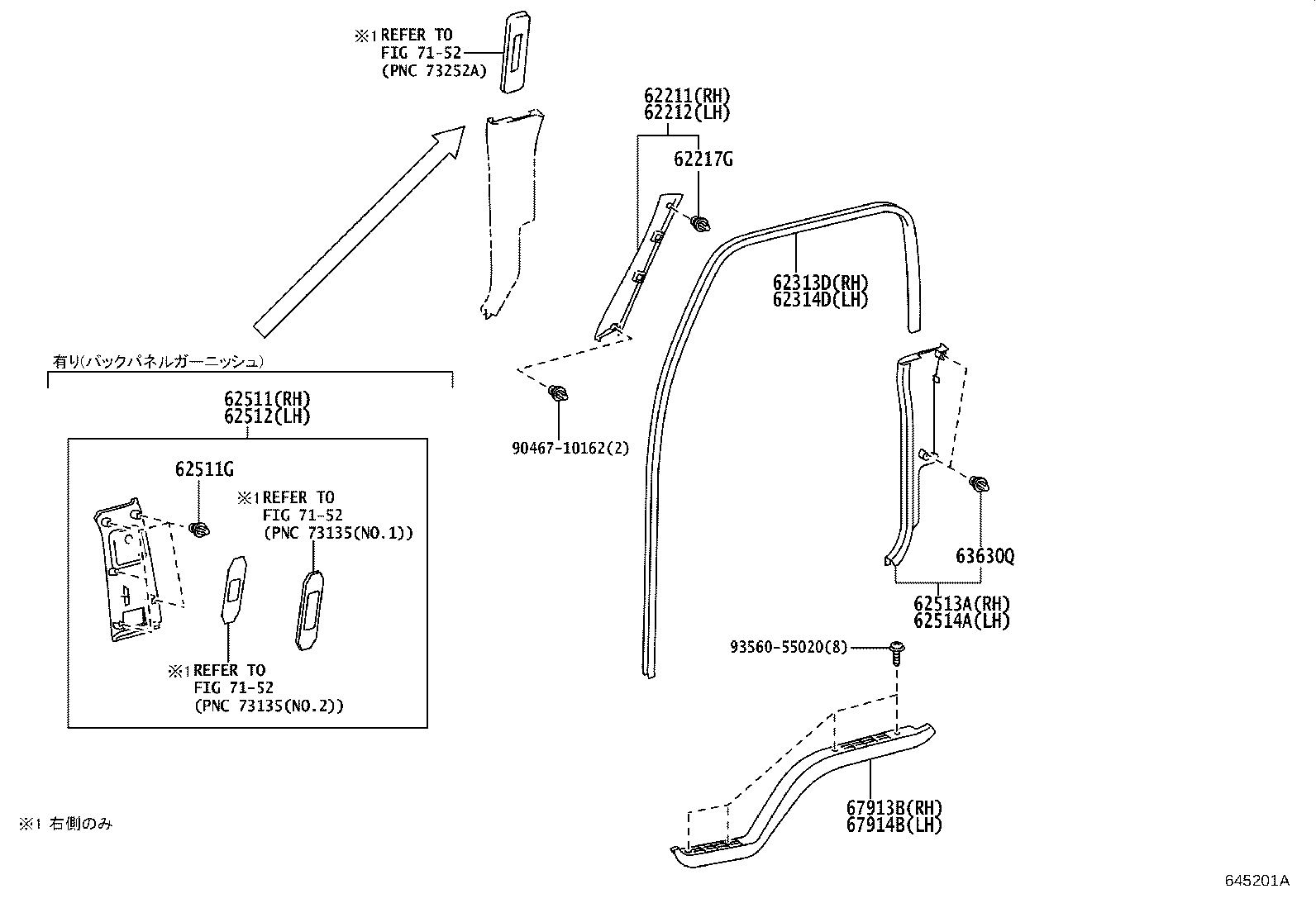

Figure 645200A 645200A 2021-08 → — Figure 645201A 645201A 2021-08 → — Figure 645202 645202 2021-08 → —

Part groups

PNCDescription
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62217G Clip, Front Pillar Garnish
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62335A Cover, Rear Door Opening Trim
62461H Clip (FOR ROOF SIDE INNER GARNISH)
62511 Board, Quarter Inside Trim, RH
62511G Clip (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62513A Panel, Quarter Trim, Lower RH
62514A Panel, Quarter Trim, Lower LH
62570F Garnish Assy, Roof Side, Inner Lower RH
62580A Garnish Assy, Roof Side, Inner Lower LH
63630Q Clip
64261C Garnish, Back Panel, Upper
64271C Trim, Back Panel
64271D Clip(FOR BACK PANEL TRIM)
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67917C Plate, Rear Door Scuff, RH
67918E Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
