Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

28 part groups · 3 illustrations

Illustrations

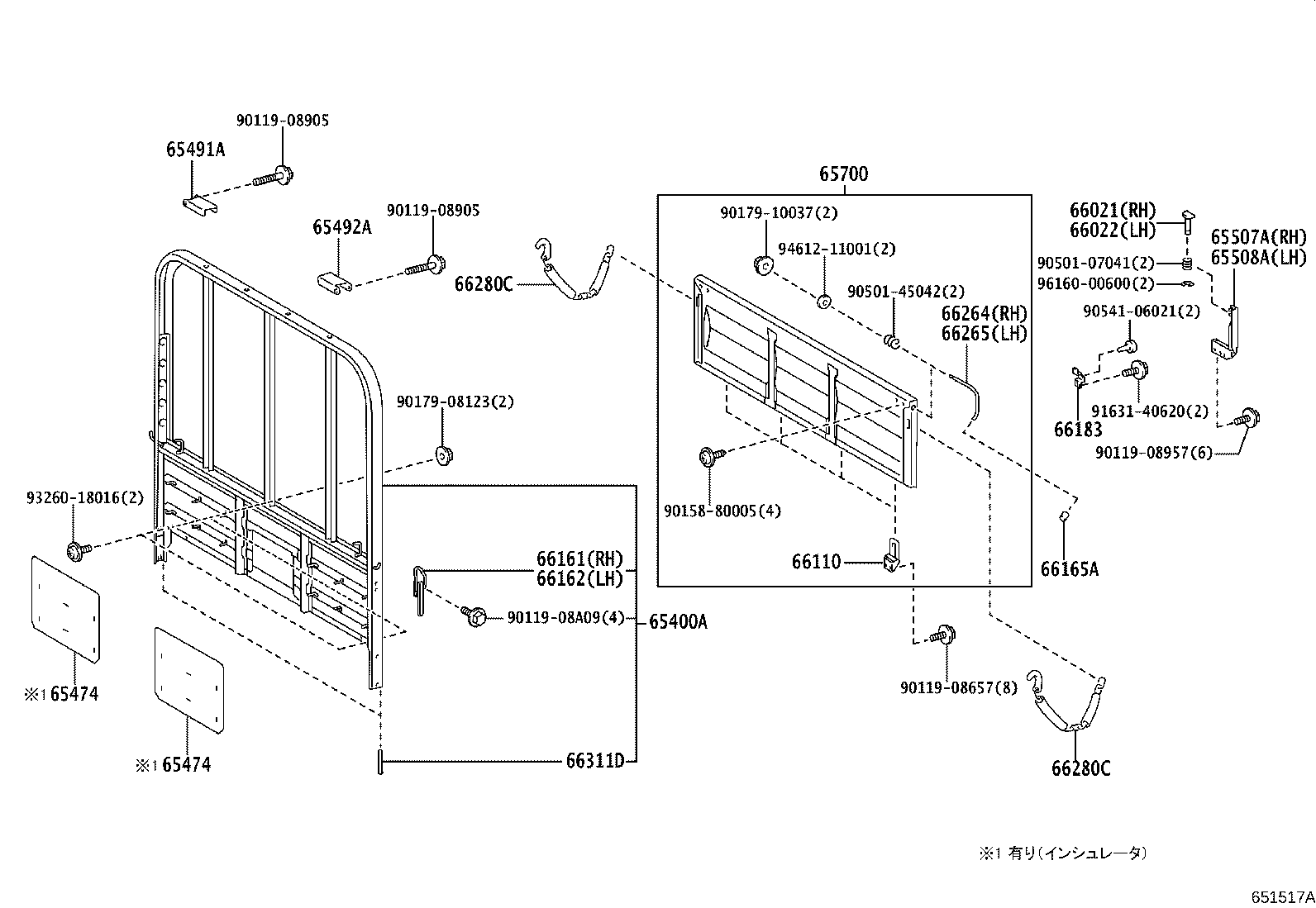

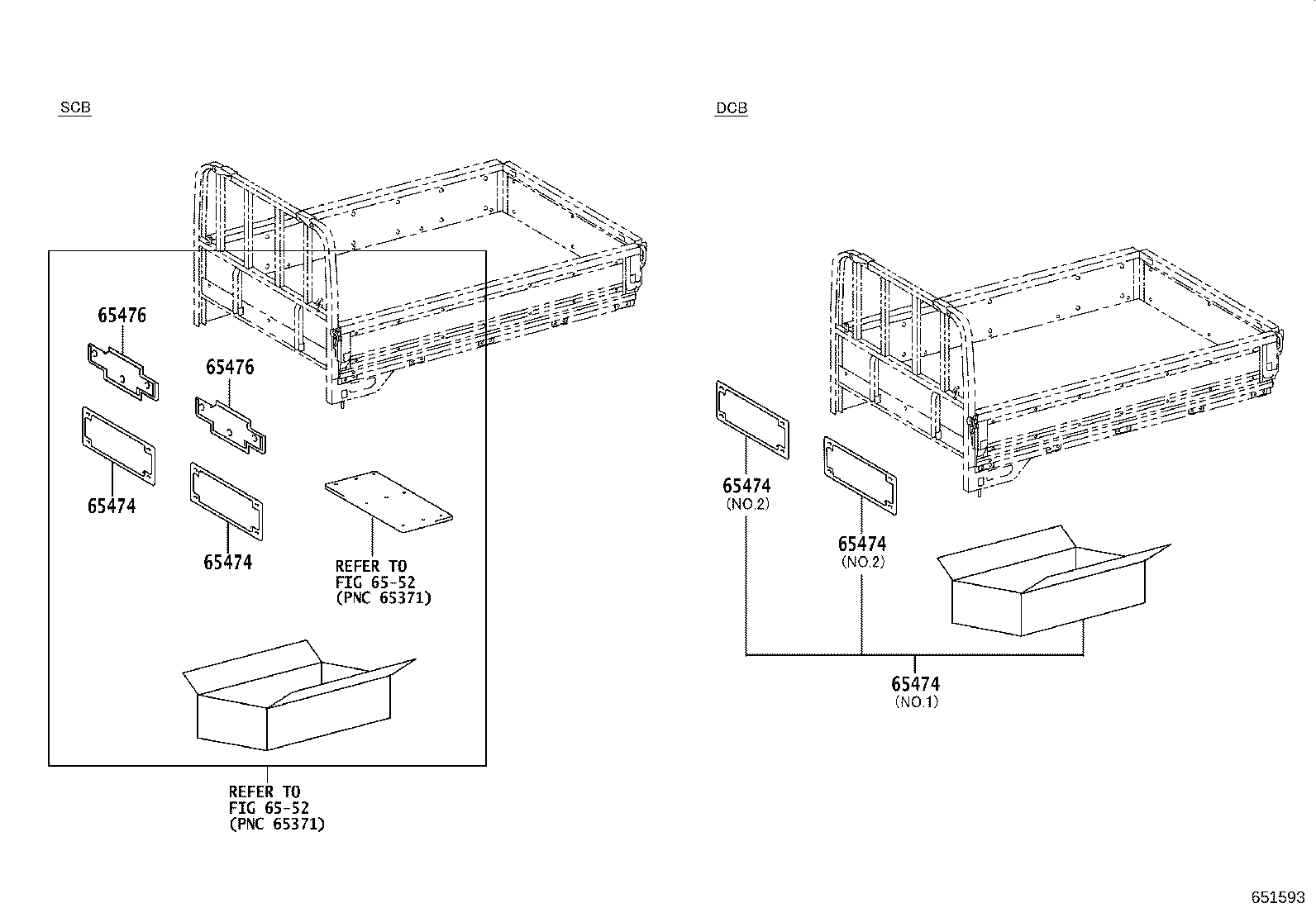

Figure 651516D 651516D 2021-08 → — Figure 651517A 651517A 2021-08 → — Figure 651593 651593 2021-08 → —

Part groups

PNCDescription
65080A Handle Assy, Side Gate Latch
65325 Plate, Floor Board, Front
65400A Guard Assy, Rear Body
65414 Stopper, Guard Frame
65457 Plate, Baffle Dust Rear Body
65474 Insulator, Header
65476 Insulator, Header Board, NO.2
65491A Stop, Guard Frame Load Slide, RH
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65700 Gate Assy, Rear Body Tail
65700B Plug, Hole(FOR TAIL GATE)
65700C Bolt, W/Washer(FOR TAIL GATE)
65778 Stopper, Tail Gate Stay
66021 Handle Sub-assy, Side Gate Support Corner, RH
66022 Handle Sub-assy, Side Gate Support Corner, LH
66110 Hinge Assy, Tail Gate
66119 Spring, Tail Gate Check Ball
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66165A Cap, Gate Latch Handle
66183 Stopper, Tail Gate
66243F Protector, Rear Body, NO.1
66264 Handle, Tail Gate Latch, RH
66265 Handle, Tail Gate Latch, LH
66280C Chain Assy, Tail Gate
66311D Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
