Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08

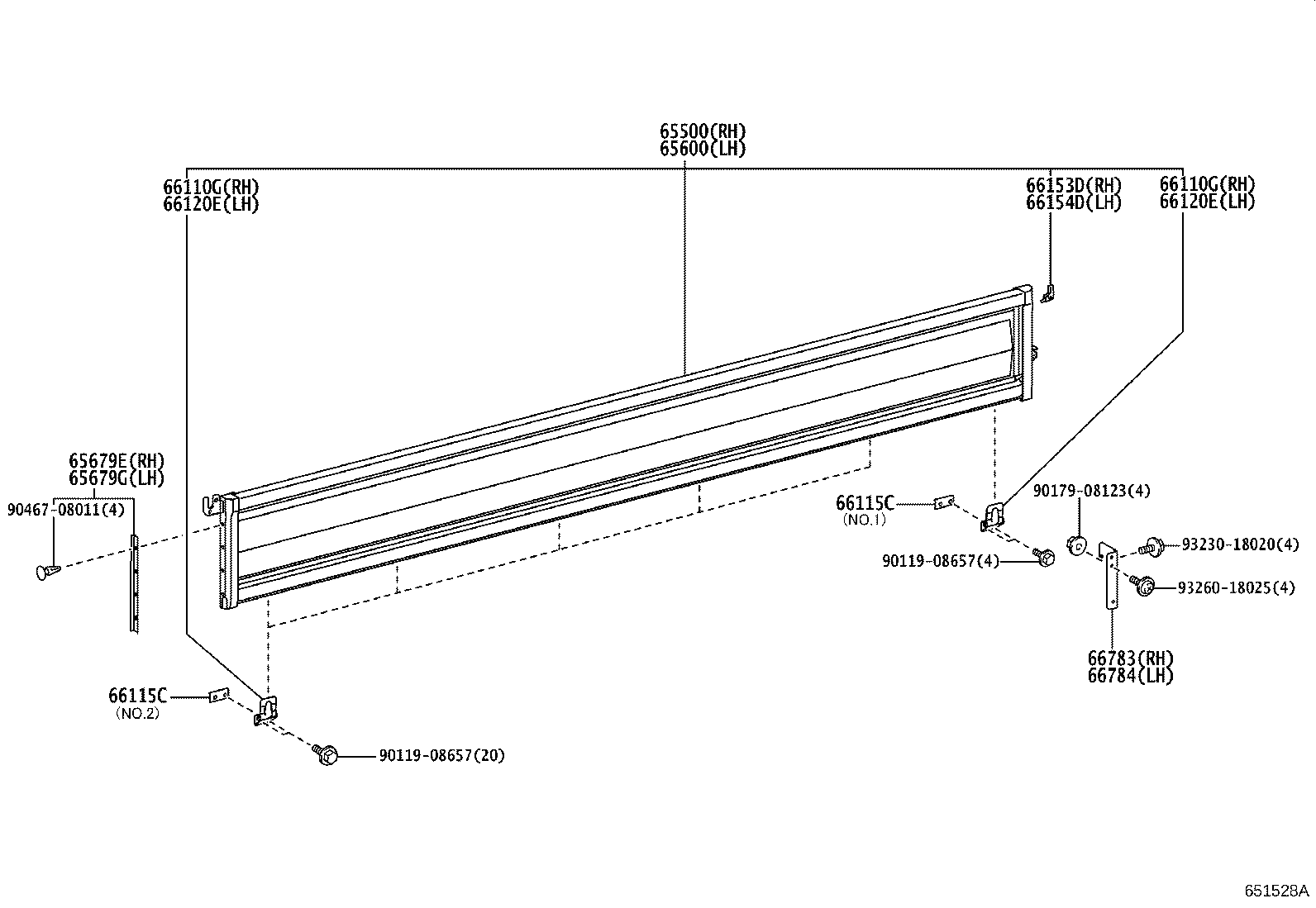

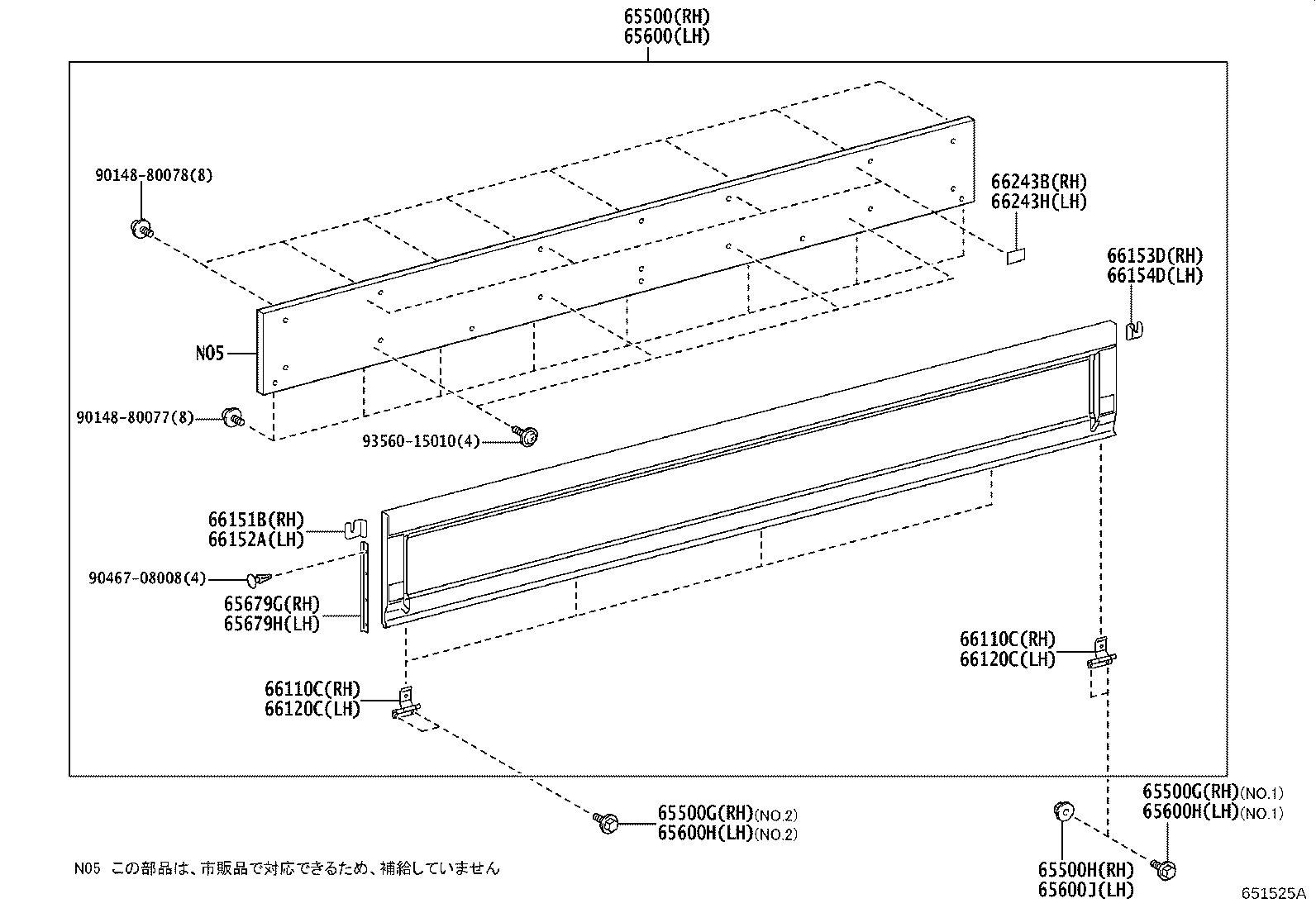

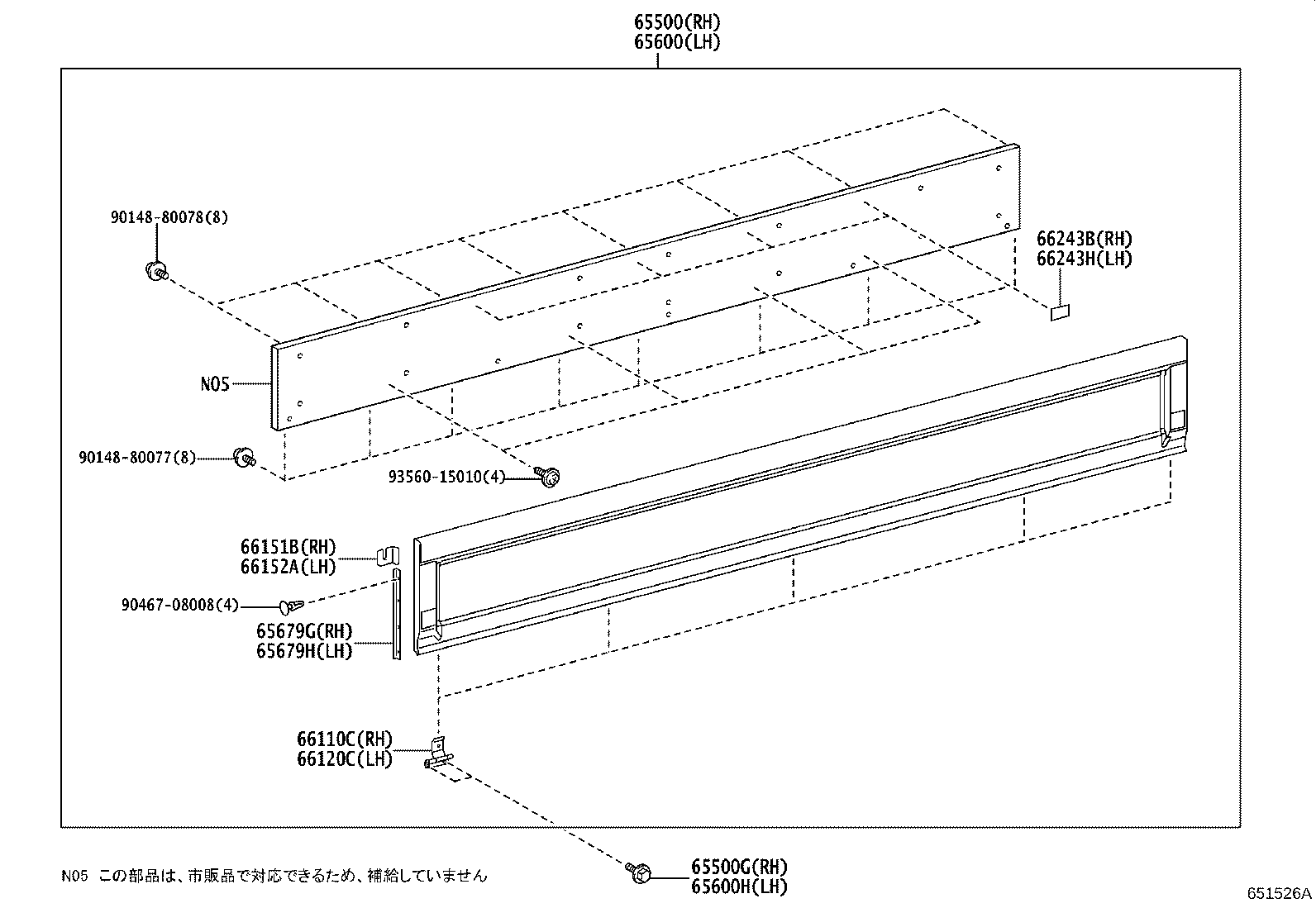

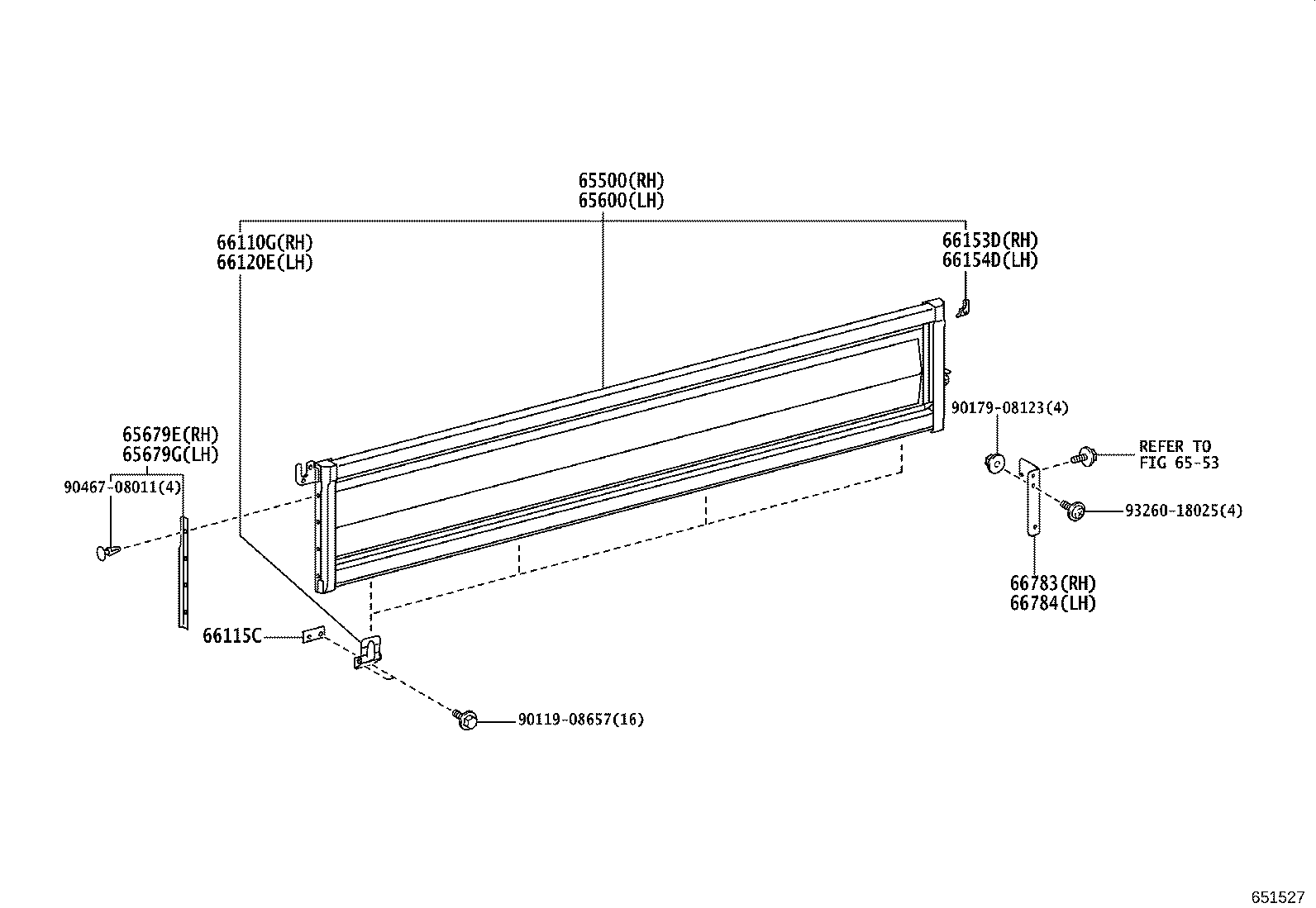

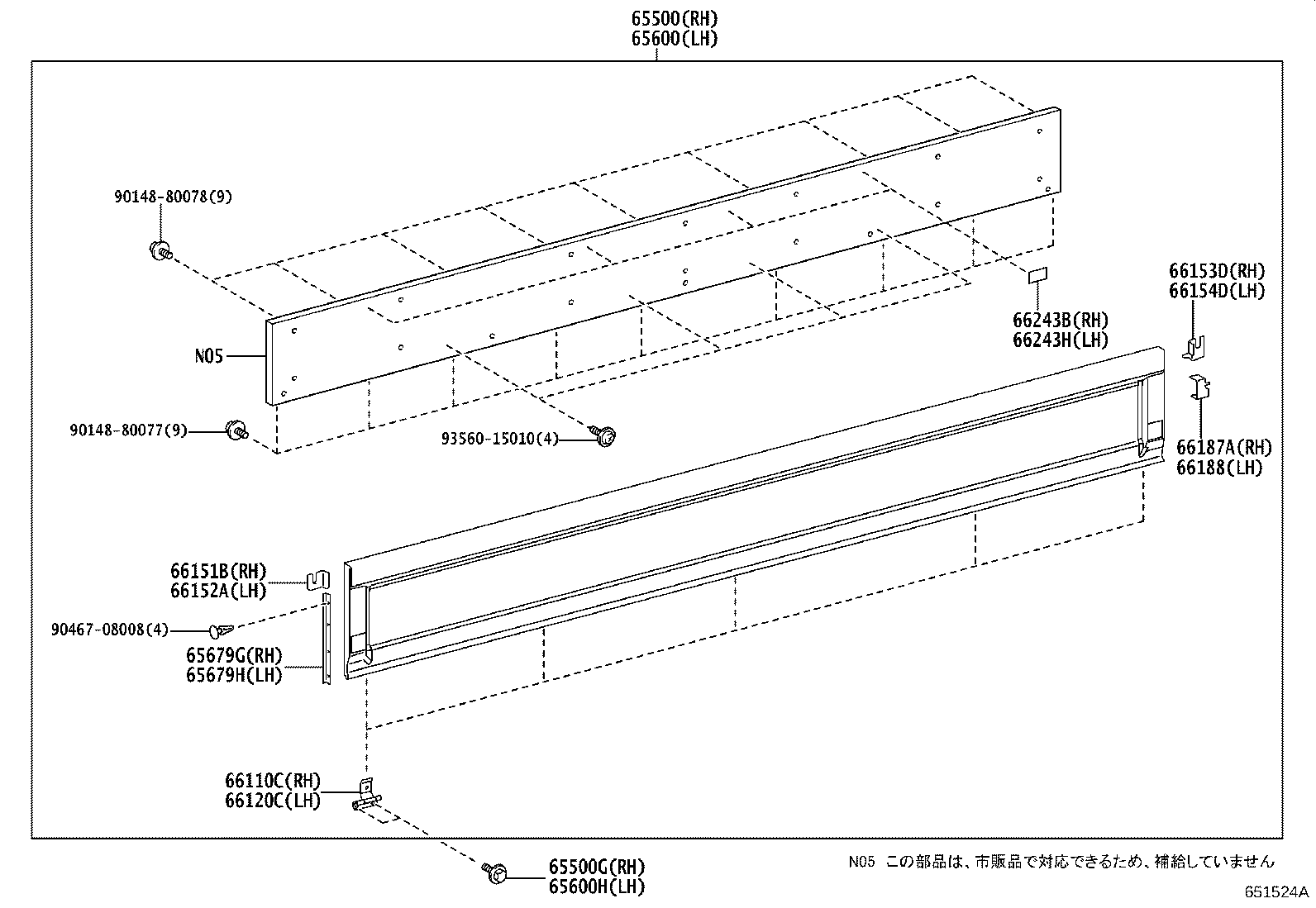

Rear Body Side Panel
24 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 65500 | Panel Assy, Rear Body Side, RH |
| 65500G | Bolt, W/Washer(FOR SIDE GATE, RH) |
| 65500H | Nut(FOR SIDE GATE, RH) |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65600H | Bolt, W/Washer(FOR SIDE GATE, LH) |
| 65600J | Nut(FOR SIDE GATE, LH) |
| 65679E | Seal, Side Gate |
| 65679G | Seal, Side Gate |
| 65679H | Seal, Side Gate |
| 66110C | Hinge Assy, Side Gate, NO.1 RH |
| 66110G | Hinge Assy, Side Gate, NO.2 RH |
| 66115C | Retainer, Gate Hinge |
| 66120C | Hinge Assy, Side Gate, NO.1 LH |
| 66120E | Hinge Assy, Side Gate, NO.2 LH |
| 66151B | Latch, Side Gate, Front RH |
| 66152A | Latch, Side Gate, Front LH |
| 66153D | Latch, Side Gate, Rear RH |
| 66154D | Latch, Side Gate, Rear LH |
| 66187A | Latch, Side Gate Support |
| 66188 | Latch, Side Gate, NO.1 |
| 66243B | Protector, Rear Body, NO.1 |
| 66243H | Protector, Rear Body, NO.1 |
| 66783 | Bracket, Side Gate Support, RH |
| 66784 | Bracket, Side Gate Support, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
