Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08

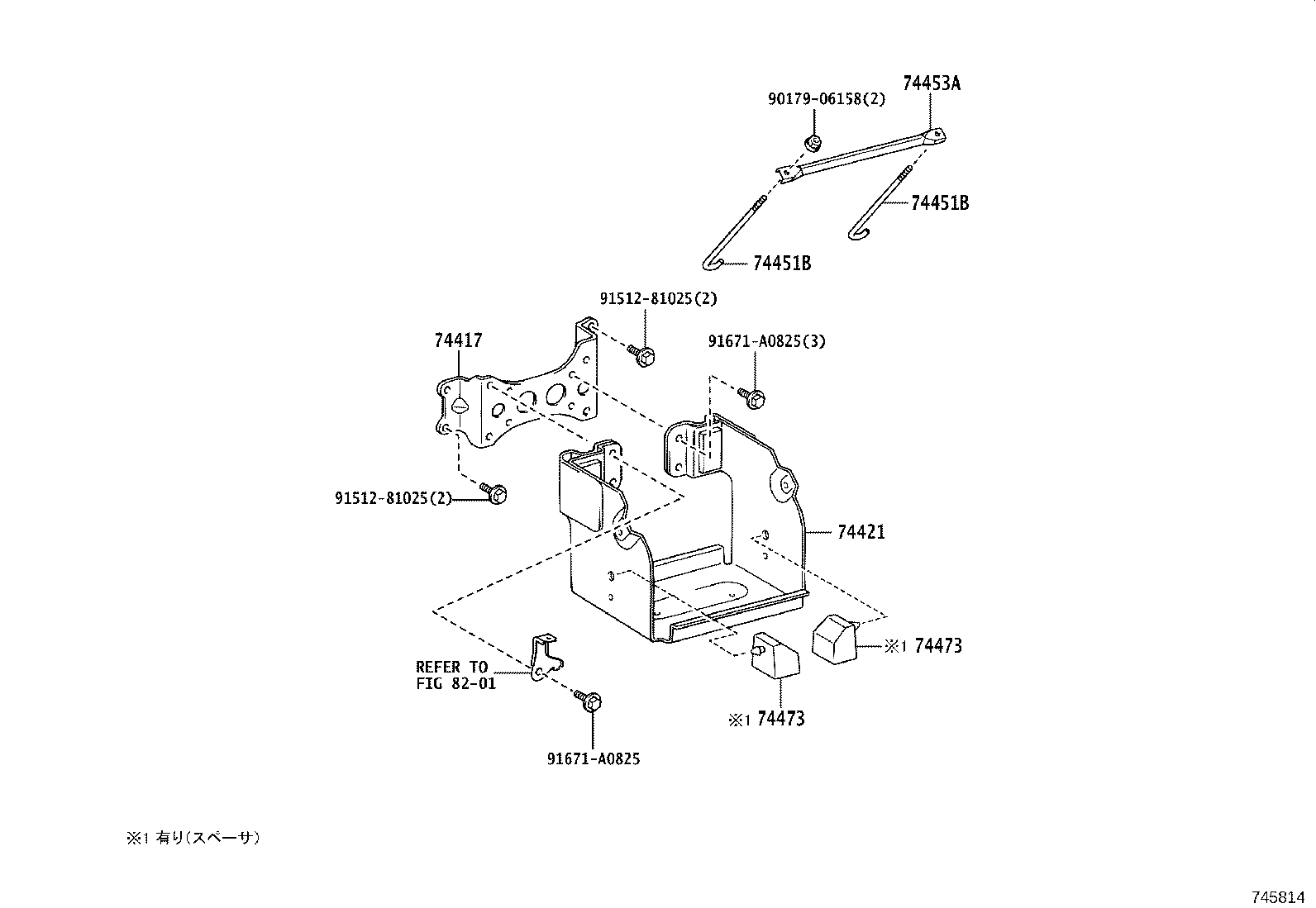

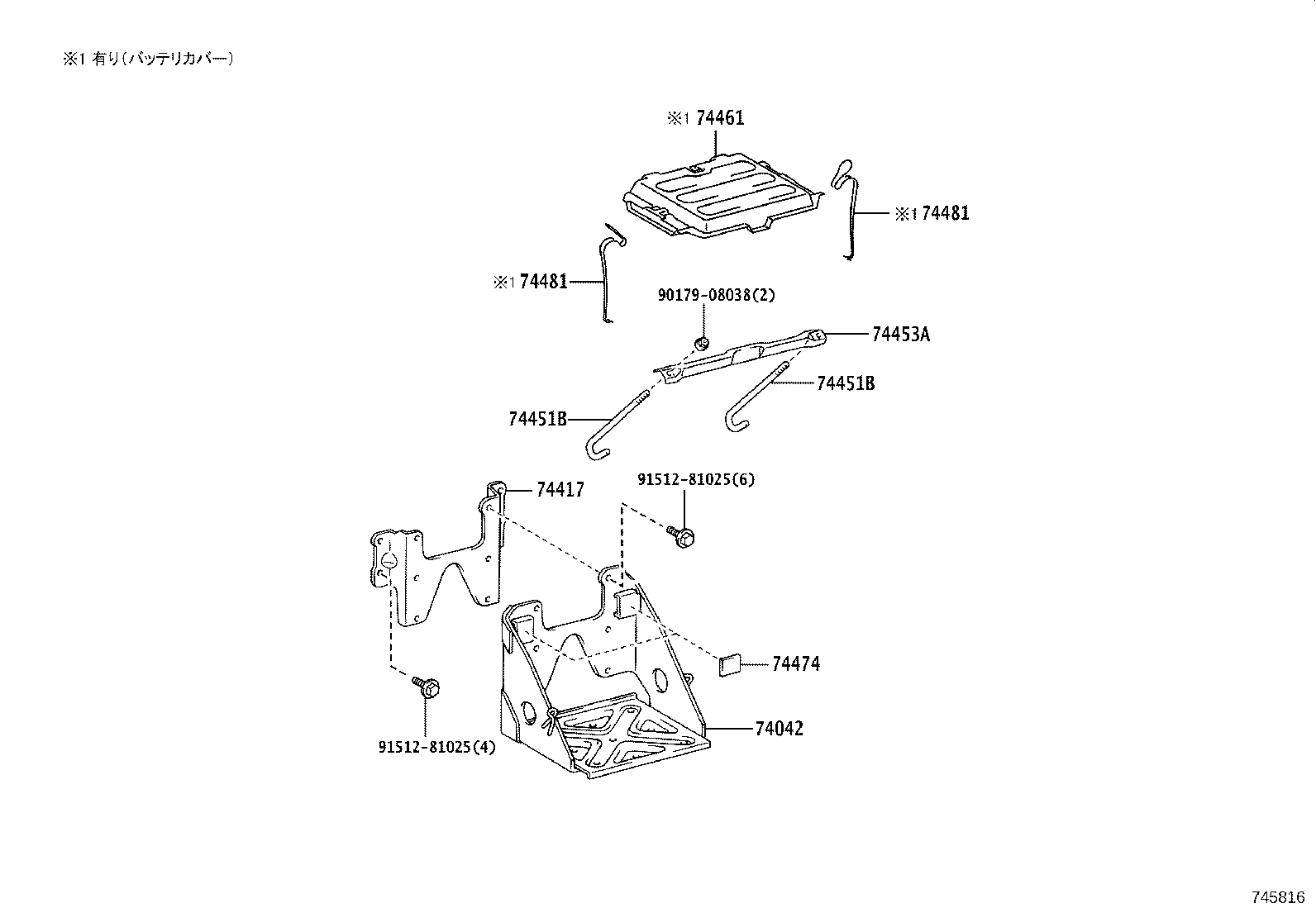

Battery Carrier
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74042 | Bracket Sub-assy, Battery |
| 74417 | Bracket, Battery Carrier |
| 74421 | Hanger, Battery |
| 74451B | Bolt, Battery Clamp |
| 74453A | Bar, Battery Set Plate |
| 74461 | Cover, Battery |
| 74473 | Spacer, Battery |
| 74474 | Pad, Battery |
| 74481 | Clamp, Battery Hold Down |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
