Toyota Dyna
2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan
Supported model
Data version 2021-08
Fuel Tank & Tube

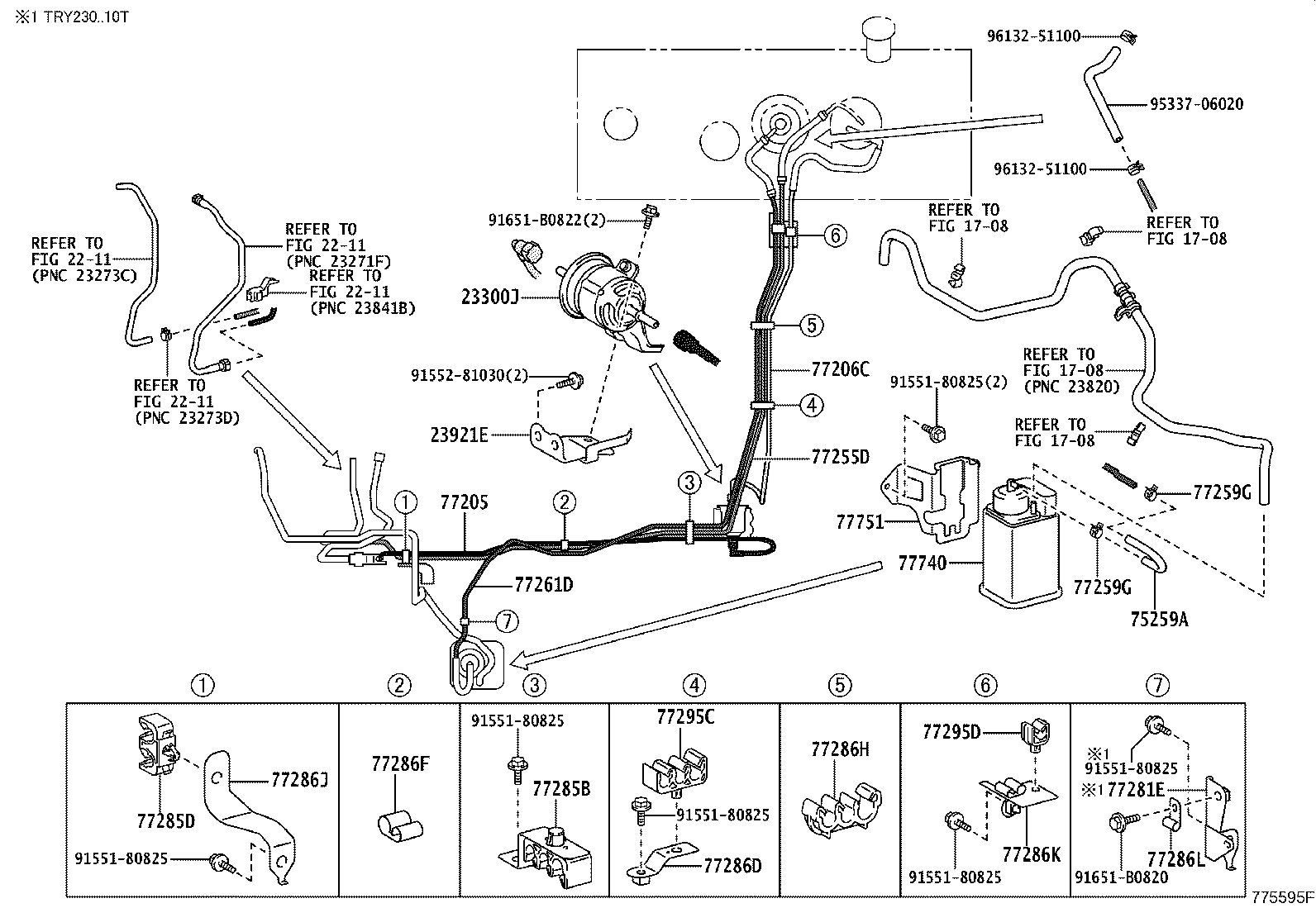

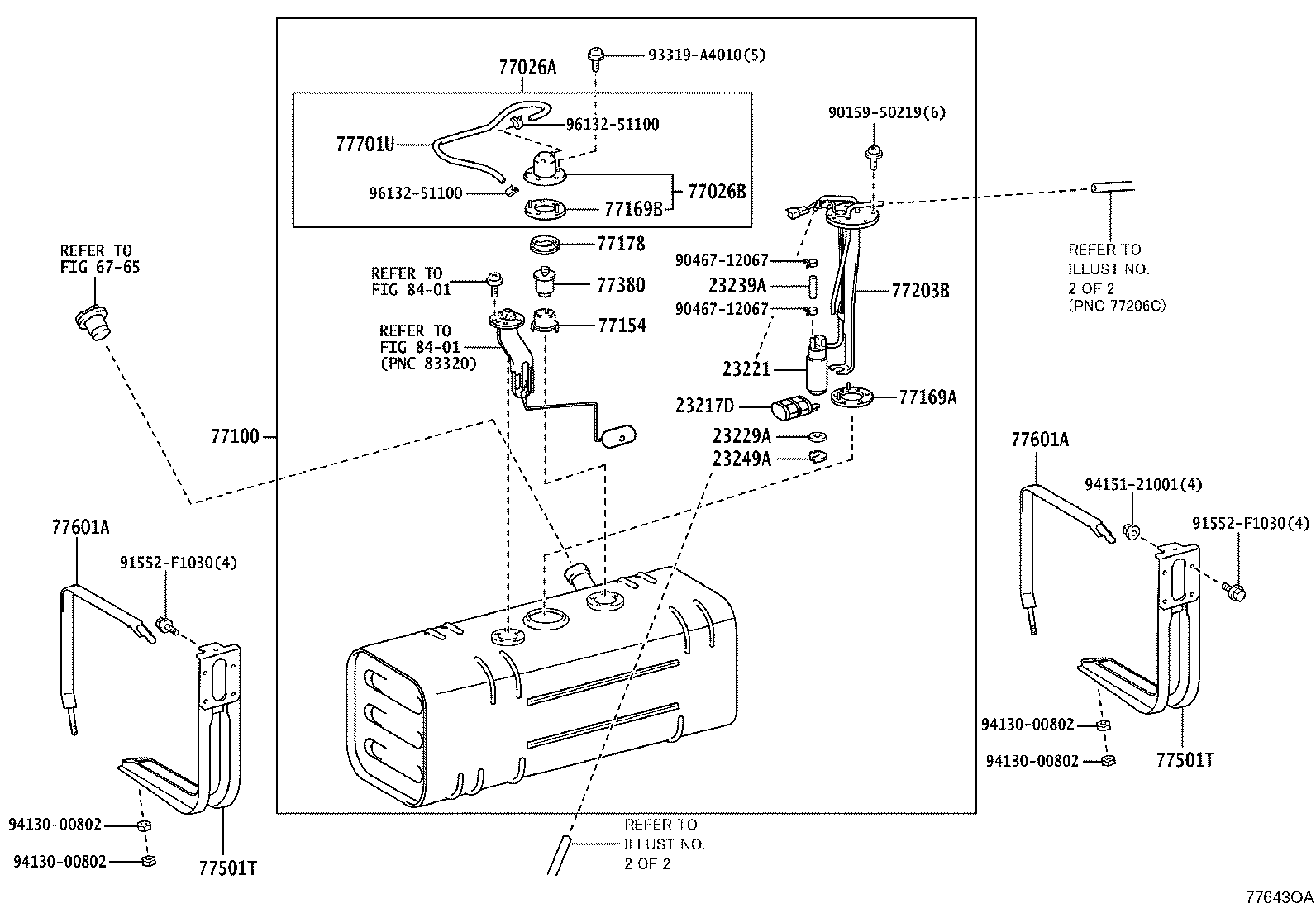

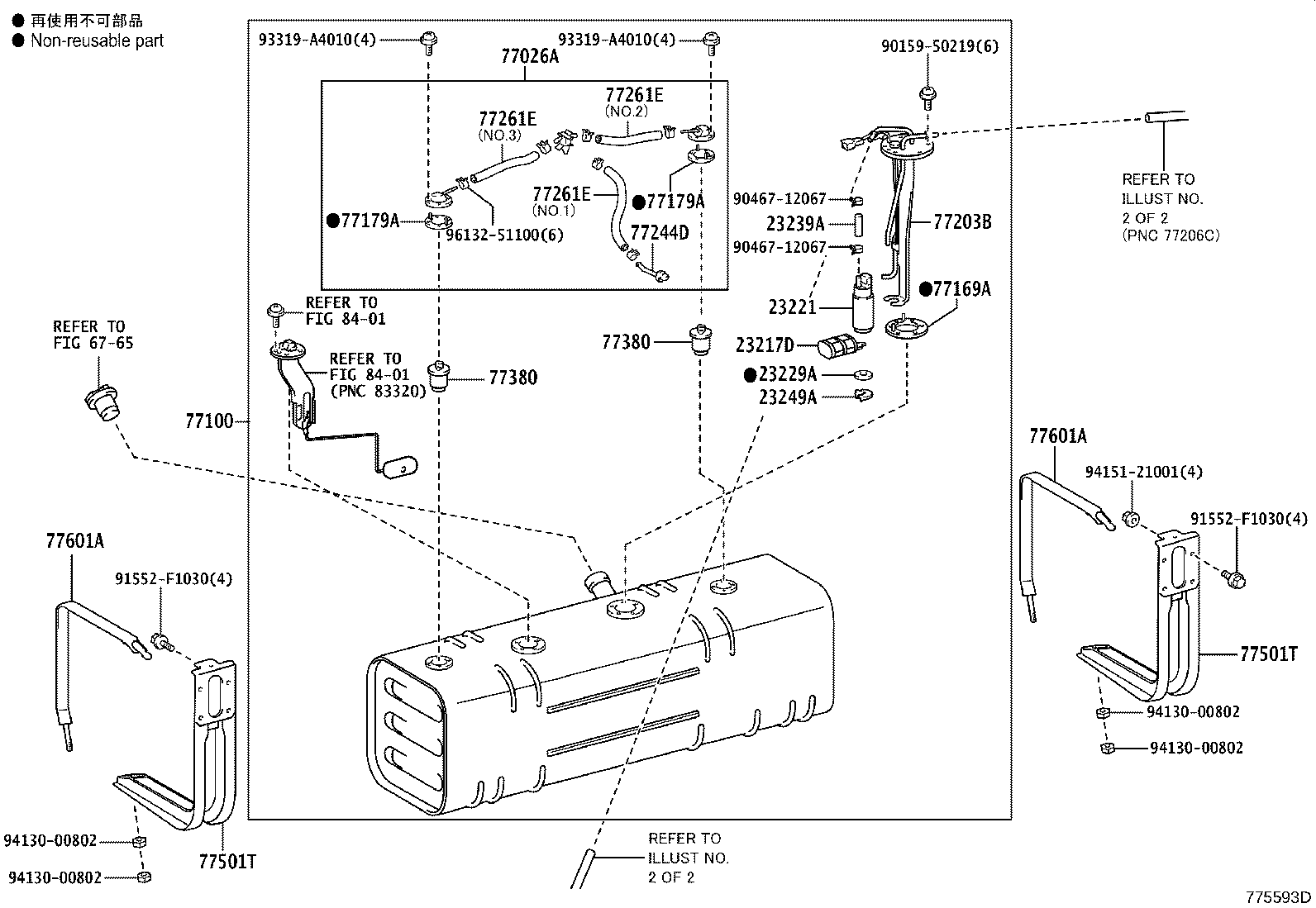

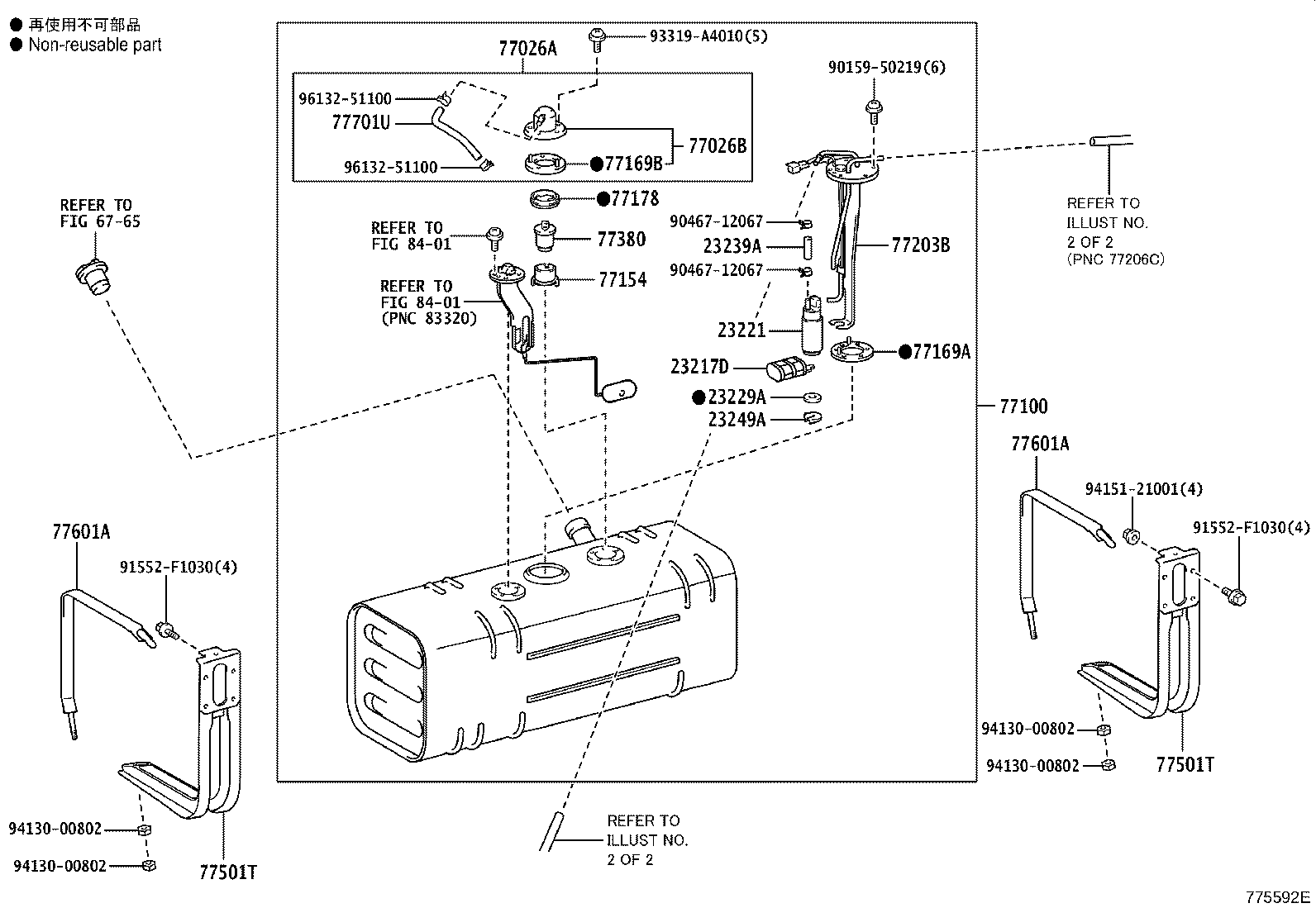

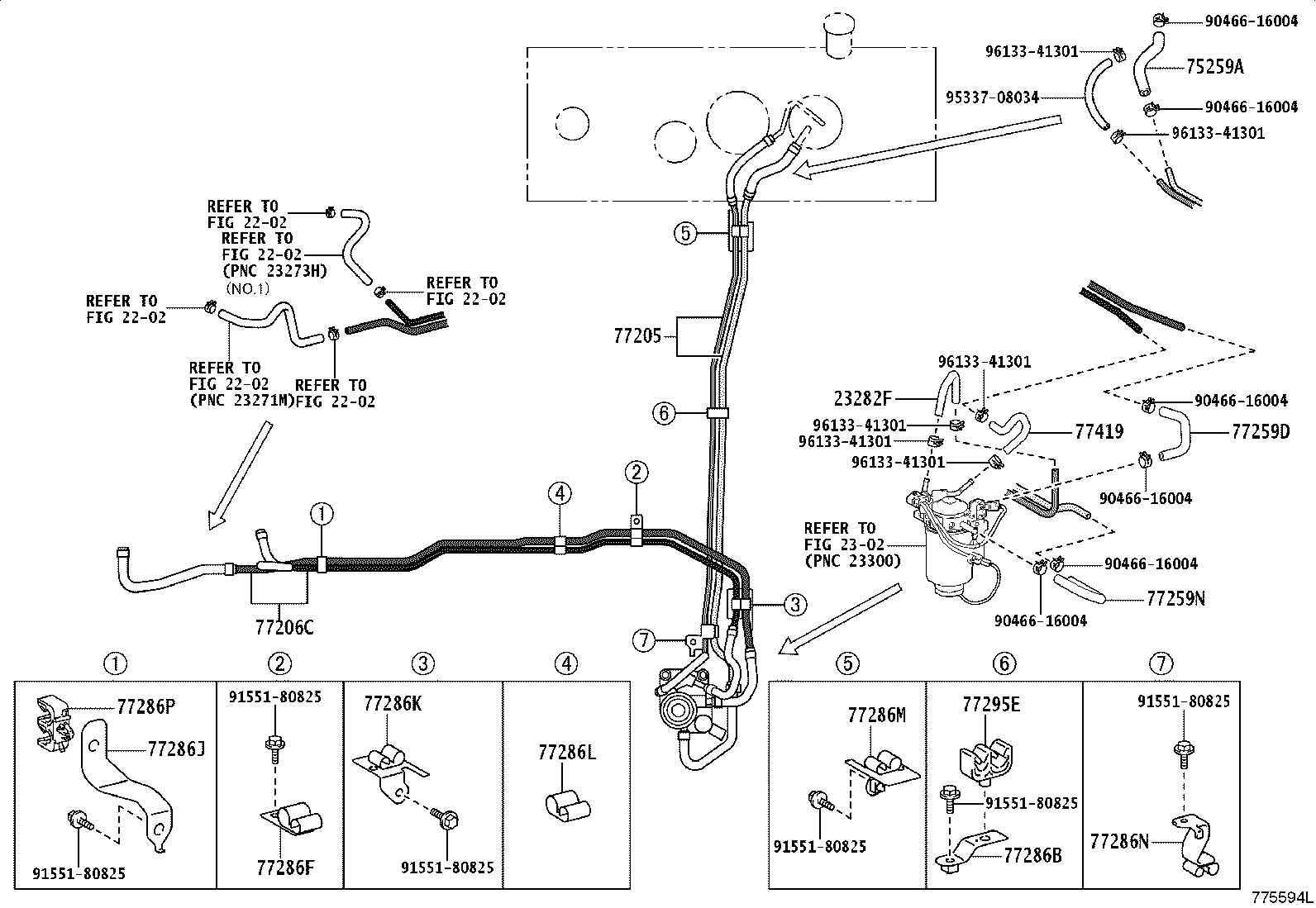

52 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23239A | Hose |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23282F | Hose, Fuel, NO.4 |
| 23300J | Filter Assy, Fuel |
| 23921E | Support, Fuel Filter |
| 75259A | Hose, Fuel |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77026B | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77100 | Tank Assy, Fuel |
| 77154 | Plate, Fuel Tank Evap/Vent Tube Support |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77169B | Gasket, Fuel Suction Tube Set, NO.1 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77203B | Tube Sub-assy, Fuel Suction |
| 77205 | Tube Sub-assy, Fuel Main |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77244D | Tube, Fuel Evaporation Breather, NO.1 |
| 77255D | Tube, Fuel Return |
| 77259D | Hose, Fuel, NO.1 |
| 77259G | Clip, Fuel Hose |
| 77259N | Hose, Fuel, NO.2 |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77281E | Bracket, Fuel Main Tube, NO.1 |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77295C | Grommet, Fuel Tube |
| 77295D | Grommet, Fuel Tube |
| 77295E | Grommet, Fuel Tube |
| 77380 | Valve Assy, Fuel Cut Off |
| 77419 | Hose, Fuel, NO.3 |
| 77501T | Bracket Sub-assy, Fuel Tank |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
