Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

5 part groups · 3 illustrations

Illustrations

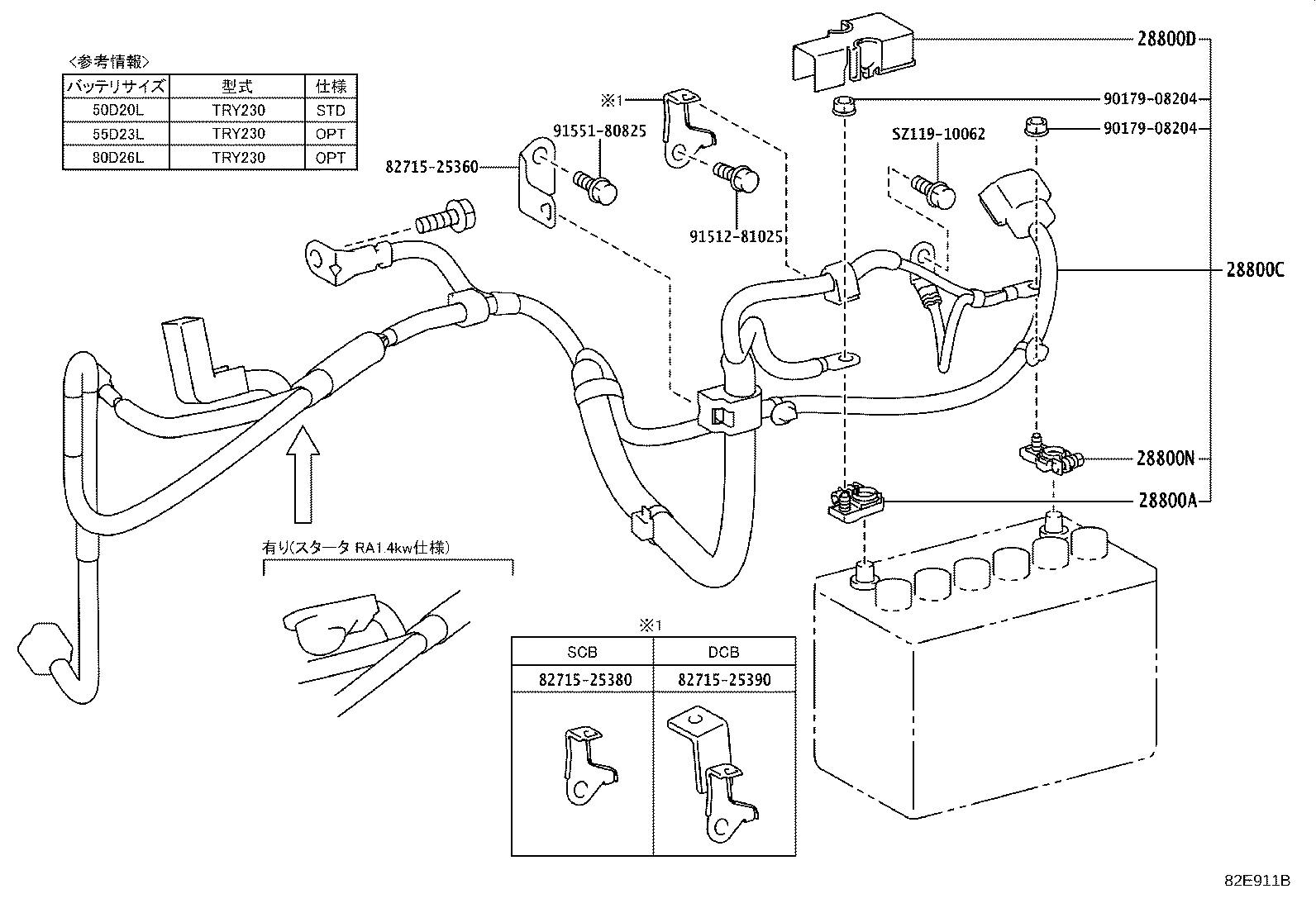

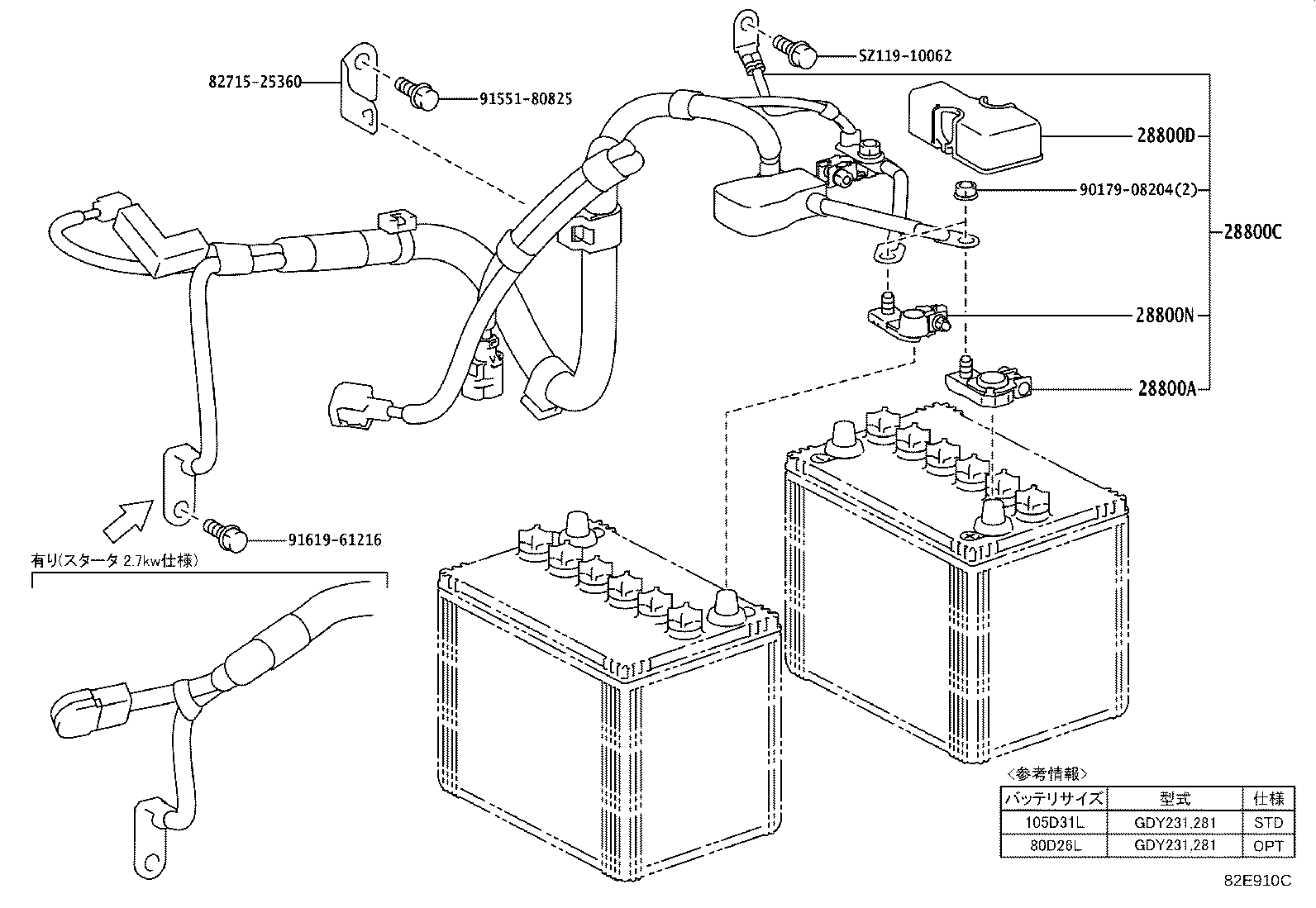

Figure 82E962A 82E962A 2021-08 → — Figure 82E910C 82E910C 2021-08 → — Figure 82E911B 82E911B 2021-08 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800N Terminal, Battery Negative
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
