Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

29 part groups · 8 illustrations

Illustrations

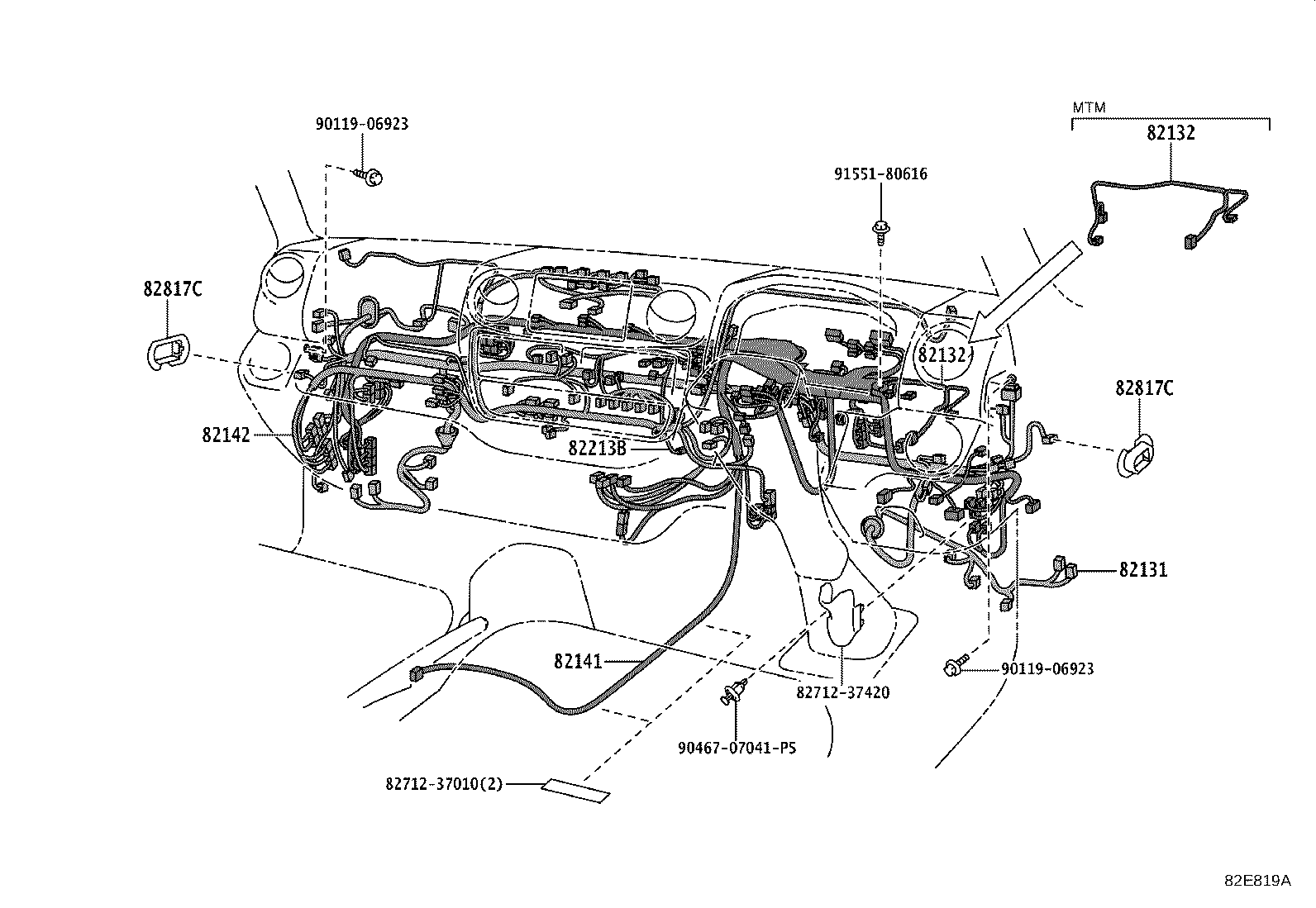

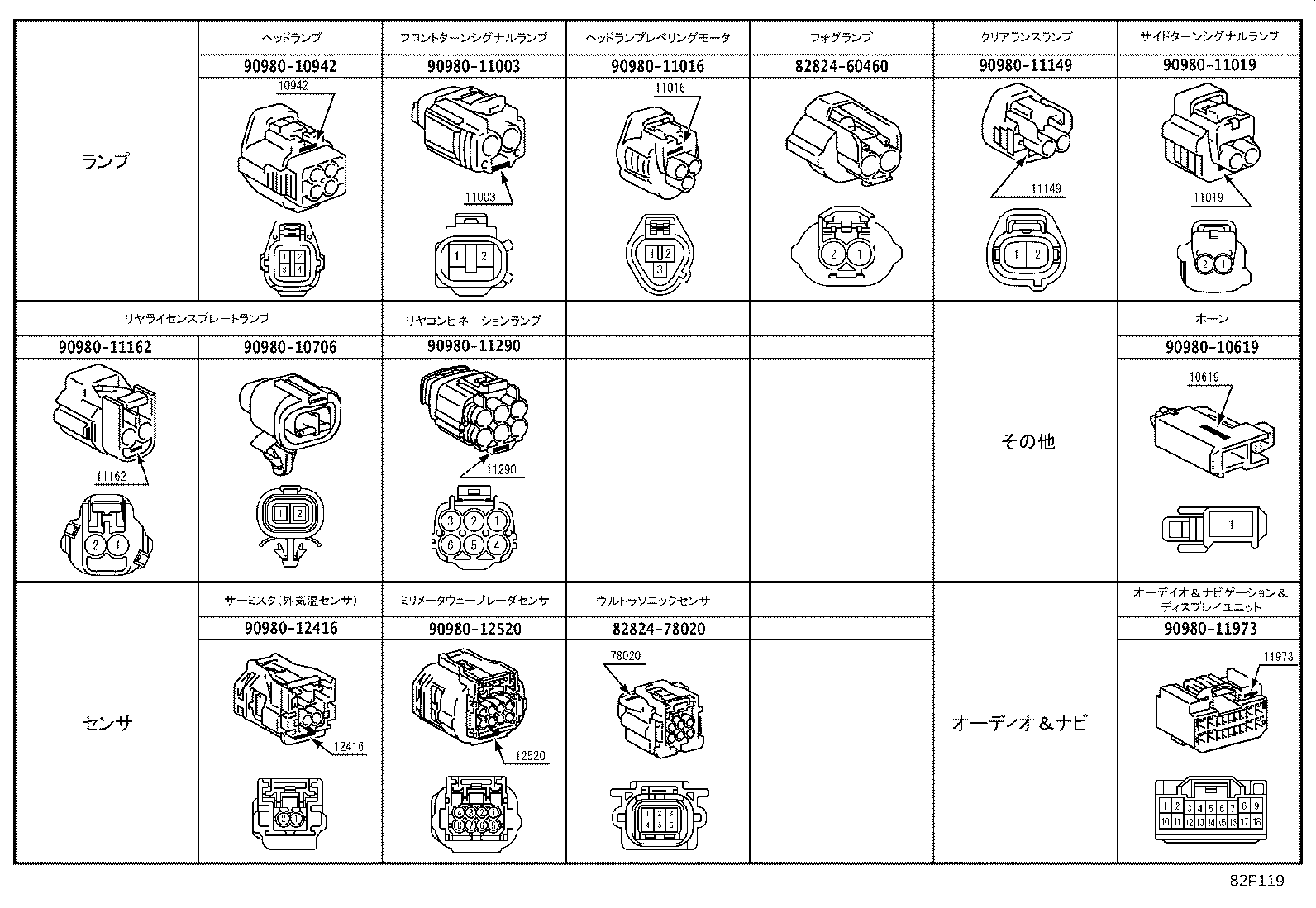

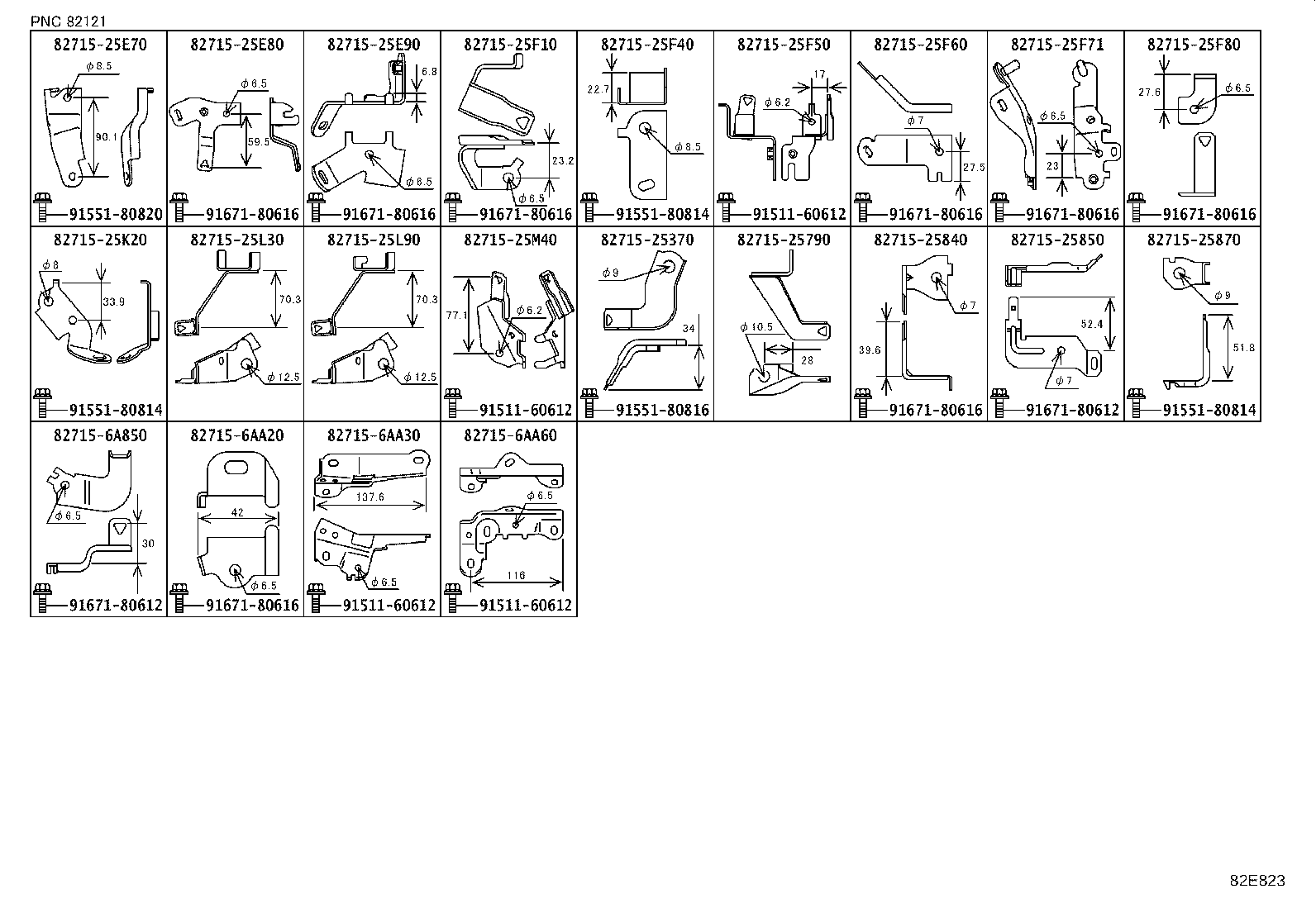

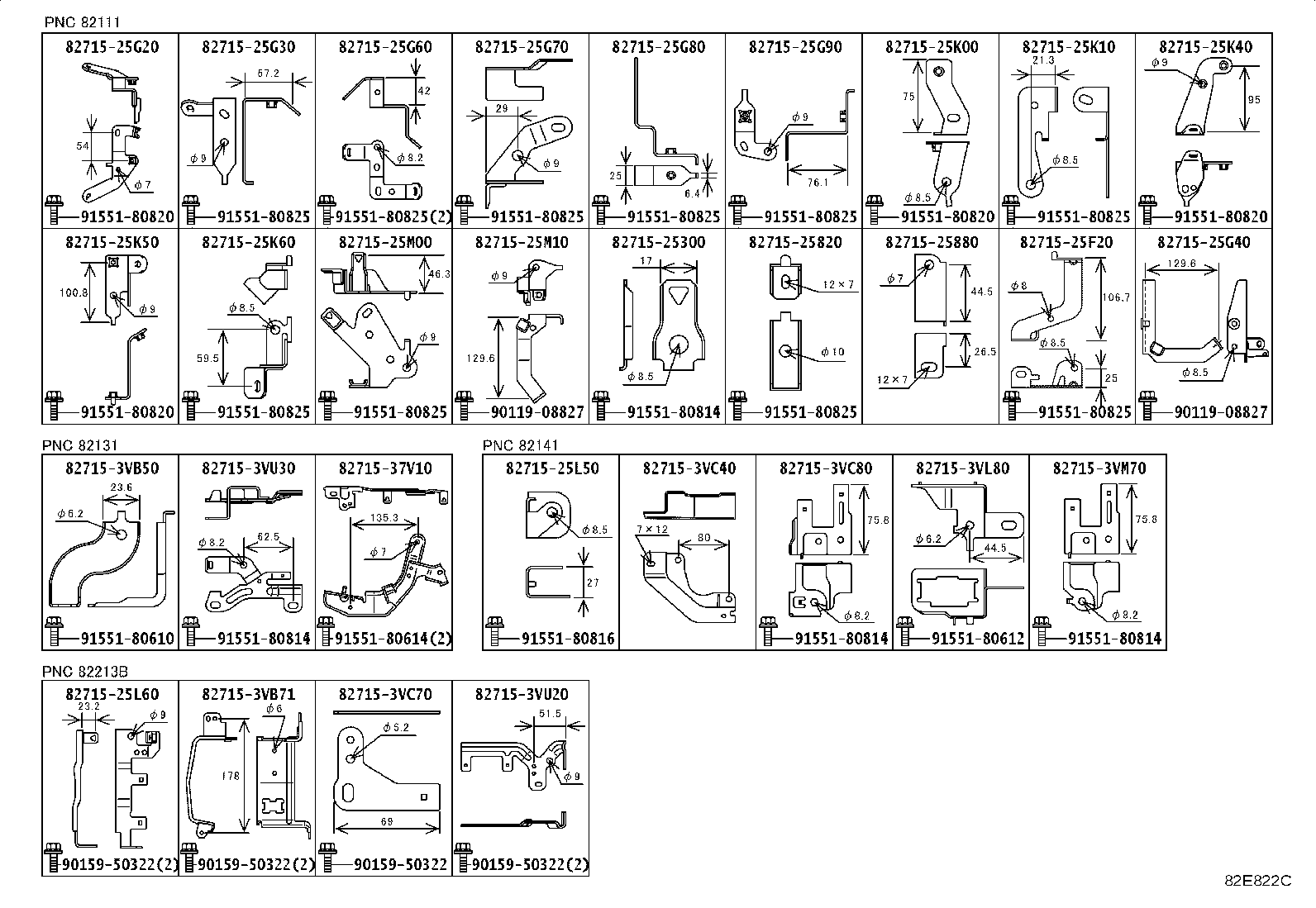

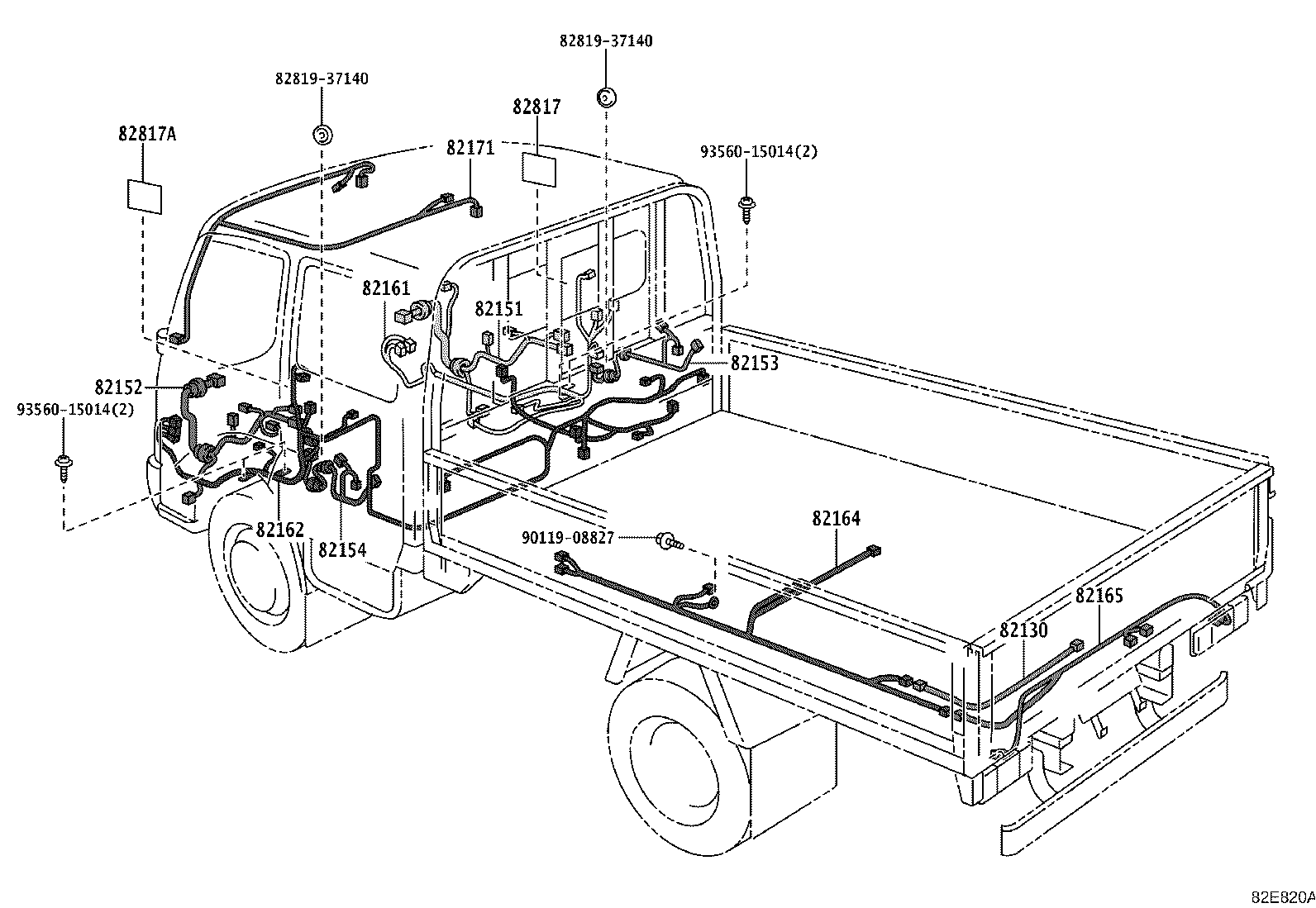

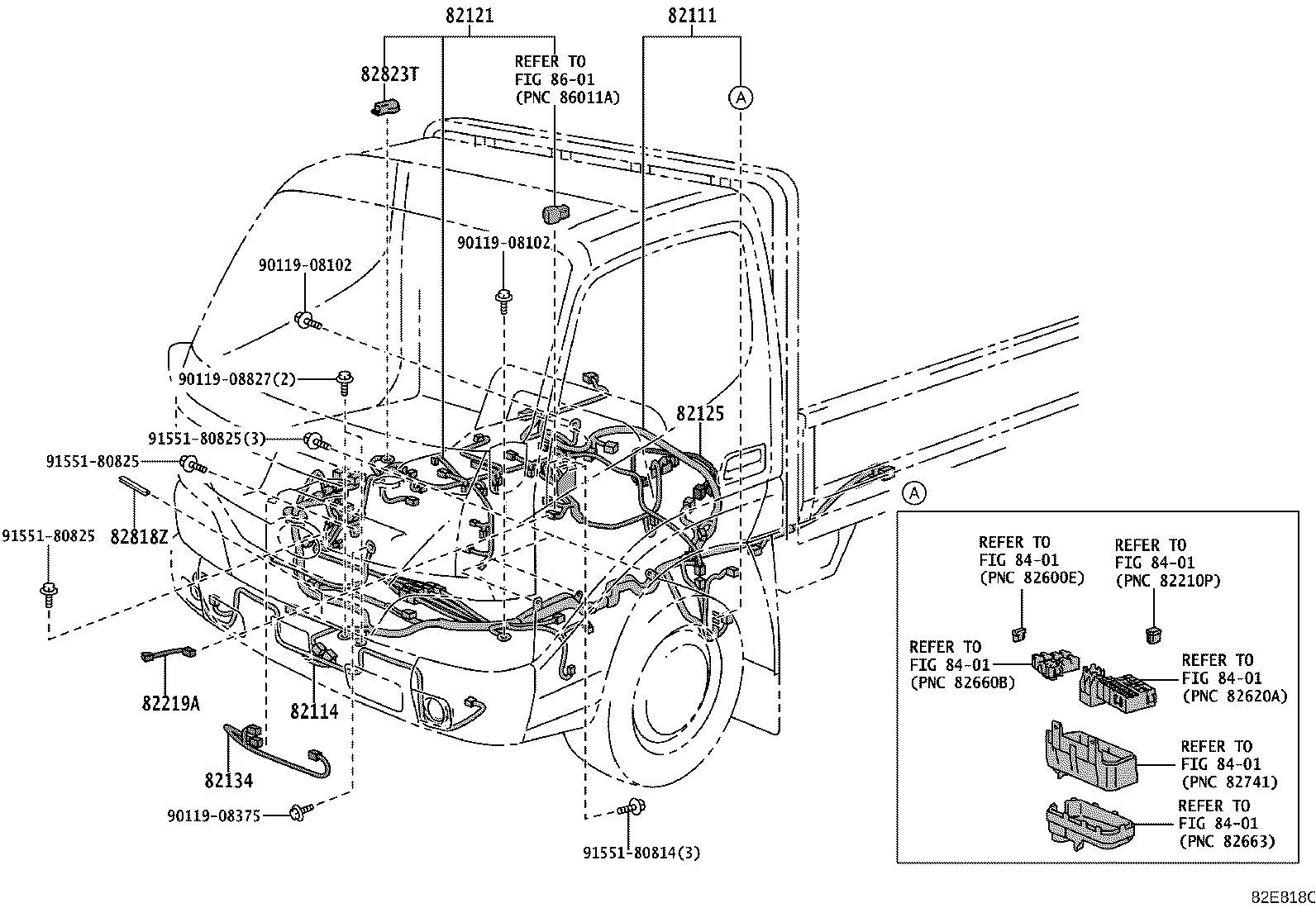

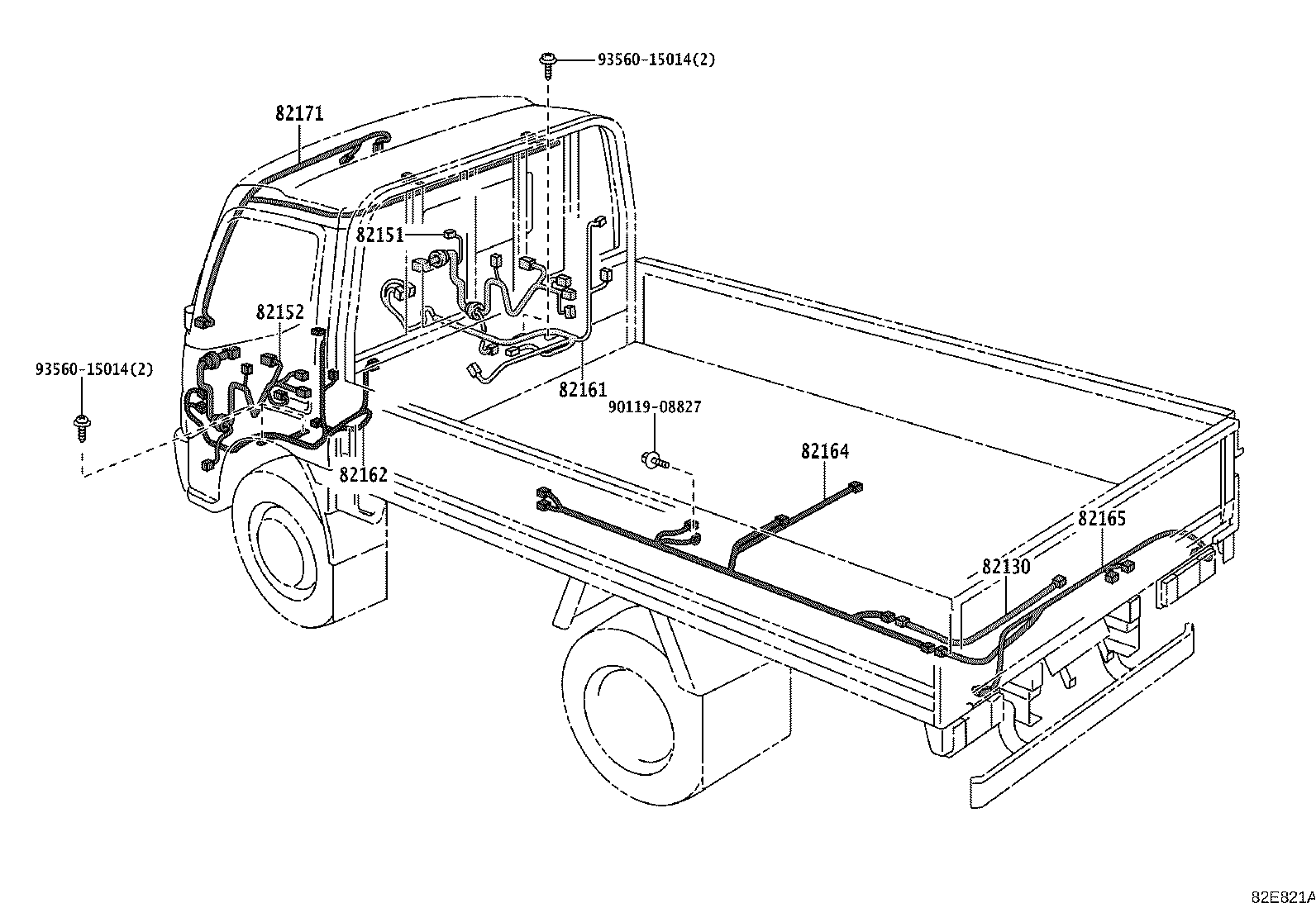

Figure 82E817C 82E817C 2021-08 → — Figure 82E818C 82E818C 2021-08 → — Figure 82E819A 82E819A 2021-08 → — Figure 82E820A 82E820A 2021-08 → — Figure 82E821A 82E821A 2021-08 → — Figure 82E822C 82E822C 2021-08 → — Figure 82E823 82E823 2021-08 → — Figure 82F119 82F119 2021-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
8211A Wire, Engine Room, NO.6
82121 Wire, Engine
82125 Wire, Transmission
8212B Wire, Engine, NO.10
82130 Harness Assy, Chassis Wire
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82134 Wire, Cowl, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82213B Wire, Heater
82219A Wire, Sensor
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82818Z Protector, Wiring Harness, NO.22
82819L Protector, Wiring Harness, NO.27
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
