Heating & Air Conditioning - Water Piping

26 part groups · 6 illustrations

Illustrations

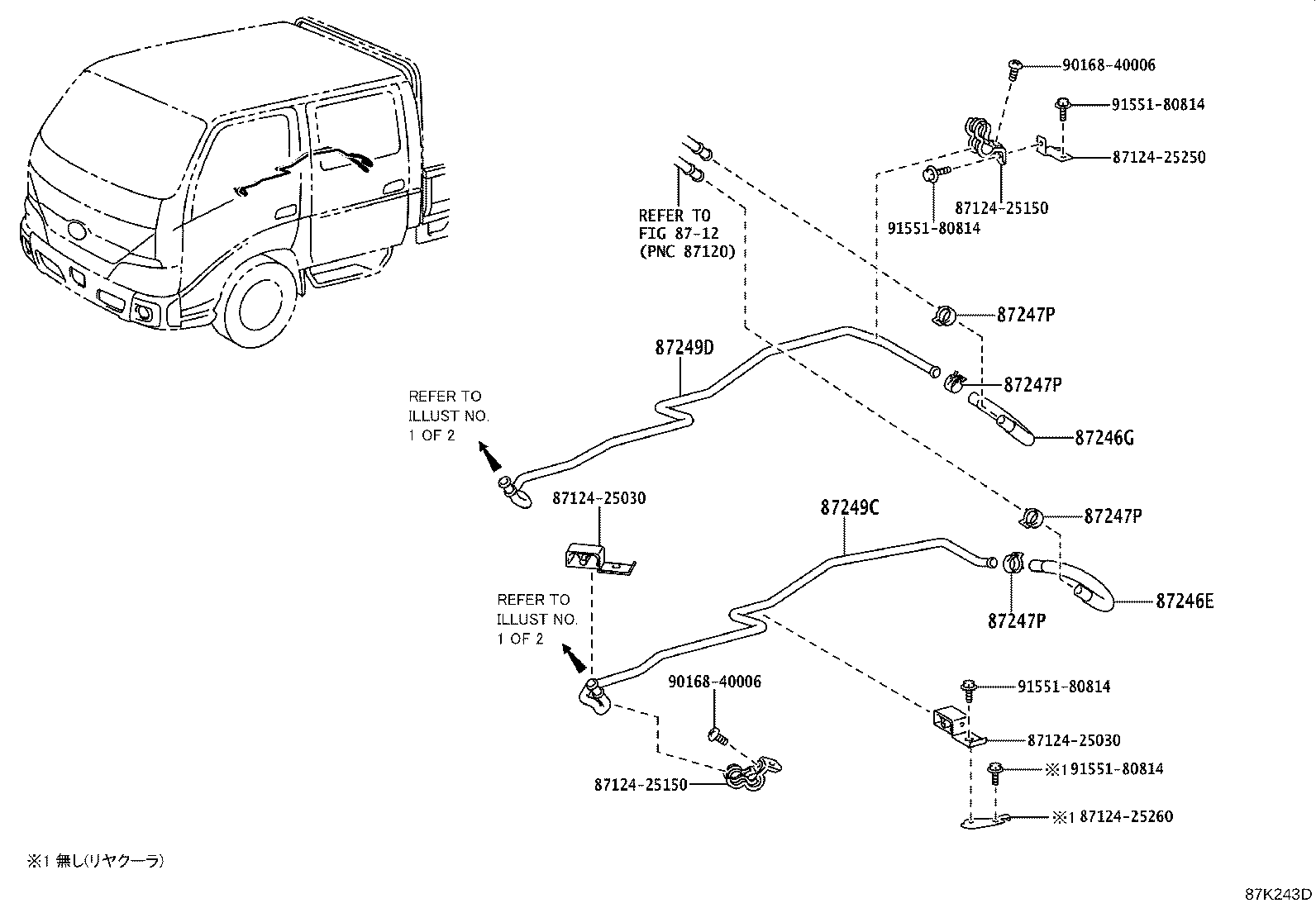

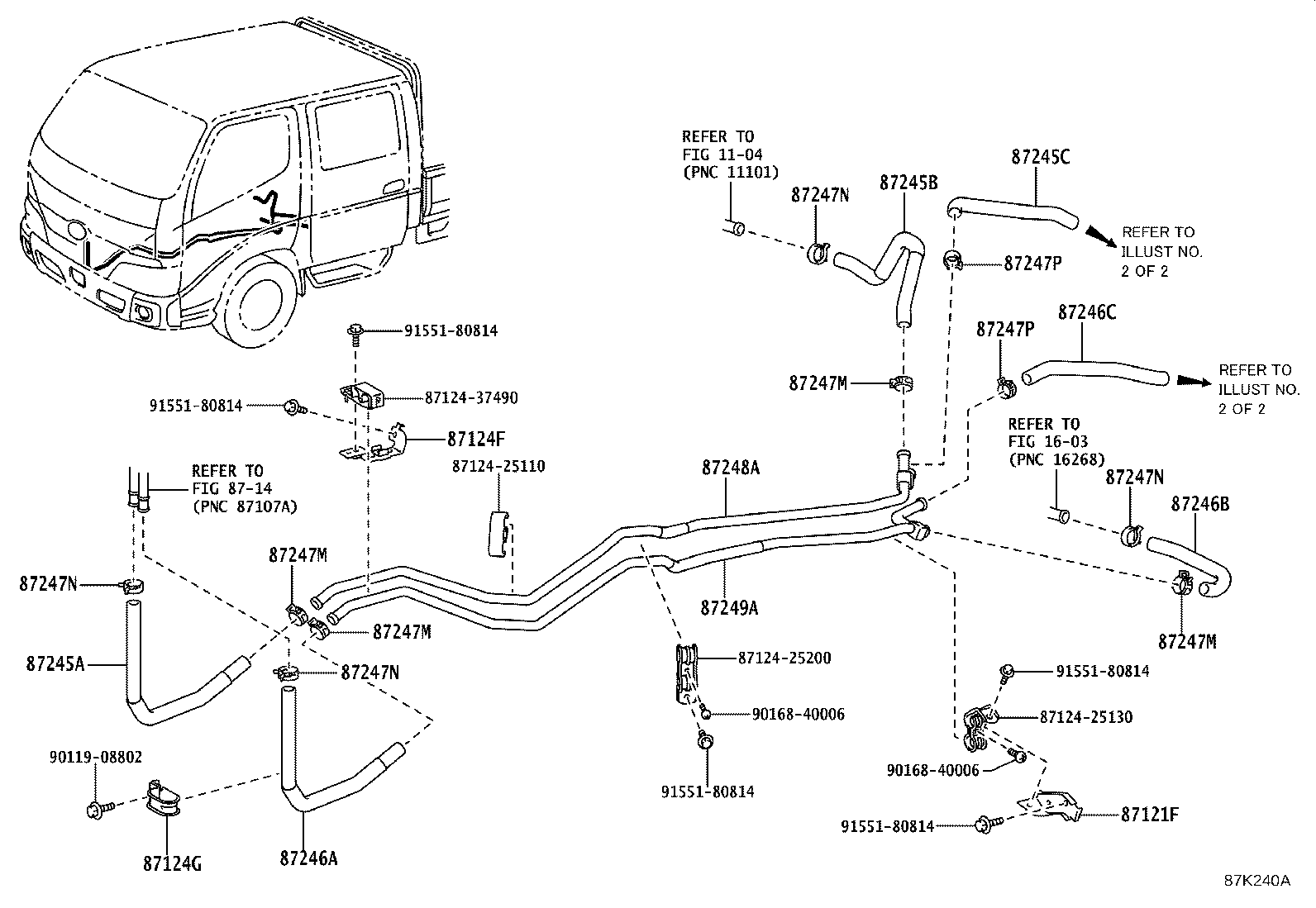

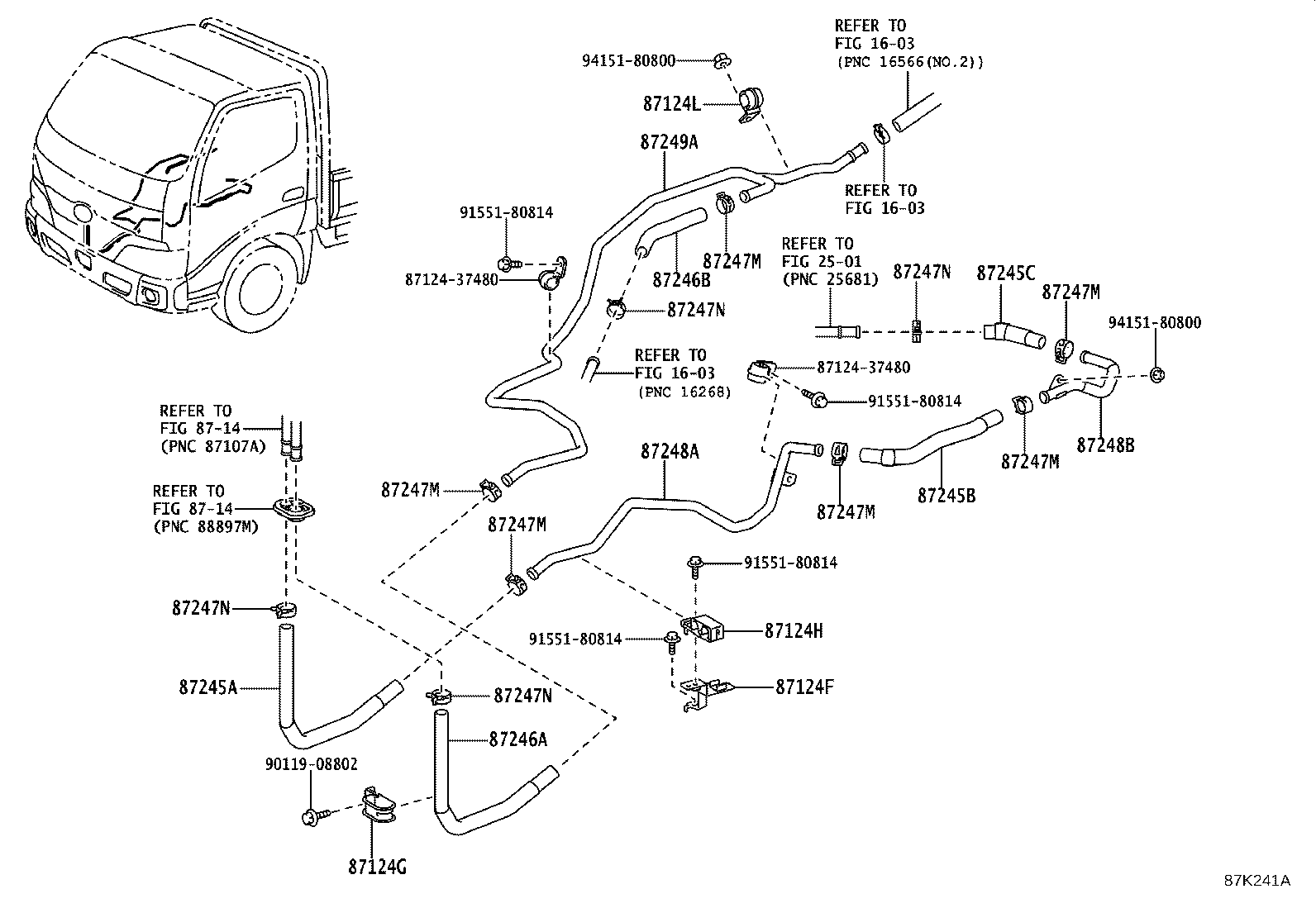

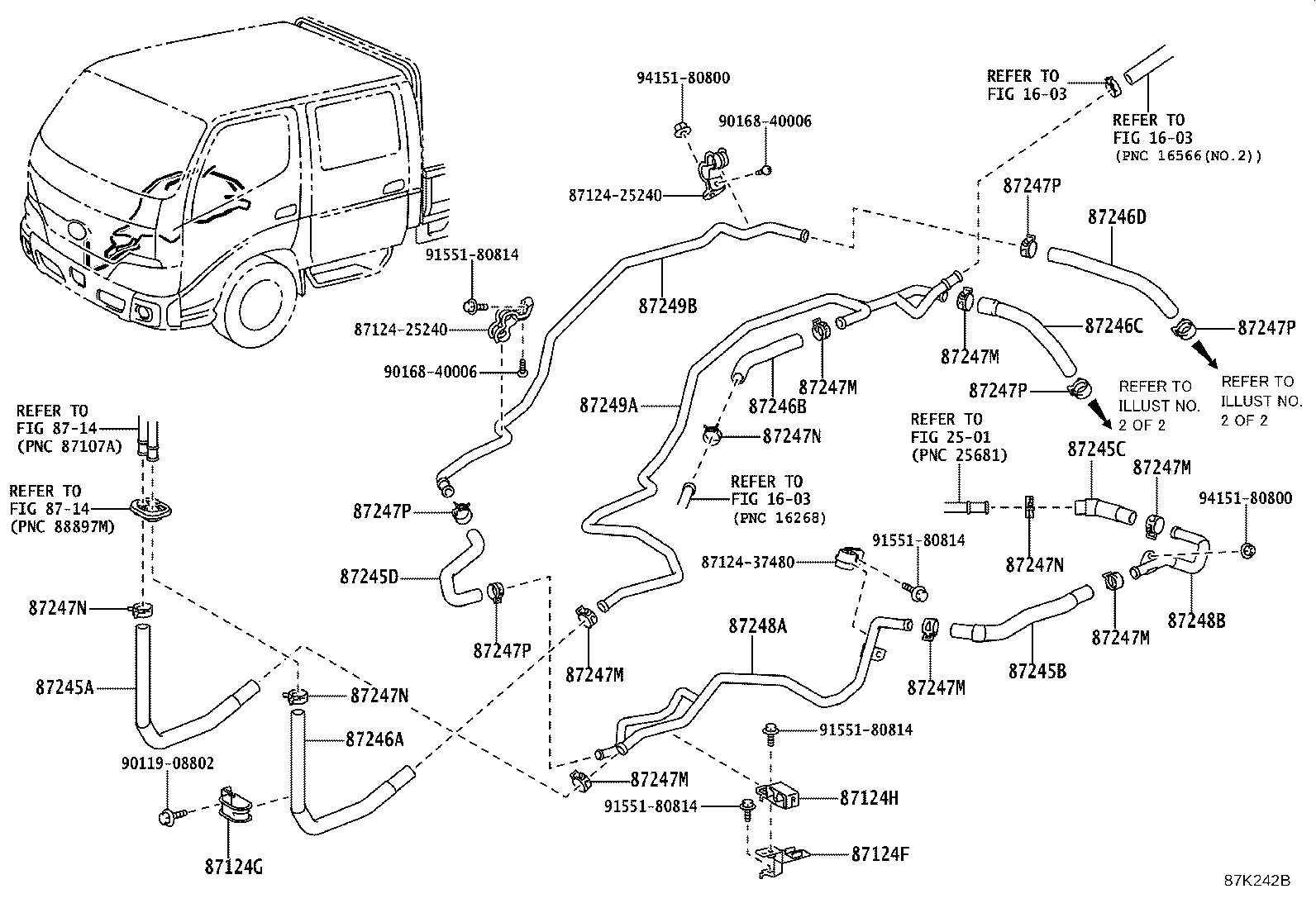

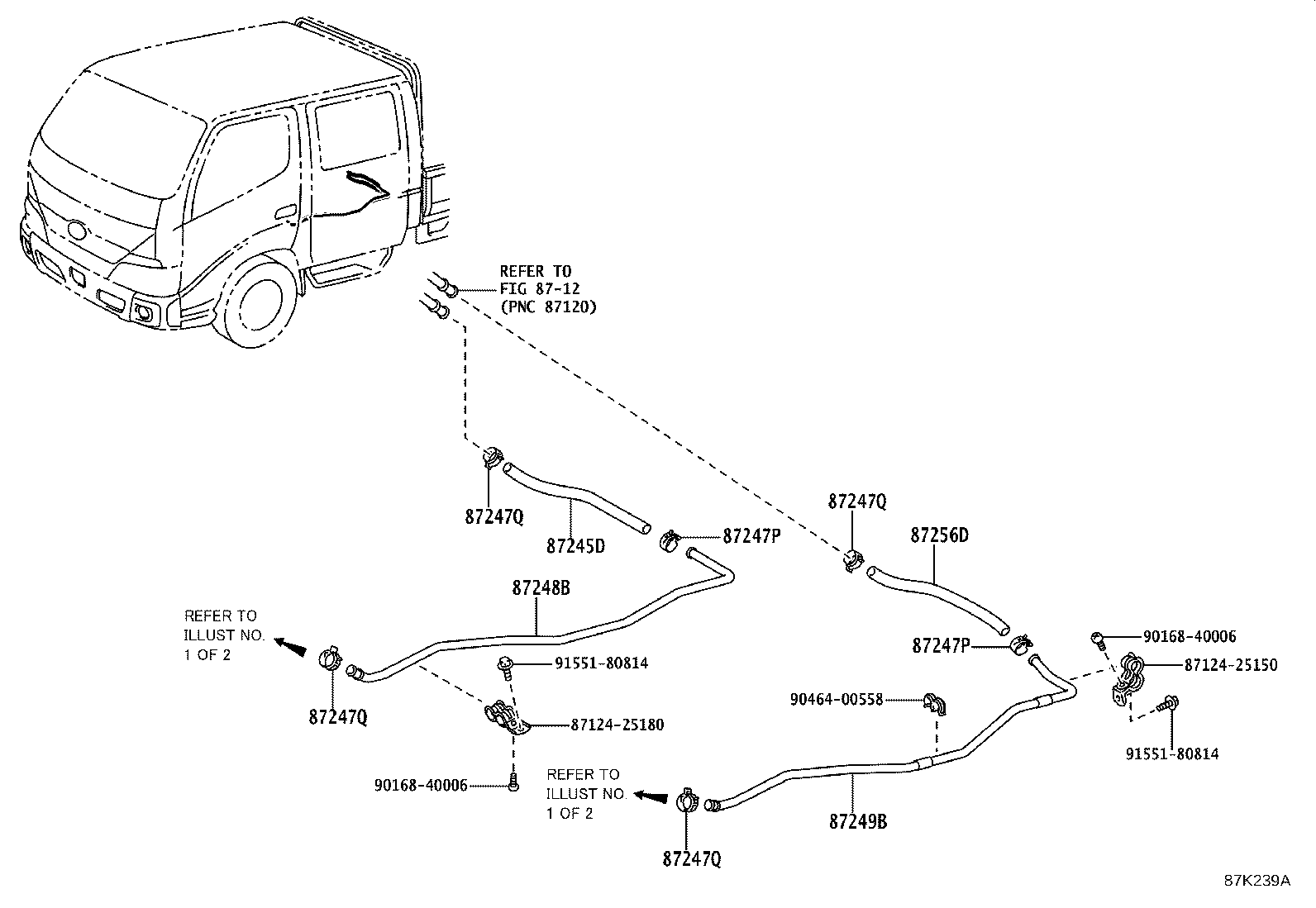

Figure 87K238A 87K238A 2021-08 → — Figure 87K240A 87K240A 2021-08 → — Figure 87K239A 87K239A 2021-08 → — Figure 87K241B 87K241B 2021-08 → — Figure 87K242B 87K242B 2021-08 → — Figure 87K243D 87K243D 2021-08 → —

Part groups

PNCDescription
87121F Bracket, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87124H Clamp, Heater Hose, NO.3
87124L Clamp, Heater Hose, NO.4
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87247M Clip, Hose
87247N Clip, Hose
87247P Clip, Hose
87247Q Clip, Hose
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87256D Hose, Rear Heater Water Outlet, D
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
