Toyota Dyna

2021-08 → present · chassis GDY231,281,TRY230 · catalogue 731180 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

89 part groups · 7 illustrations

Illustrations

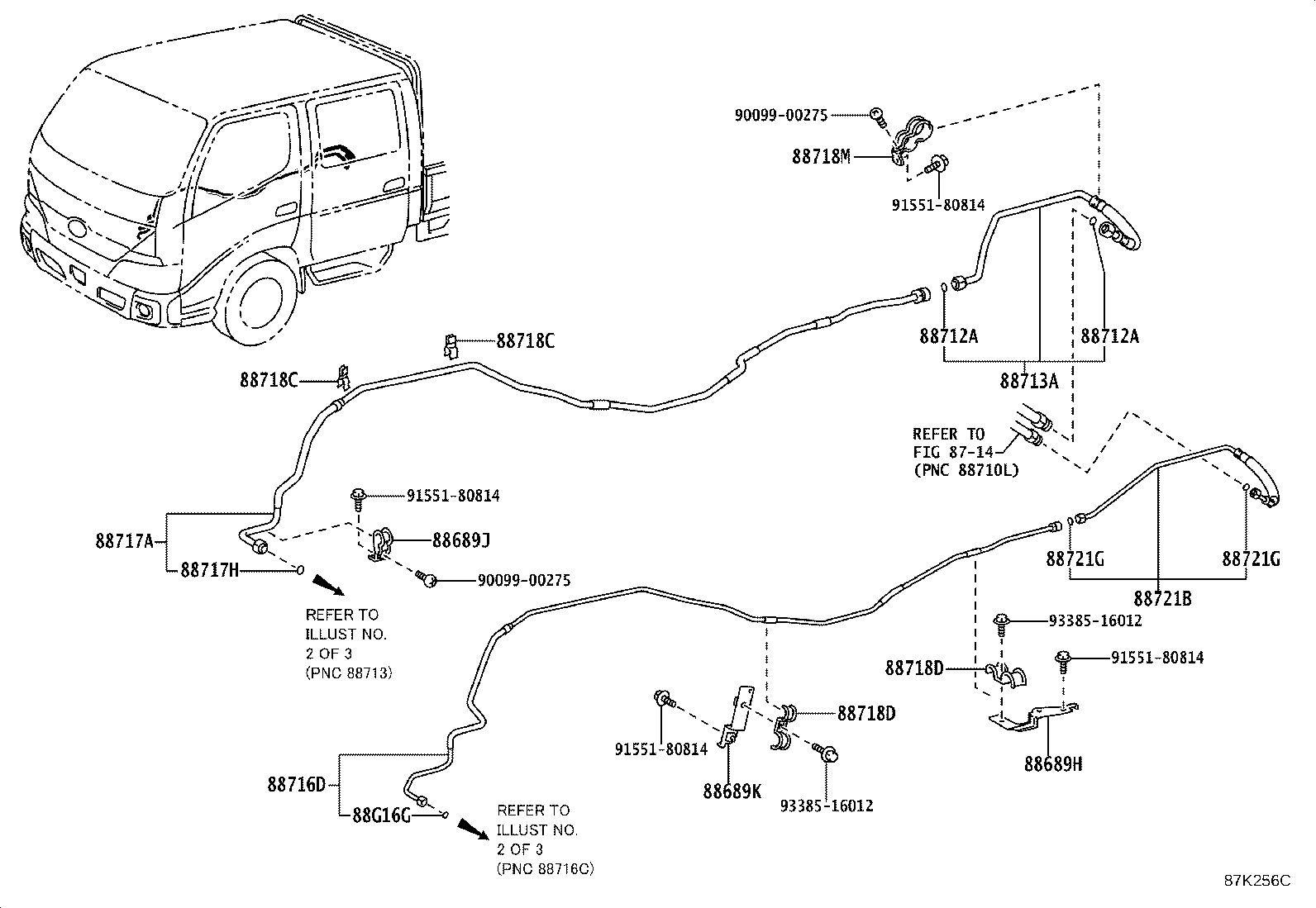

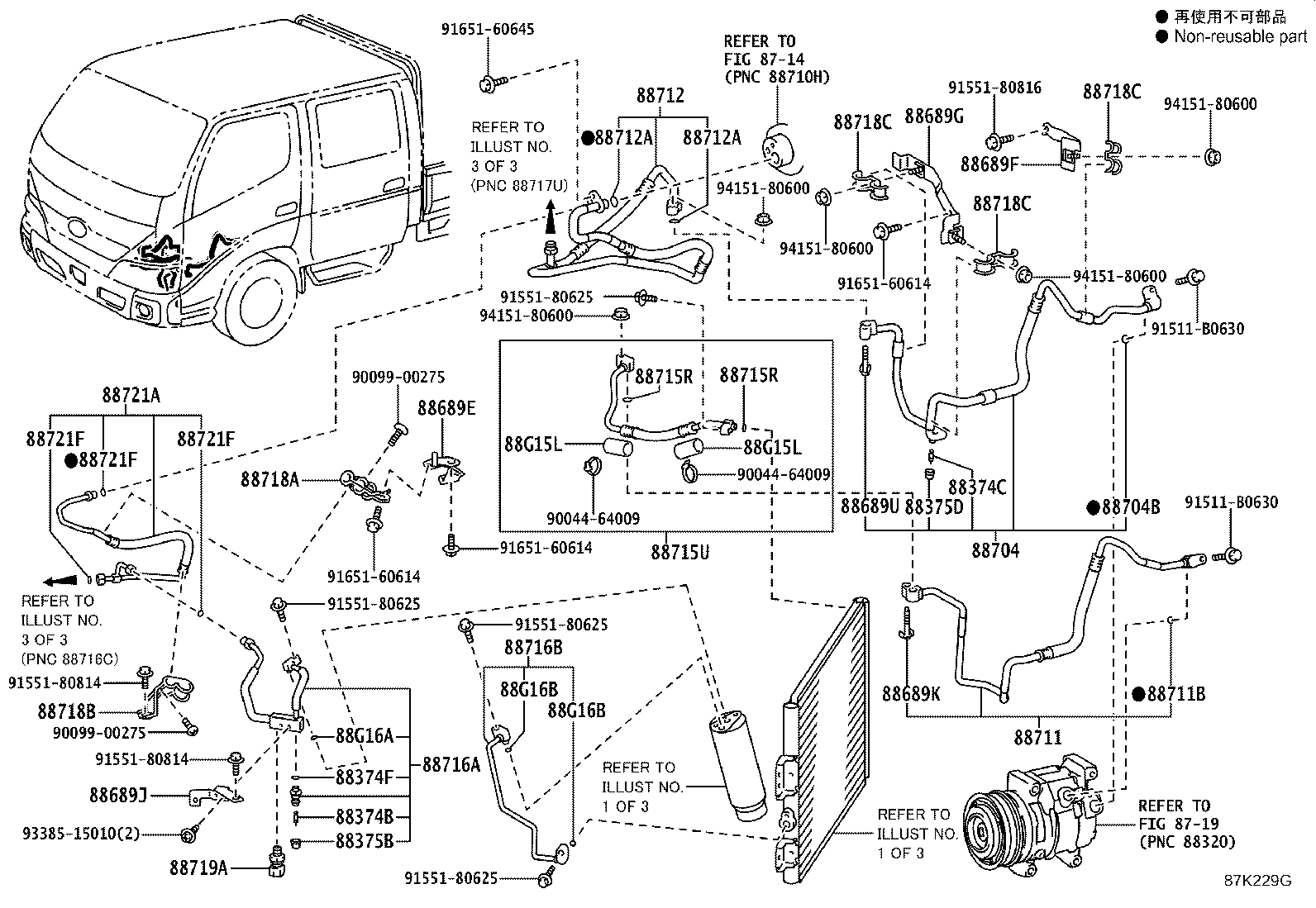

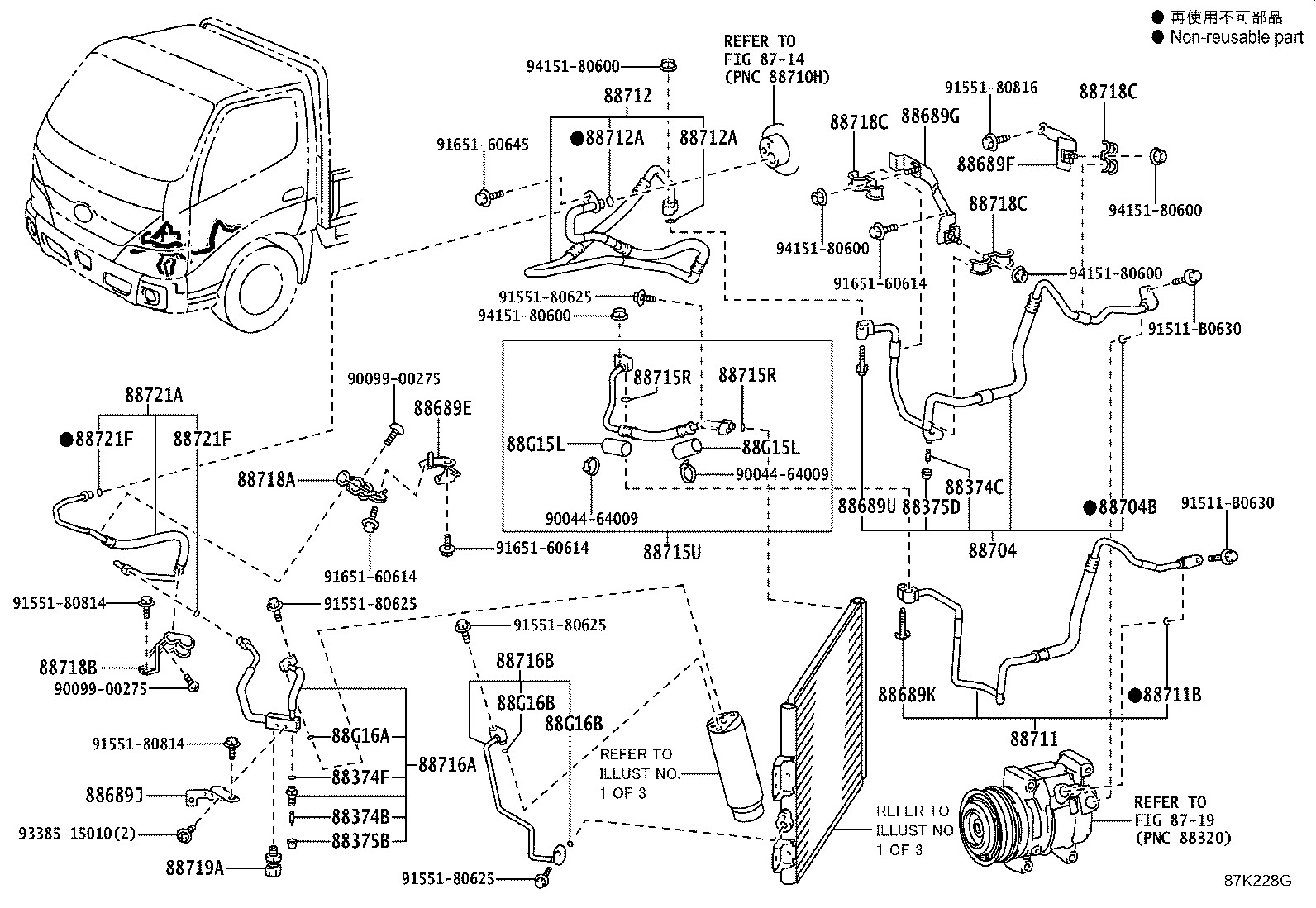

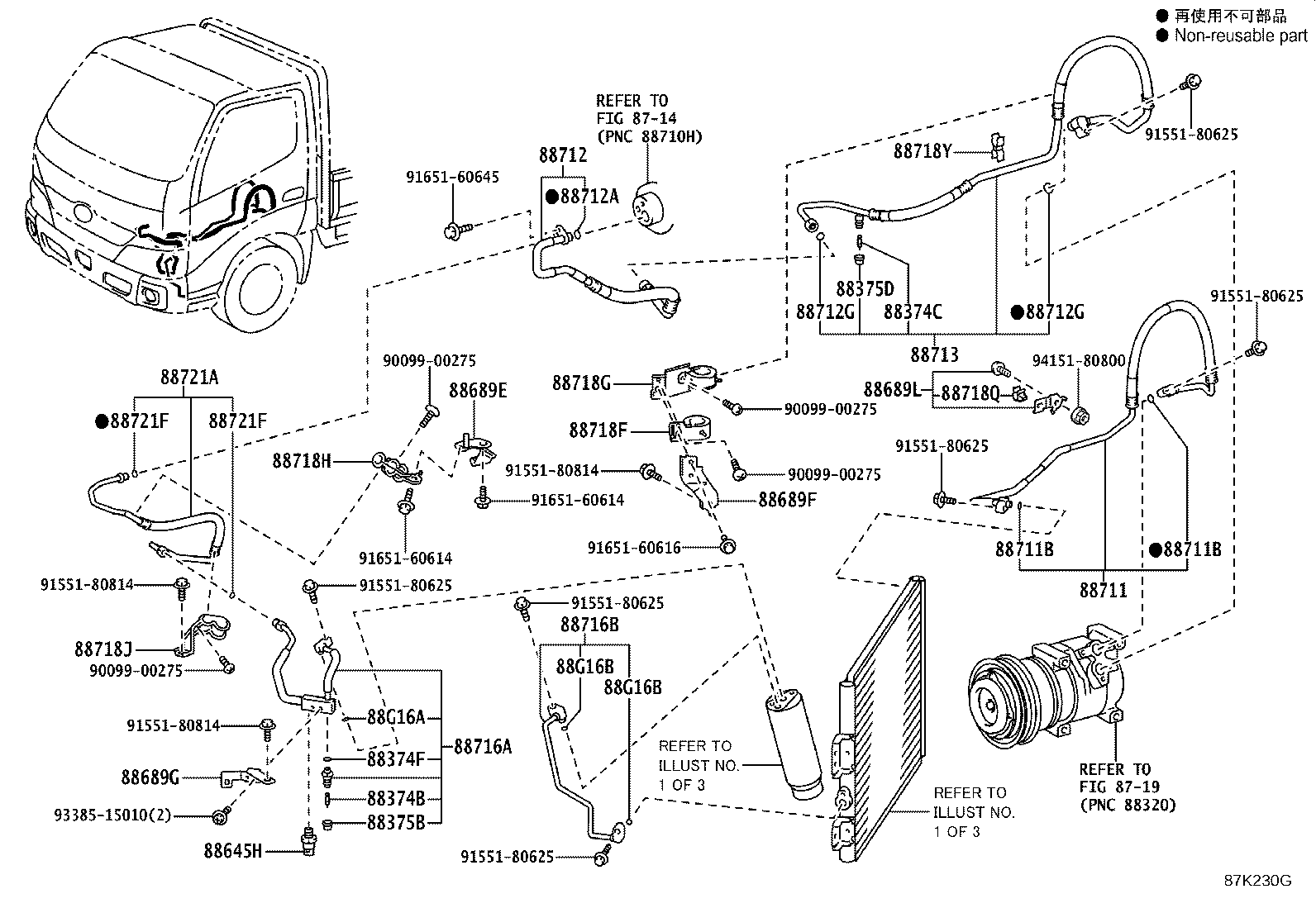

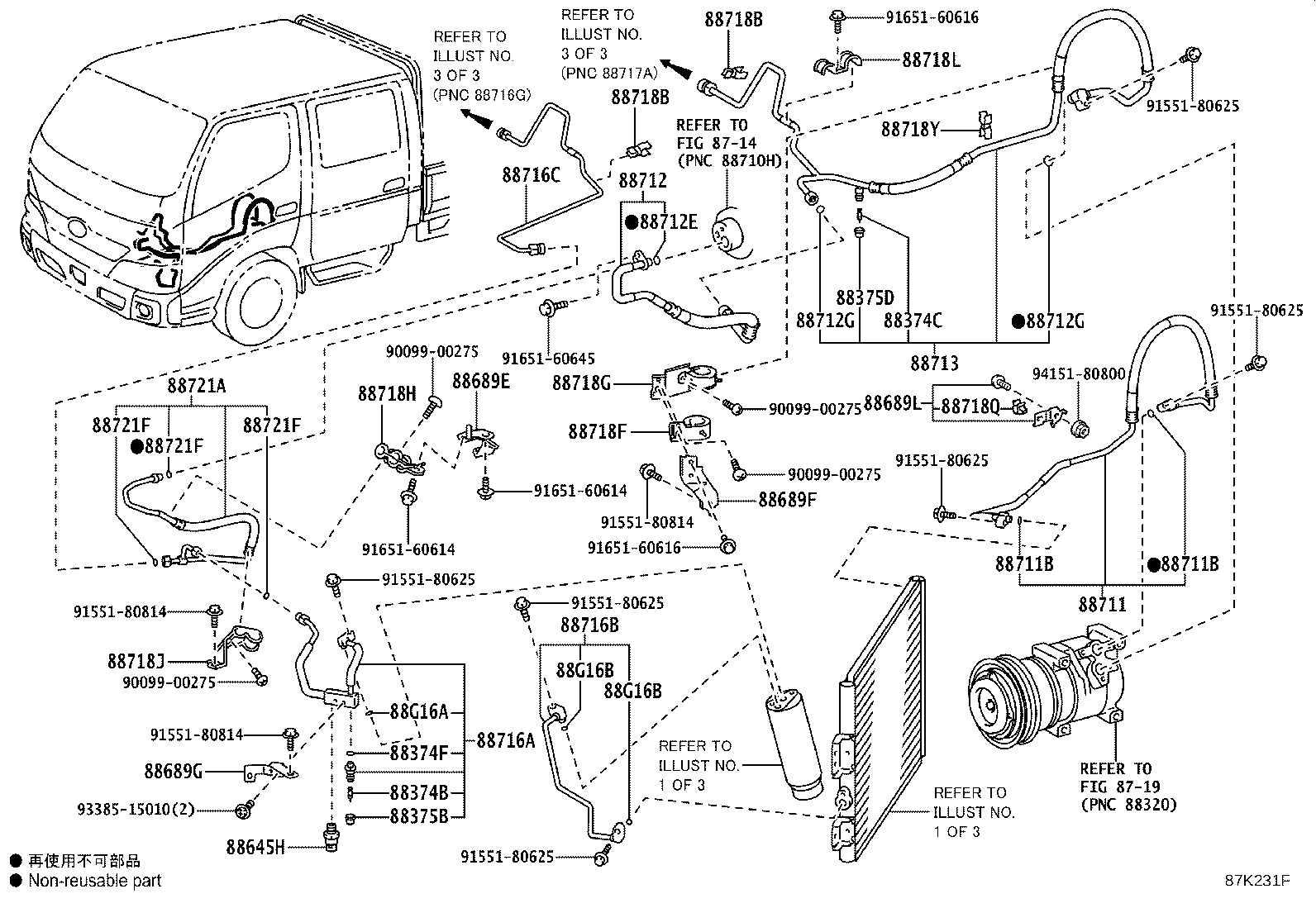

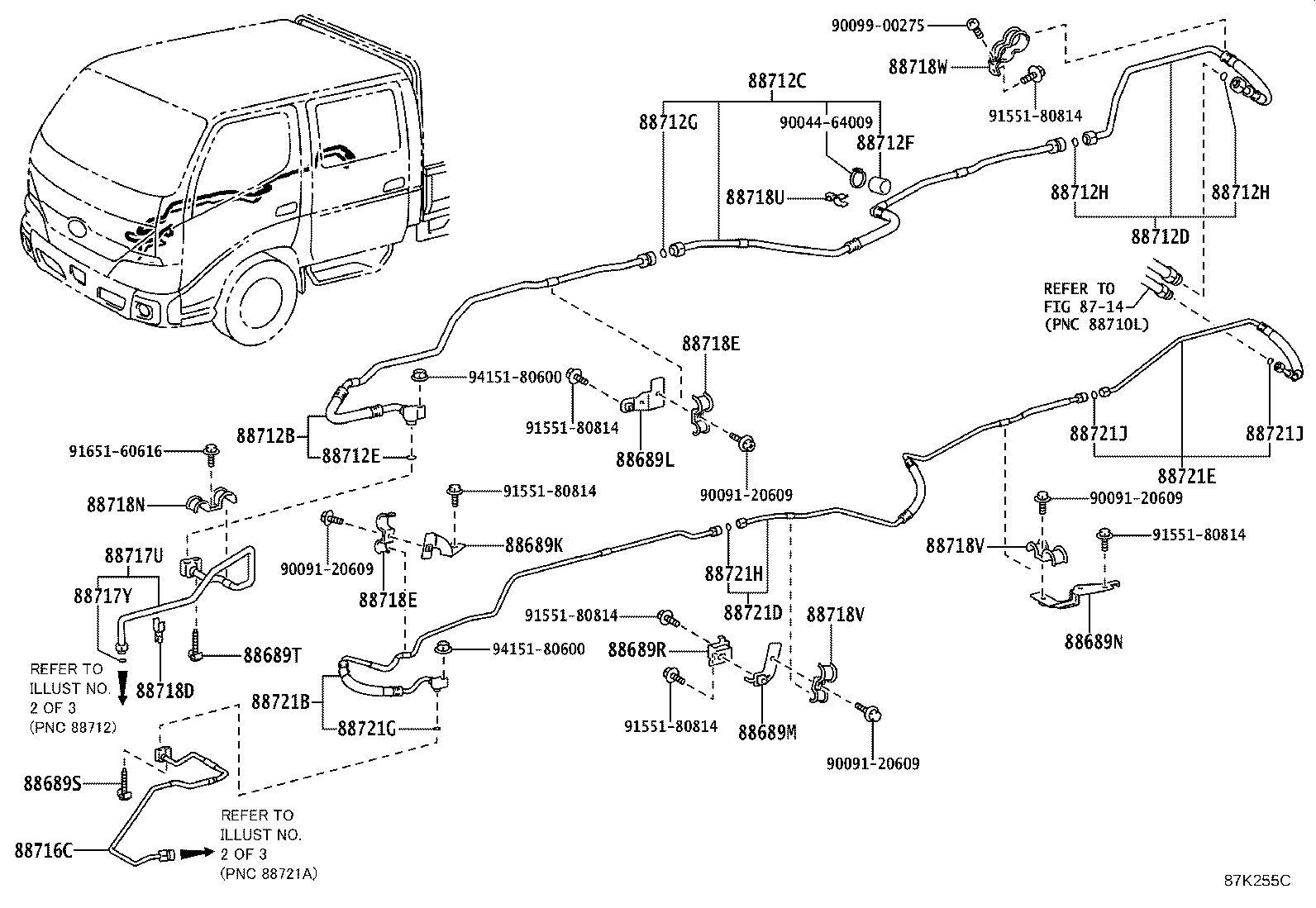

Figure 87K227D 87K227D 2021-08 → — Figure 87K228G 87K228G 2021-08 → — Figure 87K229G 87K229G 2021-08 → — Figure 87K230G 87K230G 2021-08 → — Figure 87K231F 87K231F 2021-08 → — Figure 87K255C 87K255C 2021-08 → — Figure 87K256C 87K256C 2021-08 → —

Part groups

PNCDescription
87138S Resistor, Blower
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374F Ring, O, NO.1 (FOR SERCIVE VALVE)
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88462A Holder, Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88689H Bracket, Cooler, NO.4
88689J Bracket, Cooler, NO.5
88689K Bracket, Cooler, NO.6
88689L Bracket, Cooler, NO.7
88689M Bracket, Cooler, NO.8
88689N Bracket, Cooler, NO.9
88689R Bracket, Cooler, NO.12
88689S Bracket, Cooler, NO.13
88689T Bracket, Cooler, NO.14
88689U Bracket, Cooler, NO.15
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712B Hose, Cooler Refrigerant Suction
88712C Hose, Suction
88712D Hose, Suction
88712E Ring, O, NO.2 (FOR COOLER REFRIGERANT SUCTION HOSE)
88712F Insulator, Suction Hose, NO.1
88712G Ring, O, NO.3 (FOR COOLER REFRIGERANT SUCTION HOSE)
88712H Ring, O, NO.4 (FOR COOLER REFRIGERANT SUCTION HOSE)
88713 Hose, Cooler Refrigerant Suction, NO.2
88713A Hose, Cooler Refrigerant Suction, NO.3
88715R Ring, O(FOR DISCHARGE TUBE)
88715U Tube, Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717U Tube, Suction, NO.1
88717Y Ring, O, NO.1(FOR SUCTION TUBE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718H Clamp, NO.3(FOR COOLER REFRIGERANT HOSE)
88718J Clamp, NO.4(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88718U Clamp, NO.6(FOR COOLER REFRIGERANT PIPE)
88718V Clamp, NO.7(FOR COOLER REFRIGERANT PIPE)
88718W Clamp, NO.8 (FOR COOLER REFRIGERANT PIPE)
88718Y Clamp, NO.5 (FOR COOLER REFRIGERANT HOSE)
88719A Sensor, Air Conditioner Pressure
88721A Hose, Liquid, A
88721B Hose, Liquid, B
88721D Hose, Liquid, C
88721E Hose, Liquid, D
88721F Ring, O, NO.1 (FOR LIQUID HOSE)
88721G Ring, O, NO.2 (FOR LIQUID HOSE)
88721H Ring, O, NO.3 (FOR LIQUID HOSE)
88721J Ring, O, NO.4 (FOR LIQUID HOSE)
88723B Label, Cooler Service Caution
88891H Cover, Cooler, NO.1
88G15L Insulator, Discharge Tube, NO.1
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16B Ring, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16G Ring, O, NO.3(FOR COOLER REFRIGERANT LIQUID PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
