Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

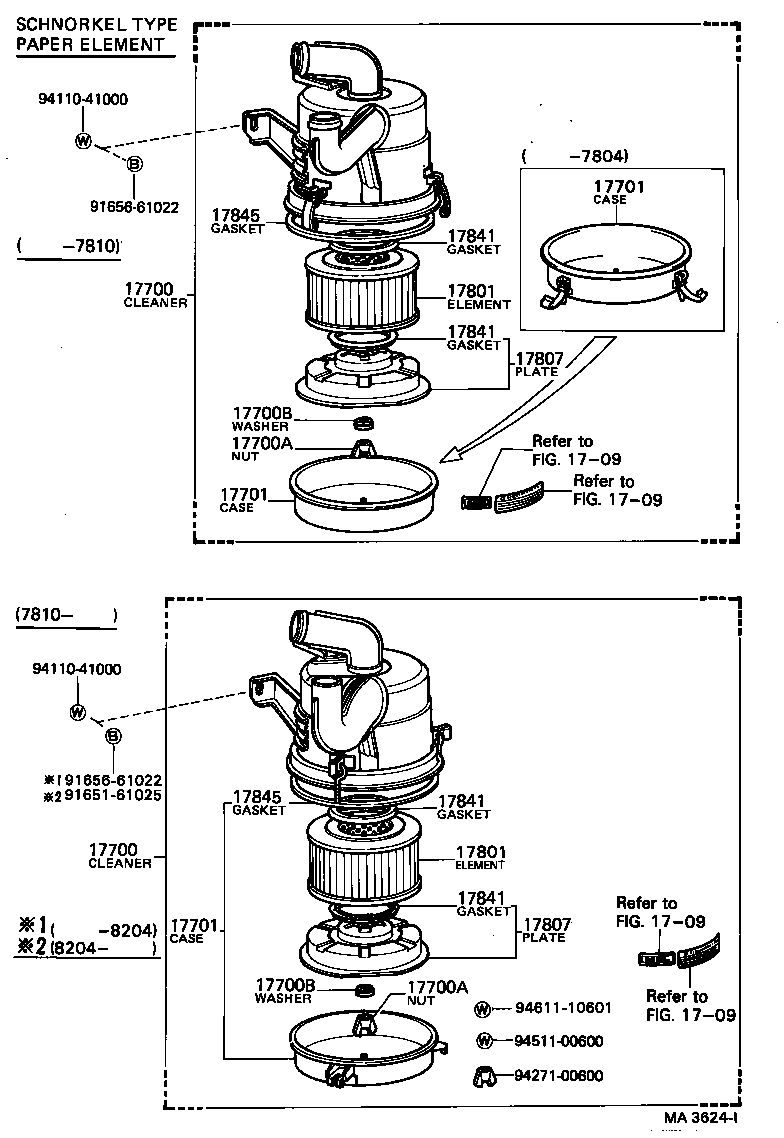

Exploded illustration MA3624I 9411041000 — not listed in this catalogue 17701 — CASE SUB-ASSY, AIR CLEANER (7 parts) 9165661022 — not listed in this catalogue 17845 — GASKET, AIR CLEANER CAP (2 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17700 — CLEANER ASSY, AIR (19 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (3 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (3 parts) 17700B — WASHER, SEAL(FOR AIR CLEANER) (1 parts) 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 1709 — not listed in this catalogue 17701 — CASE SUB-ASSY, AIR CLEANER (7 parts) 1709 — not listed in this catalogue 9411041000 — not listed in this catalogue 9165661022 — not listed in this catalogue 9165161025 — not listed in this catalogue 17845 — GASKET, AIR CLEANER CAP (2 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17700 — CLEANER ASSY, AIR (19 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (3 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 1709 — not listed in this catalogue 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (3 parts) 17701 — CASE SUB-ASSY, AIR CLEANER (7 parts) 17700B — WASHER, SEAL(FOR AIR CLEANER) (1 parts) 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 9461110601 — not listed in this catalogue 1709 — not listed in this catalogue 9451100600 — not listed in this catalogue 9427100600 — not listed in this catalogue
MA3624I · 19 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-56160 Cleaner Assy, Air
1977-08 → 1978-10 ended
B BU20,30 HRF,SRF,T1,T2,T3,TW1 ¥36,800
17700-56160 Cleaner Assy, Air
1977-12 → 1978-10 ended
B BU20 DM1 ¥36,800
17700-56161 Cleaner Assy, Air
1978-10 → 1979-09 ended
B,2B BU2#,3# ¥36,800
17700-56162 Cleaner Assy, Air
1979-09 → 1982-04 ended
B,2B BU2#,30,31 ¥37,100
17700-56163 Cleaner Assy, Air
1983-02 → 1983-07 ended
B,3B BU22,33,34;3B BU23 DM3,TB;3B +2 ¥37,100
17700-56163 Cleaner Assy, Air
1982-04 → 1983-02 ended
B,3B BU2#,30,32 ¥37,100
17700-56163 note Cleaner Assy, Air
1982-04 → 1983-07 ended
3B BU21,23 DM1,DM4 ¥37,100
17700-56164 note Cleaner Assy, Air
1983-07 → 1984-08 ended
3B BU23 DM1,DM4 ¥37,000
17700-56164 Cleaner Assy, Air
1983-07 → 1984-08 ended
B,3B BU22,33,34;3B BU23 DM3,TB;3B +2 ¥37,000
17700-56180 note Cleaner Assy, Air
1977-08 → 1978-10 ended
B BU20 DM1 ¥36,800
17700-56181 note Cleaner Assy, Air
1978-10 → 1982-04 ended
B BU20 DM1 ¥37,100
17700-56182 note Cleaner Assy, Air
1982-04 → 1983-07 ended
3B BU21,23 DM1,DM4 ¥37,100
17700-56183 note Cleaner Assy, Air
1983-07 → 1984-08 ended
3B BU23 DM1,DM4 ¥37,000
17700-56290 Cleaner Assy, Air
1980-08 → 1982-04 ended
B,3B BU35,36 ¥37,100
17700-56291 Cleaner Assy, Air
1982-04 → 1982-06 ended
3B BU36,45 ¥37,100
17700-56292 Cleaner Assy, Air
1982-06 → 1983-07 ended
3B BU36,37,45,46 ¥37,100
17700-56293 Cleaner Assy, Air
1983-07 → 1984-08 ended
3B BU37,46 ¥37,000
17700-58090 Cleaner Assy, Air
1982-04 → 1983-07 ended
3B BU40,41,5# ¥45,600
17700-58091 Cleaner Assy, Air
1983-07 → 1984-08 ended
3B BU41,51 ¥45,400
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1982-04 → 1984-08 ended
3B BU40,41,5# —
94271-00800 Nut, Wing(FOR AIR CLEANER)
1977-08 → 1984-08 ended
B,2B,3B BU2#,3#,45,46 —
17700B — Washer, Seal(FOR AIR CLEANER)
90210-08004 Washer, Seal(FOR AIR CLEANER)
1977-08 → 1984-08 ended
B,2B,3B BU2#,3#,45,46 ¥320
17701 — Case Sub-assy, Air Cleaner
17701-44262 Case Sub-assy, Air Cleaner
1979-09 → 1982-04 ended
B,2B,3B BU2#,3# —
17701-44263 Case Sub-assy, Air Cleaner
1982-04 → 1984-08 ended
B,3B BU2#,3#,45,46 —
17701-48070 Case Sub-assy, Air Cleaner
1977-08 → 1978-04 ended
B BU2#,30 —
17701-56140 Case Sub-assy, Air Cleaner
1978-04 → 1978-10 ended
B BU2#,30 —
17701-56141 Case Sub-assy, Air Cleaner
1978-10 → 1979-09 ended
B,2B BU2#,3# —
17701-68100 Case Sub-assy, Air Cleaner
1982-04 → 1983-07 ended
3B BU40,41,5# —
17701-68101 Case Sub-assy, Air Cleaner
1983-07 → 1984-08 ended
3B BU41,51 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-48011 Element Sub-assy, Air Cleaner Filter
1977-08 → 1982-04 ended
B,2B,3B BU2#,3# ¥2,630
17801-56020 Element Sub-assy, Air Cleaner Filter
1982-04 → 1984-08 ended
B,3B BU2#,3#,45,46 ¥4,100
17801-68020 Element Sub-assy, Air Cleaner Filter
1982-04 → 1984-08 ended
3B BU40,41,5# ¥3,990
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-56010 Plate Sub-assy, Air Cleaner Filter Set
1977-08 → 1980-08 ended
B,2B BU2#,3# —
17807-56011 Plate Sub-assy, Air Cleaner Filter Set
1980-08 → 1984-08 ended
B,3B BU2#,3#,45,46 —
17807-68010 Plate Sub-assy, Air Cleaner Filter Set
1982-04 → 1984-08 ended
3B BU40,41,5# —
17841 — Gasket, Filter Element
17841-44030 Gasket, Filter Element
1980-08 → 1984-08 ended
B,3B BU2#,3#,45,46 —
17841-56010 Gasket, Filter Element
1977-08 → 1980-08 ended
B,2B BU2#,3# ¥1,000
17841-68010 Gasket, Filter Element
1982-04 → 1984-08 ended
3B BU40,41,5# ¥0
17845 — Gasket, Air Cleaner Cap
17845-56020 Gasket, Air Cleaner Cap
1977-08 → 1984-08 ended
B,2B,3B BU2#,3#,45,46 —
17845-68020 Gasket, Air Cleaner Cap
1982-04 → 1984-08 ended
3B BU40,41,5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
