Toyota Dyna
1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan
Discontinued model
Data version 1985-03

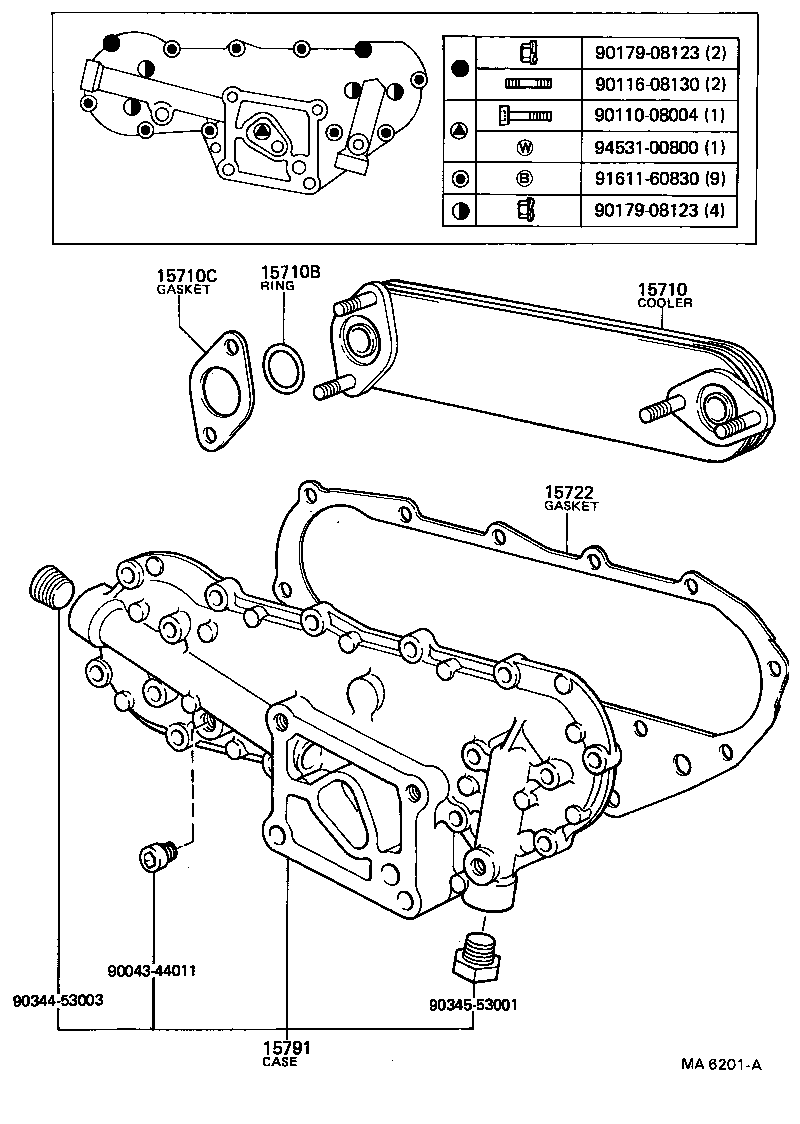

Engine Oil Cooler
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15710 | Cooler Assy, Oil |
| 15710A | Bolt, Union(FOR OIL COOLER) |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15722 | Gasket, Oil Cooler |
| 15771E | Bolt, Union(FOR OIL PIPE) |
| 15771F | Ring, O |
| 15771G | Gasket |
| 15777 | Hose, Oil Cooler |
| 15777A | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15791 | Case, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
