Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

7 part groups · 2 illustrations

Illustrations

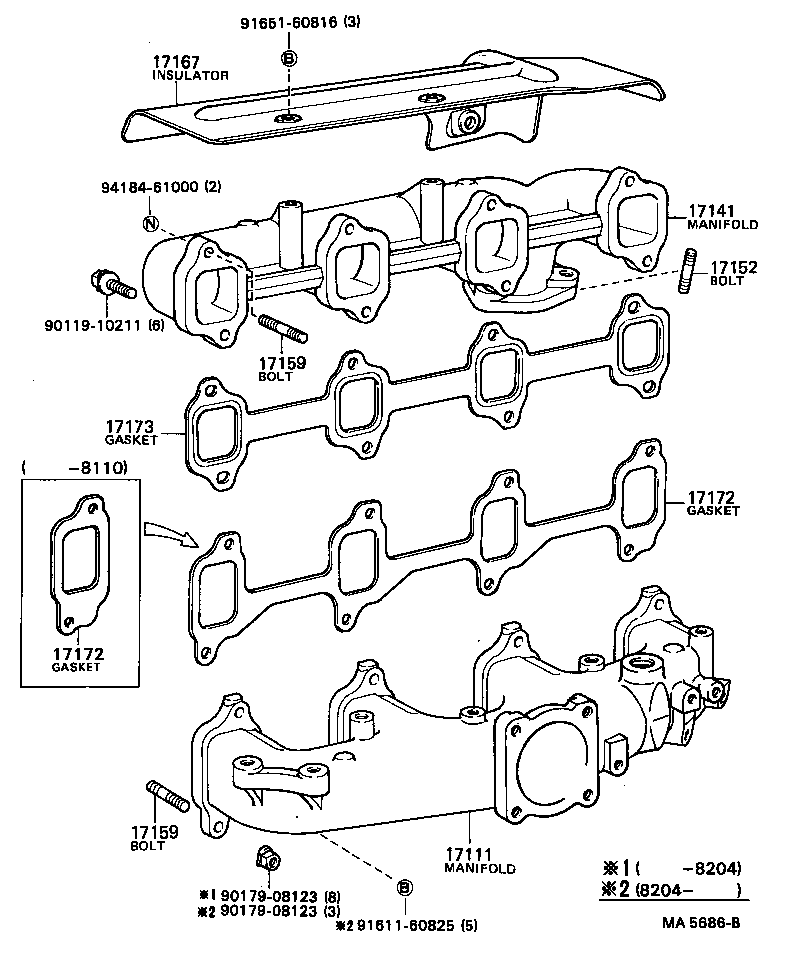

Figure MA3861 MA3861 1977-08 → 1980-08 Figure MA5686B MA5686B 1980-08 → —

Part groups

PNCDescription
17111 Manifold, Intake
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
