Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

26 part groups · 15 illustrations

Illustrations

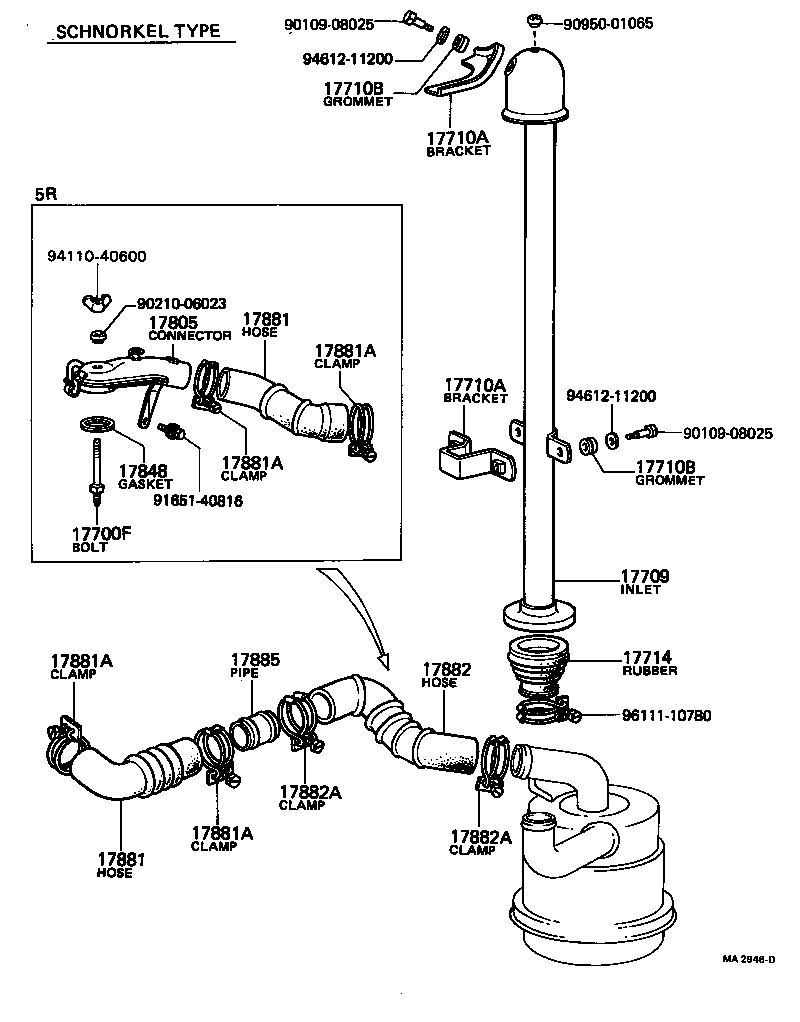

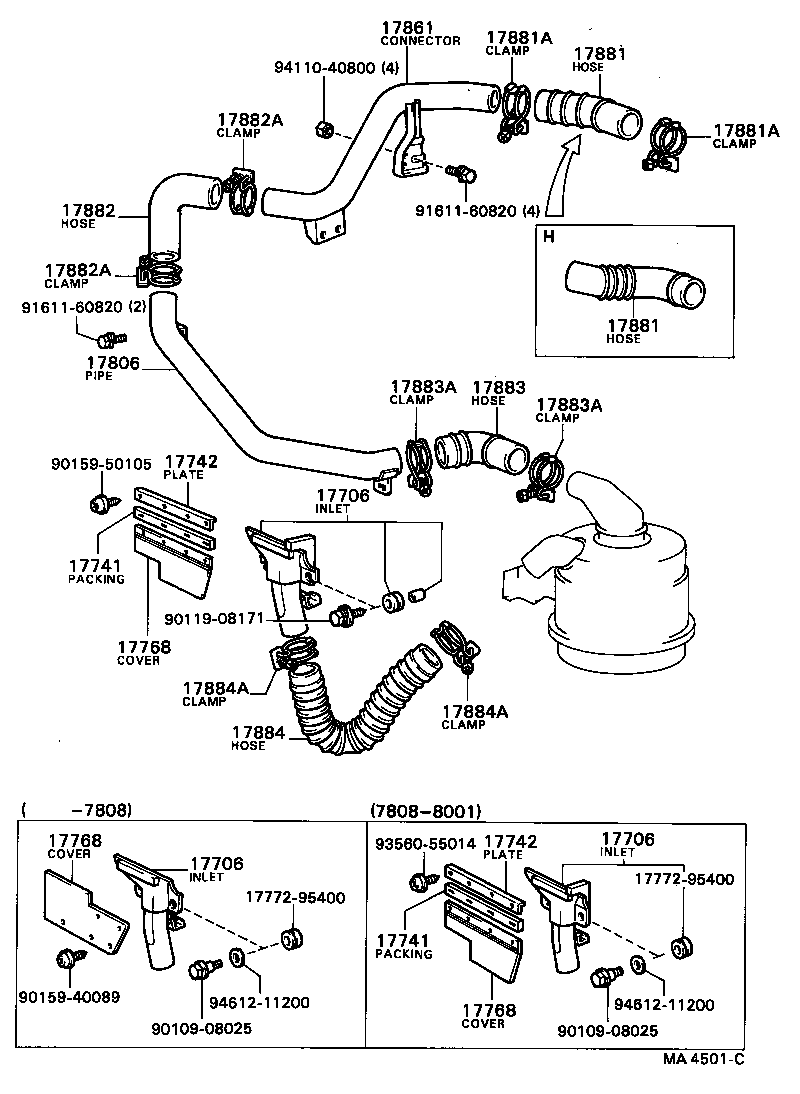

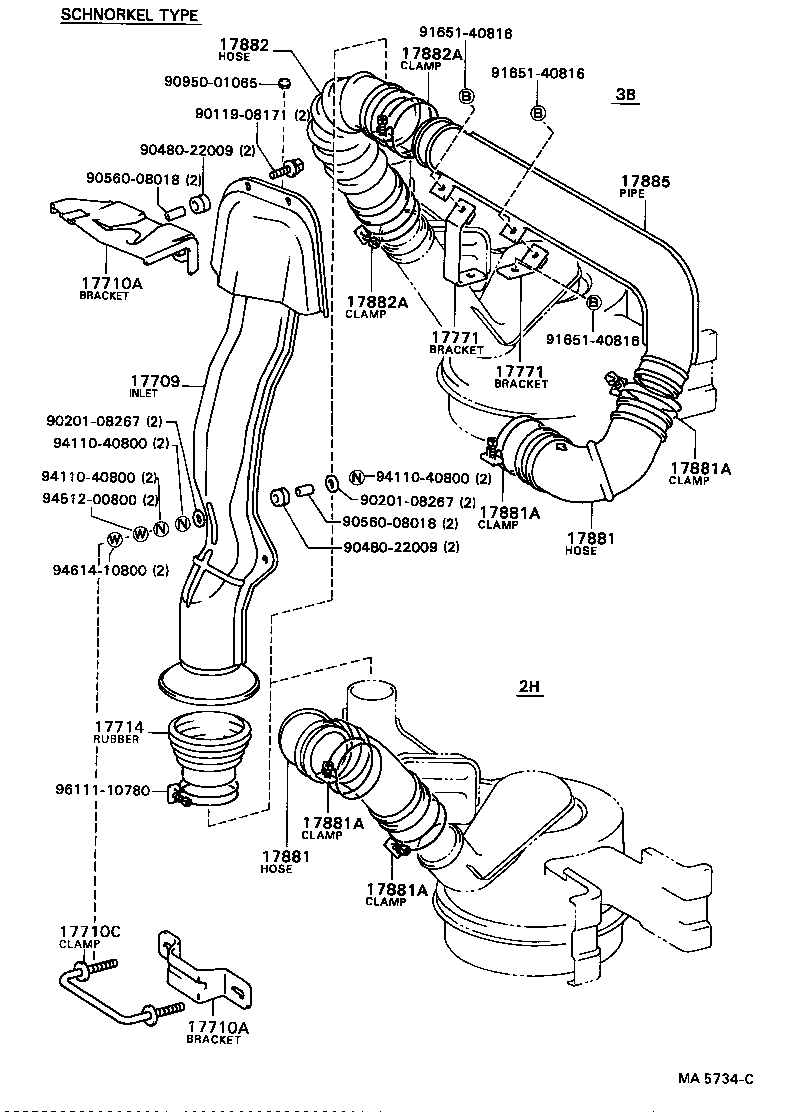

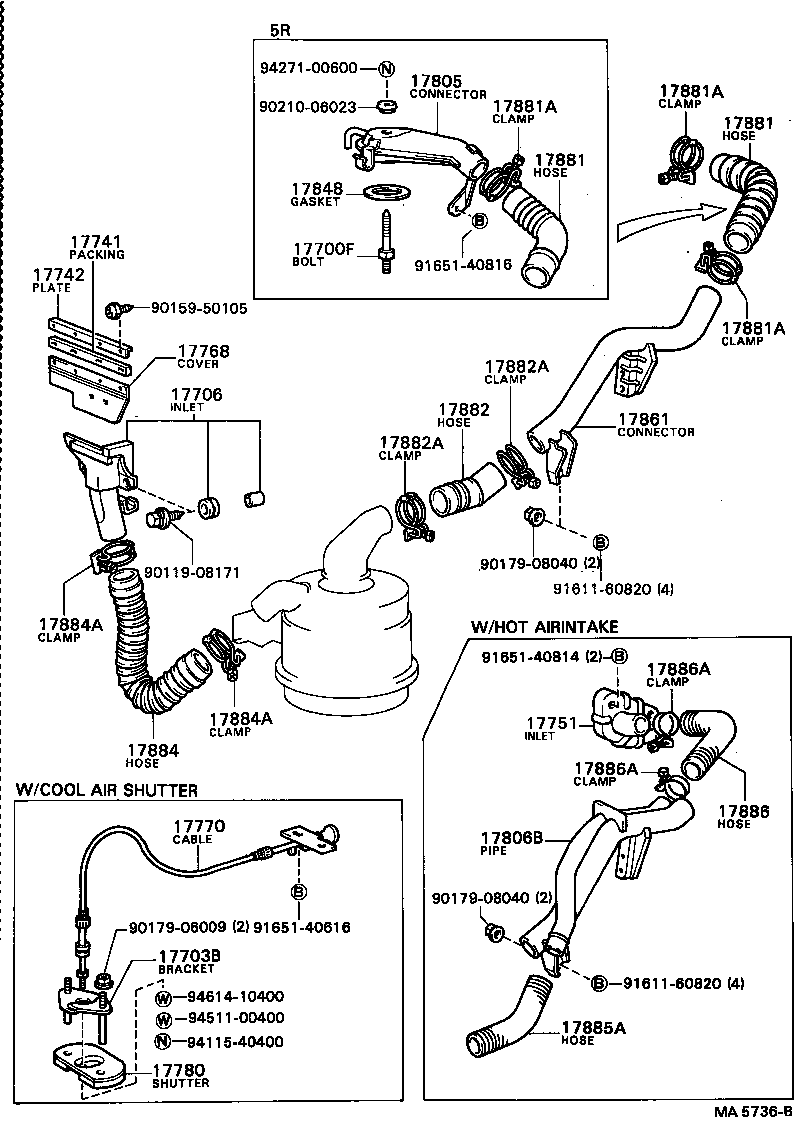

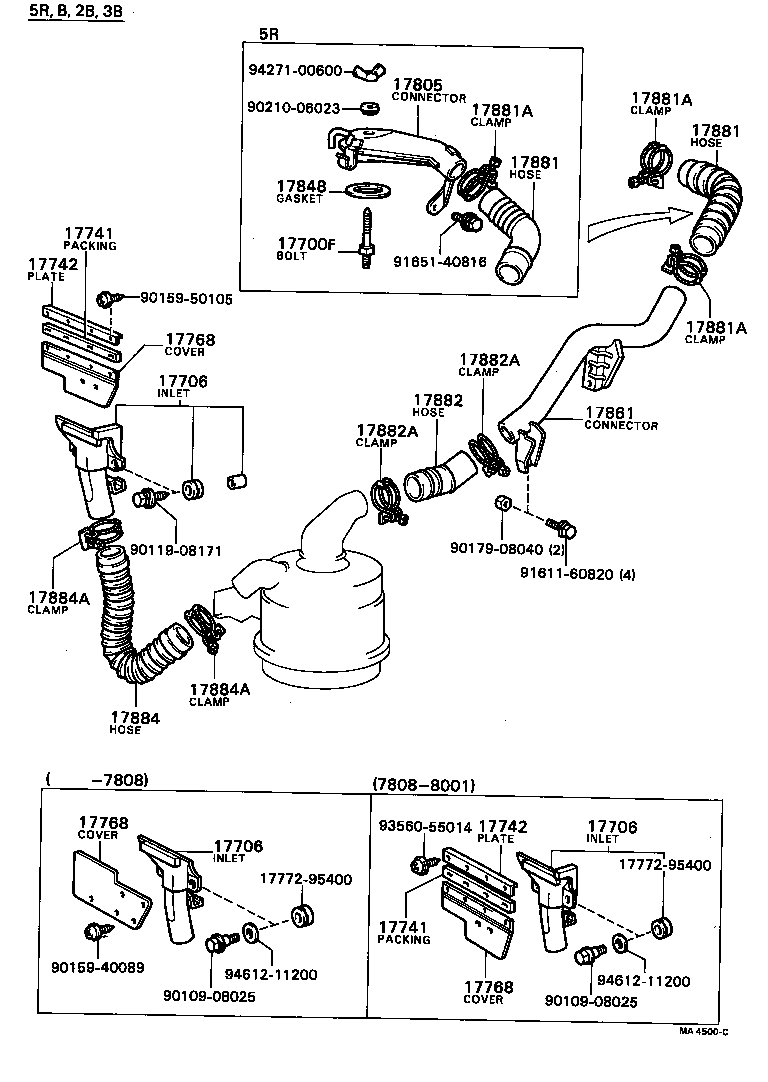

Figure MA7314A MA7314A 1977-08 → — Figure MA7314A MA7314A 1977-12 → — Figure MA7314A MA7314A 1978-03 → — Figure MA4500C MA4500C 1977-08 → 1982-04 Figure MA4500C MA4500C 1977-12 → 1982-04 Figure MA5736B MA5736B 1982-04 → — Figure MA4501C MA4501C 1977-08 → 1980-08 Figure MA3624I MA3624I 1977-08 → — Figure MA3624I MA3624I 1978-03 → — Figure MA3624I MA3624I 1979-04 → — Figure MA2946D MA2946D 1977-08 → — Figure MA2946D MA2946D 1978-03 → — Figure MA2946D MA2946D 1979-04 → — Figure MA5742C MA5742C 1982-04 → — Figure MA5734C MA5734C 1982-04 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17709 Inlet Sub-assy, Air Cleaner
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17710B Grommet
17710C Clamp(FOR AIR CLEANER INLET DUCT)
17714 Rubber Seal, Air Intake
17741 Packing, Air Cleaner Inlet Cover
17742 Plate, Air Cleaner Inlet Cover
17768 Cover, Air Cleaner Inlet
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
