Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

25 part groups · 6 illustrations

Illustrations

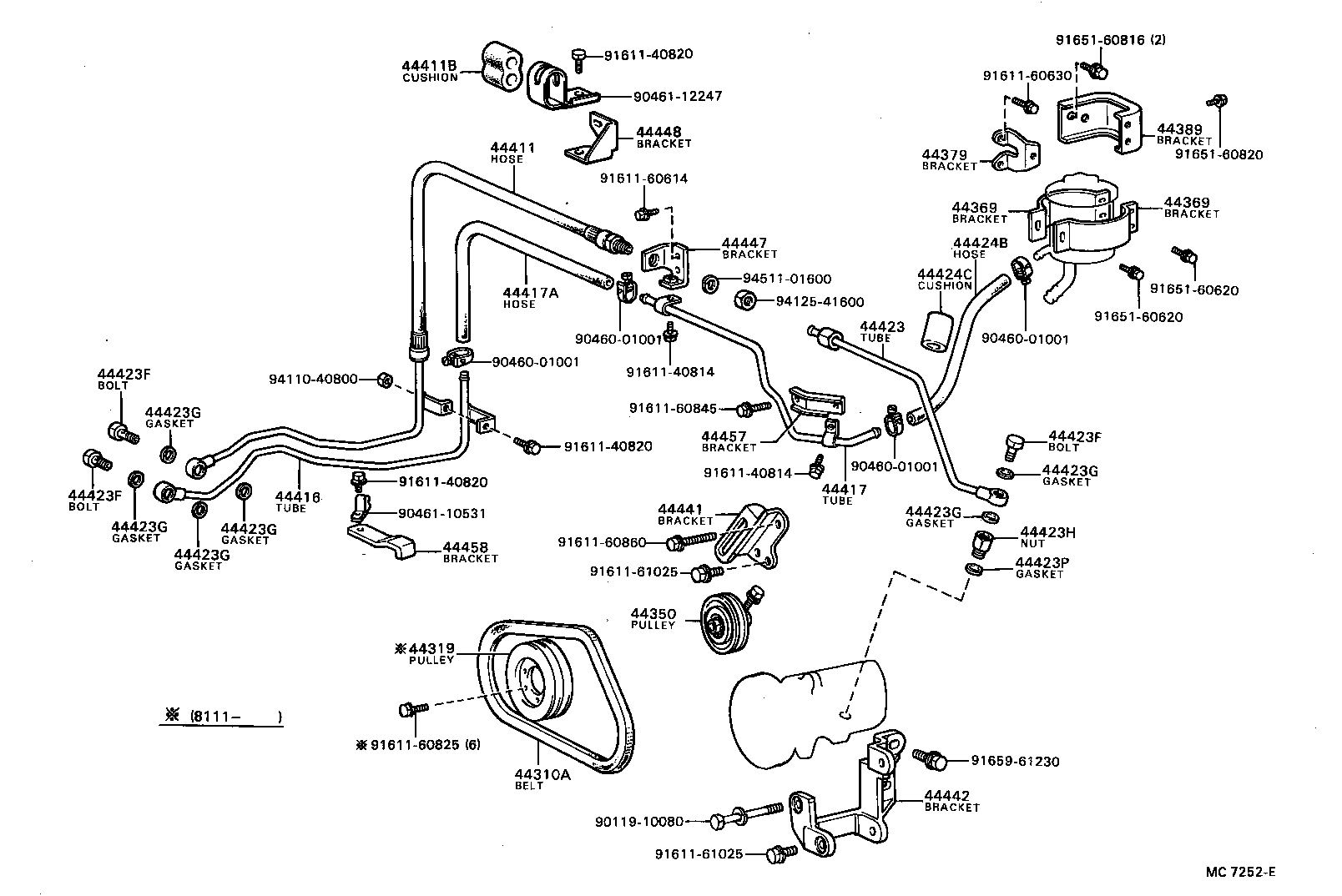

Figure MC6743C MC6743C 1979-08 → 1980-08 Figure MC6743C MC6743C 1979-12 → 1980-08 Figure MC6743C MC6743C 1980-08 → 1982-04 Figure MC6743C MC6743C 1980-08 → 1982-04 Figure MC6743C MC6743C 1982-04 → — Figure MC7252E MC7252E 1980-08 → —

Part groups

PNCDescription
44310A Belt, V(FOR VANE PUMP)
44319 Pulley, Vane Pump Drive
44350 Pulley Assy, Power Steering Idle
44369 Bracket, Oil Reservoir, NO.1
44379 Bracket, Oil Reservoir, NO.2
44389 Bracket, Oil Reservoir, NO.3
44411 Hose, Pressure Feed
44411B Cushion(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417 Tube, Return, NO.2
44417A Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44423G Gasket, Union Bolt
44423H Nut, Union
44423P Gasket, Union Nut
44424 Tube, Gear Box TO Oil Reservoir
44424B Hose, Pressure Oil(FOR TUBE TO OIL RESERVOIR)
44424C Cushion(FOR TUBE TO OIL RESERVOIR)
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44447 Bracket, Power Steering Oil Cooler Tube Support
44448 Bracket, Pressure Feed Hose Support, NO.1
44457 Bracket, Tube Support, NO.1
44458 Bracket, Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
