Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Brake Tube & Clamp

6 part groups · 5 illustrations

Illustrations

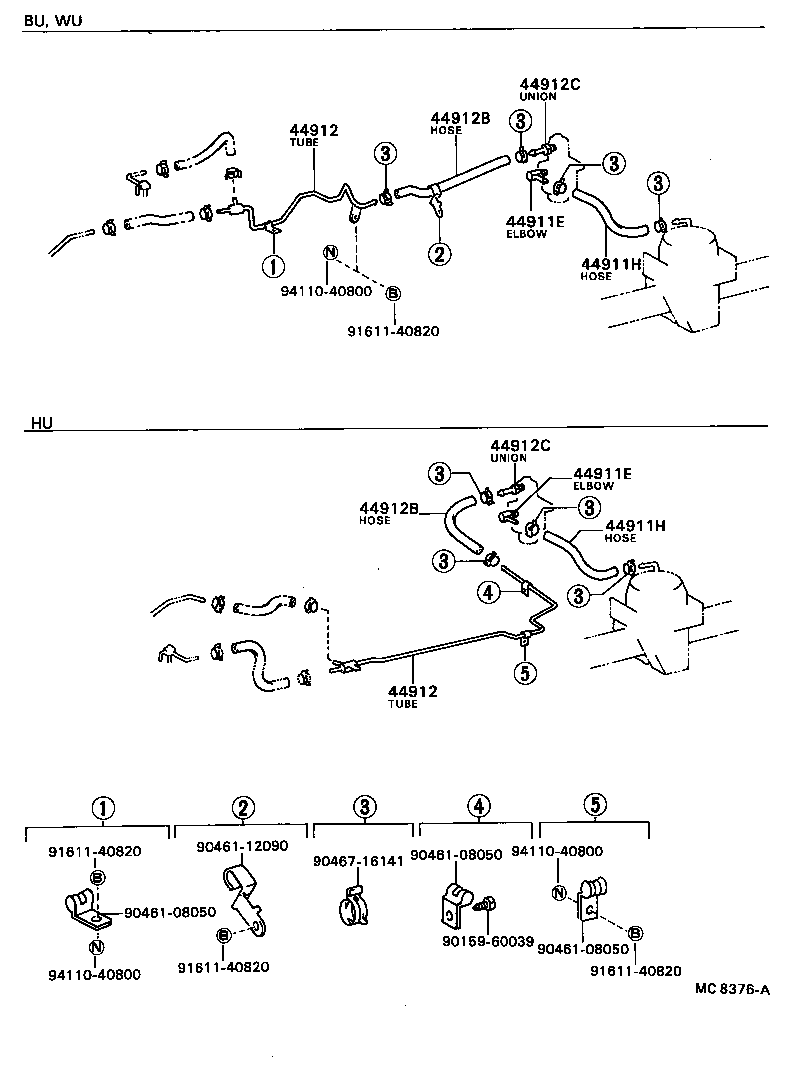

Figure MC5312G MC5312G 1977-08 → 1979-04 Figure MC5312G MC5312G 1979-04 → 1980-08 Figure MC5312G MC5312G 1980-08 → 1982-04 Figure MC5312G MC5312G 1982-04 → — Figure MC8376A MC8376A 1982-04 → —

Part groups

PNCDescription
44911E Elbow (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
44911H Hose (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
44912 Tube, 3 Way TO Magnetic Valve
44912A Way, 2(FOR 3 WAY TO MAGNETIC VALVE TUBE)
44912B Hose(FOR 3 WAY TO MAGNETIC VALVE TUBE)
44912C Union(FOR 3 WAY TO MAGNETIC VALVE TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
