Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

36 part groups · 3 illustrations

Illustrations

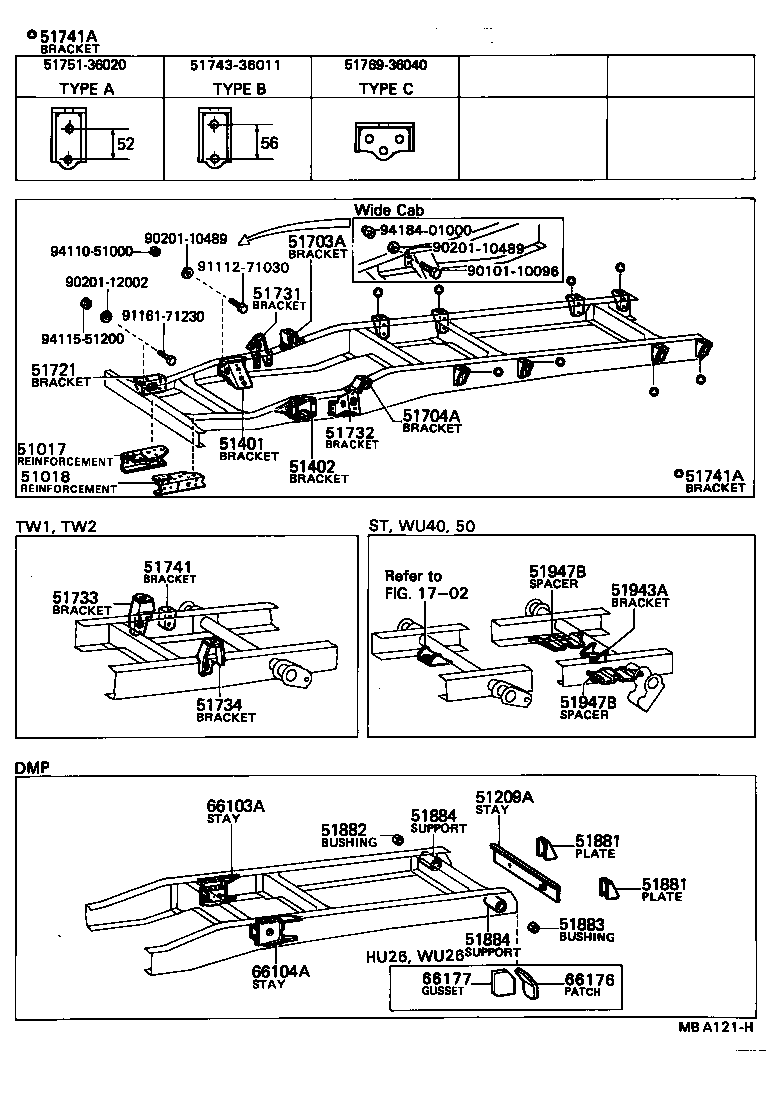

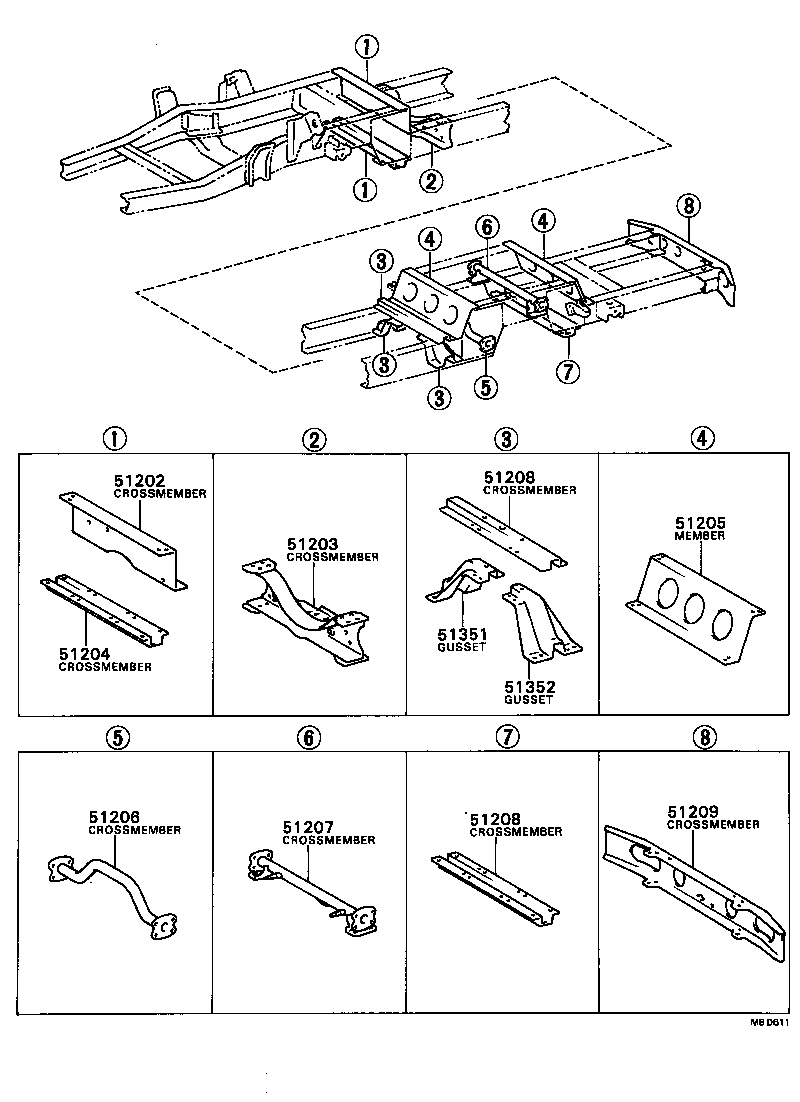

Figure MBA120H MBA120H 1977-08 → — Figure MBA121H MBA121H 1977-08 → — Figure MBD611 MBD611 1982-04 → —

Part groups

PNCDescription
51017 Reinforcement Sub-assy, Side Rail, NO.1 RH
51018 Reinforcement Sub-assy, Side Rail, NO.1 LH
51100 Frame Assy
51100F Frame Sub-assy
51202 Crossmember Sub-assy, Frame, NO.1
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51206 Crossmember Sub-assy, Frame, NO.5
51207 Crossmember Sub-assy, Frame, NO.6
51208 Crossmember Sub-assy, Frame, NO.7
51209 Crossmember Sub-assy, Frame, NO.8
51209A Stay, License Plate Bracket
51210 Crossmember Sub-assy, Frame, NO.9
51211 Crossmember Sub-assy, Frame, NO.10
51351 Gusset, Crossmember, NO.5 RH
51352 Gusset, Crossmember, NO.5 LH
51401 Bracket Sub-assy, Engine Front Mounting, RH
51402 Bracket Sub-assy, Engine Front Mounting, LH
51703A Bracket Sub-assy, Cab Rear Mounting, RH
51704A Bracket Sub-assy, Cab Rear Mounting, LH
51721 Bracket, Cab Front Mounting, RH
51731 Bracket, Cab Rear Mounting, RH
51732 Bracket, Cab Rear Mounting, LH
51733 Bracket, Cab Rear Mounting, NO.2 RH
51734 Bracket, Cab Rear Mounting, NO.2 LH
51741 Bracket, Rear Body Mounting, NO.1
51741A Bracket, Body Mounting
51881 Plate, Frame End
51882 Bushing, Vessel Hinge, RH
51883 Bushing, Vessel Hinge, LH
51884 Support, Vessel Hinge Shaft
51943A Bracket, Spare Wheel Carrier
51947B Spacer, Spare Wheel
66103A Stay Sub-assy, Trunnion, RH
66104A Stay Sub-assy, Runnion, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
