Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

10 part groups · 2 illustrations

Illustrations

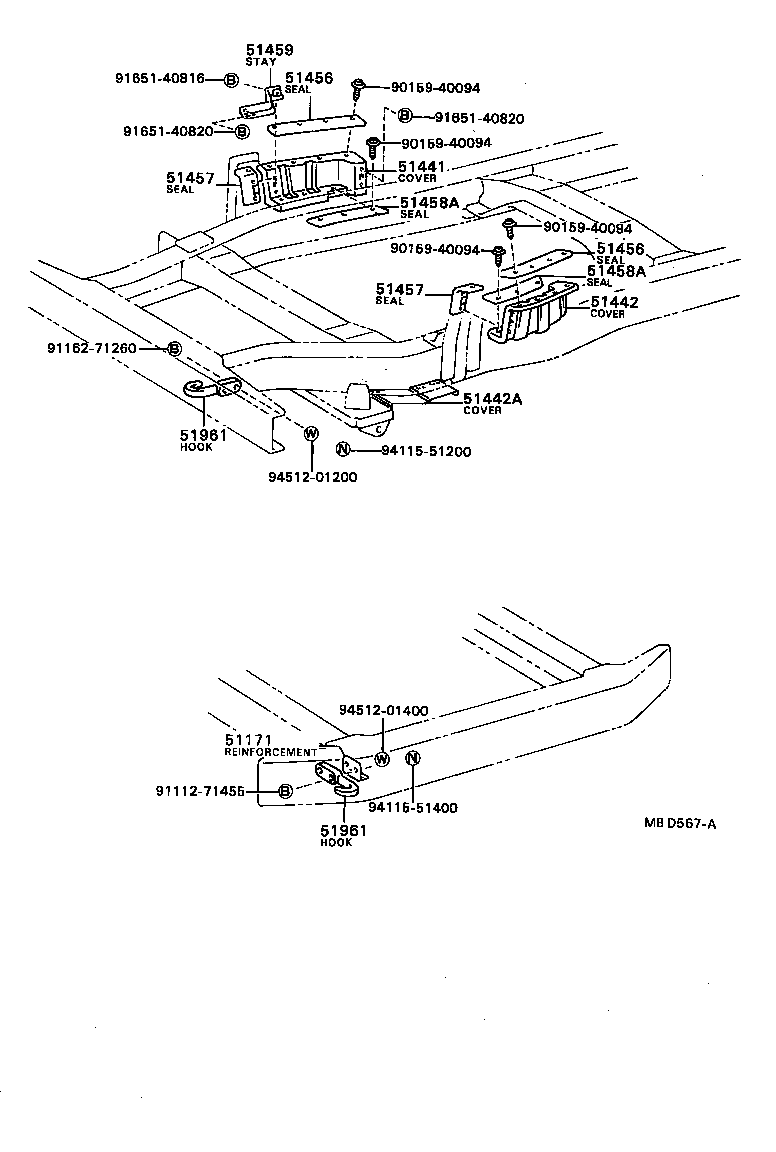

Figure MB7066M MB7066M 1977-08 → — Figure MBD567A MBD567A 1980-08 → —

Part groups

PNCDescription
51171 Reinforcement, Side Rail Rear Hook
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442A Cover, Engine Under, Front NO.3
51456 Seal, Engine Side Cover, Upper
51457 Seal, Engine Side Cover, Front
51458A Seal, Engine Side Cover, Lower
51459 Stay, Engine Side Cover
51961 Hook, NO.1
51963 Stopper, Hook Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
