Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

16 part groups · 6 illustrations

Illustrations

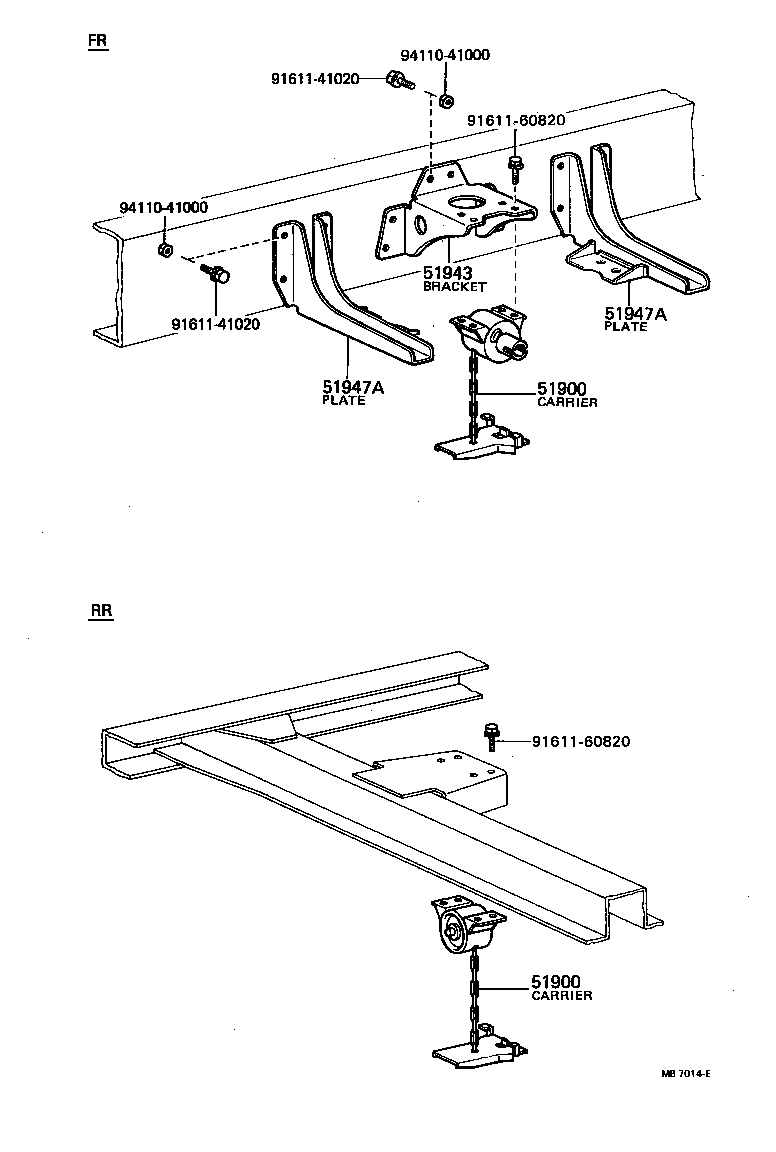

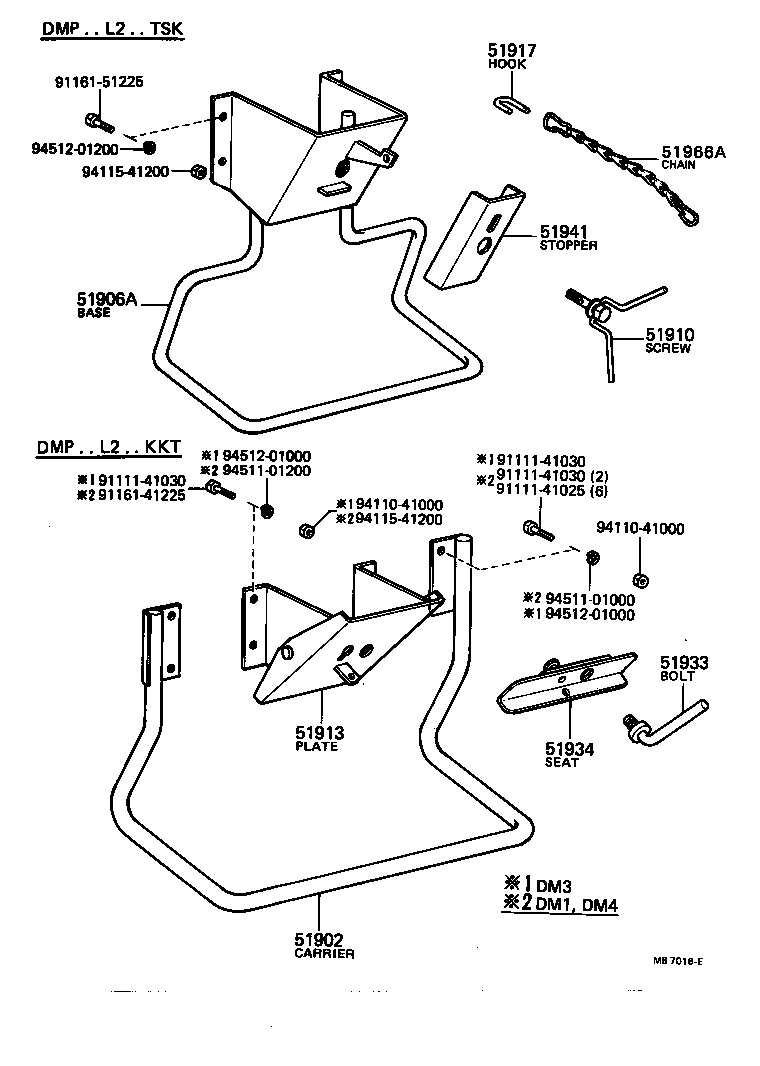

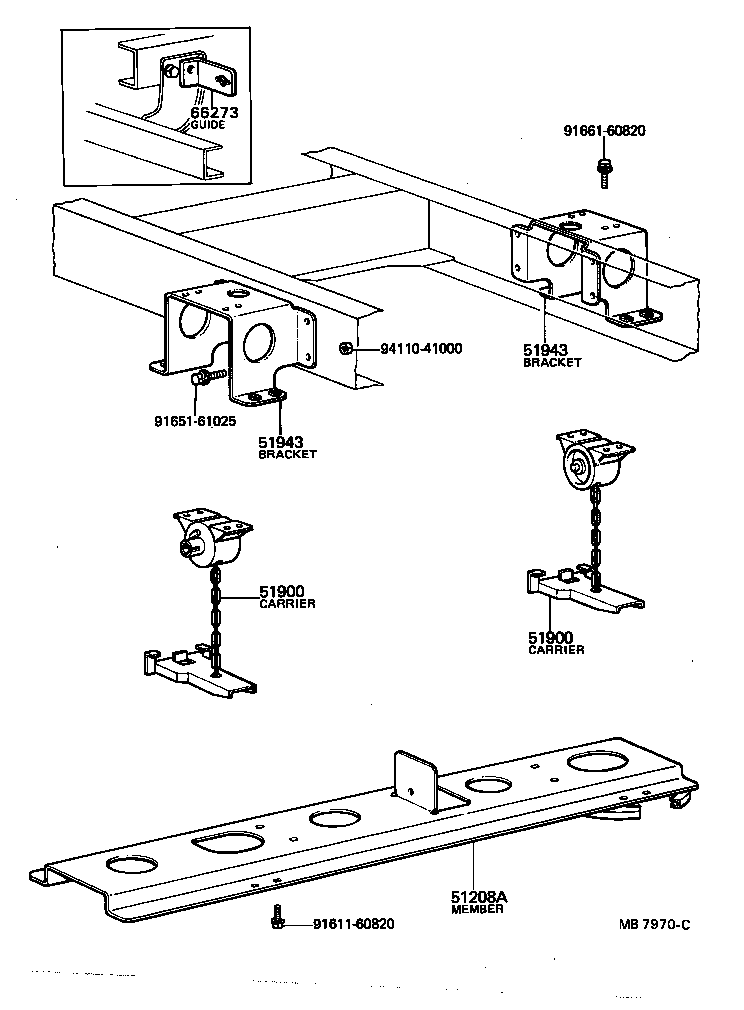

Figure MB9699I MB9699I 1977-08 → — Figure MB7014E MB7014E 1977-08 → — Figure MB7970C MB7970C 1979-04 → — Figure MB7015 MB7015 1977-08 → — Figure MB7016E MB7016E 1977-08 → — Figure MBD610A MBD610A 1982-04 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51902 Carrier Sub-assy, Spare Wheel
51906A Base Sub-assy, Spare Wheel Carrier
51910 Screw Assy, Spare Wheel Clamp
51913 Plate, Spare Wheel Clamp
51917 Hook, Spare Wheel Carrier
51933 Bolt, Spare Wheel Carrier Eye
51934 Seat, Eye Bolt Clamp
51935 Nut, Spare Wheel Carrier Eye
51936 Bracket, Spare Wheel Carrier
51941 Stopper, Spare Wheel Carrier
51943 Bracket, Spare Wheel Carrier, NO.1
51947A Plate, Spare Wheel Carrier Hinge
51966A Chain
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
