Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

9 part groups · 2 illustrations

Illustrations

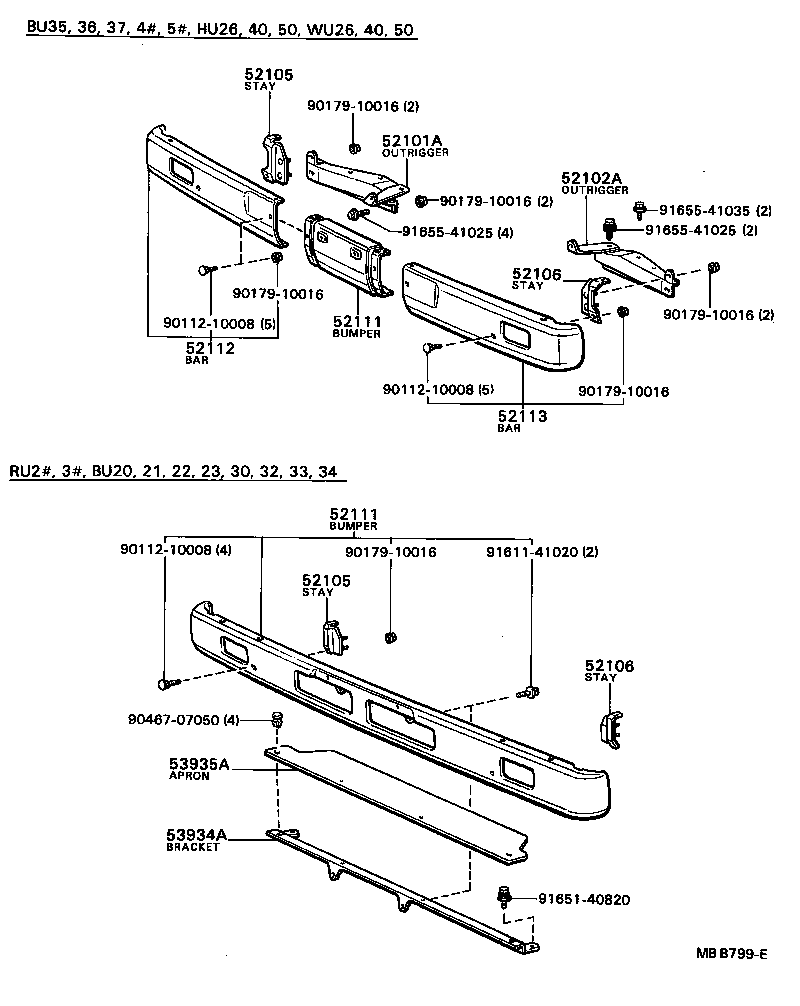

Figure MB7067B MB7067B 1977-08 → 1980-08 Figure MBB799E MBB799E 1980-08 → —

Part groups

PNCDescription
52101A Outrigger Sub-assy, Front Bumper, RH
52102A Outrigger Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112 Bar, Front Bumper, RH
52113 Bar, Front Bumper, LH
53934A Bracket, Apron Grille, Lower
53935A Apron, Grille Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
