Toyota Dyna
1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan
Discontinued model
Data version 1985-03

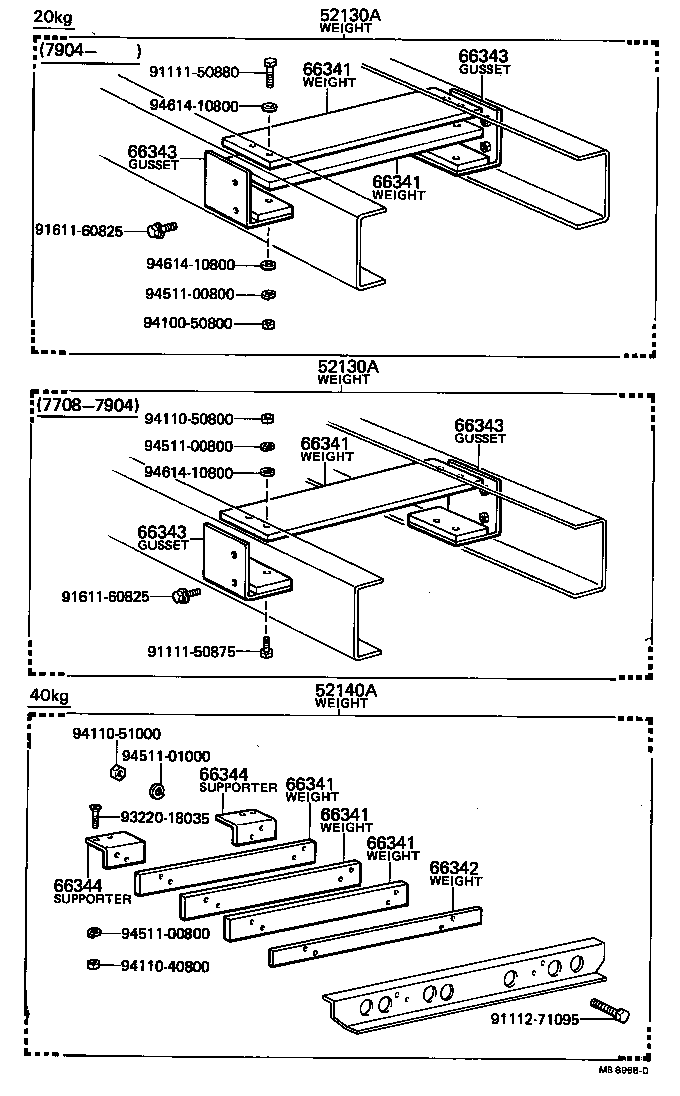

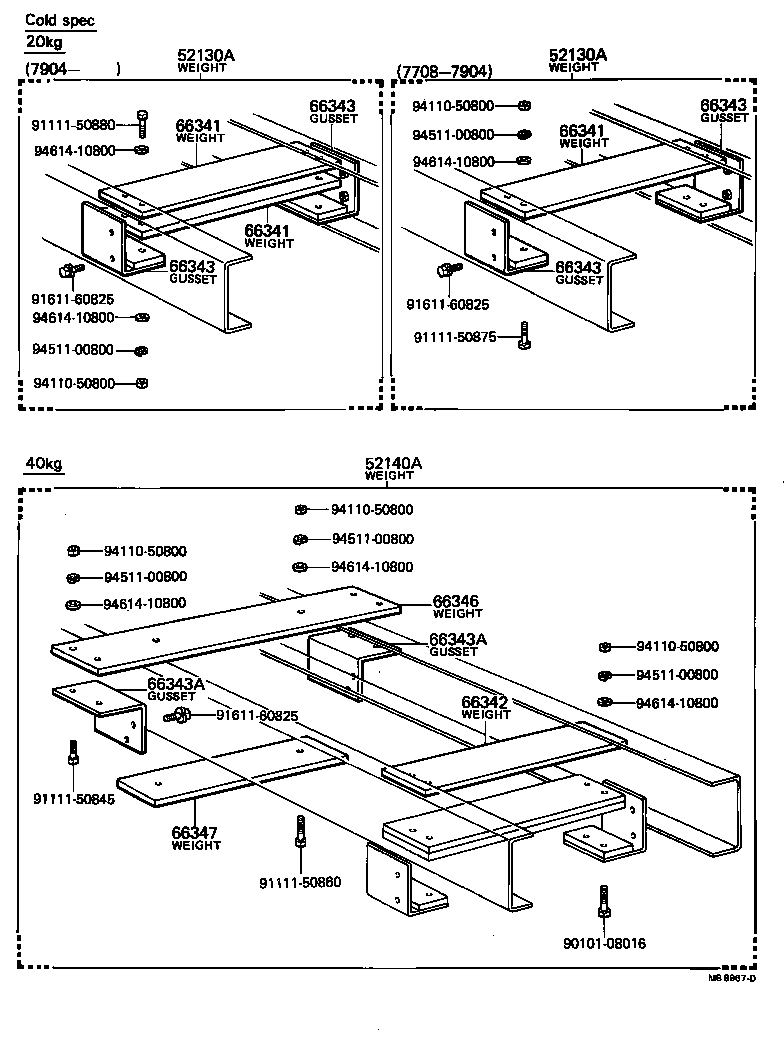

Rear Bumper & Bumper Stay
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52107 | Stay Sub-assy, Rear Bumper, RH |
| 52108 | Stay Sub-assy, Rear Bumper, LH |
| 52130A | Cross Weight Set, NO.1 |
| 52140A | Cross Weight Set, NO.2 |
| 52151 | Bumper Assy, Rear |
| 52152 | Bar, Rear Bumper, RH |
| 52153 | Bar, Rear Bumper, LH |
| 52158 | Bracket, Rear Bumper |
| 66321 | Bumper, Gate Rubber |
| 66321C | Cushion, Support Corner |
| 66341 | Weight, Frame, Rear |
| 66342 | Weight, Frame Rear, NO.1 |
| 66343 | Gusset, Frame Rear Weight |
| 66343A | Gusset Sub-assy, Frame Rear Weight, NO.1 |
| 66344 | Supporter, Frame Rear Weight |
| 66345 | Spacer, Frame Rear Weight |
| 66346 | Weight, Frame Rear, NO.2 |
| 66347 | Weight, Frame Rear, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
