Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

27 part groups · 2 illustrations

Illustrations

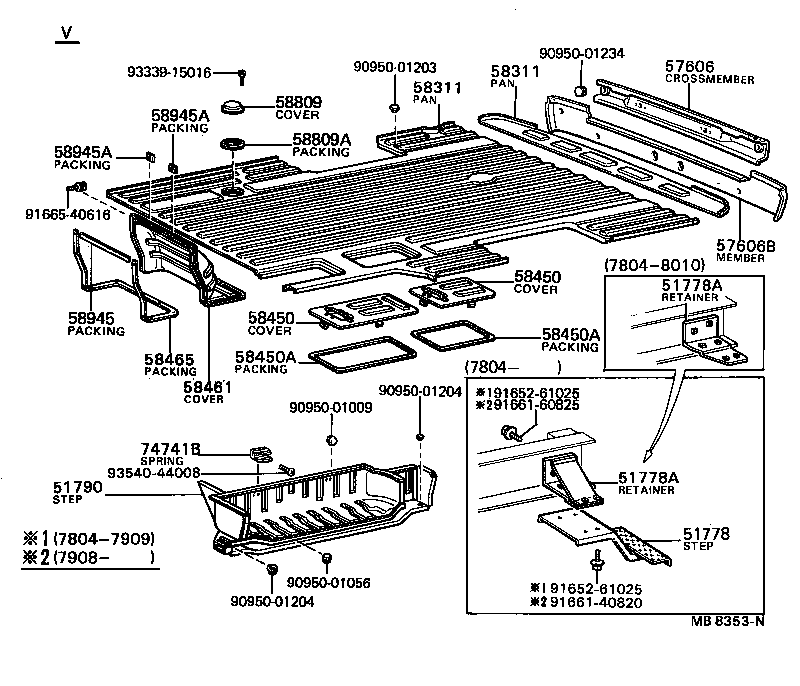

Figure MBD583A MBD583A 1977-08 → — Figure MB8353N MB8353N 1977-08 → —

Part groups

PNCDescription
51778 Step Assy, Back
51778A Retainer, Back Step
51790 Step Assy, Rear Floor
51790A Plate Sub-assy, Rear Step, RH
51790B Plate Sub-assy, Rear Step, LH
57101 Member Sub-assy, Front Side, RH
57606 Crossmember Sub-assy, Rear Floor Rear, Inner
57606B Member Sub-assy, Rear Floor Cross Inner
58306A Rail Sub-assy, Floor Side, Inner
58311 Pan, Rear Floor
58397B Stay, Rear Step, RH
58398B Stay, Rear Step, LH
58450 Cover Assy, Battery Service Hole
58450A Packing, Battery Service Hole Cover
58461 Cover, Transmission Service Hole
58465 Packing, Transmission Service Hole Cover, NO.1
58809 Cover Sub-assy, Fuel Tank
58809A Packing, Fuel Hole Cover
58945 Packing, Transmission Service Hole Cover
58945A Packing, Transmission Service Hole Cover, NO.1
64133A Cover, Header Panel
64134D Packing, Header Panel Cover
64134E Seal, Header Panel Cover
64138A Seal, Header Panel Cover
74741B Spring, Starting Handle Support
75255 Cover, Step Plate Rear, NO.1
75256 Cover, Step Plate Rear, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
