Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03

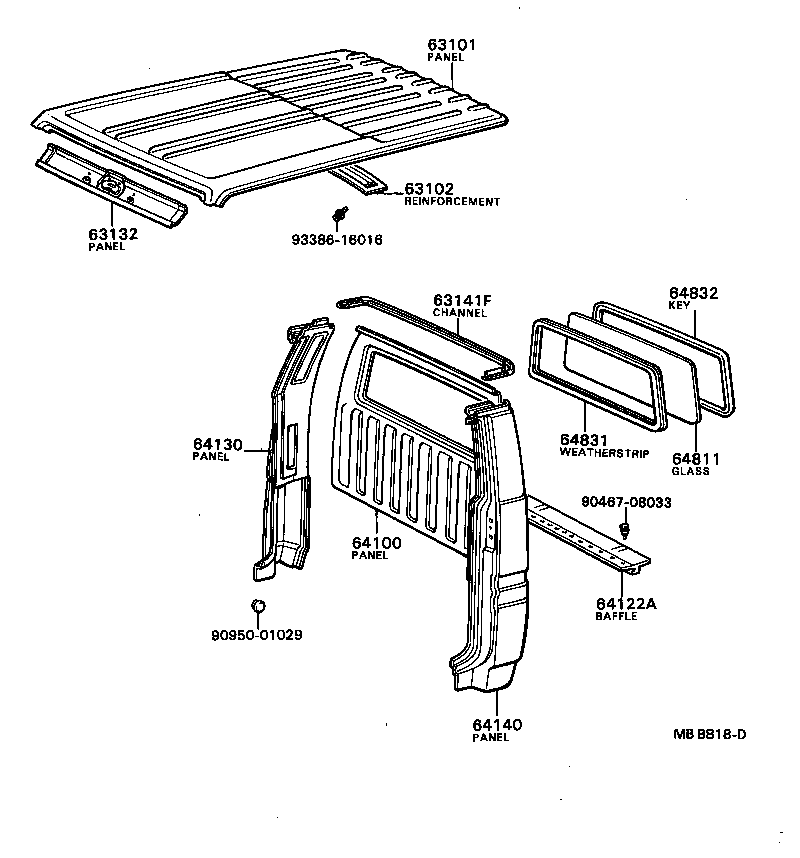

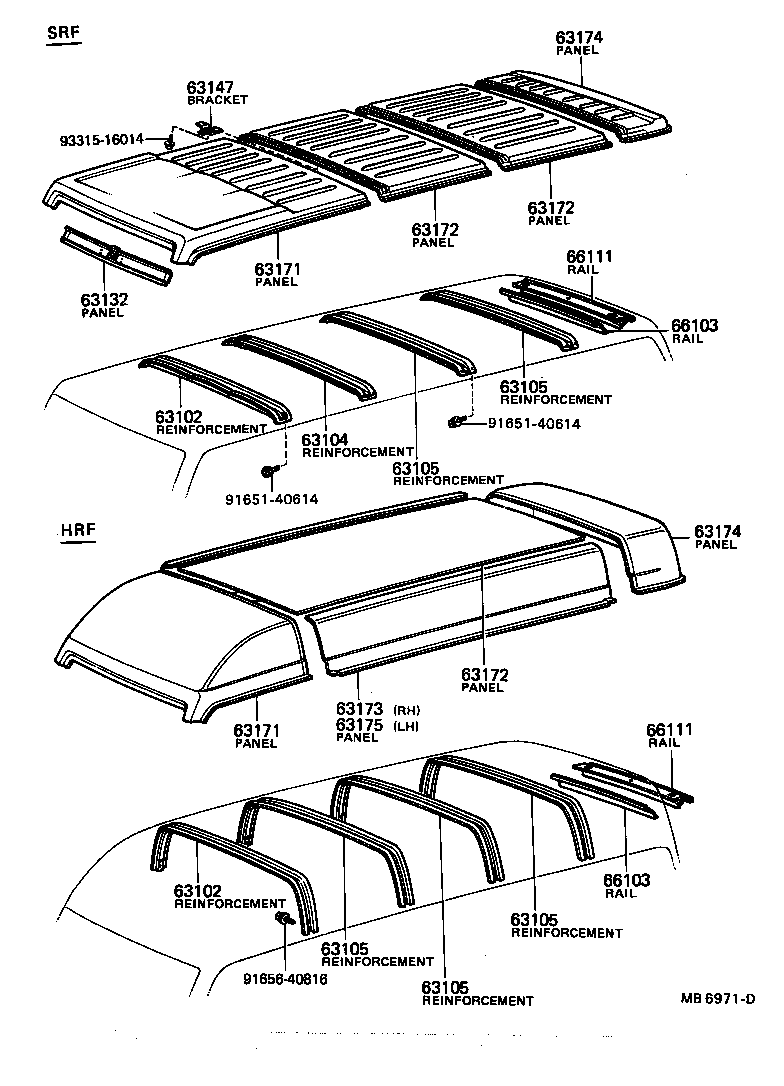

Roof Panel & Back Panel

41 part groups · 3 illustrations

PNC	Description
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
63101	Panel Sub-assy, Roof
63102	Reinforcement Sub-assy, Roof Panel, Front
63104	Reinforcement Sub-assy, Roof Panel, Center
63105	Reinforcement Sub-assy, Roof Panel, Rear
63132	Panel, Windshield Header, Inner
63141F	Channel, Roof Drip, Rear
63147	Bracket, Roof Panel Reinforcement
63171	Panel, Roof, Front
63172	Panel, Roof, Center
63173	Panel, Roof, Center Side RH
63174	Panel, Roof, Rear
63175	Panel, Roof, Center Side LH
64100	Panel Assy, Back, Outer
64122A	Baffle, Dust Rear Body
64122D	Spacer, Baffle Dust Rear Body Plate
64130	Panel Assy, Back Corner, RH
64140	Panel Assy, Back Corner, LH
64180	Silencer Assy, Back Panel
64802	Frame Sub-assy, Back Window Fix
64808	Channel Sub-assy, Back Window Slide Glass
64811	Glass, Back Window
64811B	Lock Assy, Back Window
64811C	Catch, Back Window Lock
64811D	Retainer, Back Window
64811E	Packing, Back Window Lock
64812	Weatherstrip, Back Window Glass, NO.1
64812A	Weatherstrip, Back Window Glass, NO.2
64813A	Glass, Back Window Corner, RH
64814A	Glass, Back Window Corner, LH
64831	Weatherstrip, Back Window Glass
64832	Key, Back Window Weatherstrip
64833	Weatherstrip, Back Window Channel
64833A	Weatherstrip, Back Window Center Channel
64839A	Packing, Back Window
64851	Stop, Back Window Slide Glass
64881	Channel, Back Window Glass
66103	Rail Sub-assy, Roof Back, Inner
66111	Rail, Roof Back, Outer
74741C	Spring, Starting Handle Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
