Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

30 part groups · 10 illustrations

Illustrations

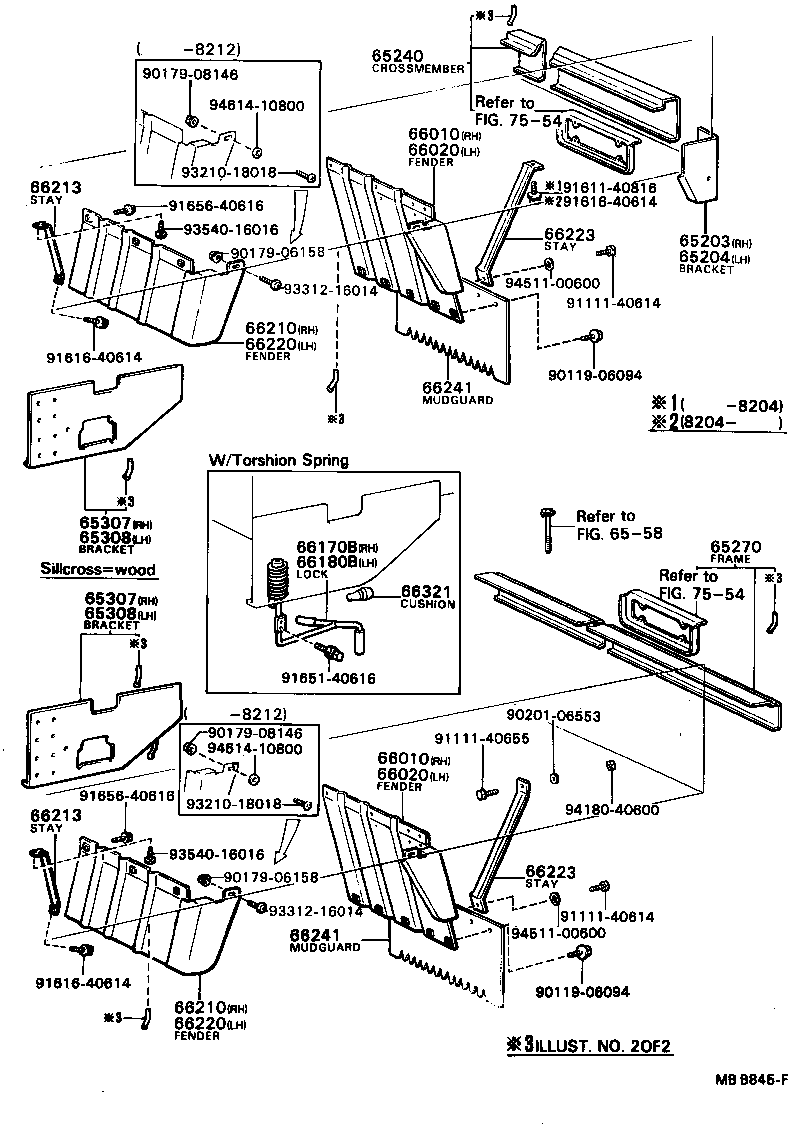

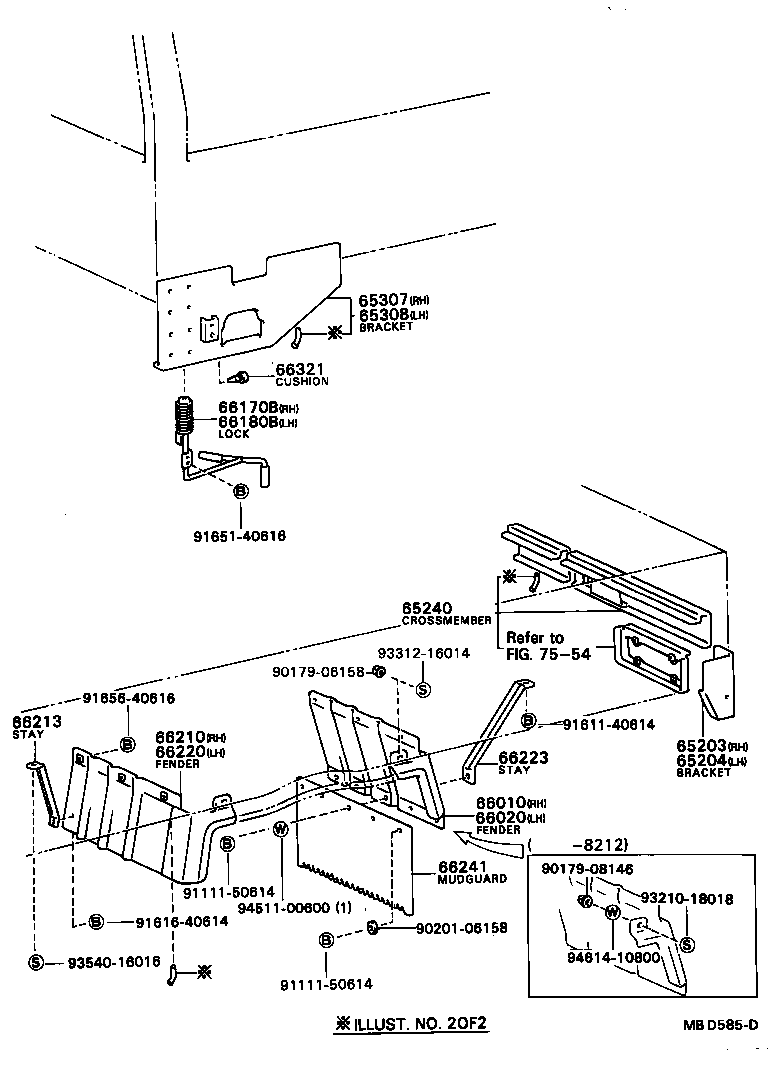

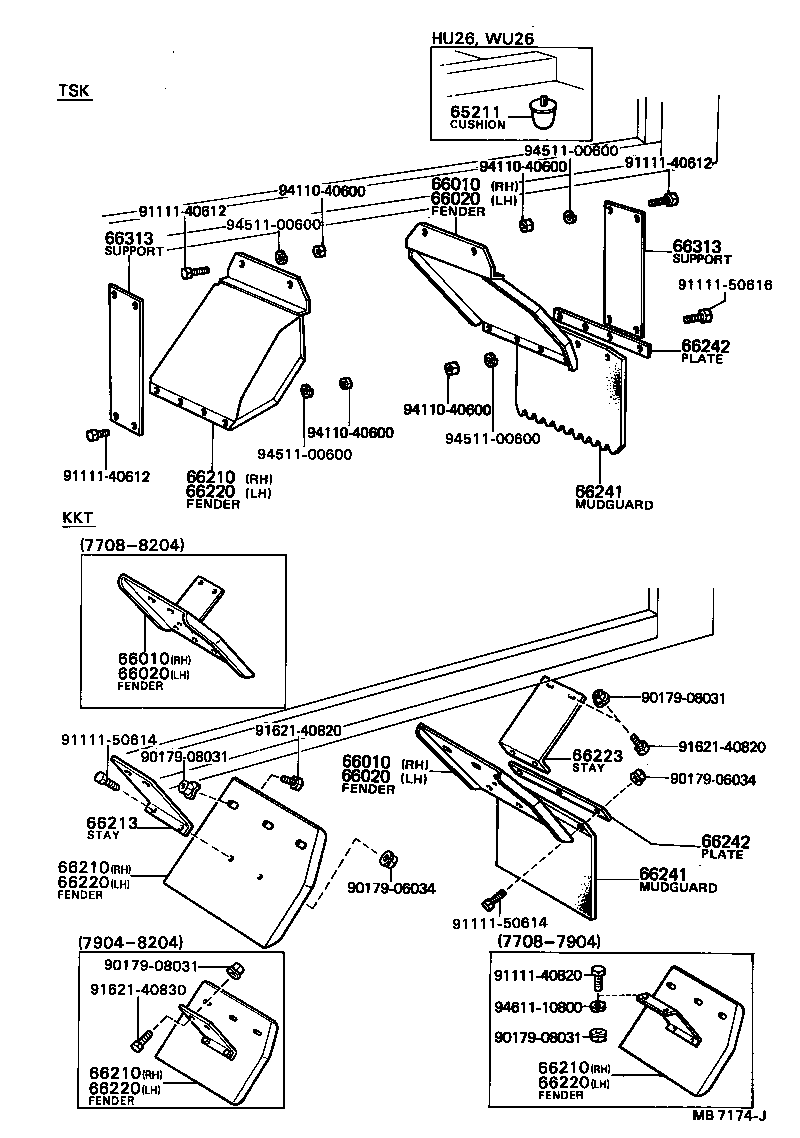

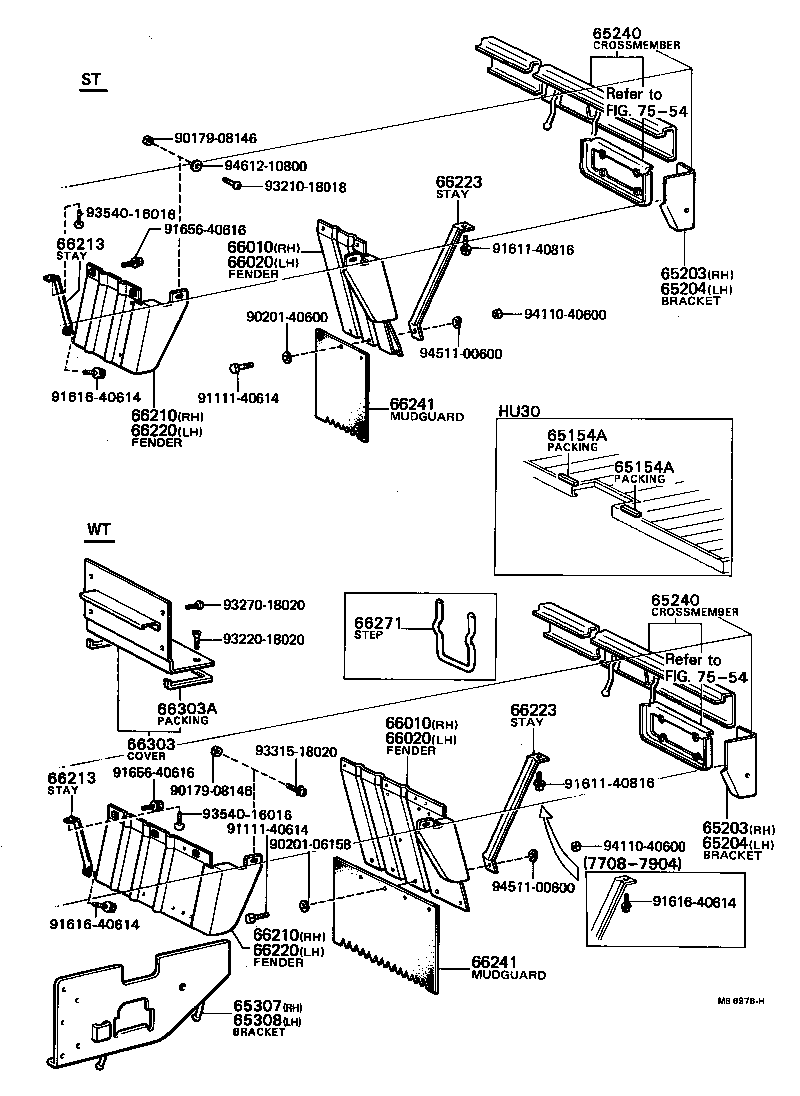

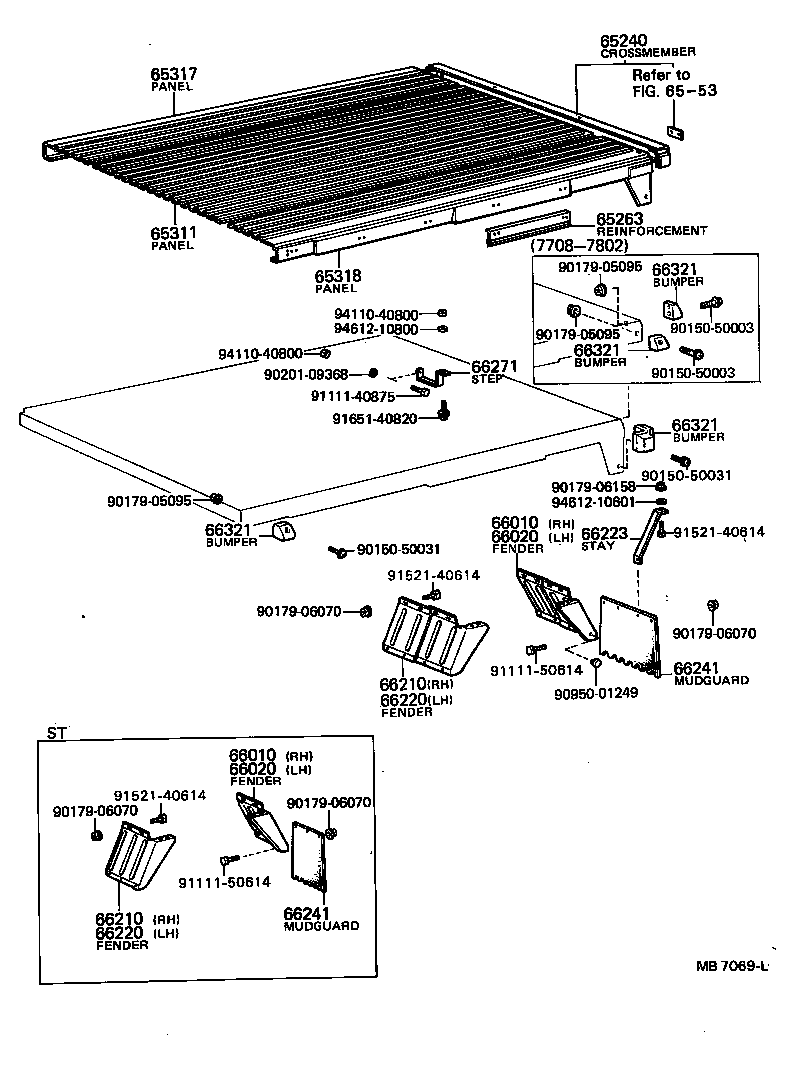

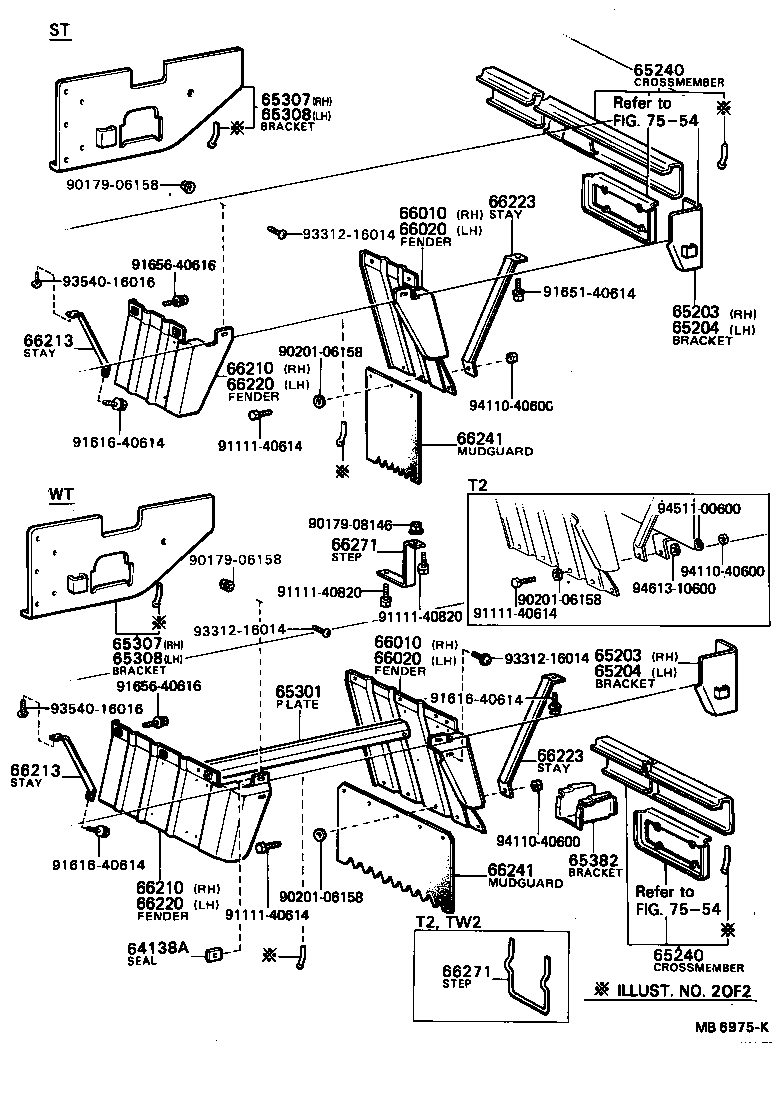

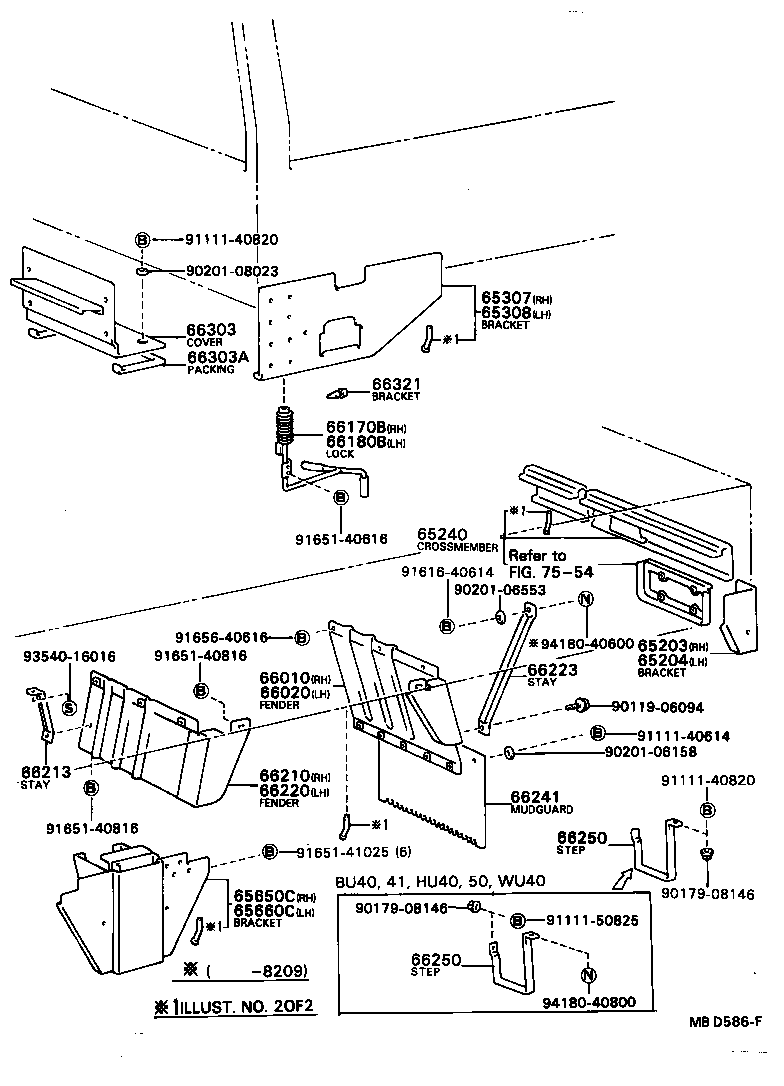

Figure MB7070G MB7070G 1977-08 → — Figure MB7069L MB7069L 1977-08 → 1980-08 Figure MB6975K MB6975K 1977-08 → — Figure MB6976H MB6976H 1977-08 → 1982-04 Figure MBD585D MBD585D 1982-04 → — Figure MBB845F MBB845F 1980-08 → — Figure MBD586F MBD586F 1982-04 → — Figure MB7174J MB7174J 1977-08 → — Figure MB8977A MB8977A 1979-04 → — Figure MBG133 MBG133 1982-12 → —

Part groups

PNCDescription
65203 Bracket Sub-assy, Gate Bumper, RH
65204 Bracket Sub-assy, Gate Bumper, LH
65209 Stay Sub-assy, Rear Body Step
65240 Crossmember, Rear Body Floor, Tail
65263 Reinforcement, Floor Side Frame
65270 Frame Assy, Floor, Rear
65301 Plate Sub-assy, Rear Fender Outer, Upper
65307 Bracket Sub-assy, Guad Frame, RH
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65382 Bracket Sub-assy, Mounting, Rear
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66170B Lock Assy, Side Gate, RH
66180B Lock Assy, Side Gate, LH
66210 Fender Assy, Rear Body, Front RH
66213 Stay, Rear Fender Front Plate
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66225 Support, Rear Mudguard, RH
66226 Support, Rear Mudguard, LH
66241 Mudguard, Rear
66242 Plate, Rear Mudguard Set Retainer
66243 Plate, Rear Fender Set
66250 Step Assy, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66313 Support, Rear Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
