Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Gate Lock & Tail Gate Lock

50 part groups · 7 illustrations

Illustrations

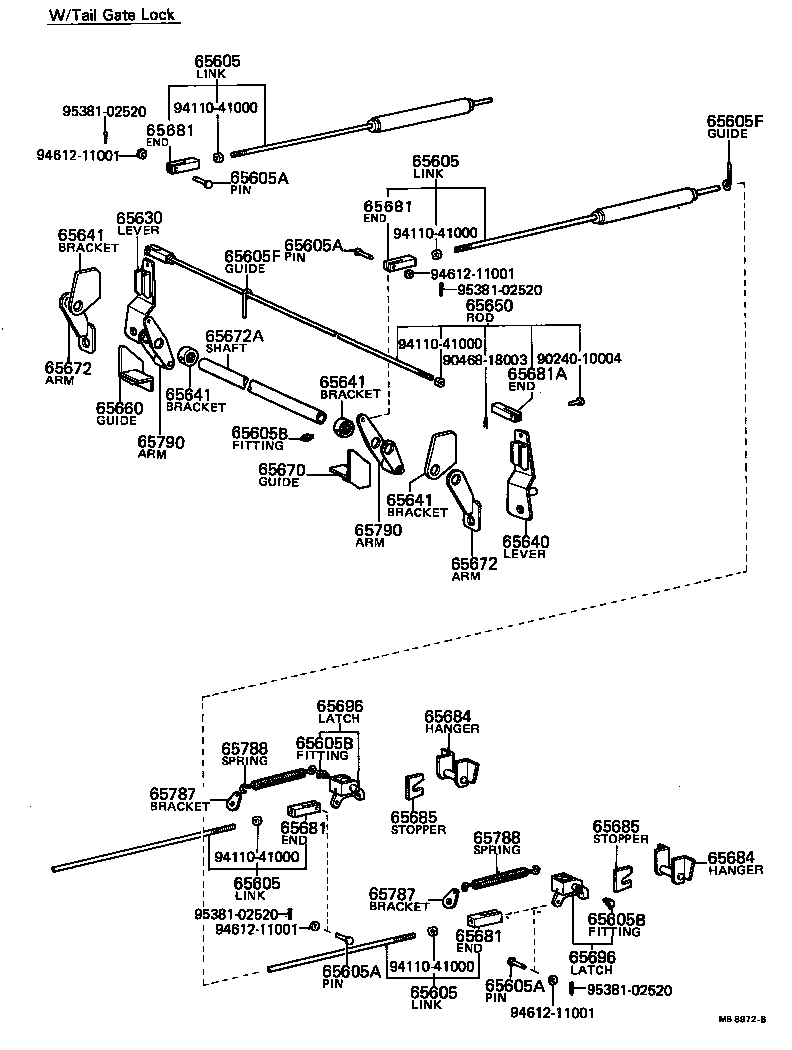

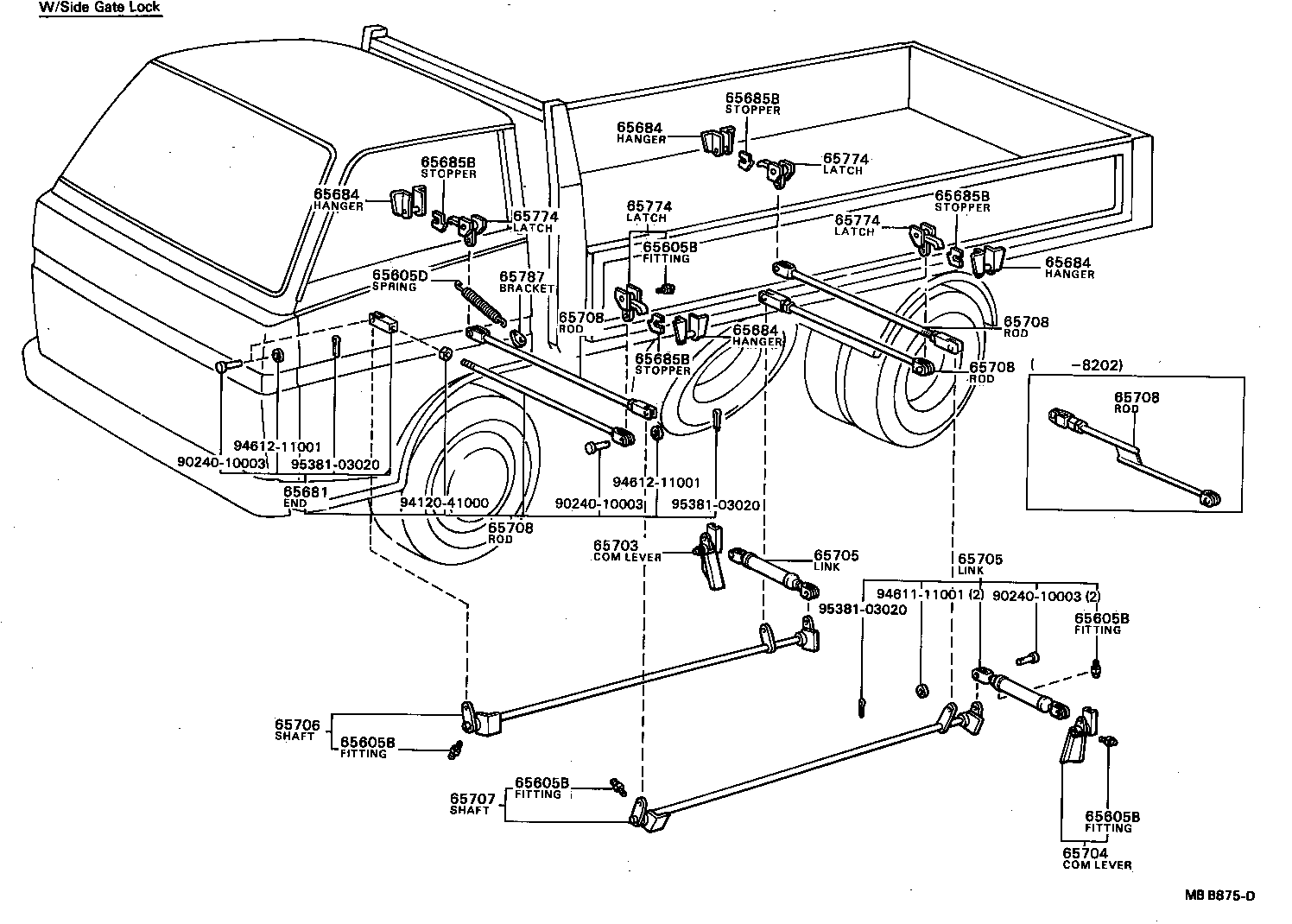

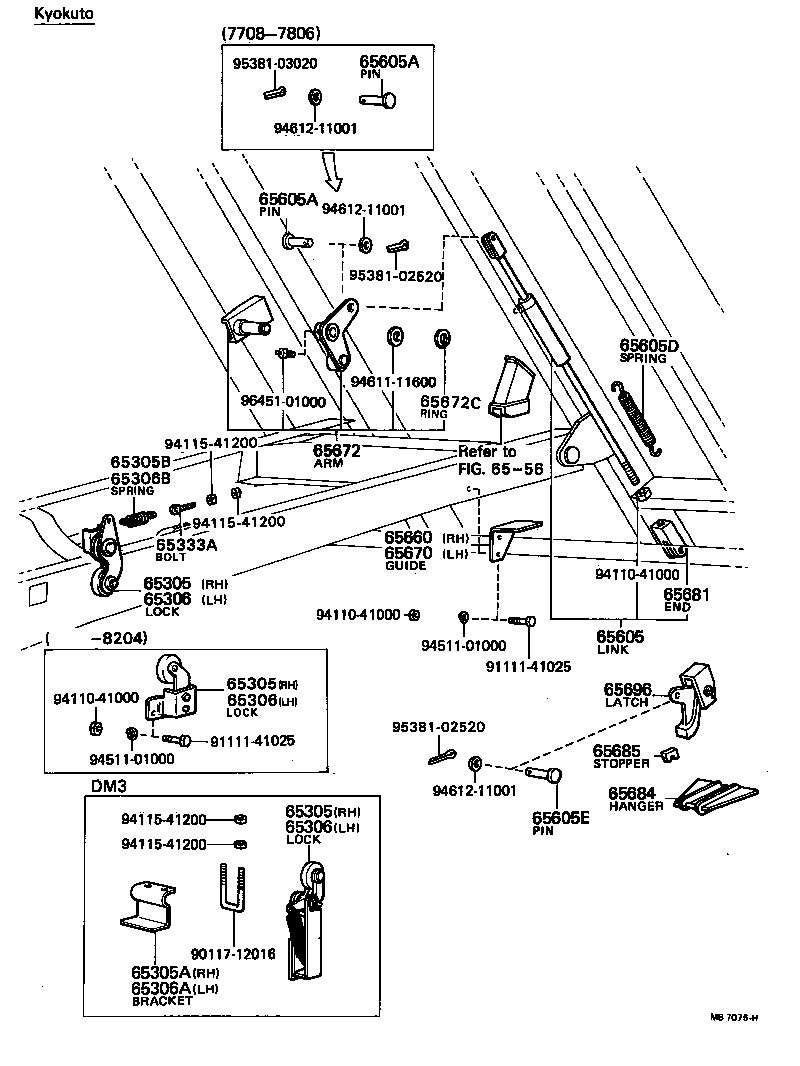

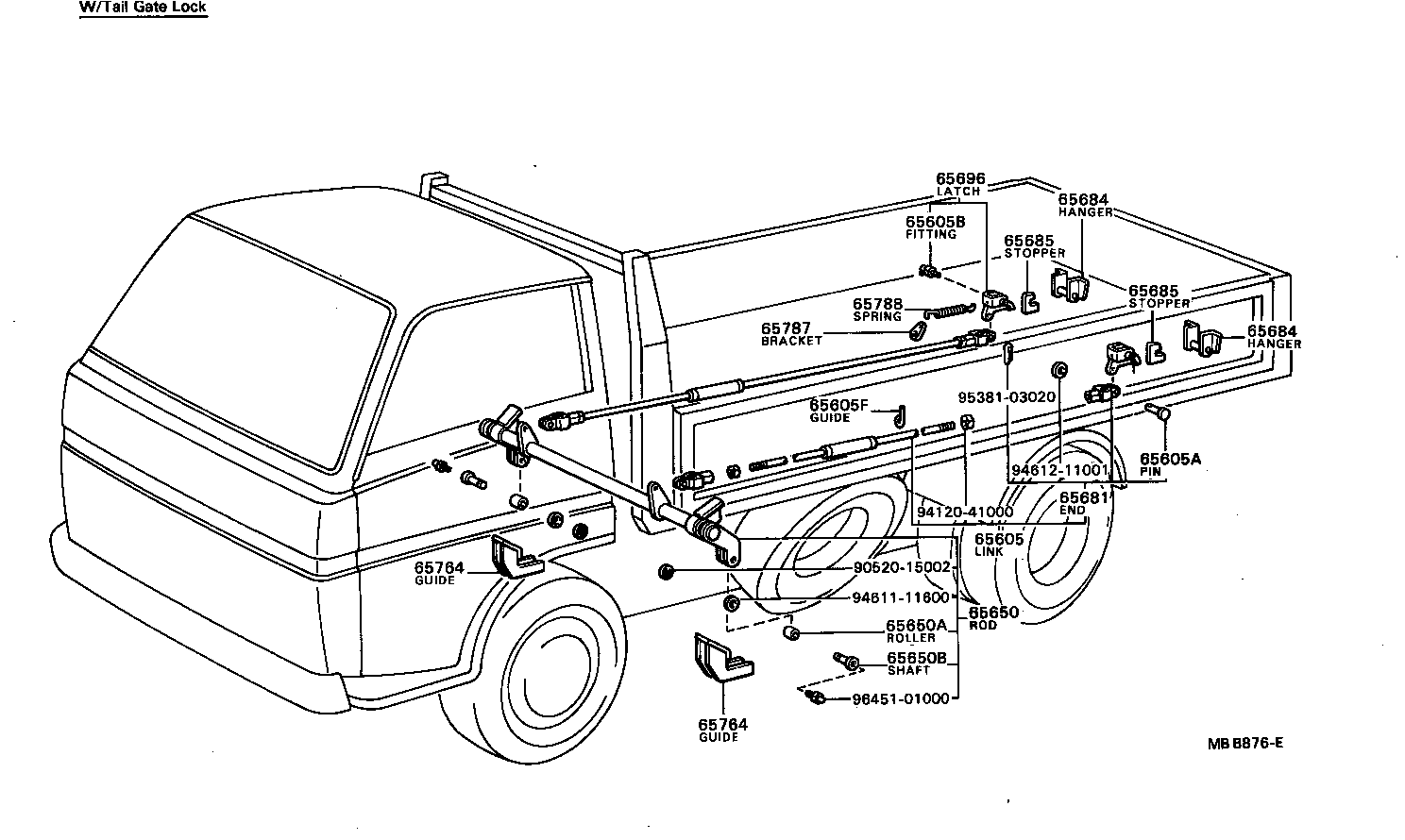

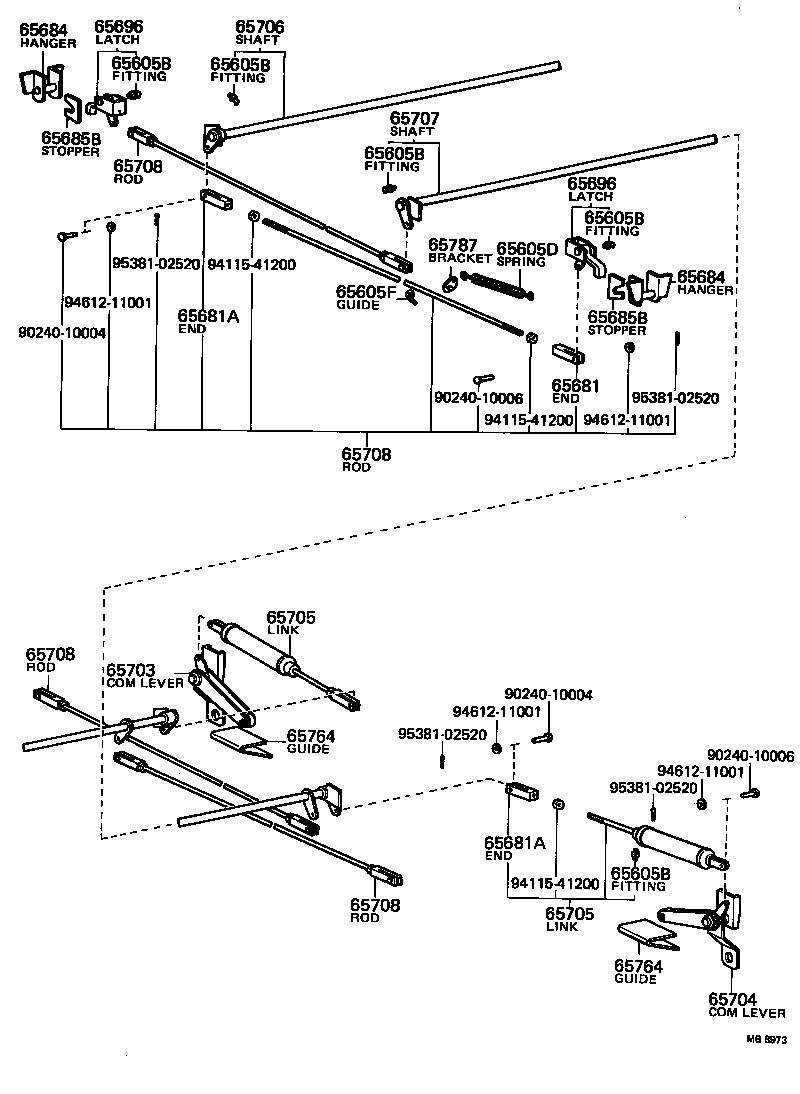

Figure MB7179J MB7179J 1977-08 → — Figure MB7075H MB7075H 1977-08 → — Figure MB7075H MB7075H 1979-04 → 1980-08 Figure MB8972B MB8972B 1979-04 → 1980-08 Figure MB8973 MB8973 1979-04 → — Figure MBB875D MBB875D 1980-08 → — Figure MBB876E MBB876E 1980-08 → —

Part groups

PNCDescription
65305 Lock Sub-assy, Bezel, RH
65305A Bracket, U Bolt Support, RH
65305B Spring, Tension, RH(FOR BODY LOCK)
65306 Lock Sub-assy, Bezel, LH
65306A Bracket, U Bolt Support, LH
65306B Spring, Tension, LH(FOR BODY LOCK)
65333A Bolt, Tension Spring
65605 Link Sub-assy, Tail Gate Lock
65605A Pin, Tail Gate Lock Link
65605B Fitting, Grease Small(FOR TAIL GATE LOCK LINK)
65605C Turnbackle, Tail Gate Lock Link
65605D Spring, Tension(FOR TAIL GATE LOCK LINK SETTING)
65605E Pin, W/Hole(FOR TAIL GATE LOCK LINK SETTING)
65605F Guide, Rod Support
65608 Link Sub-assy, Tail Gate Lock, Rear RH
65609 Link Sub-assy, Tail Gate Lock, Rear LH
65630 Lever Assy, Rear Body Deck Hinge Pin Control, RH
65640 Lever Assy, Rear Body Deck Hinge Pin Control, LH
65641 Bracket, Torque Shaft Support
65650 Rod Assy, Hinge Pin Control
65650A Roller, Tail Gate Lock
65650B Shaft, Tail Gate Lock Roller
65660 Guide, Roller, RH
65670 Guide, Roller, LH
65672 Arm, Tail Gate Lock Roller
65672A Shaft, Roller
65672B Roller, Tail Gate Lock
65672C Ring, Snap(FOR ROLLER ARM SETTING)
65681 End, Tail Gate Lock Link
65681A End, Tail Gate Lock Link
65684 Hanger, Tail Gate
65685 Stopper, Tail Gate Hanger
65685B Stopper, Side Gate Hanger
65692 Guide, Link
65695 Spring, Back(FOR TAIL GATE LOCK LATCH)
65696 Latch, Tail Gate Lock
65697 Pin, Latch
65699 Stopper, Latch Pin
65703 Com Lever Assy, Side Gate Auto Lock Mechanism, RH
65704 Com Lever Assy, Side Gate Auto Lock Mechanism, LH
65705 Link Sub-assy, Side Gate Lock
65706 Shaft Assy, Side Gate Link Control, RH
65707 Shaft Assy, Side Gate Link Control, LH
65708 Rod Assy, Side Gate Rod Control
65764 —
65767 Shaft, Roller
65774 Latch, Side Gate Lock
65787 Bracket, Return Spring
65788 Spring, Tail Gate Control Rod Return
65790 Arm Sub-assy, Roller
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
