Toyota Dyna
1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan
Discontinued model
Data version 1985-03

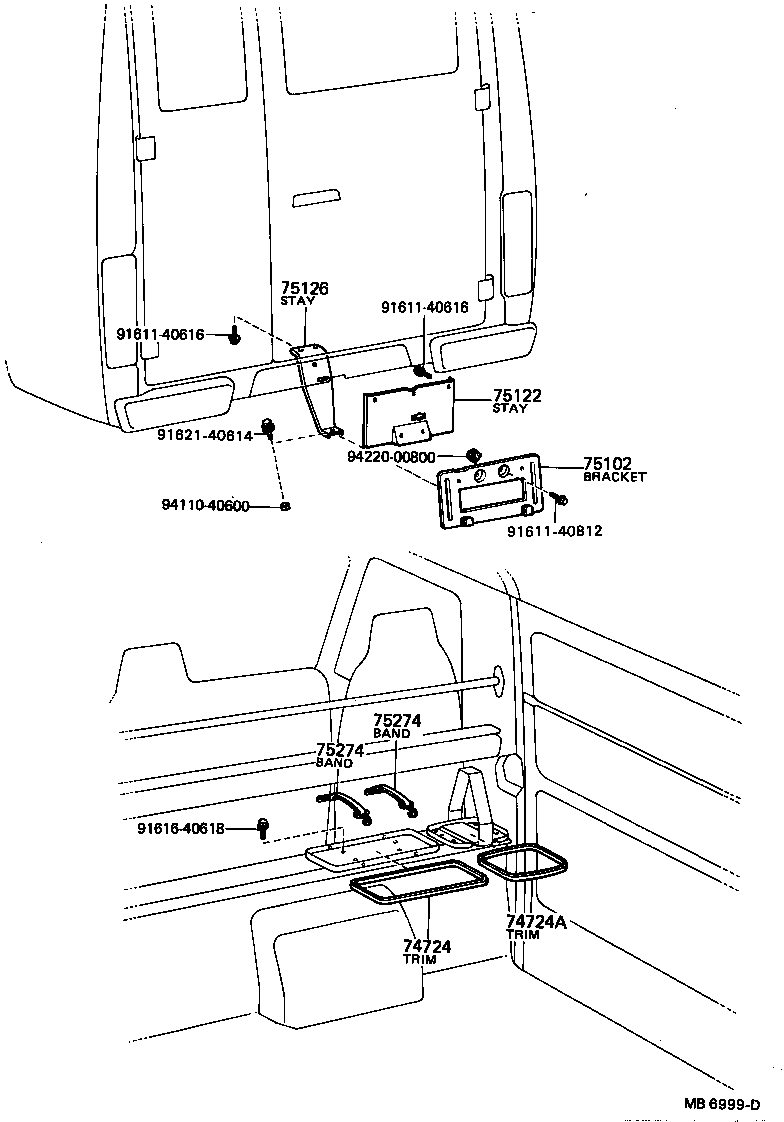

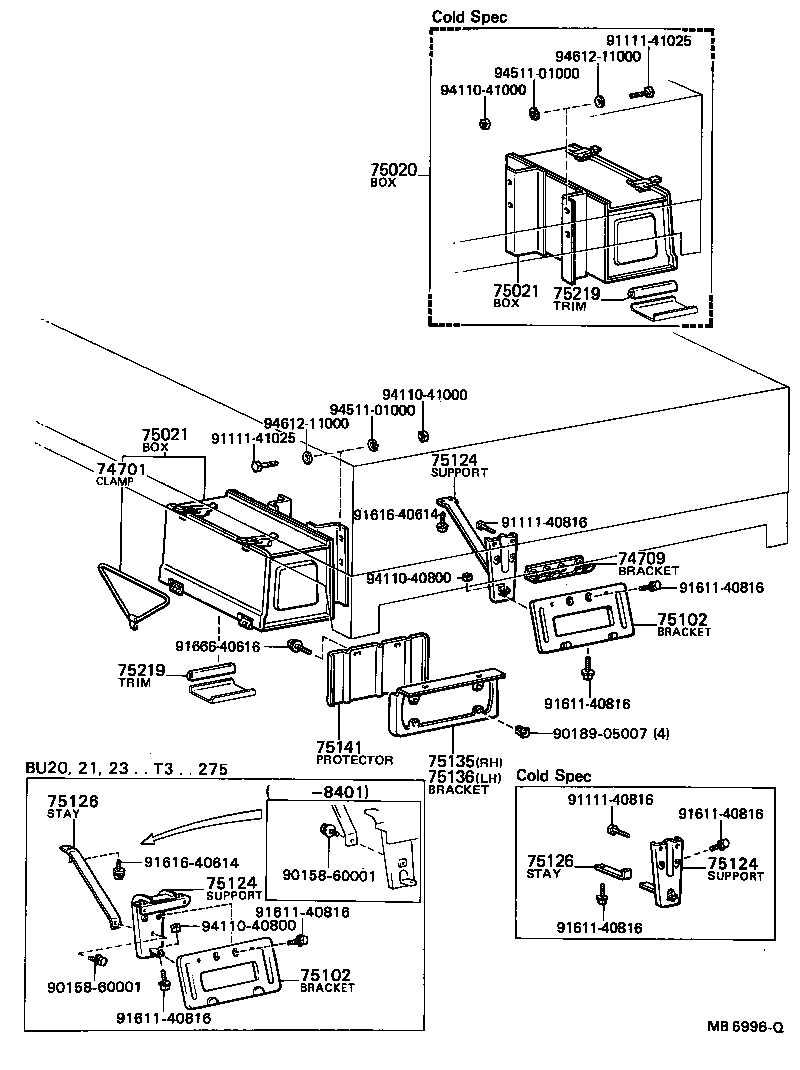

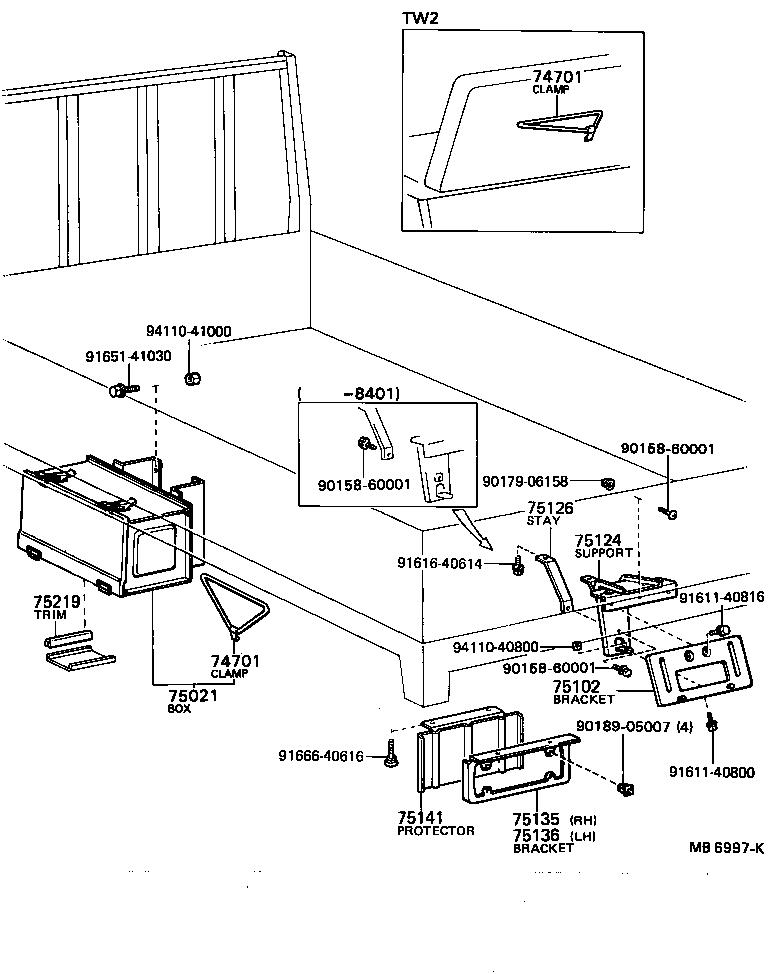

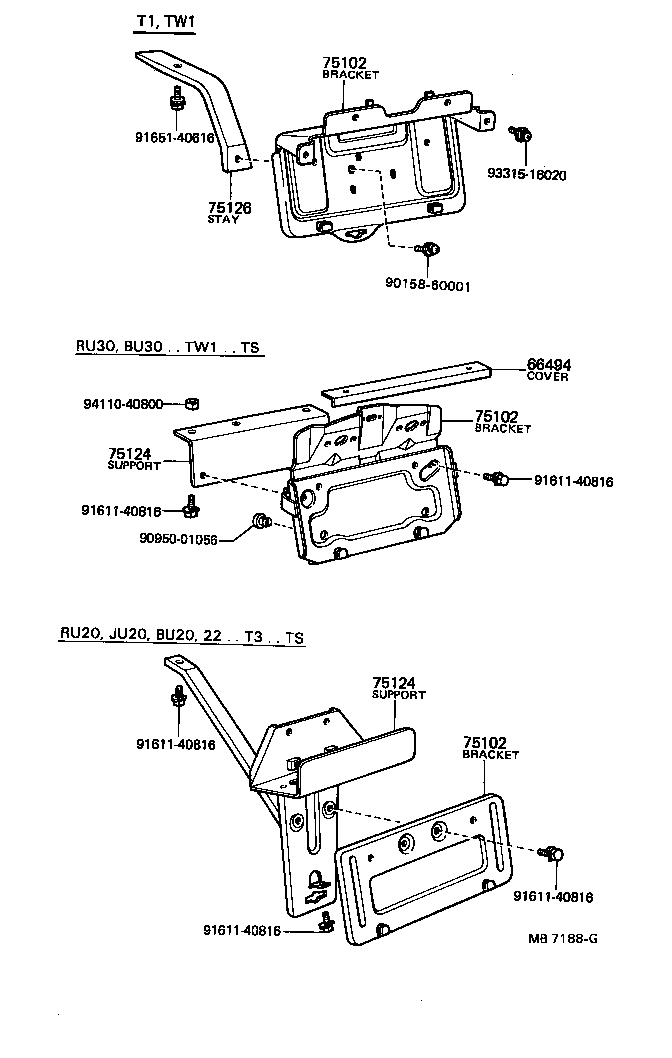

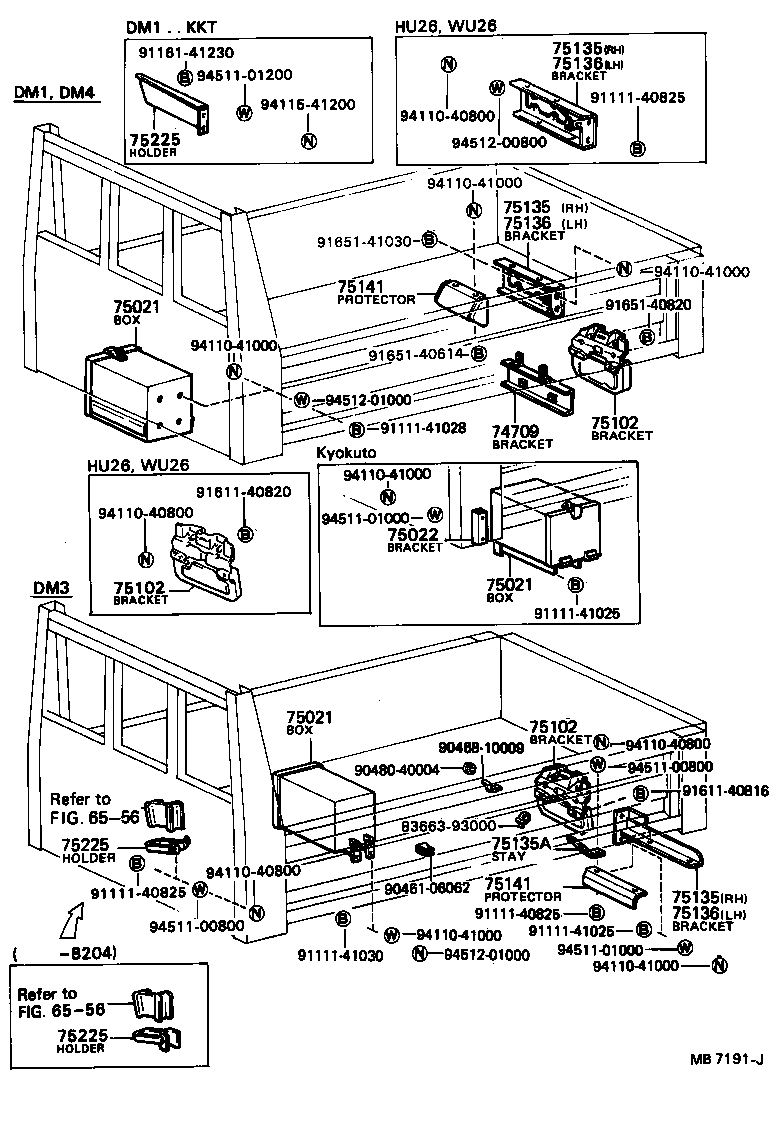

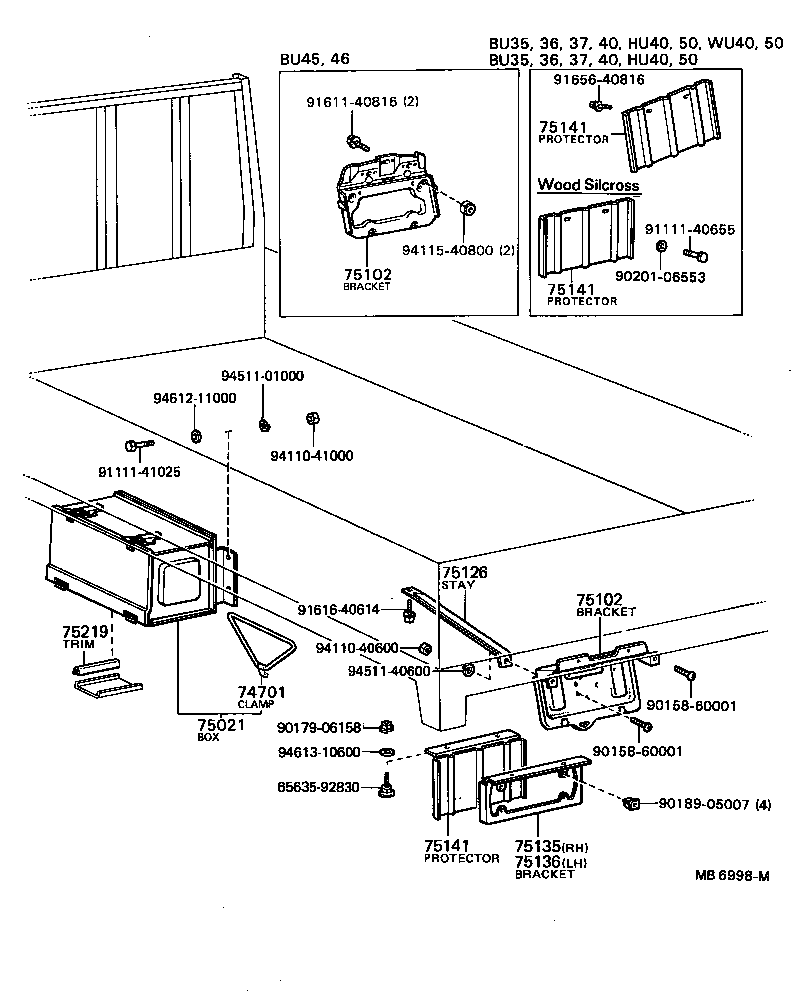

Tool Box & License Plate Bracket
23 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 66494 | Cover, License Lamp |
| 74701 | Clamp Sub-assy, Tool Bag |
| 74709 | Bracket Sub-assy, License Lamp |
| 74724 | Trim, Tool Back Platform |
| 74724A | Trim, Tool Jack Platform |
| 75020 | Box Assy, Tool |
| 75021 | Box Sub-assy, Tool |
| 75022 | Bracket, Tool Box |
| 75102 | Bracket Sub-assy, Rear License Plate |
| 75122 | Stay, Rear License Plate Bracket, Upper |
| 75124 | Support, Rear License Bracket |
| 75126 | Stay, Rear License Plate Bracket, Lower |
| 75135 | Bracket, Combination Rear Lamp, RH |
| 75135A | Stay, Combination Rear Lamp Bracket |
| 75136 | Bracket, Combination Rear Lamp, LH |
| 75137 | Bracket, License Plate Lamp |
| 75141 | Protector, Rear Combination Lamp |
| 75204 | Door Sub-assy, Tool Box |
| 75204A | Pin, Tool Box Door Hinge |
| 75219 | Trim, Cradle Jack |
| 75221 | Bracket, Tool Box |
| 75225 | Holder, Vessel Suppoter, NO.1 |
| 75274 | Band, Tool Box Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
