Toyota Dyna
1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan
Discontinued model
Data version 1985-03

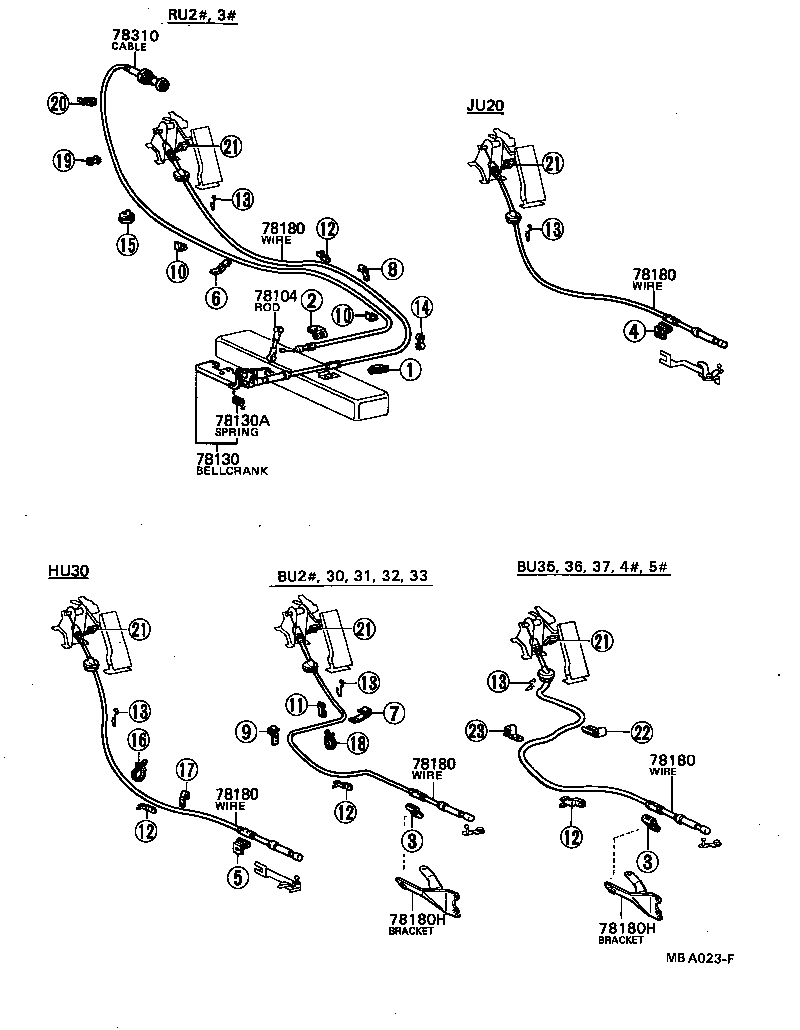

Accelerator Link
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 78111 | Pedal, Accelerator |
| 78166A | Spring, Clamp, NO.1 |
| 78180 | Wire Assy, Accelerator |
| 78180H | Bracket, Accelerator Control Cable |
| 78181 | Bearing, Accelerator Pedal Rod Support |
| 78184B | Bracket, Accelerator Control Cable |
| 78406A | Nut, Holder (FOR THROTTLE BUTTON) |
| 78410 | Cable Assy, Throttle Control |
| 78410C | Knob, Throttle Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
